Case W121 Roller with Gasoline Engine Parts Catalog (H15735) (December 1980)
Case W121 Index:
A
Adapter — Motor Drive: 7
Adjusting Assembly — Brake: 45
Air Cleaner: 21
Air Cleaner Element: 21
Axle: 7
B
Battery: 27
Battery Cable: 27
Bearing Block — Rear Roller: 5
Bearing Cage — Front Roller: 11
Bearing — Clutch: 13
Bearing — Rear Roller: 7
Bearing — Steering Column: 29
Bearing — Steering System: 29
Bearing — Vibrator: 43
Belt — Clutch: 13
Belt — Idler: 13
Boot — Brake Cable: 31
Brake: 31, 45
Brake Adjusting Assembly: 45
Brake Cable: 31
Brake Cable Boot: 31
Brake Drum: 31
Brake Handle: 31
Brake Shoes: 45
Brake System: 31
Buffer — Rear Roller: 5
Bulb — Oil Temperature Light: 25
C
Cable — Battery: 27
Cable — Brake: 31
Cable — Ground: 27
Cable — Choke: 23

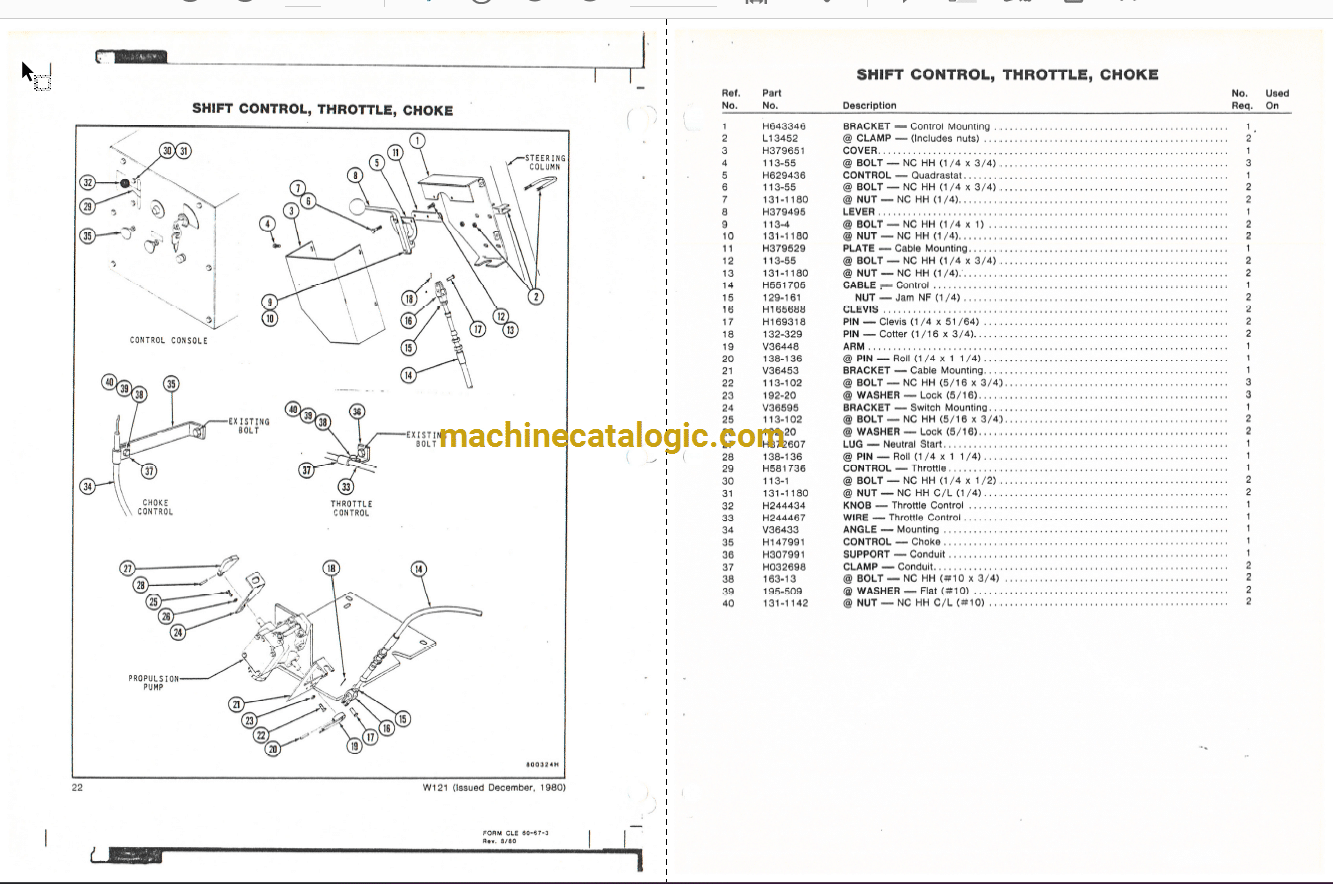

Cable — Shift Control: 23
Cable — Throttle: 23
Cap — Fuel: 17
Cap — Water: 17
Case — Manual: 3
Choke Control: 23
Cleaner — Air: 21
Clutch: 13
Clutch Bearing: 13
Clutch Belt: 13
Clutch Pulley: 13
Column — Steering: 29, 53
Console Panel: 33
Control — Choke: 23
Control — Quadrastat: 23
Control — Shift: 23
Control — Throttle: 23
D
Decals: 55
Dipstick — Engine Oil: 13
Drive Adapter — Motor: 7
Drive Gear — Rear Roller: 7
Drive U-Joint, Pump: 15, 47
Drum — Brake: 31
E
Electrical System: 21
Element — Air Cleaner: 21

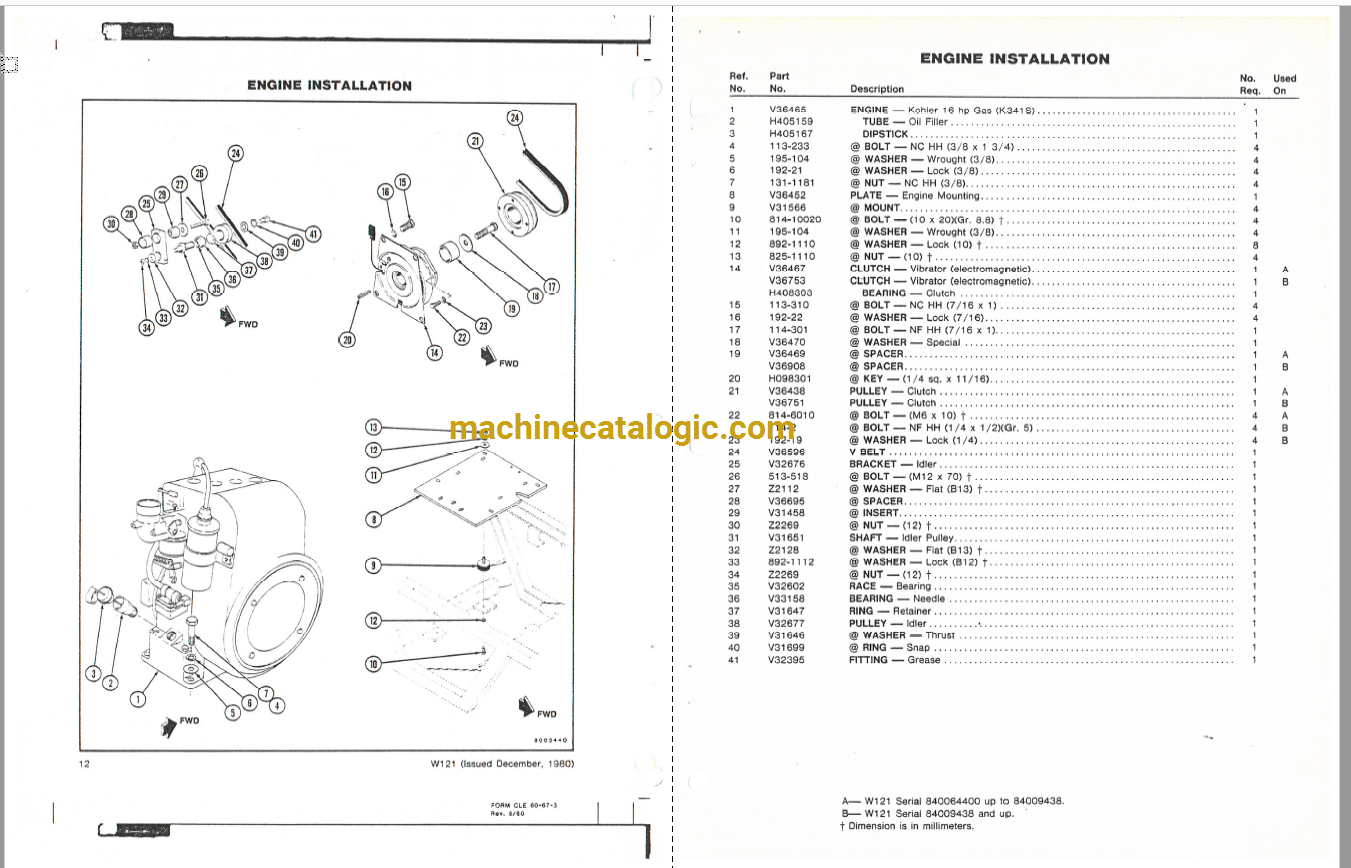

Engine: 13
Engine Mount: 13
Engine Oil Dipstick: 13
F
Fan — Hydraulic Oil Cooler: 39
Fan Motor — Hydraulic Oil Cooler: 39
Filter Tube — Oil: 13
Filter — Fuel: 17
Floor: 3
Frame: 3
Front Roller: 11
Front Roller Bearing Cage: 11
Front Roller Plug: 11
Front Roller Scraper: 11
Front Roller Support: 11
Fuel Filter: 17
Fuel Line: 17
Fuel Tank: 17
Fuel Tank Cap: 17
Fuse: 25
G
Gaskets — Steering Column: 53
Gaskets — Vibrator: 43
Gear — Drive, Rear Roller: 7
Gear — Rim, Rear Roller: 23
Gear — Vibrator: 43
Ground Cable: 27
Guard — Hose: 41
H
Handle — Brake: 31
Handle — Shift Control: 23
Harness — Wire: 25
Holder — Fuse: 25
Hood: 3
Hose Guard: 41
Hydraulic Oil Cooler: 39
Hydraulic Oil Cooler Fan: 39
Hydraulic Oil Cooler Fan Motor: 39
Hydraulic Oil Tank: 37
Hydraulic System: 41
I
Idler — Belt: 13
Idler — Pulley: 25
Ignition Switch: 25
J
Joint — Pump Drive U-Joint: 15, 47
K
Key: 25
Knob — Control: 23
Knob — Steering: 29
L
Latches: 3
Lever — Brake: 31
Lever — Shift Control: 23
Light — Oil Temperature: 25
Light — Oil Temperature Bulb: 25
Line — Fuel: 17
M
Manual Case: 3
Moulding: 3
Motor — Cooling Fan: 39
Motor Drive Adapter: 7
Motor — Propulsion: 15, 47
Mount — Rear Roller: 5, 7
Mount — Engine: 13
Mount — Seat: 3
Muffler: 19
N
Neutral Start Switch: 25
O
Oil — Cooler Fan, Hydraulic: 39
Oil — Cooler, Hydraulic: 39
Oil Filler Tube: 13
Oil — Tank, Hydraulic: 37
Oil Temperature Light: 25
Oil Temperature Sensor: 25
P
Panel — Console: 33
Plug — Front Roller: 11
Propulsion Motor: 15, 47
Propulsion Pump: 15, 47
Pump Drive U-Joint: 15, 47
Pump — Propulsion: 15, 47
Pulley — Clutch: 13
Pulley — Idler: 25
Pulley — Vibrator: 43
Q
Quadrastat Control: 23
R
Rear Axle: 7
Rear Roller: 5, 7
Rear Roller Bearing: 7
Rear Roller Bearing Block: 5
Rear Roller Buffer: 5
Rear Roller Mount: 5
Rear Roller Scrapers: 9
Rim Gear — Rear Roller: 7
Roller — Front: 11
Roller — Rear: 5, 7
S
Scraper — Front Roller: 11
Scrapers — Rear Roller: 9
Sensor — Oil Temp: 25
Serial Plate Location: 3
Shaft — Vibrator: 43
Shift Control: 23
Shoes — Brake: 45
Solenoid: 25

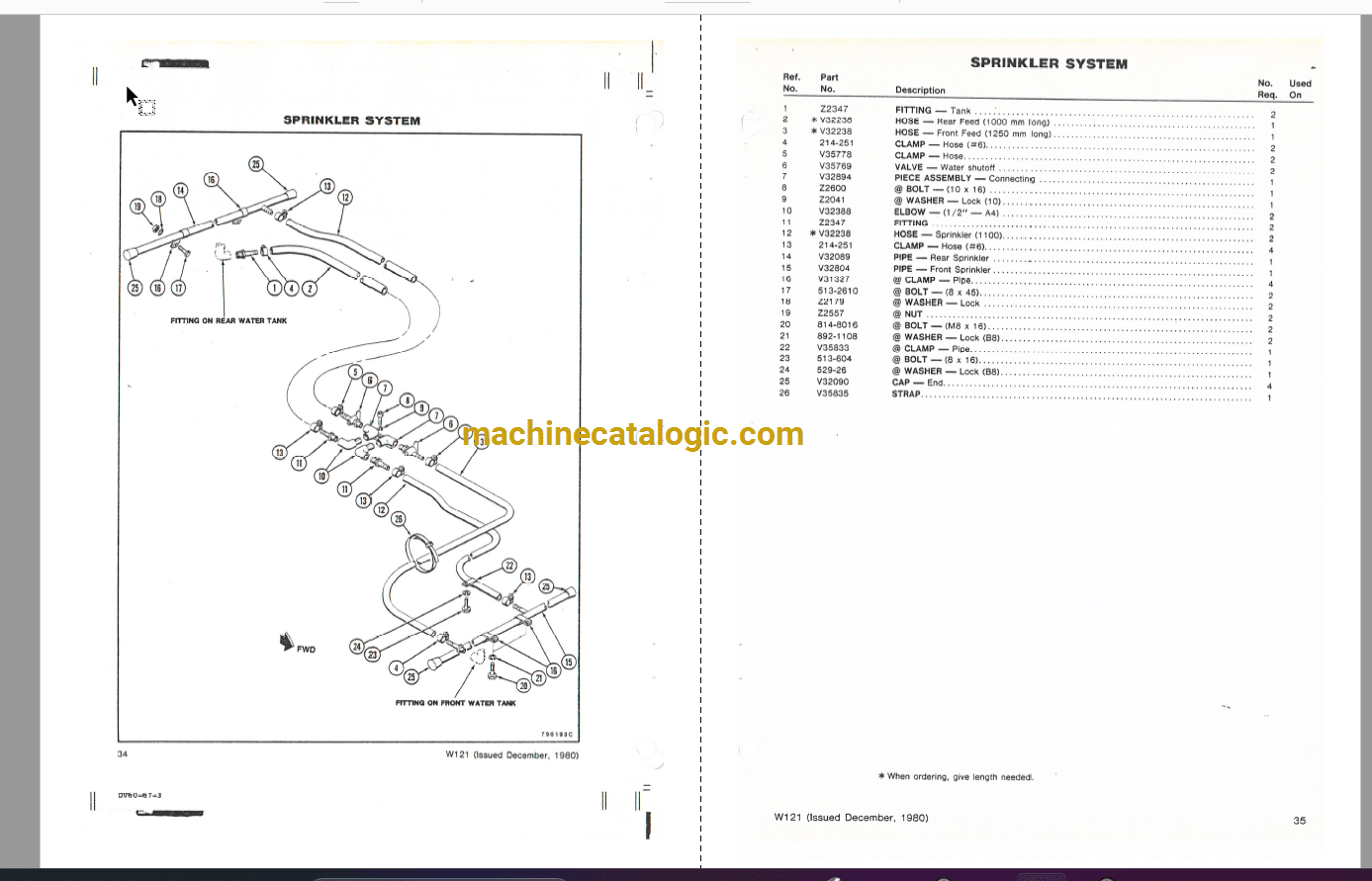

Sprinkler System: 35
Start Switch — Neutral: 25
Steering Column: 29, 53
Steering Knobs: 29
Steering System: 29
Steering Wheel: 29
Strainer — Water: 33
Support — Front Roller: 11
Switch — Ignition: 25
Switch — Neutral Start: 25
Switch — Vibrator: 25
System — Brake: 31
System — Electrical: 21
System — Hydraulic: 41
System — Sprinkler: 35
System — Steering: 29
T
Tank — Fuel: 17
Tank — Hydraulic Oil: 37
Tank — Water: 33
Temperature Light — Oil: 25
Temperature Sensor — Oil: 25
Tube — Oil Filter: 13
U
U-Joint — Pump Drive: 15, 47
V
Valve — Water: 35
Vibrator: 43
Vibrator Bearing: 43
Vibrator Gasket: 43
Vibrator Gears: 43
Vibrator Pulley: 43
Vibrator Shaft: 43
Vibrator Switch: 25
W
Water Strainer: 33
Water Tanks: 33
Water Valves: 35
Wheel — Steering: 29
Wire — Harness: 25
