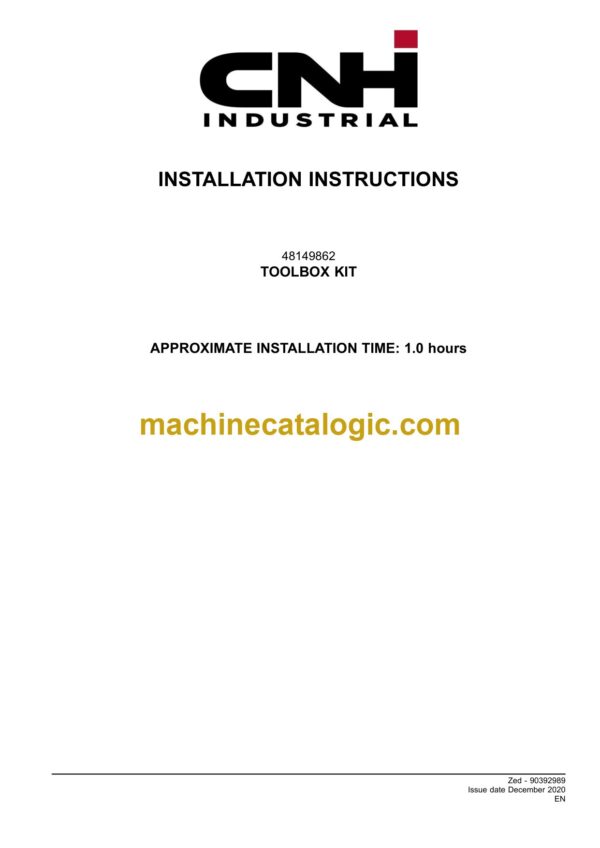

CNH Toolbox Kit İnstallation Instructions

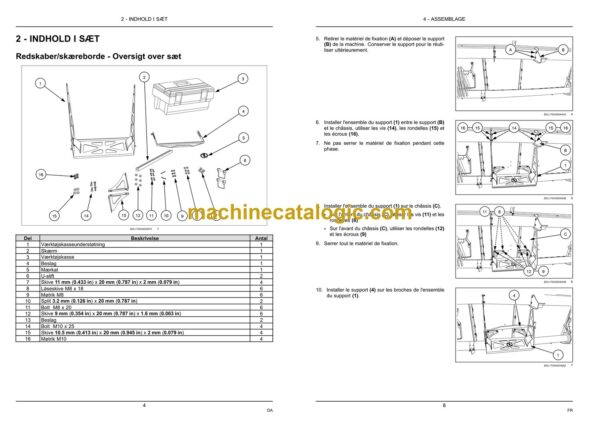

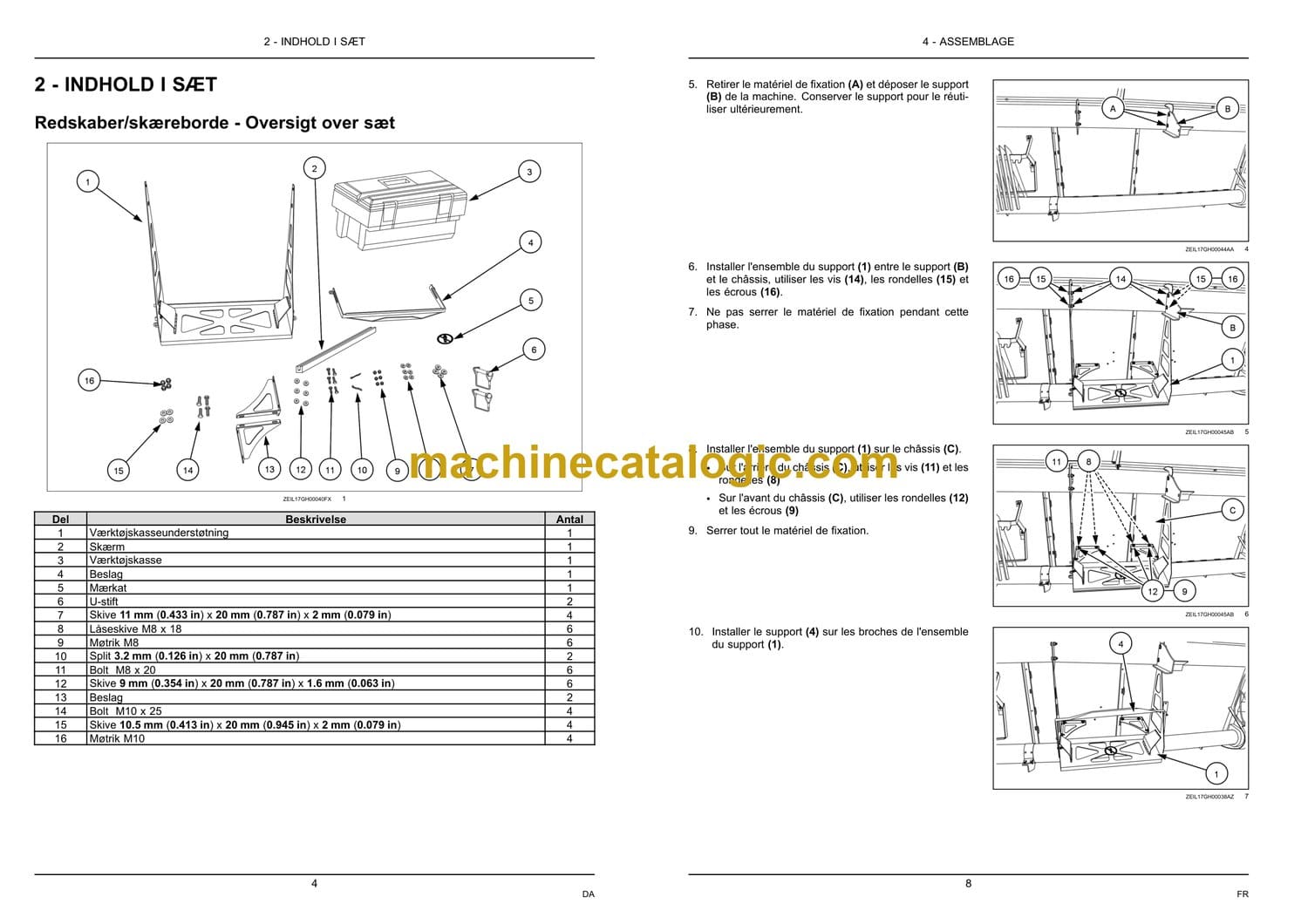

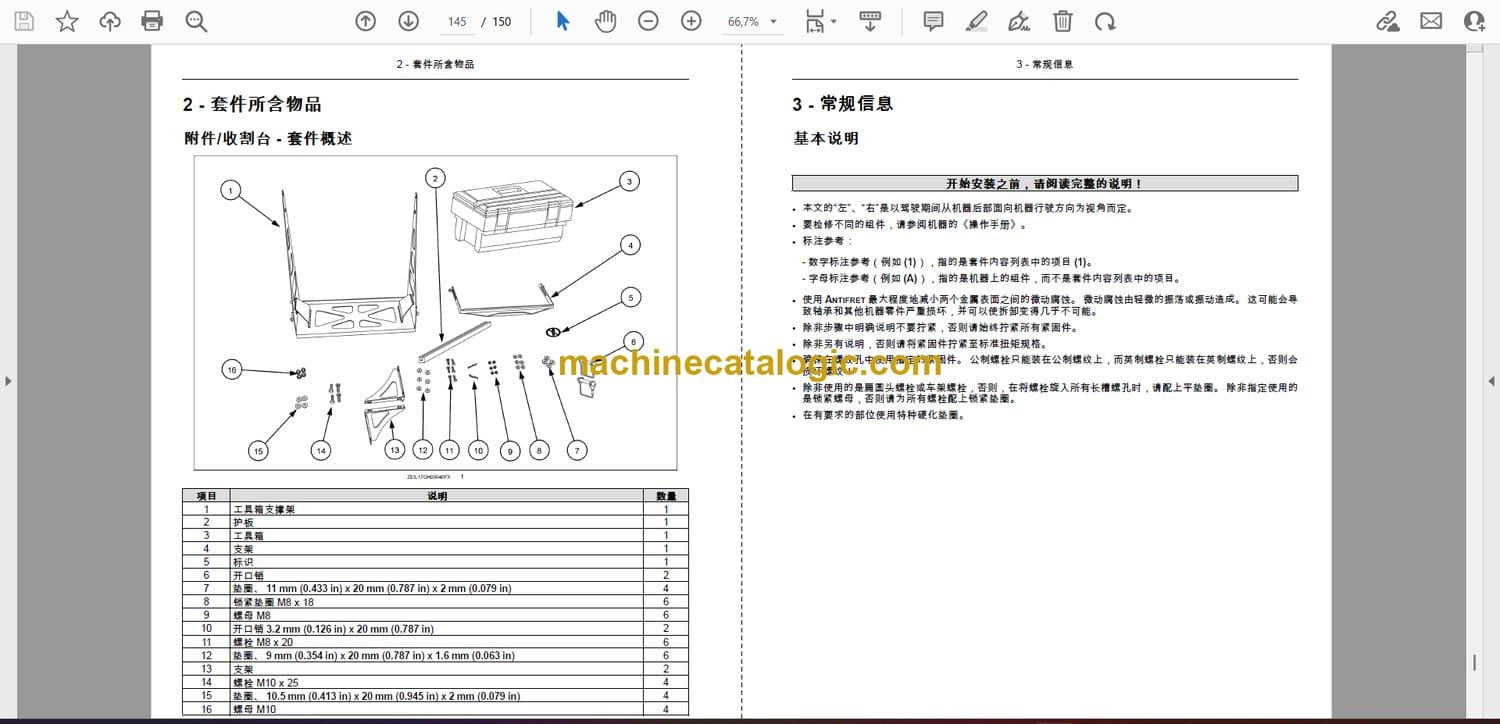

CNH Toolbox Kit Index:

Item Description Quantity
1 Toolbox support 1
2 Guard 1
3 Toolbox 1
4 Bracket 1
5 Decal 1
6 U-pin 2
7 Washer 11 mm (0.433 in) x 20 mm (0.787 in) x 2 mm (0.079 in) 4
8 Lock washer M8 x 18 6
9 Nut M8 6
10 Cotter pin 3.2 mm (0.126 in) x 20 mm (0.787 in) 2
11 Bolt M8 x 20 6
12 Washer 9 mm (0.354 in) x 20 mm (0.787 in) x 1.6 mm (0.063 in) 6
13 Bracket 2
14 Bolt M10 x 25 4
15 Washer 10.5 mm (0.413 in) x 20 mm (0.945 in) x 2 mm (0.079 in) 4
16 Nut M10 4

CNH

48149862 – TOOLBOX KIT
CASE IH
3050 30FT 3000 VARIFEED G
3050 3050 Heavy-duty Varifeed™ grain
header 9.1 m (30 ft) [8190 – ]
3050 35FT 3000 VARIFEED G
3050 3050 Heavy-duty Varifeed™ grain
header 10.7 m (35 ft) [8190 – ]
3050 25FT 3000 LW VARIFEE
3050 3050 Heavy-duty Varifeed™ grain
header 7.6 m (25 ft) [8190 – ]
3050 40FT 3000 VARIFEED G
3050 3050 Heavy-duty Varifeed™ grain
header 12.5 m (41 ft) [8190 – ]
3050 28 ft VariCut header
3050 3050 Heavy-duty Varifeed™ grain
header 8.5 m (28 ft) [8190 – ]
NEW HOLLAND
760CG 30FT VARIFEED G
760CG Heavy-duty Varifeed™ grain header
9.1 m (30 ft) [8190 – ]
760CG 35FT VARIFEED G
760CG Heavy-duty Varifeed™ grain header
10.7 m (35 ft) [8190 – ]
760CG 25FT 800C LW VARIFEE
760CG Heavy-duty Varifeed™ grain header
7.6 m (25 ft) [8190 – ]
760CG 40FT VARIFEED G
760CG Heavy-duty Varifeed™ grain header
12.5 m (41 ft) [8190 – ]
760CG 28 ft Varifeed™ header
760CG Heavy-duty Varifeed™ grain header
8.5 m (28 ft) [8190 – ]
