Bobcat Service Analyzer V92.10 Diagnostic Software 06.2024

BOBCAT SERVICE ANALYZER LATEST Version

Bobcat Diagnostic Software contains a tool for programming and diagnosing the Bobcat technique. Diagnostic tools Bobcat helps you find out whether there is a problem with our equipment and solve it in time with the diagnostic tool to avoid potential danger. This software will allow you to familiarize yourself with the various technical information and functions of this program, with which you can correctly diagnose your equipment and prevent premature breakdowns.

SERVICE ANALYZER (92.10)

Bobcat Service Analyzer Function List:

Diagnostic tools Bobcat is intended for programming, diagnostic, service log, and calibration:
– Software updates
– Change SN/Options
– Clear Controller Data.
– Drive pump calibration status
– Panel
– Remote Control
– System

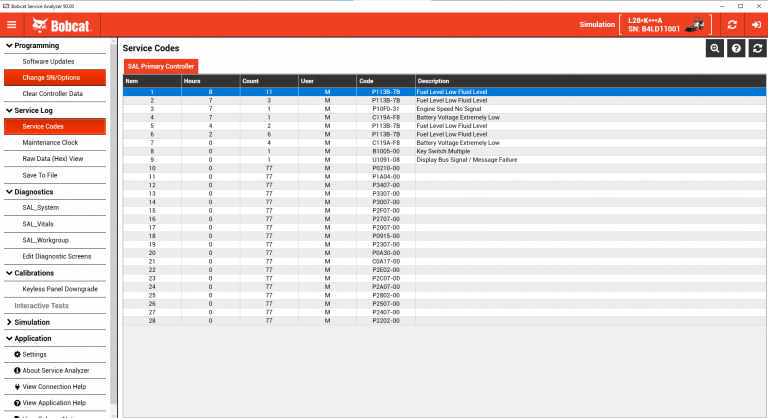

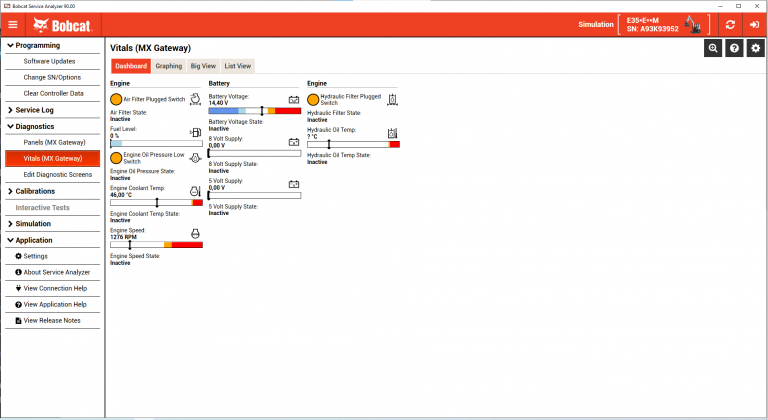

– Vitals,

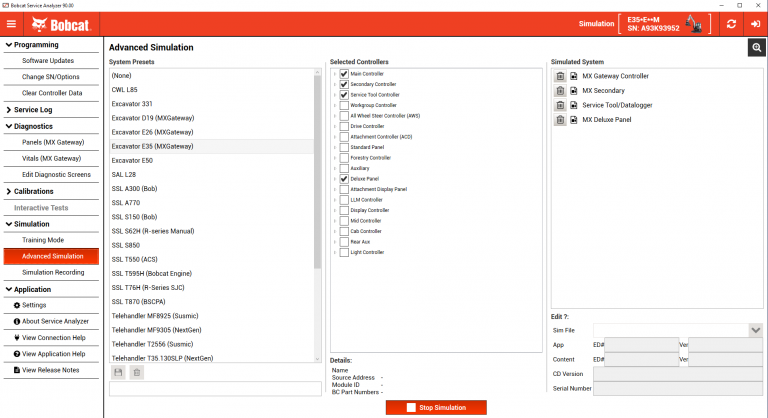

– Edit diagnostic screens
– Interactive tests and etc.

Release Note:

Service Analyzer V90.00 – 13 Jan 2022

1. Fix to Compact Wheel Loader attachment
interface not functioning correctly.

Service Analyzer V89.12 – 09 Sep 2021

1. New CWL Hub/Workgroup/Drive Software (V1.2)
a. Attachment Mode Enhancements
– Increased travel speed to 20kmh/12.4mph
– Improved engine horsepower management
– Quicker Forward/Reverse transitions
– Quicker vehicle movement when using very slow
speed limits

b. Derating and Thermal
– Increased hydraulic oil temperature derating
start from 96C/204.4F to 98C/208.4F
– Increased Air Intake Temperature derating start
from 48C/118.4F to 60C/140F
– Increased Air Intake Cooling Fan start point
from 53C/127.4F to 55C/131F

c. Park brake does not need to be released to engage/release
differential lock

d. Power Exchange Unlock time increased from 5 seconds
to 30 seconds

e. Increased Aux flow at maximum paddle position

f. Smoother inching pedal response in attachment mode
and standard mode

g. Smoother workgroup lift response

h. Faster automatic park brake response on slope

2. New R-Series Compact Excavator Primary Controller
Software (V4.9)
a. Fixes issue with “COLD” message persisting.

3. Increased debounce time value to avoid No Communication faults
(K42/43/4404) with TLS R-Series Road Lights and Wipers levers.

4. Fix Frame Leveling wrongly enabled on the following machines:
– T35.130S: B54R11001+
– T35.140S: B54T11001+

BOBCAT SERVICE ANALYZER (Bobcat Diagnostic Software)

***********************************************
Service Analyzer V89.11 – 16 Aug 2021

1. Support added for Toolcat H-Series
a. Toolcat H-Series Hub Software (V1.0)

b. Toolcat H-Series Cab Software (V1.0)

c. Toolcat H-Series Pump Software (V1.0)

d. Toolcat H-Series Rear Software (V1.0)

e. Toolcat H-Series Standard Display (V1.25.5)

f. Support added for the following machines
– UW53T***H: B4RD11001+
– UW56T***H: B4RC11001+

2. R-Series Loader Standard Display Software (V1.28.5)
a. Support added for the following machines:
– S66L***A: B5FA11001+
– S76L***A: B5FB11001+
– T66L***A: B5FC11001+
– T76L***A: B5FD11001+

b. Updated translations and improved text resizing

c. Updated fault codes

d. Improved startup time

e. Reduce nuisance no communication faults

f. Fixed issue with display becoming unresponsive
when on machine performance screen

g. Fixed issue with service icon not showing coming
out of a suspend

h. Fixed issues with service clock
– changing service clock created service log
– service interval not saving on a boot
– change limits so service interval rate can
be set lower only with a minimum of 10 hours

i. Fixed issues with setting and saving steering drift

j. Added Service Mode feature

k. Added ability to adjust auto lockout time

l. Display remote control indicator when remote control is
active and controlling machine

3. R-Series Loader Touch Display Software (V2.19.3)
a. Support added for the following machines:
– S66L***A: B5FA11001+
– S76L***A: B5FB11001+
– T66L***A: B5FC11001+
– T76L***A: B5FD11001+

b. Added Service Mode feature

c. Display remote control indicator when remote control is
active and controlling machine

d. Attachment hours viewable on attachment screen for
supported attachments

e. Added support for Tree Spade screen

f. Update fault codes

g. Fixed issue where operator settings were
not being restored correctly coming out
of suspend

4. Compact Excavator Touch Display Software (V2.20.2)
a. Update to fault codes

b. Resolved issue where operator settings, such
as auto idle, were not being restored correctly
coming out of suspend

c. Require attachment calibration before applying
attachment rotation offset for depth check

d. Resolved issue with depth check long arm support

e. Improved system stability

f. Added support for machines with Kubota engine

g. Updated service intervals for EMEA machines
equipped with the Bobcat V2 engine.

***********************************************
Service Analyzer V89.10 – 9 July 2021

1. Adds Touch Display support for 3T R2 Excavators
– E32*GA*R: B57811001+
– E35*GA*R: B57911001+
– E35*JA*R: B4P311001+

2. New TLS Cab Controller Software (V1.02)
a. Fix the Lateral Wiper keypad button’s LED control.

***********************************************
Service Analyzer V89.09 – 5 July 2021

1. New Grader Attachment Software (V8.11)
a. Adds support for LR-410 laser receiver.

2. New R-Series Lights Controller Software (V1.5)
a. Corrected nuisance B1035-14 – Rear Marker Light Short
to Ground or Open Circuit Fault from occurring

b. Corrected issue where license plate light
and turn signal options could not be installed
separately, else neither would work.

3. New Telehandler software. Gateway (V7.00),
Drive (V7.00), Workgroup (V7.00), Cab (V1.01),
Auxiliary (V5.40), Standard Display Software (V1.28.6)
Touch Display Software (V2.19.3)
a. Support for R-Series Models.
– TL30.60: B3G418001+, B3G718001+,
B3G918001+, B3GB18001+,
B4ZJ18001+, B4ZP18001+,
B54D11001+, B54B11001+
– TL26.60: B3G618001+, B3G818001+,
B3GA18001+, B3GC18001+,
B4ZN11001+, B4ZR11001+,
B54E11001+, B54C11001+
– TL30.70: B4AY18001+, B4AZ18001+,
B4ZT11001+, B4ZU11001+,
B54H11001+, B54J11001+
– TH.6030: B3GD18001+, B3GE18001+,
B3GF18001+, B3GG18001+,
B54F11001+, B54G11001+
– TH.7030: B54K11001+, B54L11001+
– TL34.65HF: B54W11001+, B54Y11001+
– TL35.70: ANL718001+, ANMG18001+,
AVM118001+, AVM618001+,
B55211001+, B55311001+
– TL38.70HF: AVDV18001+, AVKJ18001+,
AHT418001+, AVKM18001+,
B55711001+, B55811001+
– TL43.80HF: B4BT18001+, B4BU18001+,
B5E611001+, B5E711001+
B5E811001+
– TH.6534: B54Z11001+, B55111001+
– TH.7035: AR3918001+, AR3D18001+,
B3C418001+, B3C518001+,
B55411001+, B55511001+
– TH.8043: B4BV18001+, B4BW18001+,
B5E911001+, B5EA11001+,
B5EB11001+
– T35.105: B3GN18001+, B4ZV18001+,
B54M11001+
– T35.105L: B3GP18001+, B51118001+,
B54N11001+
– T36.120SL: B3GS18001+, B3GT18001+,
B51218001+, B54P11001+
– T35.130S: B3KS18001+, B51318001+,
B54R11001+
– T35.130SLP: B3KT18001+, B51418001+,
B54S11001+
– T35.140S: B3KU18001+, B51518001+,
B54T11001+
– T41.140SLP: B1CT18001+, B51618001+,
B54U11001+
– T40.180SLP: B33G18001+, B33W18001+,
B51718001+, B54V11001+

4. Support added for S590L*D*A: B4U911001+.

5. Add “R-Series Transmission” option to apply
R-series transmission settings on following
ST4 machines:
– TL34.65HF: B41N11001+, B41P11001+
– TH.6534: B41R11001+, B41S11001+
– TL35.70: B3ZS11001+, B3ZT11001+
– TH.7035: B3ZZ11001+, B41111001+
– TL38.70HF: B3ZU11001+, B3ZV11001+
– TH.7038: B41211001+, B41311001+
– TL43.80HF: B4BY11001+, B4BZ11001+, B4P711001+
– TH.8043: B4C111001+, B4C211001+, B4P811001+

6. Add “Idle Boom Performance” option to allow
full main valve command at idle speed on
following machines:
– TL34.65HF: B41N11001+, B41P11001+
– TH.6534: B41R11001+, B41S11001+
– TL38.70HF: B3ZU11001+, B3ZV11001+
– TH.7038: B41211001+, B41311001+
– TL43.80HF: B4BY11001+, B4BZ11001+, B4P711001+,
– TH.8043: B4C111001+, B4C211001+, B4P811001+

***********************************************
Service Analyzer V89.08 – 21 June 2021

1. New R-Series Loader Hub Software (V1.28)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

b. Adds remembering auto reversing fan
state through key cycle.

c. Fixes issue where brake not applied
during alternator voltage high fault
on manual machines.

d. Adds reoccurring beeps that occur when
communication is lost to the display.

e. Extends time before shutting down after
communication is lost to the display.

f. Fuel level low fault no longer stored
in fault log.

g. Fixes nuisance HVAC faults from being
reported during cold temperatures.

h. Updates voltage thresholds for Fuel
Pressure Sensor Out of Range faults.

i. Adds support for following machine
serial numbers:
– S66L***A: B5FA11001+
– T66L***A: B5FC11001+
– S76L***A: B5FB11001+
– T76L***A: B5FD11001+

j. Disables low battery faults during
engine start

k. Machine fault code history update:
– Removed nuisance and operational information codes
from the stored history
– Update to the Service Log Warnings and Shutdowns table:
– Removed irrelevant and no longer used codes
– Added relevant codes

l. Adds support for variable
aux flow on ACD attachments.

m. Adds Cooling Fan (R-Series) Diagnostic Screen.

n. Controller update logs will be read from R-series
controllers when saving Service Log File

2. New R-series Loader Drive Software (V1.7)
a. Fixes issue where forward speed limit user setting
limited reverse speed as well.

b. Machine fault code history update:
– Removed nuisance and operational information codes
from the stored history
– Update to the Service Log Warnings and Shutdowns table:
– Removed irrelevant and no longer used codes
– Added relevant codes

3. New R-Series Loader Workgroup Software (V1.15)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

b. Improve spool position fault detection
when entering float and during
actuator calibration

c. Disables low battery faults during
engine start

d. Machine fault code history update:
– Removed nuisance and operational information codes
from the stored history
– Update to the Service Log Warnings and Shutdowns table:
– Removed irrelevant and no longer used codes
– Added relevant codes

4. New R-Series Loader Cab Software (V1.9)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

b. Disables low battery faults during
engine start

c. Machine fault code history update:
– Removed nuisance and operational information codes
from the stored history
– Update to the Service Log Warnings and Shutdowns table:
– Removed irrelevant and no longer used codes
– Added relevant codes

5. New R-Series Loader Mid Software (V1.9)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

b. Disables low battery faults during
engine start

c. Machine fault code history update:
– Removed nuisance and operational information codes
from the stored history
– Update to the Service Log Warnings and Shutdowns table:
– Removed irrelevant and no longer used codes
– Added relevant codes

6. New R-Series Loader Rear Aux Software (V1.6)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

7. New R-Series Loader Road Lights Software (V1.4)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

8. R-Series Compact Excavator Standard Display
Updates
a. Correction to hiding of engine and fuel priming status
icons for certain machines that was implemented in
Serivce Analyzer V89.07.

Icon shown on:
– E50ZL*ER: B4HT11001+
– E55ZL*ER: B4HU11001+

Icon not shown on:
– E50ZF**R B4TC11001+
– E55ZF**R B4TD11001+

b. Keypad Password Entry enabled for the following
machines:
– E50ZL*ER: B4HT11001+
– E50ZF**R: B4TC11001+
– E55ZL*ER: B4HU11001+
– E55ZF**R: B4TD11001+
– E60*L*ER: B4HV11001+
– E88*L*ER: B4NL11001+

***********************************************
Service Analyzer V89.07 – 16 Jun 2021

1. Adds Aux1/Aux4 option for the following R-Series
compact excavators:
– E50ZL*ER: B4HT11001+
– E55ZL*ER: B4HU11001+
– E60*L*ER: B4HV11001+

2. New R-Series Compact Excavator Secondary controller
Software (V2.6)
a. Direct to Tank valve on whenever auxiliaries are
activated.

3. New R-Series Compact Excavator Standard Display
Software (V1.25.6)
a. Depth Check Improvements
– Improve the arm calibration process for machines
with no extended arm option

– Require attachment calibration before attachment
rotation offset can be set

– Fix issue where system would not function as expected
for extended arm machines after intial arm calibration

b. Add support for Warning/Critical Vital Types (change color
of icon when in a warning level)

c. Add support for keypad password entry

d. Fixed issue where multiple triple beeps may result from
one fault code

e. Removed showing paws prints on password entry for Doosan
branded machines

f. Hide engine and fuel priming status icons for certain
machines.
– E50ZL*ER: B4HT11001+
– E55ZL*ER: B4HU11001+

g. Add adjustable auto lock time

***********************************************
Service Analyzer V89.06 – 27 Apr 2021

1. New CWL Hub/Workgroup/Drive software – V1.1
a. Option Changes
– Adds Backup Alarm
– Separates German Brake option from 30kmh option
– Renames “ACD Keypad” option to “ACD”

b. Fixes issue where ride control relay
could rapidly cycle with empty bucket

2. Rolled back R-Series Loader software update
from V89.05.

***********************************************
Service Analyzer V89.05 – 19 Apr 2021

1. New R-Series Loader Hub Software (V1.26)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

b. Adds remembering auto reversing fan
state through key cycle.

c. Fixes issue where brake not applied
during alternator voltage high fault
on manual machines.

d. Adds reoccuring beeps that occur when
communication is lost to the display.

e. Extends time before shutting down after
communication is lost to the display.

f. Fuel level low fault no longer stored
in fault log.

g. Fixes nuisance HVAC faults from being
reported during cold temperatures.

h. Updates voltage thresholds for Fuel
Pressure Sensor Out of Range faults.

2. New R-Series Loader Workgroup Software (V1.14)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

b. Improve spool position fault detection
when entering float and during
actuator calibration

3. New R-Series Loader Cab Software (V1.8)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

4. New R-Series Loader Mid Software (V1.8)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

5. New R-Series Loader Rear Aux Software (V1.6)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

6. New R-Series Loader Road Lights Software (V1.4)
a. Fixes issue where Machine IQ reported
false faults during machine shutdown
with lights on.

7. Throttle Pedal Reset added to Calibrations
in Service Anlayzer for R-Series Loaders to
reset throttle pedal calibration.

***********************************************
Service Analyzer V89.04 – 6 Apr 2021

1. New Toolcat Drive Software (V4.11)
a. Fixes issue where brake was dragging
with traction control active.
– 5600T***F: A94Y14000+
– 5610T***F: APFB12000+
– 5600T***G: AHG811001+
– 5610T***G: B2LH11001+

2. Support for Compact Wheel Loader drive
calibration.

3. Updated M-Series Loader Vitals Diagnostic
screens by adding the following values:
– Fuel Filter Pressure, state

***********************************************
Service Analyzer V89.03 – 11 Mar 2021

1. Support added for Compact Wheel Loader (CWL)
– L65*H*D*A: B53D11001+
– L75*L*DEA: B53B11001+
– L85*H*D*A: B53C11001+
– L85*L*DEA: B53A11001+

a. Hub Controller (V1.0)

b. Drive Controller (V1.0)

c. Workgroup Controller (V1.0)

d. Standard Display (V1.22.0)

***********************************************
Service Analyzer V89.02 – 8 Mar 2021

1. Eliminate intermittent H3948 Multiple Joystick
fault that can occur during cold cranking on
M-Series loaders.

2. New M-Series Loader Auxiliary Software (V5.03)
a. Updated Fuel Lift Pump Control for Bobcat V1
Engines
– T770H***B: AT6330000+
– T740H***A: B3CA21000+
– S770H***B: AT5A17000+
– T870H***C: B47C18000+
– S740H***A: B3BT19000+
– S850H***C: B47715000+
– T770H**EB: B3BW16000+
– S770H**EB: B3BV14000+
– T870H**EC: B47L14000+
– S850H**EB: B3BY14000+

***********************************************
Service Analyzer V89.01 – 11 Feb 2021

1. Update Aux2 and Aux4 flow settings and load
moment setting for the following R-Series
compact excavators:
– E50ZL*ER: B4HT11001+
– E50ZF**R: B4TC11001+
– E55ZL*ER: B4HU11001+
– E55ZF**R: B4TD11001+
– E60*L*ER: B4HV11001+

2. Adds options for High Flow, and Electric Aux
and Offset to the following Compact Excavator:
– E17ZK*CM: B4ZM11001+

3. Adds engine diagnostic screen for Compact
Excavators.

4. New M-Series Loader Workgroup Software (V11.13)
a. Fixes issue with intermittent W3276 fault.

5. Adds support for new M-Series Loader Workgroup
controller P/N 7314576.

6. New Attachment Controller (SACD) Software (V1.3)
a. Adds support for Super Flow attachments.

b. Adds support for the following attachments:
– 72SCH: S6TE00001+
– 72SCHHF: A6TD00001+
– 84SCH: A6TG00001+
– 84SCHHF: A6TH00001+
– SB26X36: B53M00001+
– SB26X48: B53N00001+
– SB26X56: B53P00001+
– SB32X60: B55P00001+
– SB32X68: B53H00001+
– SB32X74: B53G00001+
– SB32X80: B53J00001+
– SB32X86: B55V00001+
– SB36X86: B53K00001+
– SB36X96: B53L00001+
– FRC50: B57M00001+
– FRC61_1SPD: B5CB00001+
– FRC61_2SPD: B57L00001+
– FRC72: B5CA00001+
– SG60: 233000001+
– SG60X: A00700001+
– VBLADE60: 084300001+
– VBLADE72: 083900001+
– VBLADE84: 084000001+
– VBLADE96: 084100001+
– VBLADE108: 084200001+
– BACKHOE: 074600001+
– DOZER80: 232100001+
– DOZER90: 231900001+
– DOZER96: 224400001+

7. Update for the following M-Series loaders
to show “PRIME” on display when fuel system
is priming:
– S450H*D*C: B4RH11001+
– T450H*D*B: B4RG11001+
– S510H*D*B: B4RE11001+
– S590H*D*B: B4RF11001+
– T550H*D*A: B57T11001+
– T595H*D*A: B57U11001+

8. Support for S590H*D*A move from Korea region
to North America region.
– B4TP11001 – B4TP12000: South Korea
– B4TP12001+ : North America

9. Support for new engine map files on the
following machines:
– E88*JA*R: B4NM11001+
– E88*L*ER: B4NL11001+

***********************************************
Service Analyzer V89.00 – 21 Jan 2021

1. New R-Series Compact Excavator Standard Display
Software (V1.16.4)
a. Improved display stability.

2. New R-Series Loader Standard Display
Software (V1.16.3)
a. Improved display stability.



Contact US
