Allison 3000 and 4000 Transmission Service Manual

The Allison 3000 and 4000 transmission sits between the engine and the driveline on cranes and other heavy machines, turning engine output into usable drive. When one comes out for service, the person with the wrench needs a clear sequence for pulling it, prepping it and putting it back. That's who reaches for a service manual: a tech doing the work in-house, often on a machine that's past warranty or came in with no paperwork.

What this manual helps you do

• Follow the removal sequence for the transmission before you break anything loose.
• Prepare the transmission for installation, step by step.
• Prepare the vehicle side so the new or rebuilt unit goes in right the first time.
• Check and adjust the transmission after installation, using the checks and adjustments section.
• Plan preventive maintenance so you catch problems before they turn into a pull.

Who this is for

A crane service technician, rental fleet mechanic or independent repair shop that handles Allison 3000 and 4000 units. It also suits a dealer technician or plant maintenance crew who needs a written procedure at the bench.

FAQ

Q: What do I receive and how is it organised?

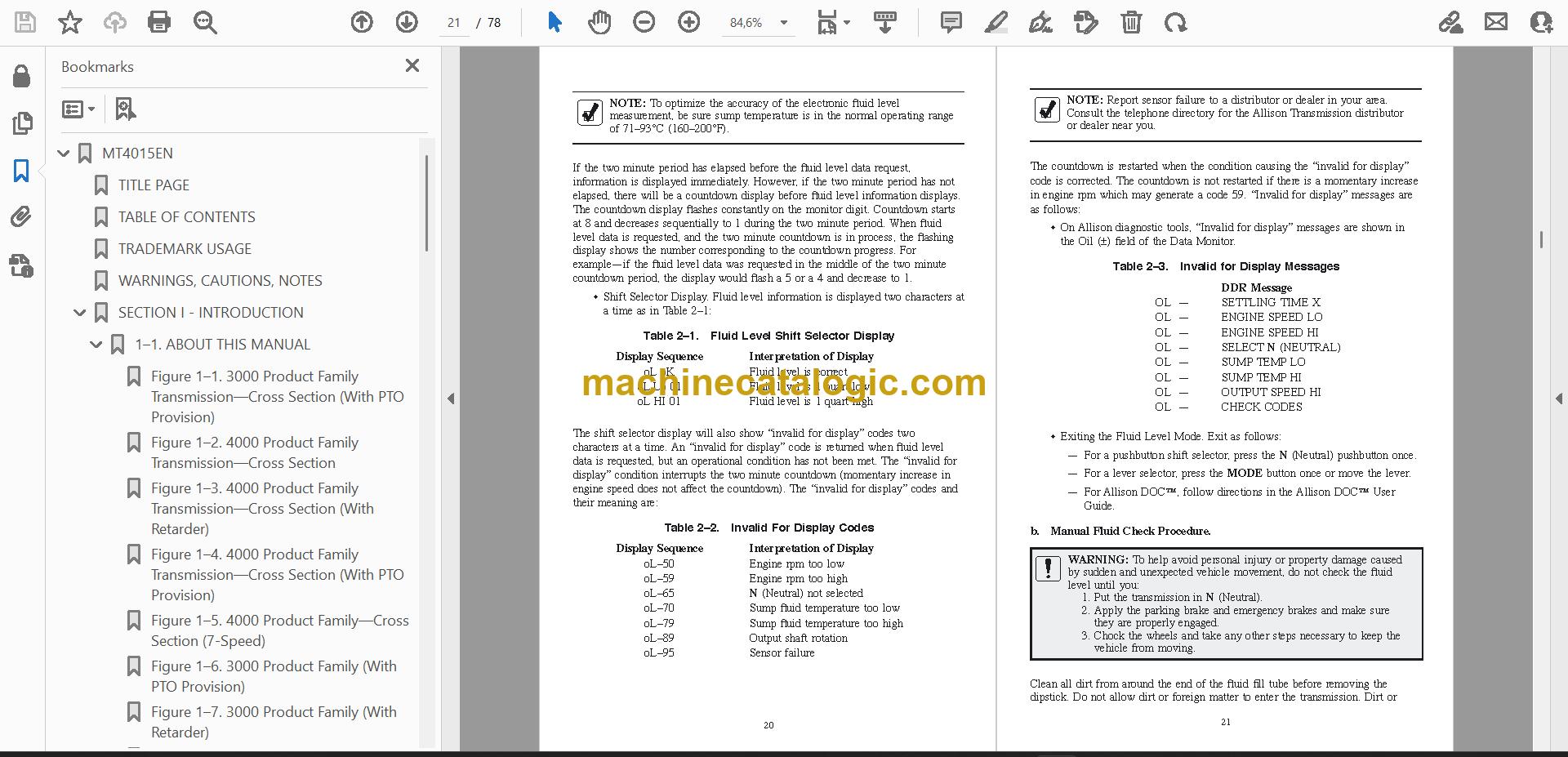

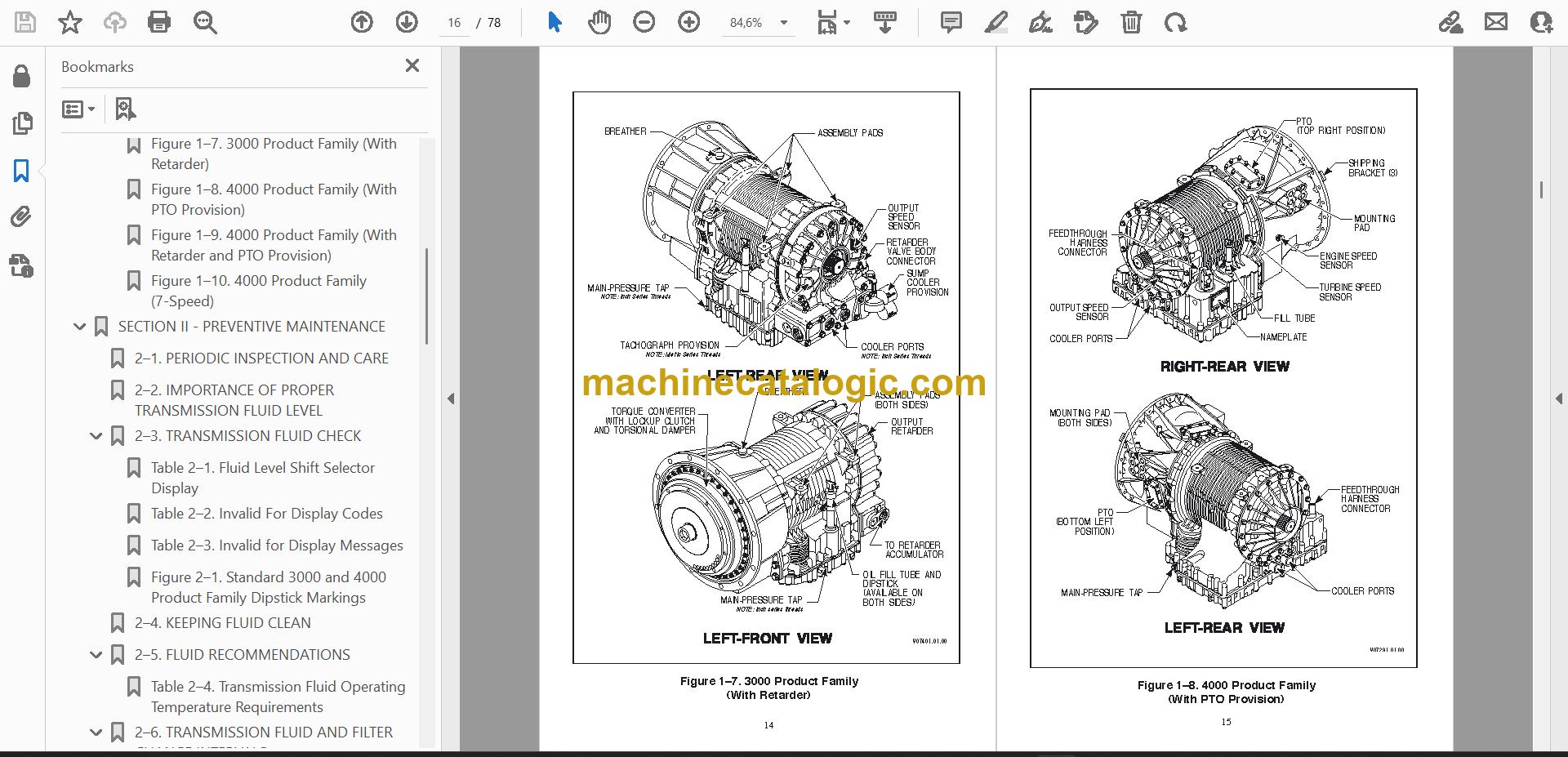

A: You get one PDF file, 78 pages, in English. The text is searchable, and it's laid out in sections from introduction and preventive maintenance through removal, preparation, installation, checks and adjustments, and customer service.

Q: Which transmissions does it fit?

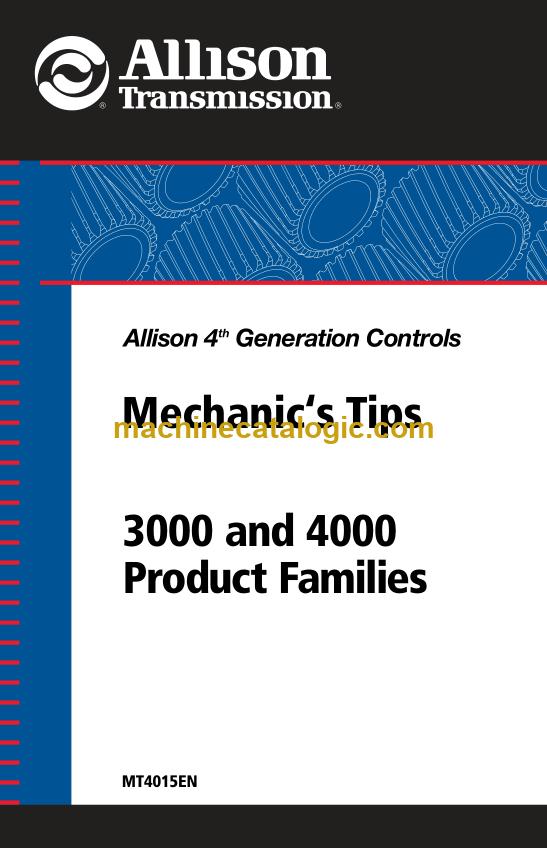

A: It's written for the Allison 3000 and 4000, publication number MT4015EN, titled "Mechanic's Tips for 3000 and 4000 Transmissions."

Q: How does it fit the job I'm doing?

A: If you're pulling a transmission, getting it ready and installing it back in the vehicle, the sections follow that same order. Search the PDF for the step you're on and keep it open at the machine.

Open it, find your step, and work through the removal, installation and adjustments with a written procedure in front of you.
