Allison DOC v2019.1.0 Build [04.2019] Transmission Diagnostic Software
Allison DOC v2019.1.0 Build [04.2019] Transmission Diagnostic Software What news?
New Features and Enhancements included in V 2019 . 1.
* The Allison DOCX V2019 .
Service Tool security upgrades to align with current Microsoft support.
Advanced Help Video update to allow non – administrator use.
* Updates specific to Allison DOC Premium:
Updated DTC descriptions
Displays Main Processor Module ( MPM ) Software Level on TCM Information grid for Off Highway
Adds new DTCS
* Updates specific to Allison DOCR Premium ( H 40 / 50 EPTM )
Updates 4 / 5 Gen Troubleshooting Manual
H 40 / 50 EPTM User Guide updates
Adds links from Energy Storage System faults to appropriate troubleshooting steps in Troubleshooting Manual
**Oln information
The Allison DOC (Diagnostic Optimized Connection) For PC–Service Tool is a diagnostic system designed for use with Allison’s 3000/4000 Product Families transmissions, 1000/2000 Product Families transmissions, and transmissions using CEC3/CEC2/CEC1 controls.
Universal Allison DOC® For PC Service Tool On DVD
The Allison DOC® (Diagnostic Optimized Connection).
For PC–Service Tool is a diagnostic system designed for use with Allison’s 3000/4000 Product Families transmissions, 1000/2000 Product Families transmissions, TC10 Product Families transmissions, and transmissions using CEC5/CEC3/CEC2/CEC1 controls.
This product is a full licensed copy and does not require an existing version license to activate.
Provides convenient installation for any computer with DVD drive. A NEW License will be shipped with your DVD.
Current Version: 14.0.0 – See below for details.
New! Version 14.0.0 has these exciting new features.
Adds support for 1/2/3/4000 5th Gen Controller and TC10 MY16 (B/C/D 161) changes.
Off-Highway CEC5 5th Gen Controller and Windows 10 Operating System.
Universal Allison DOC Features:
Universal Allison DOC Product combines DOC For PC, DOC For PC H 40/50 EP and DOC For Fleets.
A valid license is necessary to enable each product offering.
The Allison DOC (Diagnostic Optimized Connection) For PC–Service Tool is a diagnostic system designed for use with Allison’s 3000/4000 Product Families transmissions, 1000/2000 Product Families transmissions, TC10 Product Families transmissions, and transmissions using CEC5/CEC3/CEC2/CEC1 controls.
Monitors CEC (ATEC) Electronic Control Units (ECU) data using a proprietary protocol and the Noregon Wireless/USB Translator – All Allison Products device and Nexiq USB-Link.
Displays multiple transmission parameters, graphical instrument panel with analog and digital gauges and strip chart.
Records and plays back diagnostic sessions and.
Prints diagnostic reports
Reprograms selected TCM parameters (requires completion of Allison Transmission training)
Security measures to control reprogramming TCM/ECU parameters

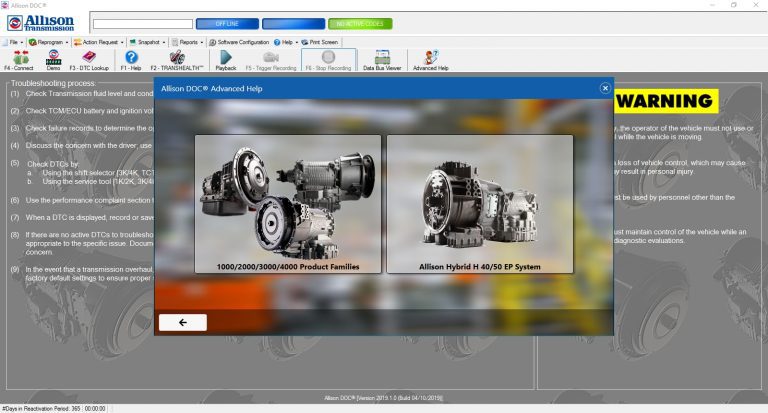

Integrated Help with training videos.
Diagnostic Trouble Code information with a direct link to Troubleshooting Manuals for CEC 2, 1000/2000 Product Families, 3000/4000 Product Families, CEC3 Product Families and TC10 Product Families.
A demo mode using prerecorded data
SmartConnect for detecting the PC-to-vehicle translation device and communication link.
Communication troubleshooting wizard for those cases where the tool is unable to connect to a control module.
Operating System and PC Requirements:
Microsoft® Windows 7®, Windows 8®, Windows 10®
20 GB Hard Drive (40 GB or greater recommended)
3 GB free hard drive space required to install the program (after software installation, the operating system requires sufficient free hard disk space to run the program)
Operating System
Recommended CPU
Recommended RAM
Windows 7
2.0 GHz or Faster
4 GB or Greater
Windows 8
2.0 GHz or Faster
4 GB or Greater
Windows 10
2.0 GHz or Faster
4 GB or Greater
Monitor capable of supporting a resolution of 1280×768 or higher recommended.
DVD-ROM or USB port depending on installation media.
Full administrative privileges are required to install, use, and update the Allison DOC.
Internet broadband connection capability (Internet Explorer® 8 or greater) for activation/reactivation, receiving updates and file downloads
Network card
