Description

Atlas Copco Diamec U6 APC Parts Catalog

Atlas Copco Diamec U6 APC Index:

Contents
Diamec U6 8
U6 basic rig. 8314 0140 00. 8
Carrier complete. 3719 0013 68. 10
Turn table kit. 3719 0002 07. 12
Feed frame holder assembly. 3719 0002 00. 14
Positioner assembly . 3719 0006 42. 16
Positioner assembly fitting kit . 3719 0006 46. 18
Cylinder. 3719 0000 47. 20
Valve, counter balance block . 3719 0004 73. 22
Skid frame. 3719 0001 60. 24
Backstay leg. 3719 0002 19. 26
Feed frame . 28
Feed frame 850STD B-H complete. 3719 0079 30. 28
Hose ladder assembly 850DH. 3719 0079 29. 30
Hose ladder hosekit U6 850 B-H. 3719 0060 97. 32
Feed frame 850STD A-N complete. 3719 0079 31. 34
Hose ladder assembly 850 JIC. 3719 0006 45. 36
Hose ladder 850 mm hose kit A-N. 3719 0006 09. 38
Feed frame 1800STD complete. 3719 0079 32. 40
Feed frame 1800 assembly. 3719 0000 22. 42
Feed cylinder 1800mm U6 STD. 3719 0027 43. 44
Packing kit, feed cylinder 1800 mm. 3719 0003 75. 46
Overhauling kit, feed frame 1800 mm. 3719 0004 05. 48
Hose ladder assembly 1800 mm. 3719 0007 56. 50
Hose ladder 1800 mm hose kit. 3719 0007 54. 52
Feed frame 1800DH B-H complete. 3719 0079 33. 54
Feed frame 1800 DH assembly. 3719 0003 44. 56
FEED BEAM 1800 U6 WEAR SKIDS. 3719 0085 17. 58

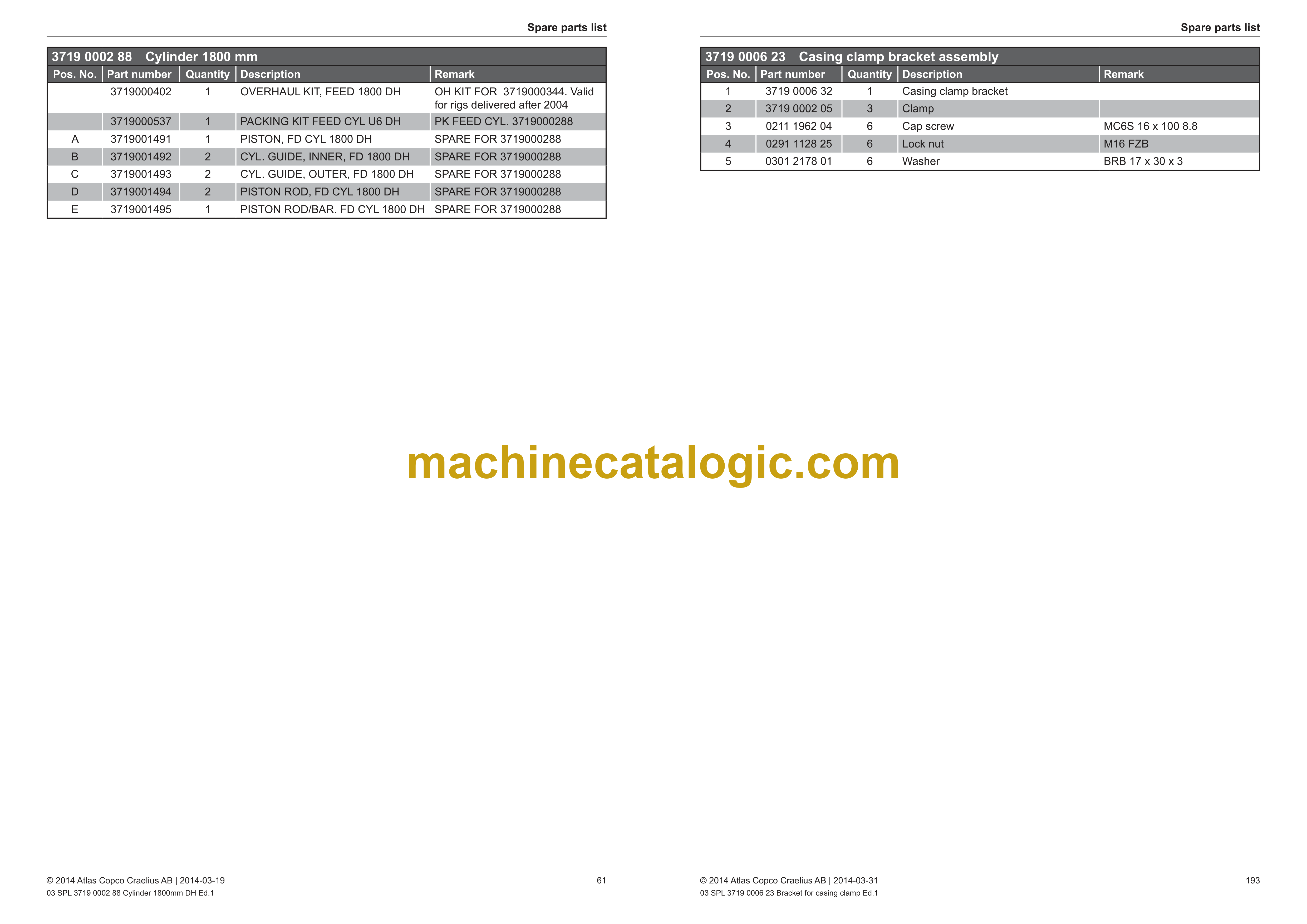

Cylinder 1800 mm DH . 3719 0002 88. 60
Packing kit, feed cylinder 1800 mm DH. 3719 0005 37. 62
Overhauling kit, feed frame 1800 mm DH . 3719 0004 02. 64
Hose ladder assembly 1800 mm DH. 3719 0052 34. 66
Hose ladder 1800 mm DH V14 hose kit . 3719 0049 51. 68
Feed frame 850 assembly. 3719 0001 22. 70
FEED BEAM 850 U6 WEAR SKIDS. 3719 0085 00. 72
Feed cylinder 850 mm. 3719 0001 40. 74
Packing kit, feed cylinder 850 mm. 3719 0007 90. 76
Feed frame fitting kit 850 mm. 3719 0005 99. 78
Hose ladder 850 mm . 3719 0013 50. 80
Hose ladder fitting kit 850 mm . 3719 0006 14. 82

Overhauling kit, feed frame 850 mm. 3719 0004 06. 84
Feed frame fitting kit 1800 mm. 3719 0006 29. 86
Hose ladder 1800 mm . 3719 0004 76. 88
Hose ladder fitting kit 1800 mm . 3719 0007 53. 90
Cradle assembly cast.. 3719 0061 21. 92
Overhaul kit cradle cast.. 3719 0004 08. 94
Rod holder assembly. 3719 0001 12. 96
Rod holder insert. 3719 0000 96. 98
Gas spring kit. 3719 0000 88. 100
Rod pulley. 3719 0086 90. 102
Standard wall bracket assembly. 3719 0002 17. 104
E-stop kit. 3719 0019 61. 106
Rod holder fitting kit . 3719 0006 03. 108
Top pulley. 3719 0001 93. 110
Rotation unit 112
Rotation unit B-H Basic 110 cc complete. 3719 0066 91. 112
Rotation unit B-H, Basic 110 cc . 3719 0066 92. 114
Rotation unit B-H Basic 160 cc complete . 3719 0064 78. 118

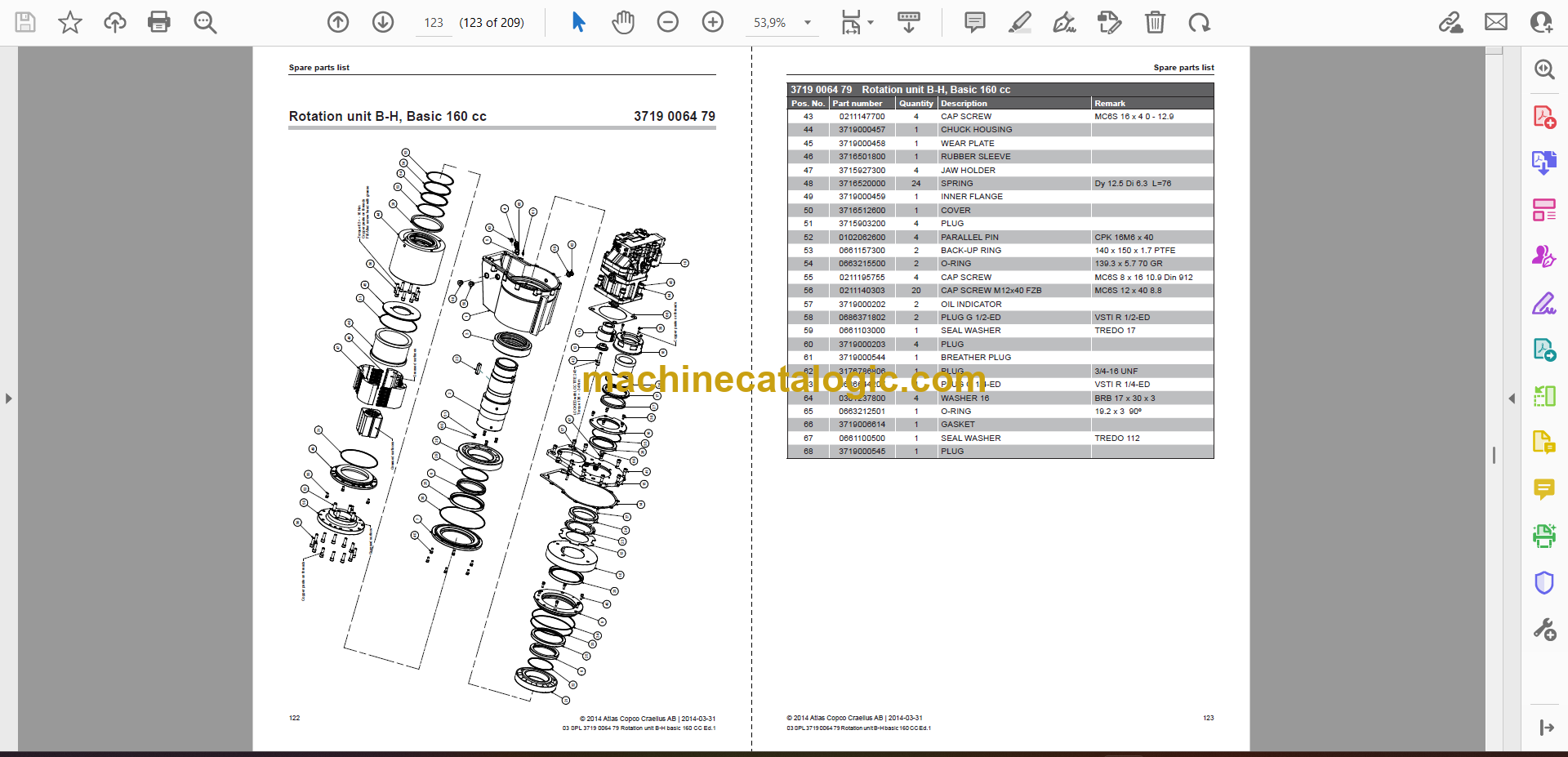

Rotation unit B-H, Basic 160 cc . 3719 0064 79. 120
Packing kit rot unit B-H. 3719 0066 73. 124
Overhaul kit rot unit B-H. 3719 0066 68. 126
Rotation unit A-N Basic 80 cc complete. 3719 0068 53. 128
Rotation unit A-N, Basic 80 cc . 3719 0068 52. 130
Overhaul kit bushing rotation unit A-N . 3719 0068 63. 134
Packing kit bushing rotation unit A-N . 3719 0068 64. 136
Upgrade kit bushing rotation unit A-N. 3719 0068 65. 138
Control system 140
APC system DH,STD. 3719 0008 31. 140
Control panel, APC. 3719 0041 26. 142
Valve assembly U6 APC. 3719 0008 37. 144
Service valve block APC v2. 3719 0026 97. 148
SERVICEBLOCK DIAMEC APC V3. 3719 0067 60. 150
Pressure filter, spare parts kit. 3719 0004 46. 152
Can open kit, long feed. 3719 0003 85. 154
Cable kit RCS rig . 3719 0003 90. 156
Water control kit, APC. 3719 0037 71. 158
Water system, APC. 3719 0037 72. 160
PU – Rig hose kit. 3719 0006 07. 162
5
Contents
© 2014 Atlas Copco Craelius AB | 6991 5085 62i | 2014-03-31
Guard 164
Guard assembly B-H, 850 . 3719 0011 82. 164

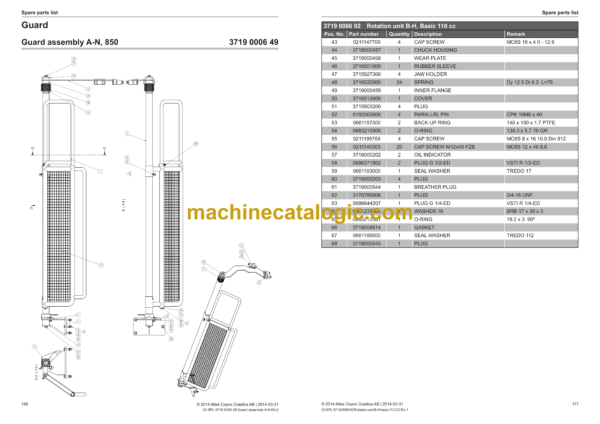

Guard assembly A-N, 850 . 3719 0006 49. 166
Guard assembly B-H, 1800 . 3719 0011 20. 168
Guard assembly A-N, 1800 . 3719 0002 58. 170
Winch 172
WL-winch 1300 complete. 3719 0079 37. 172
Wire Line DH hoist assembly . 3719 0063 62. 174
W/L 1000 hose kit. 3719 0006 08. 178
Top pulley. 3719 0001 71. 180
Option . 182
Bracing device (support jacks). 3719 0027 94. 182
Bracing device kit. 3719 0056 03. 184
Keyhole wall bracket A-N kit. 3719 0002 18. 186
Keyhole wall bracket B-H kit. 3719 0067 71. 188
Water collector kit U6. 3719 0032 45. 190
Casing clamp bracket assembly. 3719 0006 23. 192
W/L sheave for steep uphole. 3719 0003 93. 194
Wheel kit U4/U6 . 3719 0041 71. 196
Conv. kit rot motor 110CC U6. 3719 0057 11. 198
Conv. kit rot motor 160CC U6. 3719 0057 12. 200
Jaw kit chuck . 202
Jaw kit rod holder 204
Tools . 206
Tool kit basic. 3719 0004 87. 206
