Atlas Copco Diamec U8 PHC, B20 Special Parts Catalog
Atlas Copco Diamec U8 PHC, B20 Special Index:
Contents
Drill rig 8
Drill module. 3750 0539 03. 8
Feed frame . 10
Assembly . 3719 0038 18. 10
Feed cylinder . 3719 0072 46. 12
Cradle assembly. 3719 0027 15. 14
Rod holder assembly. 3719 0020 50. 16
Rod holder insert. 3719 0020 51. 18
Wall bracket . 3719 0037 37. 20
Fitting kit. 3719 0032 37. 22
Hose ladder 24
Assembly . 3719 0027 90. 24
Hose kit. 3719 0027 64. 26
Fitting kit. 3719 0020 98. 28
Rotation unit 30
Assembly . 3760 0030 13. 30
Drill head. 2920175. 32
Drill head. 2920175. 34
Hydraulic chuck. 3760 0030 01. 36
Input shaft with drive tip. 2920479. 40
Chuck and clamp accessories . . . . . . . . . .41
Lube pump kit. 2920267. 42
Oil filter, hose assembly . . . . . . . . . .43
Fitting kit. 3719 0027 54. 44
Control panel . 46
Assembly . 3719 0101 86. 46
Hydraulic components 50
Hydraulic valve assembly (mounted on the power unit). 3719 0101 90. 50
Main valve block. 3719 0026 07. 56
Service valve block . 3719 0007 82. 58
Hose kit, valve assembly. 3719 0027 66. 60
Replacement kit, pressure filter. 3719 0004 46. 62
Valve kit, chuck. 3719 0036 59. 64
Fitting kit, chuck valve. 3719 0036 60. 66
Hose kit, chuck valve. 3719 0036 61. 70
Tachometer 72

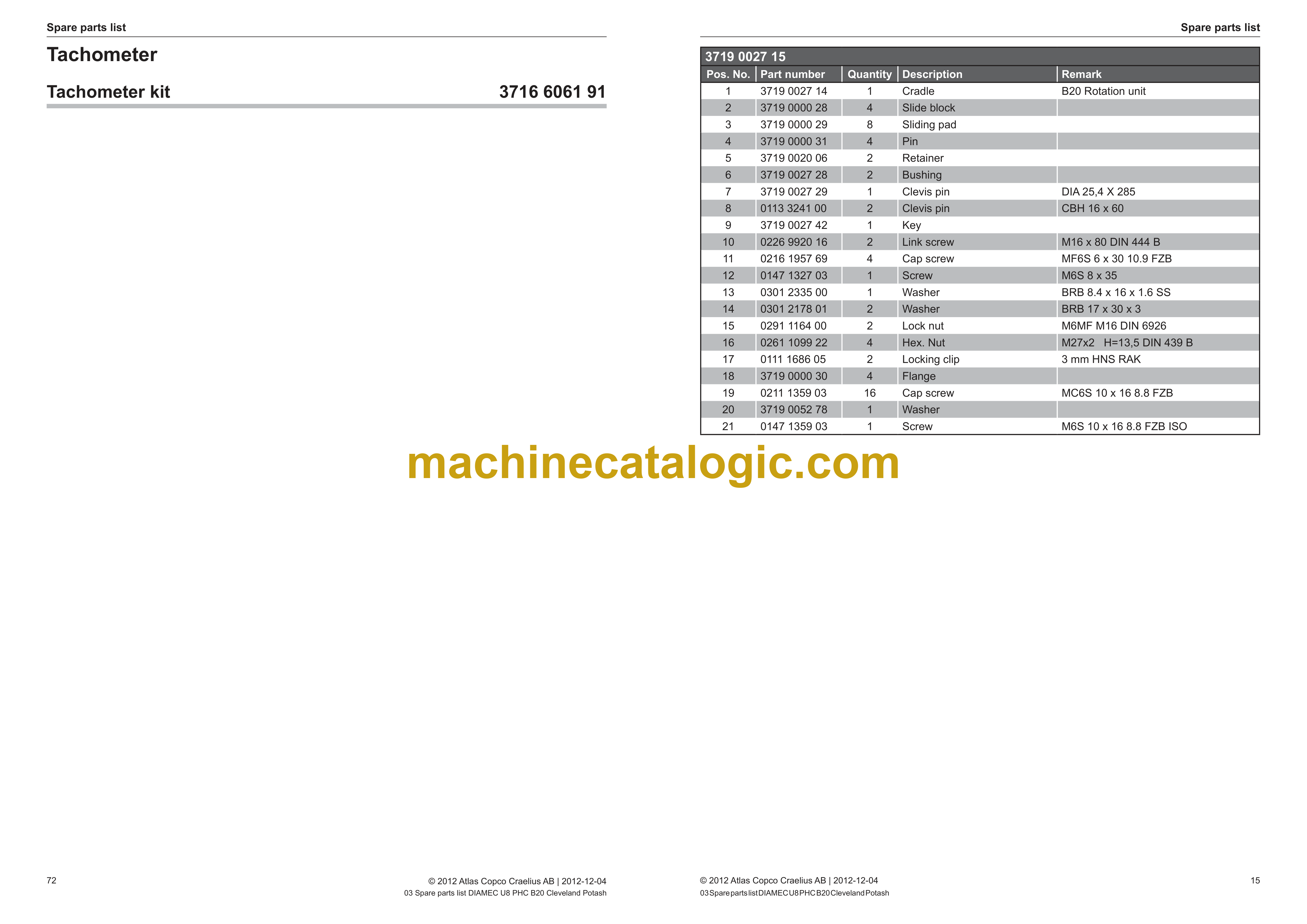

Tachometer kit . 3716 6061 91. 72
Power unit 74
Power unit assembly. 3705 0904 31. 74
Power unit assembly. 3705 0904 31. 76
Hydraulic oil tank assembly . 3719 0101 91. 78
Power unit kit. 3705 0777 17. 80
Pump kit, 2 pump. 3750 0539 07. 82
Packing kit, hydraulic motor 45cc . 3716 1523 95. 84
Packing kit, hydraulic motor 140cc . 3719 0008 49. 85
Hose kit. 3719 0103 70. 86
