Atlas Copco Diamec U8 PHC Parts Catalog
Atlas Copco Diamec U8 PHC Index:
Contents
Diamec U8 8
U8 basic rig . 8314 0141 00 8
Skid . 10
Skid assembly 3719 0027 10 10
Hydraulic cylinder 3719 0027 13 12
Hydraulic cylinder 3719 0020 11 14
Positioner fitting kit, U8 3719 0027 55 16
Positioner hose kit . 3719 0032 27 18
Stay assembly . 3719 0037 16 20
Stay bracket 3719 0037 63 22
Feed frame . 24
Feed frame complete PHC. HCC . 3719 0061 34 24
Hose ladder assembly . 3719 0020 92 26
Hose ladder fitting kit . 3719 0020 98 28
Feed frame assembly . 3719 0038 18 30
Feed frame rail assembly 3719 0084 57 32
Feed cylinder 1800MM U8 3719 0072 46 34
Cradle assembly Diamec head 3719 0061 23 38
Rod holder assembly . 3719 0020 50 40
Hose ladder hose kit 3719 0027 63 46
Rod holder insert . 3719 0020 51 48
GAS SPRING 3719 0032 88 50
Standard wall bracket 3719 0037 37 52
E-stop kit . 3719 0032 82 54
Feed frame fitting kit 3719 0032 37 56
Rotation unit 58

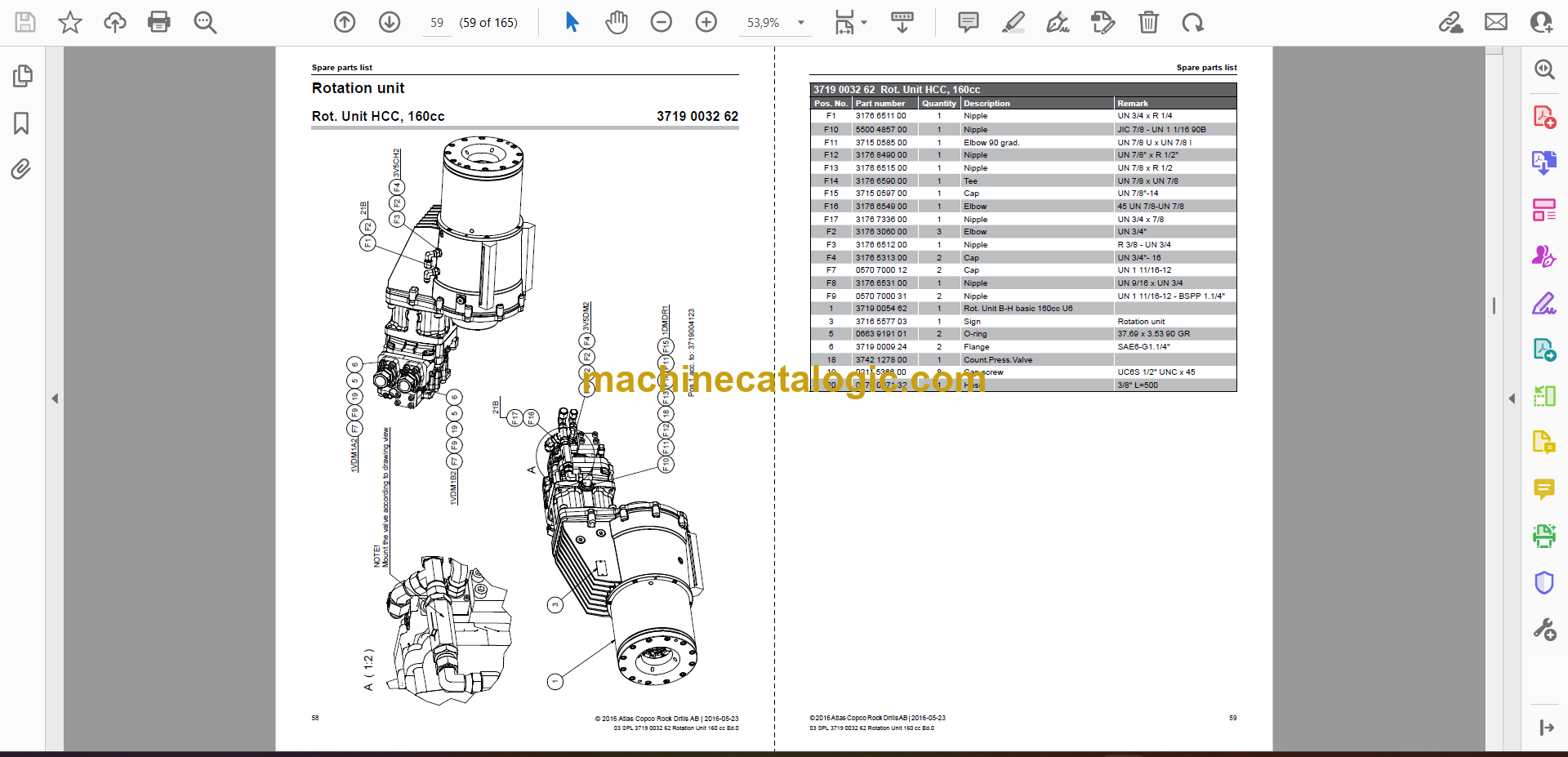

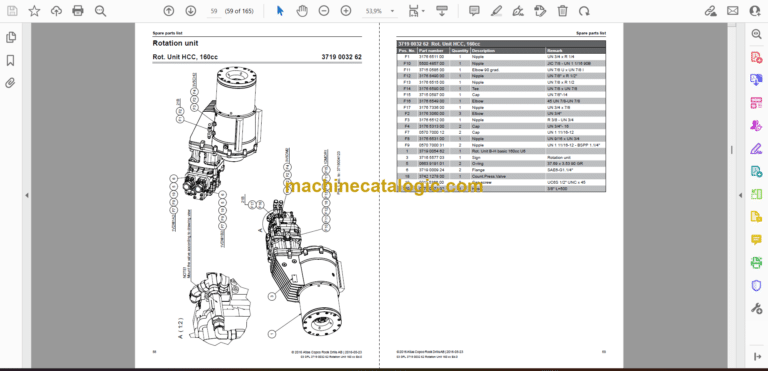

Rot. Unit HCC, 160cc 3719 0032 62 58
Rot.Unit HCC, basic 160cc 3719 0041 23 60
Hydraulic motor 160cc . 3719 0002 77 64
Strengthening kit 3719 0039 87 65
Rot unit 160 CC HCC fitting kit . 3719 0032 63 66
Rotation unit B-H Basic 160 cc complete 4350 2618 61 68

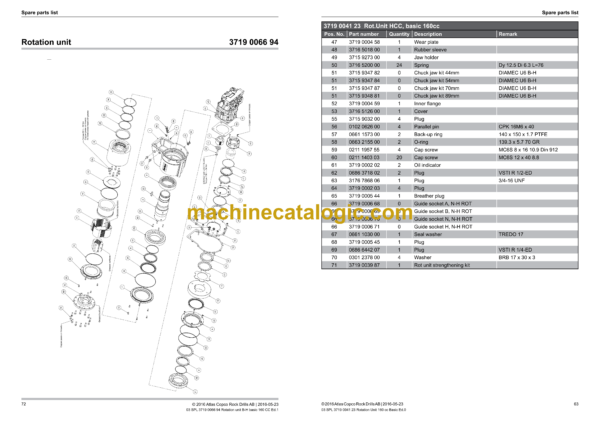

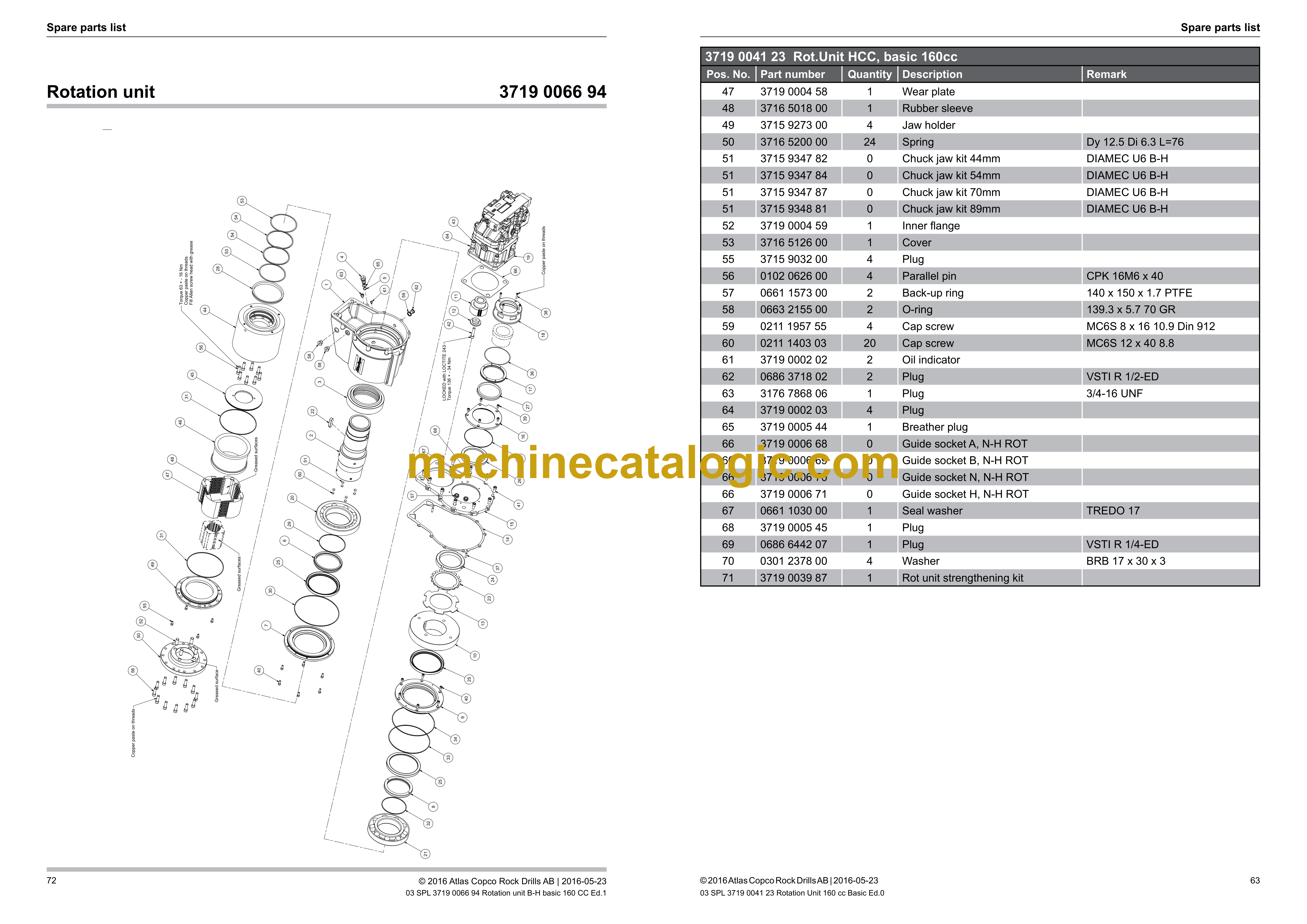

Rotation unit B-H, Basic 160 cc 3719 0066 94 70
Rotation unit B-H Basic 110 cc complete U8 . 3719 0066 95 74
Rotation unit B-H, Basic 110 cc . 3719 0066 96 76
Overhaul kit rot unit B-H 3719 0066 68 82
Packing kit rot unit B-H 3719 0066 73 84
Option . 86
Conv. kit rot motor 160CC U6 . 3719 0057 12 86
Control system 88
Pilot hydraulic system 3-P HCC 3719 0027 44 88
Pilot panel U8 PHC . 3719 0026 71 90
VALVE KIT PANEL 3719 0011 37 94
Valveblock, panel . 3719 0008 45 96
Panel hose kit 3P 3719 0036 17 98
Panel-rig hose kit 3P . 3719 0036 18 100
Pressure gauge hose kit 3719 0012 39 102
Joystick 4-ports 3719 0008 47 104
Joystick 2-ports 3719 0008 48 106
Pressure filter, spare parts kit . 3719 0004 46 107
Tachometer kit 3716 6061 91 109
Valve assy. PHC 3719 0026 08 111
Valve assembly hose kit PHC-3P 3719 0027 66 117
Guard 119
Guard Diamec U8 . 3719 0129 33 119
Guard Diamec basic 3719 0129 30 121
WL WINCH 123
WL HOIST ASSEMBLY . 3719 0090 25 123
W/L-hoist kit . 125
W/l- hoist kit 2000 surface . 3719 0036 63 125
W/l free wheeling kit 3719 0033 34 127
W/l- hose kit 3719 0033 31 128
W/l bracket assy (for rpm sensor) . 3719 0033 18 129
W/l- winch kit 1300, JIC . 3719 0036 98 130
Wireline winch with levelwind. 1300 3719 0007 66 131
W/L fitting kit 3719 0032 42 135
W/L hose kit . 3719 0032 38 137
Mast extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Mast extension UG . 3719 0037 38 139
Top pulley UG 3719 0037 94 141
Mast extension U8 surface 3719 0037 34 143

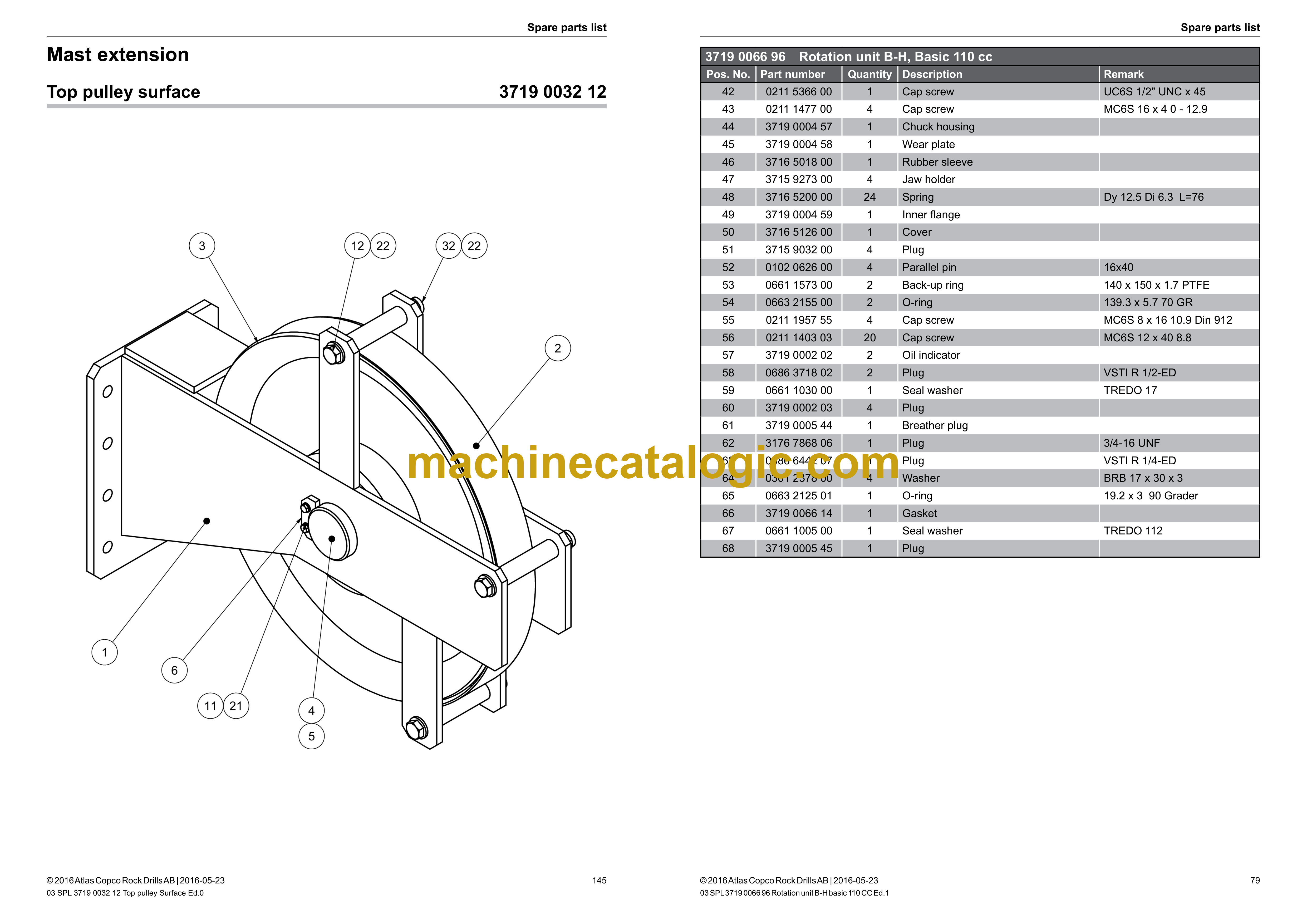

Top pulley surface . 3719 0032 12 145
Rod pulley 147
Rod pulley UG . 3719 0037 35 147
Rod pulley kit UG 3719 0037 36 149
Rod pulley surface . 3719 0026 86 151
5
Contents
© 2016 Atlas Copco Rock Drills AB | 6991 5058 62i | 2016-05-23
Wall bracket . 153
Key hole wall bracket . 3719 0037 96 153
Casing clamp bracket U8 assembly . 3719 0067 20 155
Jaw kit chuck . 157
JAW KIT CHUCK BO B-H STEEL . . . . . . . . . . . . . . . . . . . . . . . . .3719 0121 69 158
JAW KIT CHUCK NO B-H STEEL . . . . . . . . . . . . . . . . . . . . . . . . .3719 0121 70 158
JAW KIT CHUCK HO B-H STEEL . . . . . . . . . . . . . . . . . . . . . . . . .3719 0121 71 158
JAW KIT CHUCK BO B-H TC . 3719 0121 75 158
JAW KIT CHUCK NO B-H TC . 3719 0121 76 158
JAW KIT CHUCK HO B-H TC . 3719 0121 77 158
Jaw kit rod holder 159
JAW KIT RH BO U8 STEEL 3719 0121 82 160
JAW KIT RH NO U8 STEEL 3719 0121 83 160
JAW KIT RH HO U8 STEEL 3719 0121 84 160
PQ-ROD H. JAW & BUSH KIT CS/U8 3719 0031 83 160
BQ-ROD H. JAW TC & BUSH KIT CS 3719 0092 40 160
NQ-ROD H. JAW TC & BUSH KIT CS 3719 0092 41 160
HQ-ROD H. JAW TC & BUSH KIT CS 3719 0092 42 160
Tools . 161
Tool kit basic . 3719 0004 87 161
Signs . 163
General signs skid 3719 0012 02 163
