Atlas Copco ROC 242HC-B Hydraulic Crawler Drill Parts Catalog
Atlas Copco ROC 242HC-B Hydraulic Crawler Drill Index:
Drill carriage 3222300914
Hydraulic system, traction 3222 3010 02.
Hydraulic cylinder 8232 3000 40
Track frame 3216966400, leR3216966401 .
Track roller, compl. 3216 9136 21
Front wheel with tension unlt 3216 9136 15.. .
Track chain 3222058980.
gear 3222 1107 50..
Traction motor 32221959 eo
Body, compl. 3222 172860 ….
Boom sßem 3222 3006 29..
Feed/Boom swing cylinder 8232 300042……
Feed extension cylinder 8232 3001 IO…..
Boom lift cylinder 82323001 87.
Boom extension cylinder 8m 30005B .
Feed dump cylinder 8232 3001 75 .
Feed, 3221849 80 ..
Hydraulic motor 3216 9694 BO
Hydraulic brake 3216969481 …..

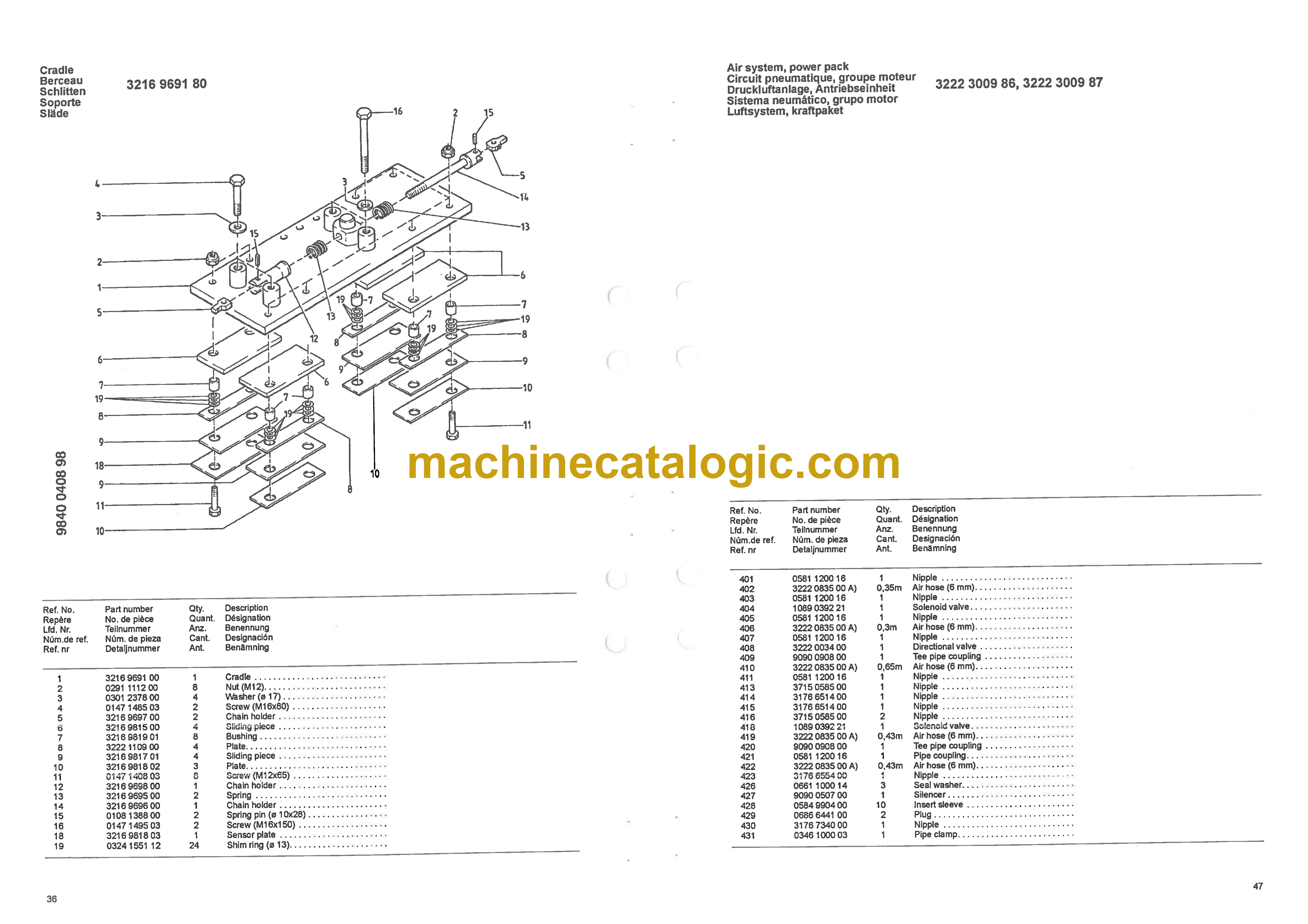

Cradle 3216 9691 80
Drill steel retainer 3216197280 .
Drill steel support. compl. 3216 9707 60
Equipment set, drill support H19.32221754 90.
Equipment set, drill steel support H22.32221754 91. .
Equipment set, drill steel support H25, 32221754 92.
Equipment set, drill steel support R28/R32, 3222 1754 93.
Equipment set, feed 3222 1849 81
Power pack installation 3216 9130 61 .

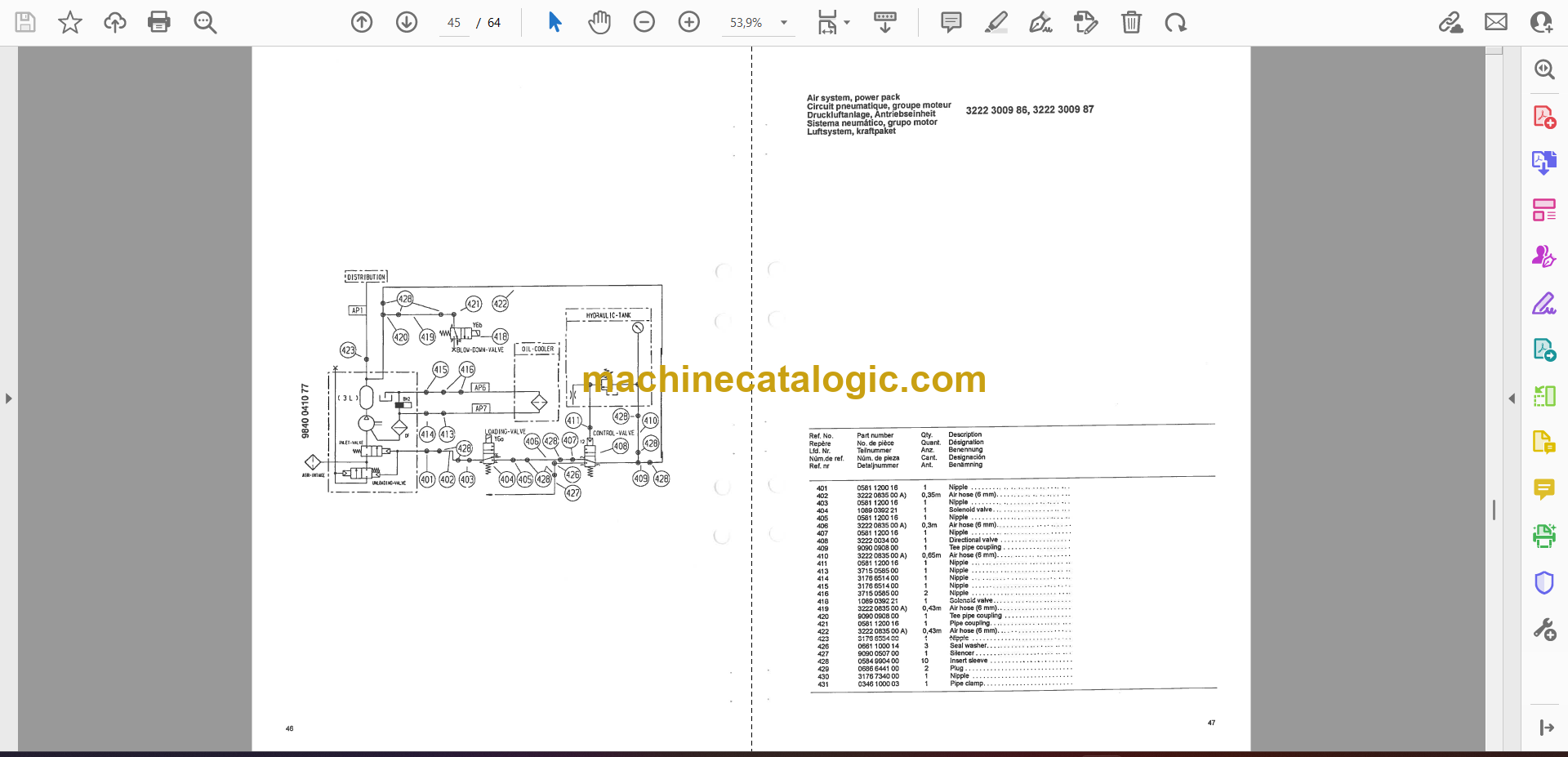

Air system, power pack 3222 3009 86, 3222 3009 87
Air filter system. compressor 3216 9781 60..
Air filter 32169781 eo .
Precleaner 32169781 00.
Air filter, diesel engine 3216 9858 61 …
Air fitter 3216 7080 eo .. ..

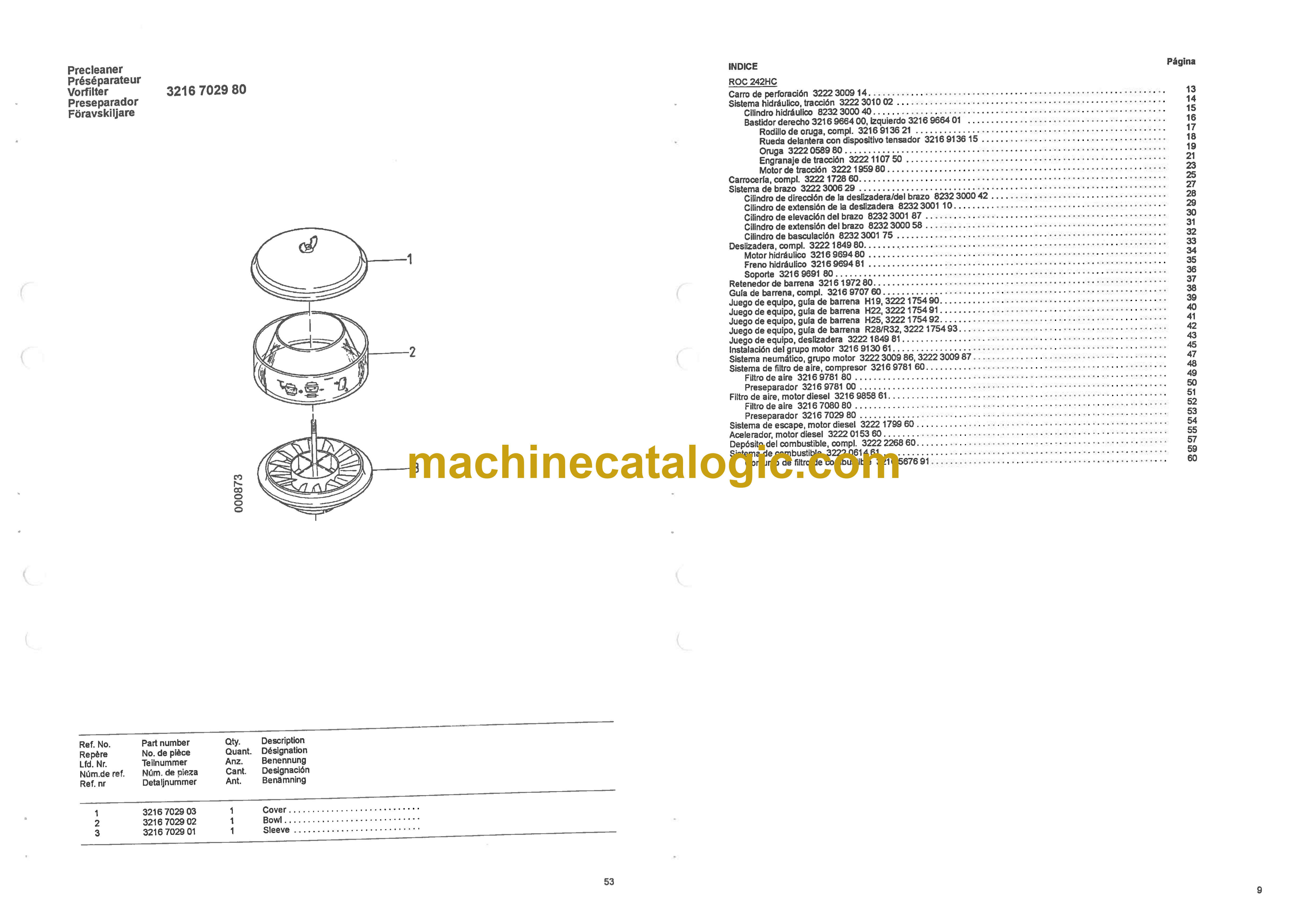

Precleaner 3216 7029 eo
Exhaust system, diesel engine 3222 1799 60
Throttle control, diesel engine 3222 0153 60.
Fuel tank, compl. 3222 2268 60…
Fuel system 3222061461
Fuel filter kit 3216 567691
