B95C-B95CTC-B95 CLR-B110C TIER4 SERVICE MANUAL

$ 30,00

B95C-B95CTC-B95 CLR-B110C TIER4 SERVICE MANUAL

Format: PDF

Language: EN

Size: 238.95 MB

Pages: 1067

Speed Download Link

Category:

Description

NEW HOLLAND B95C-B95CTC-B95 CLR-B110C TIER4 SERVICE MANUAL

What does this catalog contain?

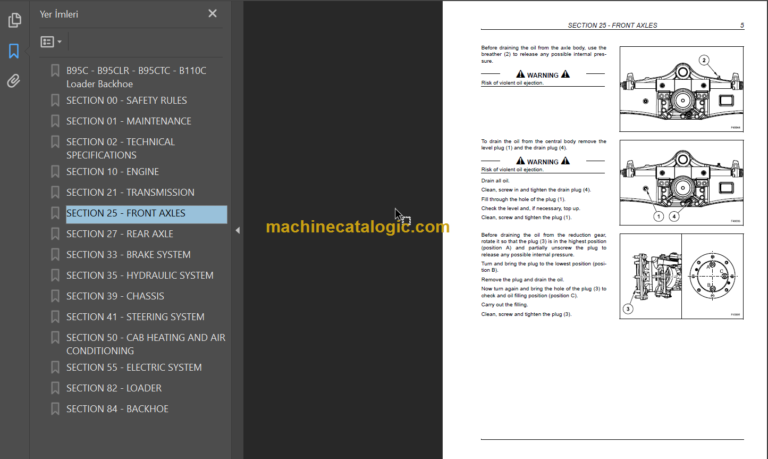

B95C-B95CTC-B95 CLR-B110C TIER4 SERVICE MANUAL contains high quality images, diagrams, instructions to help you to operate, maintenance, diagnostic, and repair your machine. This document is printable, without restrictions, contains searchable text and bookmarks for easy navigation.

B95C-B95CTC-B95 CLR-B110C TIER4 SERVICE MANUAL includes:

  • Numbered table of contents easy to use so that you can find the information you need fast.
  • Detailed sub-steps expand on repair procedure information.
  • Numbered instructions guide you through every repair procedure step by step.
  • Troubleshooting and electrical service procedures are combined with detailed wiring diagrams for ease of use.
  • Notes, cautions and warnings throughout each chapter pinpoint critical information.
  • Bold figure number help you quickly match illustrations with instructions.
  • Detailed illustrations, drawings and photos guide you through every procedure.
  • Enlarged inset helps you identify and examine parts in detail.

What will you get when you get this service catalog?

  • After payment has been received, a few minutes later.
  • Lifetime PDF and Access To Download (By Request).
  • Compatible With Windows, Mac, IOS, Android and Other Systems.
  • Searchable Text and Built-in Index For Instant Information Search Bookmarks.
  • Printable – Pages Or Entire Manual.
  • Zoomable – Detailed Exploded Diagrams, Picture.

TABLE OF CONTENT OF THE B95C-B95CTC-B95 CLR-B110C TIER4 SERVICE MANUAL

TECHNICAL SPECIFICATIONS
DIESEL ENGINE
72 kW – 97 HP ENGINE (B95C – B95CTC)
Specifications (ISO 14396) …………………………………………………………………………. 72 kW – 97 HP @ 2200 rpm
Model ………………………………………………………………………………………………………………………….FSHFL413C*A
Type…………………………………………………………………………………………………………………………diesel, electronic
No. of cylinders ………………………………………………………………………………………………………………………………. 4
Valves per cylinder………………………………………………………………………………………………………………………….. 2
Bore …………………………………………………………………………………………………………………………… 99 mm (3.9 in)
Stroke……………………………………………………………………………………………………………………… 110 mm (4.33 in)
Displacement ……………………………………………………………………………………………………. 4485 cm3 (237.69 in3)
Compression ratio……………………………………………………………………………………………………………………. 16.5:1
Maximum torque (EC)……………………………………………………………………………453 Nm (334 lbf·ft) @ 1400 rpm
Low idle speed at no load ……………………………………………………………………………………………… 1000 ± 50 rpm
High idle speed at no load …………………………………………………………………………………………….. 2380 ± 60 rpm
Maximum speed at full load ………………………………………………………………………………………………….. 2200 rpm
Air intake………………………………………………………………………………………. TAA (turbocharged with aftercooler)
Supply
Type………………………………………………………………………………………………………….high-pressure, common rail
Injection pump………………………………………………………………………………………………. CP3 high-pressure pump
Control unit……………………………………………………………………………………………………………………………..EDC17
Injection sequence …………………………………………………………………………………………………………………..1-3-4-2
Cold-start device ……………………………………………………………………………………………….. Glow plugs (standard)
Cooling
Pump type………………………………………………………………………………………………………………………… H2O pump
Pump drive…………………………………………………………………………………………………………………………..belt drive
Temperature switch (opening start) ………………………………………………………………. 81 ± 2 °C (177.8 ± 35.6 °F)

82 kW – 110 HP ENGINE (B110C)
Specifications (ISO 14396) ……………………………………………………………………….. 82 kW – 110 HP @ 2200 rpm
Model (B110C) ……………………………………………………………………………………………………………..F5HFL413B*A
Type ……………………………………………………………………………………………………………………….. diesel, electronic
No. of cylinders ………………………………………………………………………………………………………………………………. 4
Valves per cylinder………………………………………………………………………………………………………………………….. 4
Bore……………………………………………………………………………………………………………………………. 99 mm (3.9 in)
Stroke……………………………………………………………………………………………………………………… 110 mm (4.33 in)
Displacement …………………………………………………………………………………………………….4485 cm3 (237.69 in3)
Compression ratio ……………………………………………………………………………………………………………………. 16.5:1
Maximum torque (EC) ……………………………………………………………………………516 Nm (380 lbf·ft) @ 1400 rpm
Low idle speed at no load ……………………………………………………………………………………………… 1000 ± 50 rpm
High idle speed at no load……………………………………………………………………………………………… 2380 ± 60 rpm
Maximum speed at full load ………………………………………………………………………………………………….. 2200 rpm
Air intake ………………………………………………………………………………………. TAA (turbocharged with aftercooler)
Supply
Type ………………………………………………………………………………………………………….high-pressure, common rail
Injection pump………………………………………………………………………………………………. CP3 high-pressure pump
Control unit……………………………………………………………………………………………………………………………..EDC17
Injection sequence …………………………………………………………………………………………………………………..1-3-4-2
Cold-start device ……………………………………………………………………………………………….“Grid heater” (optional)
Cooling
Pump type ………………………………………………………………………………………………………………………… H2O pump
Pump drive …………………………………………………………………………………………………………………………..belt drive
Temperature switch (opening start) ………………………………………………………………. 81 ± 2 °C (177.8 ± 35.6 °F)

TRANSMISSION
4WD/2WS TRANSMISSION – POWERSHUTTLE (B95C – B95CTC – B110C)
Model ………………………………………………………………………………………………………CARRARO TLB1 SPB 4WD
Type (4×4) …………………………………………………………………………………….4 forward and 4 reverse travel gears
Torque converter ratio ………………………………………………………………………………………………………………… 2.38
Transmission ratios:
1st forward travel ………………………………………………………….. gear 5.603:1 reverse travel gear 4.643:1
2nd forward travel …………………………………………………………. gear 3.481:1 reverse travel gear 2.884:1
3rd forward travel ………………………………………………………….. gear 1.585:1 reverse travel gear 1.313:1
4th forward travel ………………………………………………………….. gear 0.793:1 reverse travel gear 0.657:1
4WD/2WS TRANSMISSION – POWERSHIFT (B110C)
Model ………………………………………………………………………………………………………CARRARO TLB2 SPB 4WD
Type (4×4) …………………………………………………………………………………….4 forward and 4 reverse travel gears
Torque converter ratio ………………………………………………………………………………………………………………… 2.38
Transmission ratios:
1st forward travel ………………………………………………………….. gear 5.533:1 reverse travel gear 4.549:1
2nd forward travel …………………………………………………………. gear 3.359:1 reverse travel gear 2.762:1
3rd forward travel ………………………………………………………….. gear 1.553:1 reverse travel gear 1.260:1
4th forward travel ………………………………………………………….. gear 0.811:1 reverse travel gear 0.677:1

AXLES
FRONT AXLES
Front 4WD/2WS axle (B95C – B95CTC – B110C)
Model ………………………………………………………………………………………………………………………………………. CNH
Type ……………………………………………………………………………………………………………………………………. steering
REAR AXLES
Rear 2WS axle
Model (B95C – B95CTC) …………………………………………………………………………………………… CARRARO 28.44
Model (B110C) ………………………………………………………………………………………………………… CARRARO 28.50
Type …………………………………………………………………………………………………………………………………………. rigid

HYDRAULIC SYSTEM
HYDRAULIC GEAR PUMP (only for mechanical control models)
72 kW – 97 HP pump (B95C – B95CTC)
Model ……………………………………………………………………………………………. CASAPPA KP 30.34 – 05 S6 – LMF
Type ……………………………………………………………………………………………………………………… double gear pump
Flow rate ………………………………………………………………………….35.427 + 35.427 cm3/rev (2.16 + 2.16 in3/rev)
82 kW – 110 HP pump (B110C)
Model ……………………………………………………………………………………………. CASAPPA KP 30.38 – 05 S6 – LMF
Type ……………………………………………………………………………………………………………………… double gear pump
Flow rate ………………………………………………………………………….40.258 + 35.427 cm3/rev (2.45 + 2.16 in3/rev)
VARIABLE-FLOW-RATE PUMP (only for pilot control models)
72 kW – 97 HP pump (B95C – B95CTC)
Model ……………………………………………………………………………………………………….. DANFOSS J71C Series 45
Type …………………………………………………………………………………………………………………………….. axial pistons
Flow rate ………………………………………………………………………………………………………. 71 cm3/rev (4.33 in3/rev)
82 kW – 110 HP pump (B110C)
Model ……………………………………………………………………………………………………….. DANFOSS J75C Series 45
Type …………………………………………………………………………………………………………………………….. axial pistons
Flow rate ………………………………………………………………………………………………………. 75 cm3/rev (4.57 in3/rev)
FRONT COUNTERWEIGHT
COUNTERWEIGHT – 2WS
Standard………………………………………………………………………………………………………………….. 127.3 kg (281 lb)
Medium ……………………………………………………………………………………………………………………… 370 kg (816 lb)
Big………………………………………………………………………………………………………………………… 483.7 kg (1066 lb)

BRAKES
SERVICE BRAKES
2WS
Type…………………………………………………………………………………………..wet multi-discs, 4 x axle (2 x half axle)
Braking surface……………………………………………………………………………………………………… 1236 cm2 (191 in2)
PARKING BRAKE
Type (2WS) …………………………………………………………………………..SAHR = spring applied hydraulic released
STEERING
2WS …………………………………………………………………………………………………………………………….. 2 wheel steer
System pressure …………………………………………………………………………………. 170 ÷ 175 bar (2465 ÷ 2538 psi)
POWER STEERING
2WS (mechanical models)
Model …………………………………………………………………………………………………………..EATON P/N 403-8754-58
Displacement ………………………………………………………………………………………………. 160 cm3/rev (9.76 in3/rev)
Shock valve………………………………………………………………………………………………………………………………….. no
Load-sensing pressure relief valve adjustment………………………………………………………………………………….. no
2WS (pilot models)
Model …………………………………………………………………………………………………………..EATON P/N 403-8754-52
Displacement ………………………………………………………………………………………………. 160 cm3/rev (9.76 in3/rev)
Shock valve………………………………………………………………………………………………………………………………….. no
Load-sensing pressure relief valve adjustment……………………………………………………………. 175 bar (2538 psi)

Moreover
