BEKA Progressive Central Lubrication Service Manual

A central lubrication system on a crane or heavy machine feeds grease to the bearings, pivots and bushings from one pump, so you're not crawling around with a grease gun. When a line blocks or a point runs dry, someone has to find it fast. That's who picks up this service manual: the technician fixing the system in-house, out of warranty, or working on a machine that arrived with no paperwork.

What this manual helps you do

• Trace the layout of a progressive central lubrication system, from the description and function through to each lubrication point.
• Follow the installation steps when you fit or refit the system on a machine.
• Check the electrical connections on the pump and controls before you condemn a part.
• Diagnose a blocked line, a dry point or a pump that won't deliver, using the fault diagnosis section you'd expect in a book like this.
• Replace worn components by working through repair and component replacement.

Who this is for

Independent repair shops, rental fleet mechanics and crane service technicians who maintain BEKA lubrication systems. It also suits plant maintenance staff who have to keep a greasing system working on older machines.

FAQ

Q: What do I receive and how is it organised?

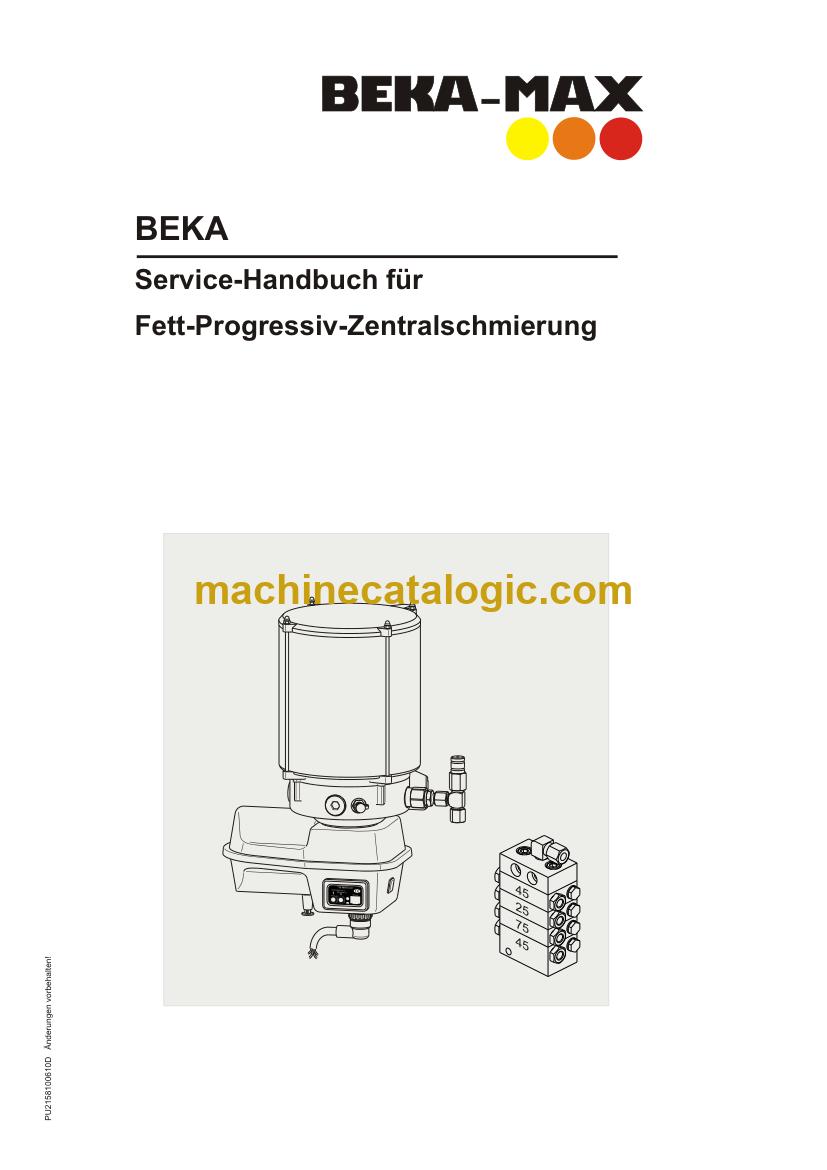

A: You get the set: 2 PDF files, 40 pages in total. Publication PU2158100610D is the main manual at 20 pages, and PU2158100610F is the second at 20 pages. The text is searchable and copyable, and the manuals are in German and French.

Q: Which machine or component does it fit?

A: It's a BEKA component service manual, filed under model _General, titled Progressive Central Lubrication Service Manual. It's the complete manual for the lubrication system itself.

Q: How does it fit the job I'm doing?

A: If you're rebuilding, replacing or troubleshooting the lubrication system in your own shop, it gives you the workshop procedures in one place. Search a term, copy the step, and take it to the machine.

Get the full set, open the file for the job in front of you, and get the grease moving again.

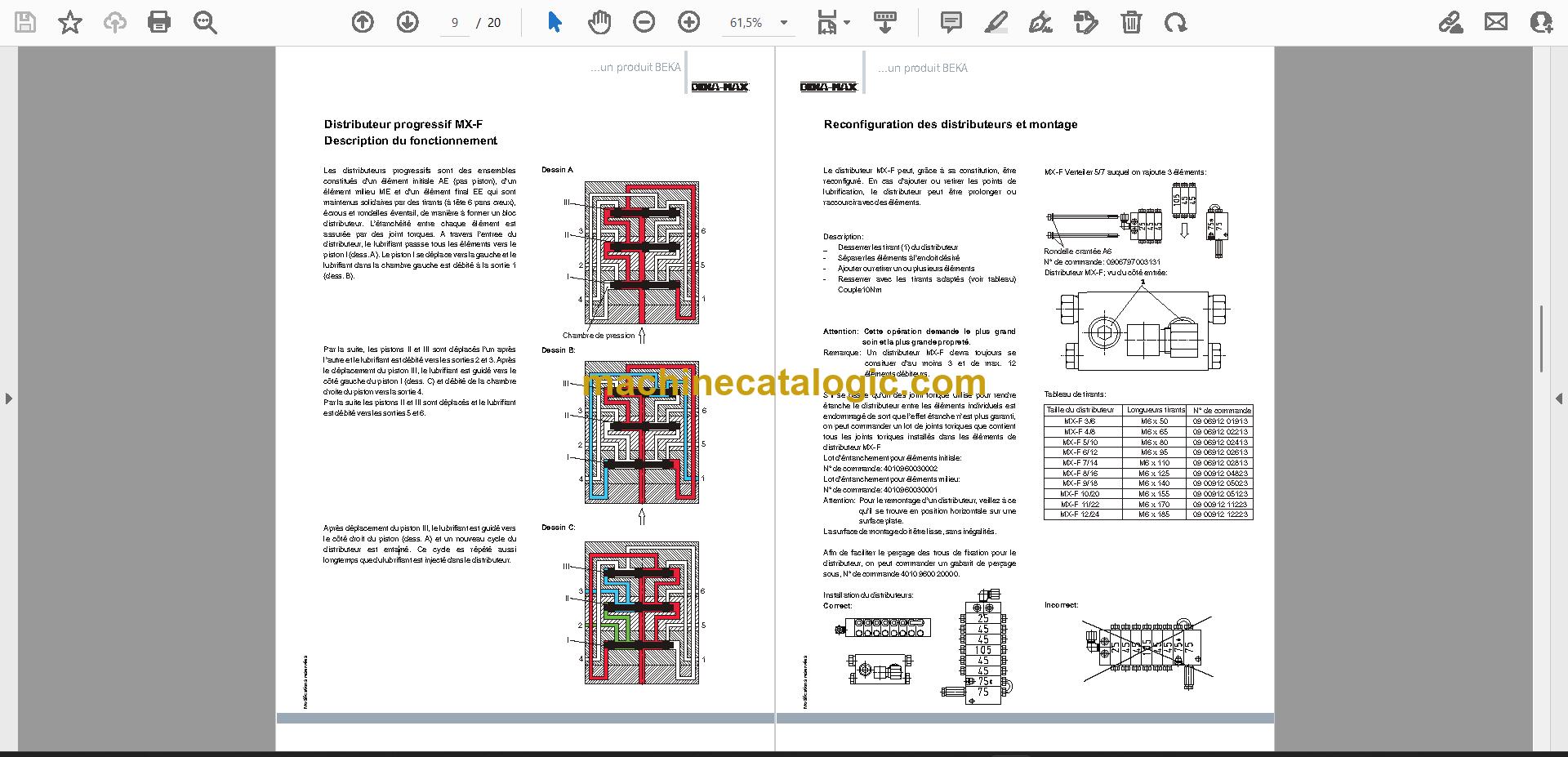

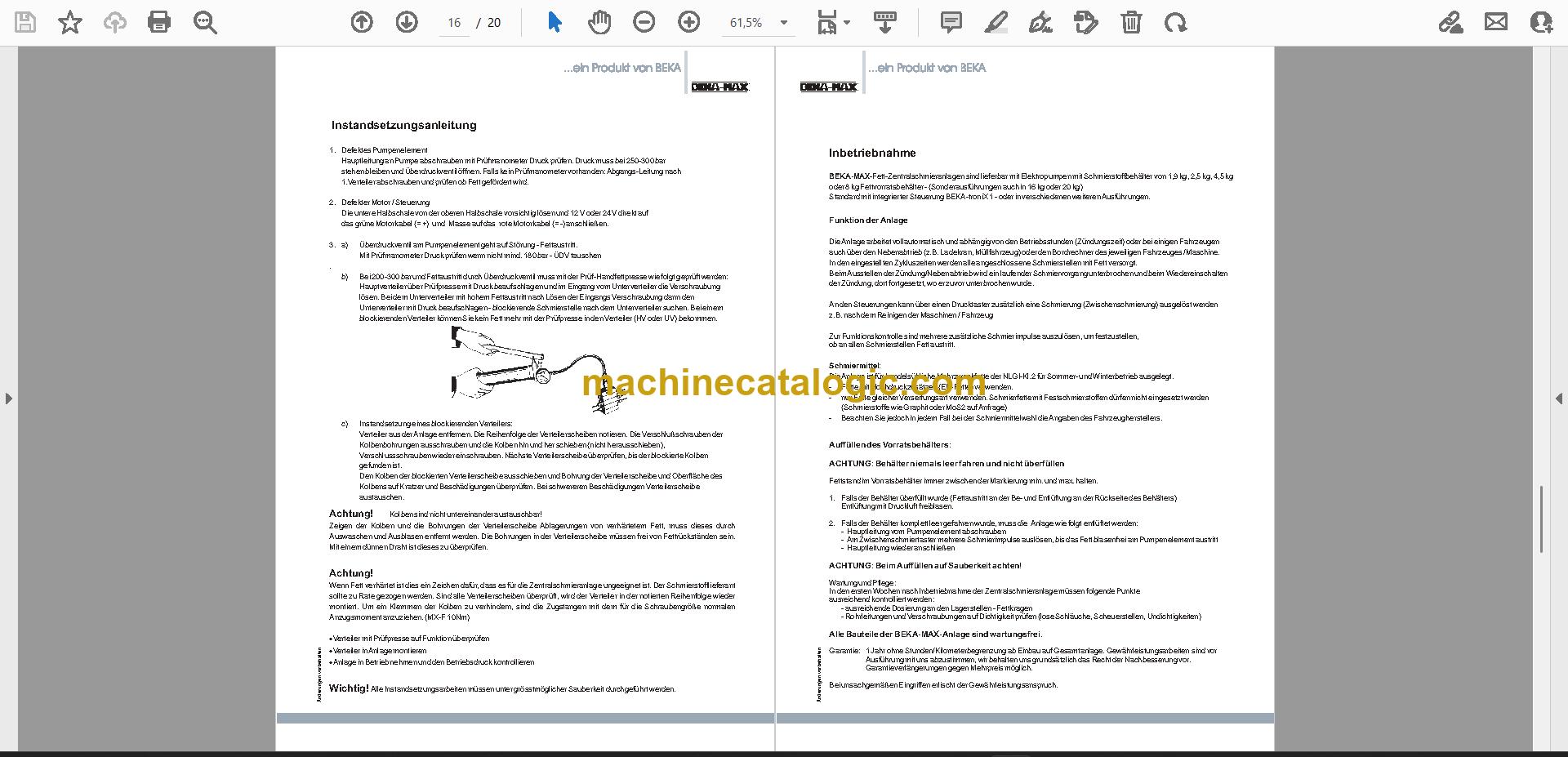

Click here to view the preview (PDF)

Table of Contents:

General outline of the sections covered in a service manual of this type. Actual chapter numbering and section names vary by model and edition.

• Foreword and safety information
• General information and specifications
• Description and function
• Installation
• Electrical connections
• Fault diagnosis
• Repair and component replacement
• Troubleshooting
• Service data
