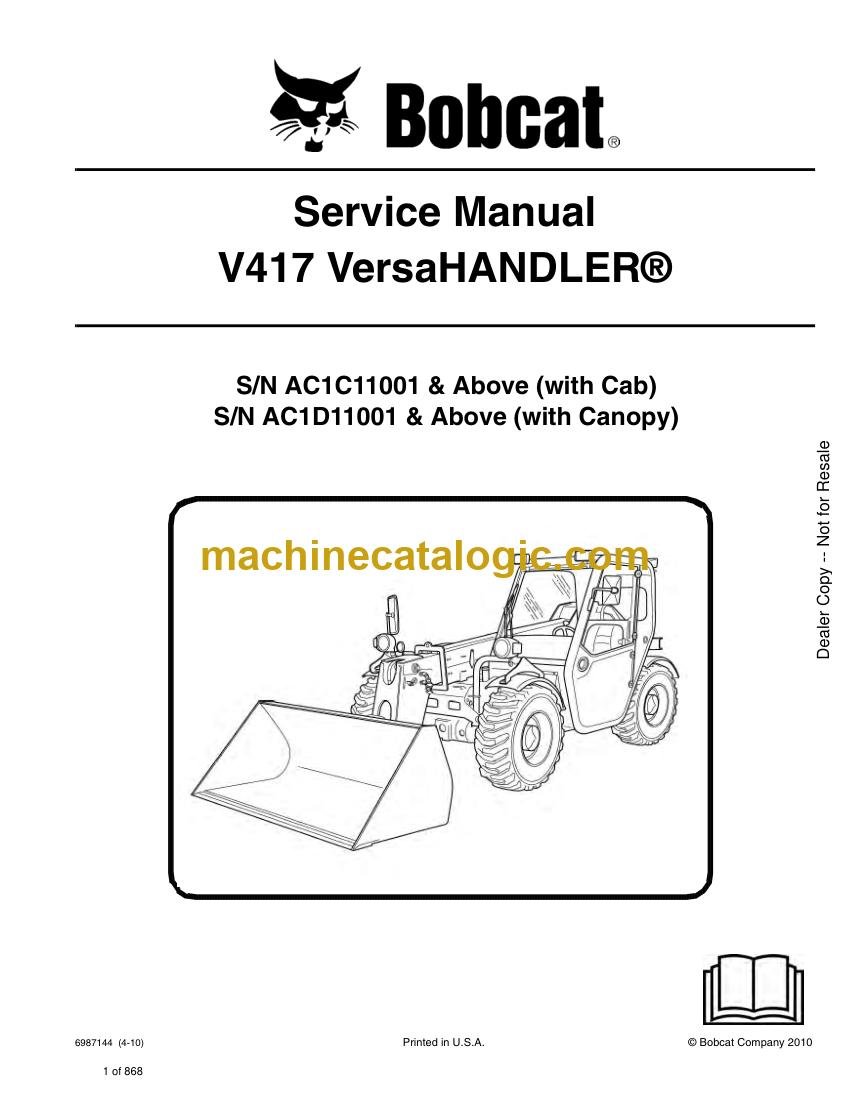

Bobcat V417 VersaHANDLER® TTC, Telescopic Handler Service Manual (SN AC1D11001-AC1D99999)

Format: PDF (Printable Document)

File Language: English

File Pages: 868

File Size: 31.41 MB (Speed Download Link)

Brand: Bobcat

Model: V417 VersaHANDLER® TTC, Telescopic Handler

Book No: 6987144

Serial No: SN AC1D11001-AC1D99999

Type of Document: Service Manual

Categories: ,

$ 45

Share:

Bobcat V417 VersaHANDLER® TTC, Telescopic Handler Service Manual (SN AC1D11001-AC1D99999)

The V417 VersaHANDLER is the farm and yard forklift you use to stack bales high, load manure spreaders, and handle pallets where a skid-steer just runs out of reach. Around my place, the service manual comes out when something quits lifting right, the boom creeps down, or an electrical gremlin kills the machine in the middle of chores. Folks grab this manual when they want the real repair info, not safety stickers and daily checks.

What this manual helps you do

  • Diagnose boom, outrigger, and steering hydraulic problems, then check pressures and cycle times the way Bobcat intended
  • Trace electrical issues in the dash, safety interlocks, and joystick controls using proper wiring diagrams
  • Follow teardown and reassembly steps for hydraulic cylinders, the telescopic boom sections, and drive components
  • Adjust linkages, boom wear pads, and stabilizer systems so the machine lifts straight and stays tight
  • Replace major components like pumps, motors, and valves with the right sequence, test steps, and spec checks

Who this is for

This is for an owner-operator, small contractor, or shop mechanic working on a Bobcat V417 VersaHANDLER TTC in the AC1D11001-AC1D99999 serial range. If you only want basic operating tips or maintenance intervals, you want the operator's handbook, not this service manual.

FAQ

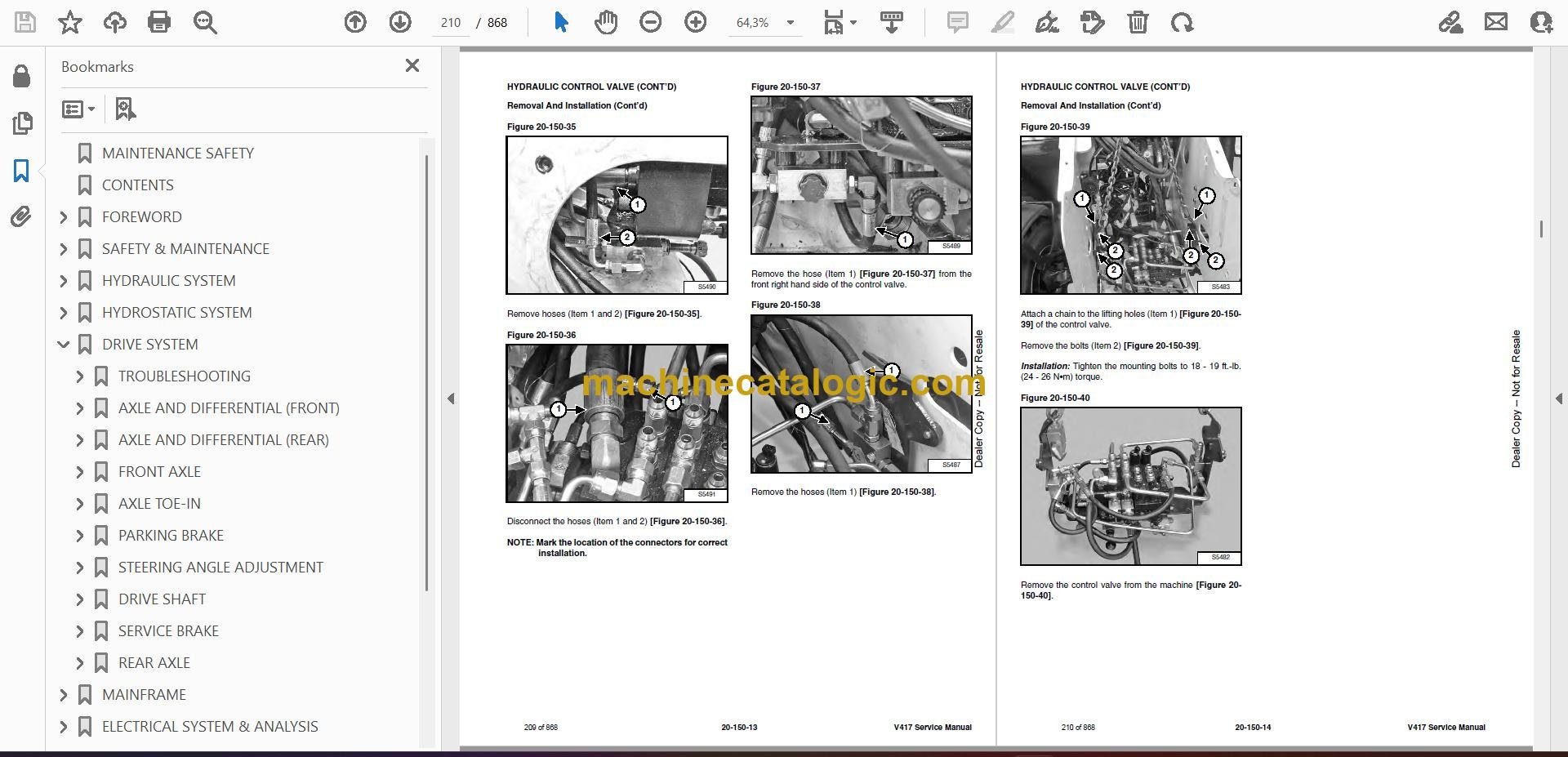

Q: Is this a searchable PDF with readable wiring diagrams?

A: Yes, these manuals are usually supplied as searchable PDF files, and the wiring diagrams are laid out so you can zoom in and follow circuits.

Q: How do I know it fits my machine?

A: Check your V417 serial plate. If it falls between AC1D11001 and AC1D99999, this is the right service manual family for your machine.

Q: Is this what I need for real repairs, or just maintenance?

A: This is the workshop-level service manual, meant for diagnostics and repairs, not just fluid changes and walk-around checks.

Bottom line: If you own or wrench on a V417 in that serial range and plan to do your own troubleshooting and repairs, this is the manual you want.

📘 Show Index

Table of Contents:

  • MAINTENANCE SAFETY
  • CONTENTS
  • FOREWORD
    • FOREWORD
    • SAFETY INSTRUCTIONS
    • FIRE PREVENTION
      • Maintenance
      • Operation
      • Electrical
      • Hydraulic System
      • Fueling
      • Starting
      • Spark Arrestor Exhaust System
      • Welding And Grinding
      • Fire Extinguishers
    • SERIAL NUMBER LOCATION
      • VersaHANDLER Serial Number
      • Engine Serial Number
      • Other Serial Numbers
    • DELIVERY REPORT
    • VersaHANDLER IDENTIFICATION
  • SAFETY & MAINTENANCE
    • LIFTING AND BLOCKING THE VERSAHANDLER
      • Procedure
    • OPERATOR CAB / CANOPY
      • Cab Door
      • Cab Door Window
    • TRANSPORTING THE VERSAHANDLER ON A TRAILER
      • Loading And Unloading
      • Fastening
    • TOWING THE VersaHANDLER
      • Releasing The Brake Discs
      • Towing
      • Engaging The Brake Discs
    • SERVICE SCHEDULE
      • Chart
    • AIR CLEANER SERVICE
      • Replacing The Filter Element
    • ENGINE COOLING SYSTEM
      • Cleaning
      • Removing And Replacing The Coolant
      • Checking Level
    • FUEL SYSTEM
      • Fuel Specifications
      • Filling The Fuel Tank
      • Fuel Filter
    • ENGINE LUBRICATION SYSTEM
      • Checking Engine Oil
      • Oil Chart
      • Replacing Oil And Filter
    • HYDRAULIC / HYDROSTATIC SYSTEM
      • Checking And Adding Fluid
      • Replacing The Hydraulic / Hydrostatic Filters
      • Replacing Hydraulic Fluid
    • AXLES (FRONT AND REAR)
      • Checking Oil Level (Planetary Carrier)
      • Draining Oil (Planetary Carrier)
      • Checking Oil Level (Rear Differential)
      • Draining Oil (Rear Differential)
      • Checking Oil Level (Front Differential)
      • Draining Oil (Front Differential)
    • LUBRICATION
      • Procedure
    • TIRE MAINTENANCE
      • Wheel Nuts
      • Tire Mounting
      • Tire Rotation
      • Tire Pressure
    • SPARK ARRESTOR MUFFLER
      • Procedure
    • APPROVED BOOM STOP
      • Installing
      • Removing
    • ENGINE COVER
      • Opening And Closing The Engine Cover
    • LATERAL OPERATOR RESTRAINT SYSTEM (LORS)
      • System Inspection
      • System Maintenance
    • REMOTE START
      • Connecting to the VersaHANDLER
      • Remote Start Procedure (For Tools MEL1563 And MEL1565)
      • Remote Start Procedure (For Tool Kit P/N 6689779)
    • VersaHANDLER STORAGE AND RETURN TO SERVICE
      • Storage
      • Return To Service
    • STOPPING THE ENGINE AND LEAVING THE VERSAHANDLER
      • Procedure
    • EMERGENCY EXIT
      • Rear Window
  • HYDRAULIC SYSTEM
    • HYDRAULIC / HYDROSTATIC SCHEMATICS
    • HYDRAULIC SYSTEM INFORMATION
      • Glossary Of Hydraulic / Hydrostatic Symbols
      • Troubleshooting Chart
      • Tightening Procedures
    • LIFT CYLINDER
      • Removal And Installation
      • Parts Identification
      • Disassembly
      • Assembly
    • BUCKET POSITIONING CYLINDER
      • Removal And Installation
      • Parts Identification
      • Disassembly
      • Assembly
    • EXTENSION CYLINDER
      • Cylinder Group Removal And Installation
      • Upper Tubeline Removal
      • Upper Tubeline Installation
      • Extension Cylinder Removal And Installation
      • Tubeline Tray Disassembly
      • Tubeline Tray Assembly
      • Parts Identification
      • Disassembly
      • Assembly
    • TILT CYLINDER
      • Removal And Installation
      • Parts Identification
      • Disassembly
      • Assembly
    • STEERING CYLINDER (FRONT)
      • Removal
      • Installation
      • Parts Identification
      • Disassembly
      • Assembly
    • STEERING CYLINDER (REAR)
      • Removal
      • Installation
      • Parts Identification
      • Disassembly
      • Assembly
    • DRIVE BOX
      • Parts Identification
      • Disassembly
      • Assembly
      • Special Tools
    • MAIN RELIEF VALVE
      • Testing And Adjustment
      • Removal And Installation
    • PORT RELIEF VALVES
      • Parts Identification
      • Adjustment Procedure
    • STEERING MODE VALVE BLOCK
      • Removal And Installation
      • Parts Identification
      • Disassembly
      • Solenoid Testing
      • Assembly
    • BRAKE VALVE
      • Removal And Installation
      • Disassembly And Assembly
    • GEAR PUMP
      • Removal And Installation
      • Parts Identification
      • Disassembly And Assembly
    • HYDRAULIC RESERVOIR
      • Removal And Installation
    • STEERING VALVE
      • Removal And Installation
      • Parts Identification
      • Disassembly
      • Inspection
      • Assembly
    • HYDRAULIC CONTROL VALVE
      • Troubleshooting Chart (Controllers)
      • Telescoping Valve Section Troubleshooting
      • Auxiliary Valve Section Troubleshooting
      • Troubleshooting Chart (Control Valve)
      • Removal And Installation
      • Parts Identification
      • Disassembly And Assembly
      • End Housing Disassembly And Assembly
      • Telescoping and Auxiliary Valve Section Disassembly And Assembly
      • Lifting and Tilting Valve Section Disassembly And Assembly
      • Inlet-Outlet Valve Section Disassembly And Assembly
    • JOYSTICK
      • Removal And Installation
    • PARKING BRAKE
      • Parking And Passive Brake Switch Removal And Installation
      • Parking And Passive Brake Switch Disassembly And Assembly
    • WORKGROUP LOCKOUT VALVE
      • Testing
      • Removal And Installation
      • Disassembly And Assembly
    • TOW VALVE
      • Removal And Installation
      • Disassembly And Assembly
    • FRONT AUXILIARY HYDRAULIC PRESSURE RELEASE VALVE
      • Removal And Installation
      • Disassembly And Assembly
    • MANIFOLD
      • Removal And Installation
      • Disassembly
  • HYDROSTATIC SYSTEM
    • HYDROSTATIC SYSTEM INFORMATION
      • Troubleshooting Chart
      • Replenishing Valve Function
    • OIL COOLER
      • Removal And Installation
    • HYDROSTATIC DRIVE MOTOR
      • Removal And Installation
      • Parts Identification
      • Disassembly
      • Inspection
      • Assembly
    • HYDROSTATIC PUMP (S/N AC1C11001 – AC1C11999, AC1D11001 – AC1D11999)
      • Removal And Installation
      • Parts Identification
      • Disassembly
      • Inspection
      • Assembly
    • HYDROSTATIC PUMP (S/N AC1C12000 & ABOVE, AC1D12000 & ABOVE)
      • Removal And Installation
      • Parts Identification
      • Shaft Disassembly
      • Relief Valves Disassembly And Assembly
      • Charge Pump Disassembly
      • Piston Pump Disassembly
      • Solenoid Block Disassembly
      • Inspection
      • Piston Pump Assembly
      • Charge Pump Assembly
      • Solenoid Block Assembly
      • Shaft Assembly
    • DRIVE BELT
      • Description
      • Shield Removal And Installation
      • Adjusting
      • Belt Removal And Installation
      • Tensioner Pulley Removal And Installation
      • Tensioner Pulley Parts Identification
      • Tensioner Pulley Disassembly And Assembly
  • DRIVE SYSTEM
    • TROUBLESHOOTING
      • Chart
    • AXLE AND DIFFERENTIAL (FRONT)
      • Description
      • Planetary Carrier And Wheel Hub Parts Identification
      • Planetary Carrier Disassembly
      • Wheel Hub Disassembly
      • Steering Knuckle and Drive Shaft Parts Identification
      • Steering Knuckle Disassembly
      • Axle Housing / Drive Shaft Disassembly
      • Brake Group Parts Identification
      • Brake Group Disassembly
      • Differential Parts Identification
      • Differential Disassembly
      • Pinion Group Parts Identification
      • Pinion Group Disassembly
      • Pinion Group Assembly
      • Differential Assembly
      • Brake Group Assembly
      • Axle Housing / Drive Shaft Assembly
      • Steering Knuckle Assembly
      • Wheel Hub Assembly
      • Planetary Carrier Assembly
      • Special Tools
    • AXLE AND DIFFERENTIAL (REAR)
      • Description
      • Planetary Carrier And Wheel Hub Parts Identification
      • Planetary Carrier Disassembly
      • Wheel Hub Disassembly
      • Steering Knuckle and Drive Shaft Parts Identification
      • Steering Knuckle Disassembly
      • Axle Housing / Drive Shaft Disassembly
      • Differential Parts Identification
      • Pinion Group Parts Identification
      • Pinion Group Disassembly
      • Pinion Group Assembly
      • Differential Assembly
      • Steering Knuckle Assembly
      • Wheel Hub Assembly
      • Planetary Carrier Assembly
      • Special Tools
    • FRONT AXLE
      • Removal
      • Installation
    • AXLE TOE-IN
      • Adjustment
    • PARKING BRAKE
      • Releasing The Brake Discs
      • Engaging The Brake Discs
    • STEERING ANGLE ADJUSTMENT
      • Adjustment
    • DRIVE SHAFT
      • Removal And Installation
    • SERVICE BRAKE
      • Description
      • Bleeding The Brake Circuit
    • REAR AXLE
      • Removal
      • Installation
  • MAINFRAME
    • OPERATOR CAB (S/N AC1C12999 & BELOW)
      • Removal And Installation
    • OPERATOR CAB (S/N AC1C13000 & ABOVE)
      • Removal And Installation
    • CANOPY
      • Removal And Installation
    • OPERATOR SEAT
      • Removal And Installation
      • Disassembly And Assembly
    • BOOM ASSEMBLY
      • Removal And Installation
    • INNER BOOM
      • Removal
      • Installation
    • WEAR PADS (FRONT)
      • Removal And Installation
    • WEAR PADS (REAR)
      • Removal
      • Installation
    • ENGINE COVER
      • Locking Mechanism Removal And Installation
      • Removal And Installation
      • Lock
    • FUEL TANK
      • Removal And Installation
    • BOB-TACH
      • Removal And Installation
      • Lever And Wedge Disassembly And Assembly
    • REAR WEIGHTS
      • Removal And Installation
    • FENDER
      • Removal And Installation
    • JOYSTICK PANEL (S/N AC1C12999 & BELOW, AC1D12999 & BELOW)
      • Cover Removal and Installation
    • JOYSTICK PANEL (S/N AC1C13000 & ABOVE, AC1D13000 & ABOVE)
      • Cover Removal and Installation
    • DASH COVER / STEERING COLUMN COVER (S/N AC1C12999 & BELOW, AC1D12999 & BELOW)
      • Steering Column Cover Removal And Installation
      • Dash Cover Removal And Installation
    • DASH COVER / STEERING COLUMN COVER (S/N AC1C13000 & ABOVE, AC1D13000 & ABOVE)
      • Dash Cover Removal And Installation
      • Steering Column Cover Removal And Installation
  • ELECTRICAL SYSTEM & ANALYSIS
    • ELECTRICAL SCHEMATICS
    • ELECTRICAL SYSTEM INFORMATION (S/N AC1C12999 & BELOW, AC1D12999 & BELOW)
      • Troubleshooting Chart
      • Description
      • Fuses, Diodes And Relays
    • ELECTRICAL SYSTEM INFORMATION (S/N AC1C13000 & ABOVE, AC1D13000 & ABOVE)
      • Troubleshooting Chart
      • Description
      • Fuses, Diodes And Relays
    • BATTERY
      • Removal And Installation
      • Servicing
      • Using A Booster Battery (Jump Starting)
    • ALTERNATOR
      • Removal And Installation
      • Belt Adjustment
      • Belt Replacement
    • STARTER
      • Testing
      • Removal And Installation
      • Parts Identification
    • LATERAL OPERATOR RESTRAINT SYSTEM (LORS)
      • Restraint Bar Removal And Installation
      • Sensor Removal And Installation
      • Restraint Bar Bumper Removal And Installation
    • LIGHTS
      • Rear Light Removal And Installation
      • Front Light Removal And Installation
    • TRAVEL LEVER (S/N AC1C12999 & BELOW, AC1D12999 & BELOW)
      • Removal And Installation
    • TRAVEL LEVER (S/N AC1C13000 & ABOVE, AC1D13000 & ABOVE)
      • Removal And Installation
    • INSTRUMENT PANEL (S/N AC1C12999 & BELOW, AC1D12999 & BELOW)
      • Removal And Installation
    • INSTRUMENT PANEL (S/N AC1C13000 & ABOVE, AC1D13000 & ABOVE)
      • Removal And Installation
    • SWITCH PANEL (S/N AC1C13000 & ABOVE, S/N AC1D13000 & ABOVE)
      • Removal And Installation
    • FRONT WIPER MOTOR
      • Removal And Installation
    • TOP WIPER MOTOR
      • Removal And Installation
    • REAR WIPER MOTOR
      • Removal And Installation
    • PEDAL ASSEMBLY
      • Removal And Installation
      • Disassembly And Assembly
    • INCHING SWITCH
      • Removal And Installation
      • Adjustment
    • SERVICE SOFTWARE
      • Connecting Remote Start Tool To Laptop Computer
      • Connecting Remote Start Tool (Service Tool)
      • Connecting Remote Start Tool To VersaHANDLER
      • Entering The Service Software
      • Calibrate Inch Pedal
    • MAIN CONTROLLER
      • Removal And Installation
      • Connector Identification
    • DIAGNOSTIC SERVICE CODES
      • Viewing Service Codes
      • Service Codes List
  • ENGINE SERVICE
    • ENGINE INFORMATION
      • Description
      • Troubleshooting
      • Compression – Checking
    • ENGINE AND ENGINE MOUNTS
      • Removal And Installation
    • ENGINE AND HYDROSTAT ASSEMBLY
      • Removal And Installation
    • ENGINE SPEED CONTROL
      • Removal and Installation
    • MUFFLER
      • Removal And Installation
    • AIR CLEANER
      • Removal And Installation
      • Air Intake Cowling Removal And Installation
    • ENGINE COOLING SYSTEM
      • Radiator Removal And Installation
      • Fan Removal And Installation
      • Water Pump Removal And Installation
      • Water Pump Disassembly And Assembly
      • Thermostat Housing Removal And Installation
    • LUBRICATION SYSTEM
      • Oil Pan Removal And Installation
      • Oil Pump Removal And Installation
      • Oil Pump Inspection
      • Oil Filter Cooler Removal And Installation
      • Engine Oil Pressure – Testing
    • FUEL SYSTEM
      • Fuel Camshaft Removal And Installation
      • Injection Pump Governor Housing Removal And Installation
      • Injection Pump Governor Housing Disassembly And Assembly
      • Fuel Shutoff Solenoid – Checking
      • Fuel Shutoff Solenoid Removal And Installation
      • Fuel Injection Pump Removal And Installation
      • Fuel Injection Pump Housing Removal
      • Fuel Injection Pump Housing Installation
      • Injection Pump Timing
      • Fuel Injector Removal and Installation
      • Fuel Injector Nozzle Pressure – Checking
      • Nozzle Spraying Condition
      • Valve Seat Tightness
    • CYLINDER HEAD
      • Intake Air Heater – Testing
      • Intake Air Heater Removal And Installation
      • Valve Clearance Adjustment
      • Valve Timing – Checking
      • Cylinder Head Removal And Installation
      • Cylinder Head Disassembly And Assembly
      • Cylinder Head – Servicing
      • Cylinder Head Top Clearance
      • Valve Guide – Checking
      • Reconditioning The Valve And Valve Seat
      • Valve Spring
      • Valve Tappets
      • Rocker Arm And Shaft – Checking
    • CRANKSHAFT AND PISTONS
      • Piston And Connecting Rod Removal And Installation
      • Piston And Connecting Rod – Servicing
      • Cylinder Bore Checking
      • Connecting Rod Alignment
      • Crankshaft Gear Removal And Installation
      • Crankshaft And Bearings Removal and Installation
      • Crankshaft And Bearings – Servicing
    • CAMSHAFT AND TIMING GEARS
      • Timing Gearcase Cover Removal And Installation
      • Timing Gears Backlash – Checking
      • Camshaft – Servicing
      • Idle Gear And Shaft Removal And Installation
      • Idler Gear And Shaft – Servicing
      • Balancer Shaft Servicing
    • TURBOCHARGER
      • Description
      • Testing
      • Removal And Installation
    • FLYWHEEL AND HOUSING
      • Flywheel Removal And Installation
      • Ring Gear Removal And Installation
      • Housing Removal And Installation
    • EXHAUST GAS RECIRCULATION (EGR) SYSTEM
      • Checking The Function Of EGR System
      • Disassembly And Assembly
  • HEATING, VENTILATION AND AIR CONDITIONING (HVAC)
    • AIR CONDITIONING SYSTEM FLOW
      • Description
      • Chart
    • COMPONENTS (S/N AC1C12999 & BELOW)
      • Identification
    • COMPONENTS (S/N AC1C13000 & ABOVE)
      • Identification
    • SAFETY
      • Safety Equipment
    • REGULAR MAINTENANCE
      • Filter Element Removal And Installation
      • Compressor And Alternator Drive Belt Inspection
      • Cleaning The Condenser
    • BASIC TROUBLESHOOTING
      • Poor A/C Performance
      • Compressor And Alternator Drive Belt Inspection
      • Checking The Electrical System
    • GENERAL AIR CONDITIONING SERVICE GUIDELINES
      • Compressor Oil
      • Compressor Oil Check
      • Component Replacement And Refrigeration Leaks
    • SYSTEM TROUBLESHOOTING CHART
      • Chart
      • Gauge Pressure Related Troubleshooting
    • TEMPERATURE AND PRESSURE
      • Chart
    • AIR CONDITIONING SERVICE
      • Chart
    • SYSTEM CHARGING AND RECLAMATION
      • Reclamation Procedure
      • Charging Procedure With A Manifold Gauge Set
    • COMPRESSOR
      • Removal And Installation
      • Compressor Clutch Disassembly And Assembly
    • CONDENSER (S/N AC1C12999 & BELOW)
      • Removal And Installation
    • CONDENSER (S/N AC1C13000 & ABOVE)
      • Removal And Installation
    • RECEIVER / DRIER
      • Removal And Installation
    • PRESSURE SWITCH
      • Removal And Installation
    • EVAPORATOR/BLOWER UNIT (S/N AC1C12999 & BELOW)
      • Removal And Installation
    • EVAPORATOR / BLOWER UNIT (S/N AC1C13000 & ABOVE)
      • Removal And Installation
    • EXPANSION VALVE (S/N AC1C12999 & bELOW)
      • Removal And Installation
    • EXPANSION VALVE (S/N AC1C13000 & ABOVE)
      • Removal And Installation
    • HEATER ASSEMBLY
      • Removal And Installation
      • Fan Removal And Installation
      • Core Removal And Installation
  • SPECIFICATIONS
    • VersaHANDLER TELESCOPIC TOOL CARRIER (TTC) SPECIFICATIONS
      • Machine Dimensions
      • Performance
      • Engine
      • Controls
      • Drive System
      • Tires
      • Capacities
      • Hydraulic System
      • Electrical System
      • Instrument Panel
    • ENGINE SPECIFICATIONS
      • General
      • Fuel System
      • Cylinder Head
      • Valve Guides
      • Valve Tappets
      • Exhaust Valves
      • Intake Valves
      • Valve Springs
      • Valve Timing
      • Rocker Arm
      • Camshaft
      • Timing Gear
      • Piston And Piston Ring
      • Connecting Rod
      • Cylinder Bore
      • Crankshaft
      • Oil Pump
      • Cooling System
      • Intake Air Heater
      • Torque Values
      • Engine Torque Component
    • MACHINE TORQUE SPECIFICATIONS
      • Specifications
    • TORQUE SPECIFICATIONS FOR BOLTS
      • Torque for General SAE Bolts
      • Torque For General Metric Bolts
    • HYDRAULIC CONNECTION SPECIFICATIONS
      • O-ring Face Seal Connection
      • Straight Thread O-ring Fitting
      • Tubelines And Hoses
      • Flare Fitting
      • O-ring Flare Fitting
      • Port Seal Fitting
    • HYDRAULIC / HYDROSTATIC FLUID SPECIFICATIONS
      • Specifications
    • CONVERSIONS
      • Decimal And Millimeter Equivalent Chart
      • U.S. To Metric Conversion Chart
  • ALPHABETICAL INDEX
  • SERVICE MANUAL REVISION
    • Revision No: V417 – 1

Bobcat Software

Bobcat PDF Manuals

Related Manuals

0
    0
    Your Cart
    Your cart is emptyReturn to Shop
