Bosch Rexroth A10VSO Series 30 Hydraulic Pump Service Manual

The A10VSO Series 30 is a variable displacement axial piston pump. On a crane or other heavy machine, it supplies the oil flow and pressure that drive the hydraulic functions. When one starts to lose pressure, leak at the drive shaft or respond badly to its controls, a fleet mechanic or independent shop reaches for the service manual. The goal is to repair it in-house and get the machine back on the job. The cover may carry the older brand name Mannesmann, so don't let the logo surprise you. This is the complete Bosch Rexroth manual, and it is used on Franna machines.

What this manual helps you do

• Rebuild the pump by following the disassembly sequence and the assembly dimensions.
• Replace the drive shaft seal using the sealing the drive shaft procedure.
• Identify the right seal kits and sub-assemblies from the cross section.
• Clean and inspect the pressure and flow control, including the pilot valves.
• Set up and verify the pump using the testing and set up instructions.

Who this is for

A rental fleet mechanic or crane service technician who is repairing pumps in-house will get the most from it. It also suits independent repair shops and dealer technicians who need a rebuild reference with tools and tightening torques in one place.

FAQ

Q: What do I receive and how is it organised?

A: You get 1 PDF file of 22 pages, in English and German. It runs from notes and contents through the cross section, seal kits, disassembly, controls, testing and tools.

Q: Which pump does it fit?

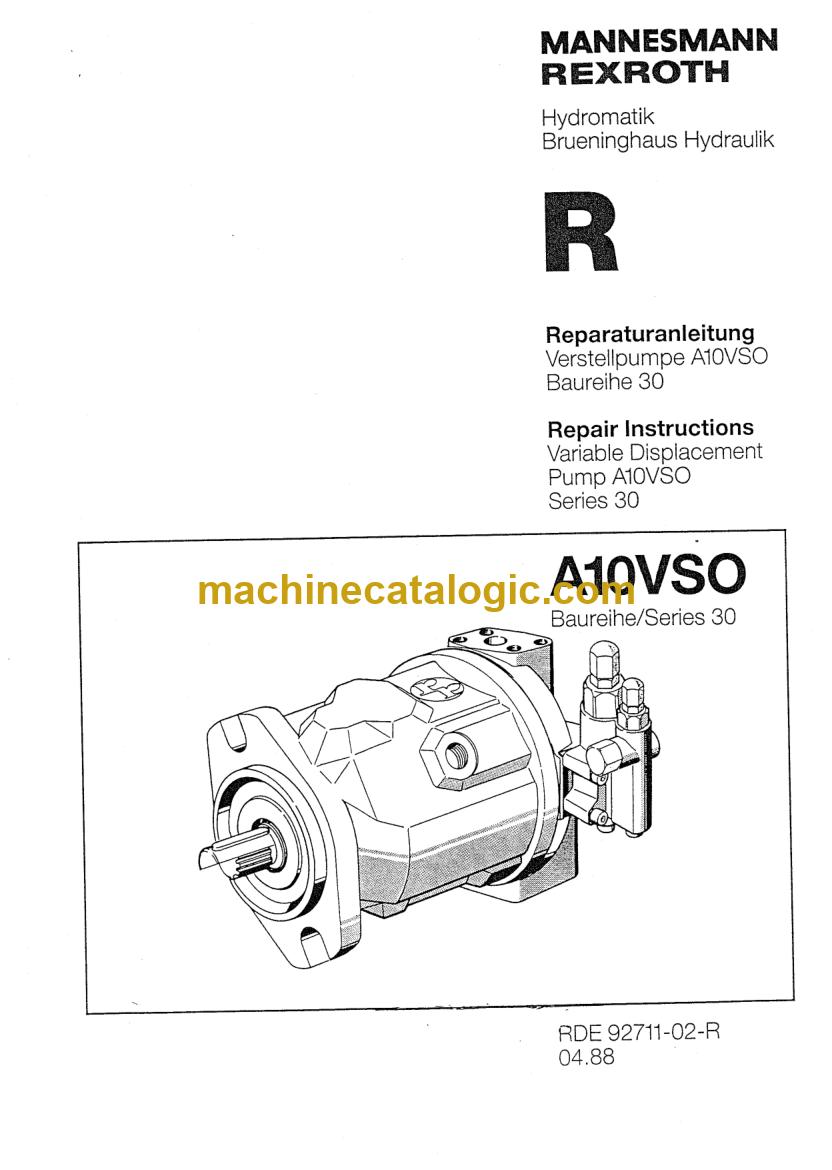

A: It covers the Bosch Rexroth A10VSO Series 30 variable displacement pump, publication number RDE 92711-02-R. The title on the manual reads "A10VSO Series 30 Variable Displacement Pump Repair."

Q: How does it fit my repair job?

A: It follows the order of a bench rebuild: take the pump apart, clean and check the controls, reassemble to the stated dimensions, then test and set up. Keep it with the machine's records so the next repair starts faster.

Pull the pump, work through the procedures, and test it before it goes back in the machine.

Click here to view the preview (PDF)

Table of Contents:

• Notes/Contents
• Cross Section
• Seal kits/sub-assemblies
• Sealing the drive shaft
• Disassembling of the pump
• Several pilot valves (Section)
• Disassembling and cleaning the pressure- and flowcontrol
• Assembly demensions
• Testing and set up instructions
• Tools and tightening torques
