Case 221E Small Wheel Loader Parts Catalog (6-88810_int_A4N)

A 221E is usually pushing feed, loading trucks, or handling material in tight yards and construction sites, so downtime hurts fast. This parts catalog is what I’d grab when I need to identify exactly which components are on your loader before ordering anything. If you’ve bent a carriage link or lost hardware on a wheel assembly, these exploded views let me trace how everything fits together and confirm the right revision of each part.

Applications & Use Cases

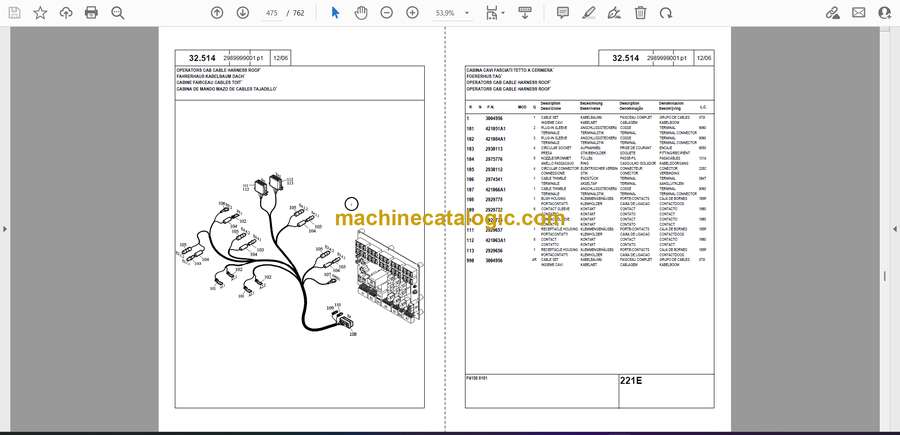

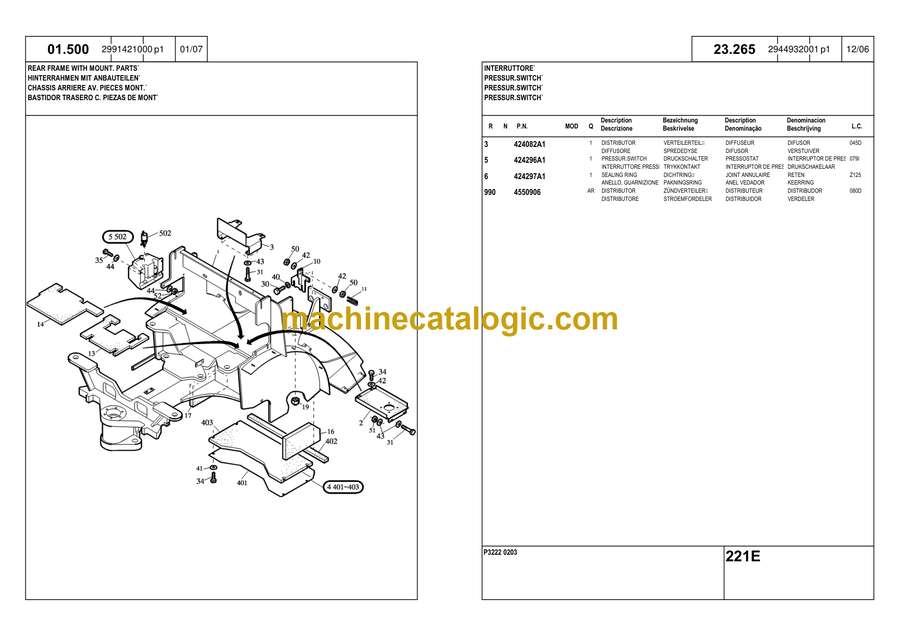

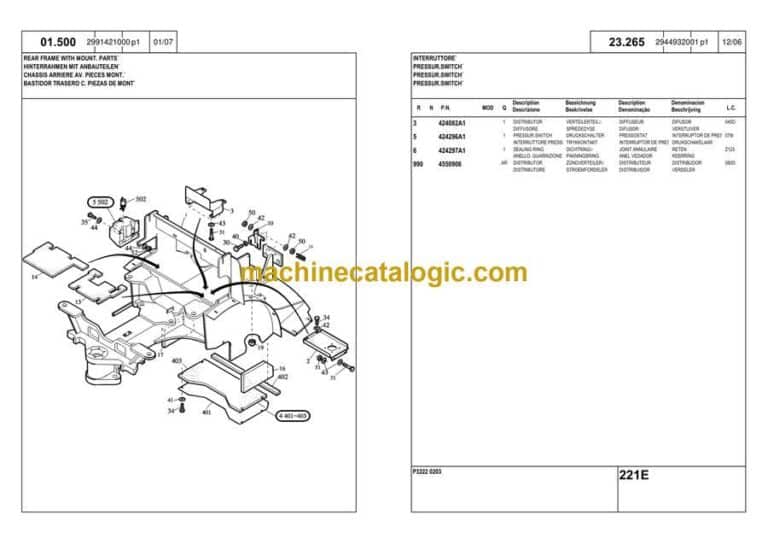

• Use the exploded diagrams to see how frame, axle, and wheel components stack together before you tear into the machine.
• Cross-check small items—seals, bushings, shims, and fasteners—that are easy to miss when writing up a parts order.
• Verify component-to-component relationships, like how propshafts, supports, and tanks are mounted, so you don’t order the wrong brackets.
• Compare similar sub-assemblies to spot variant differences and avoid mixing early/late style parts.
• Print specific pages to keep at the bench while you inspect and lay out removed parts for reassembly planning.

FAQ

Q: Can I use this on a tablet in the field?

A: Yes, it’s practical to zoom into diagrams on a tablet, which helps read callouts around crowded assemblies.

Q: Is it still worth printing pages?

A: Definitely—most techs print the relevant views to mark notes and part numbers during teardown.

Safety Note

Always lock out, block, and relieve stored energy before inspecting components referenced in this catalog.
