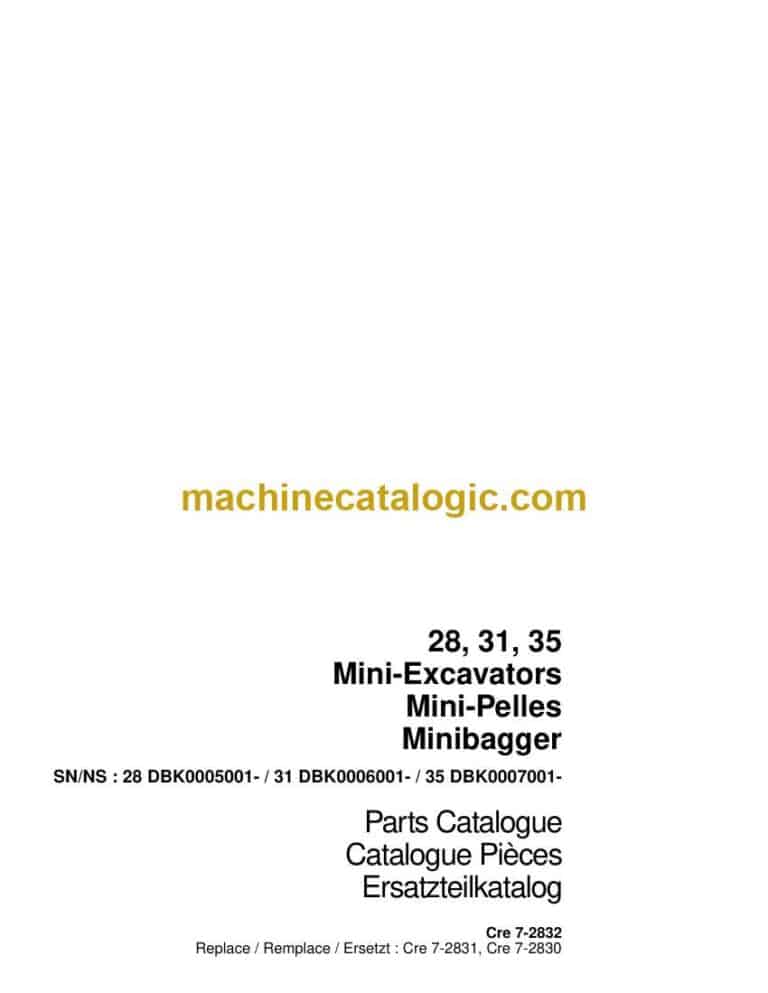

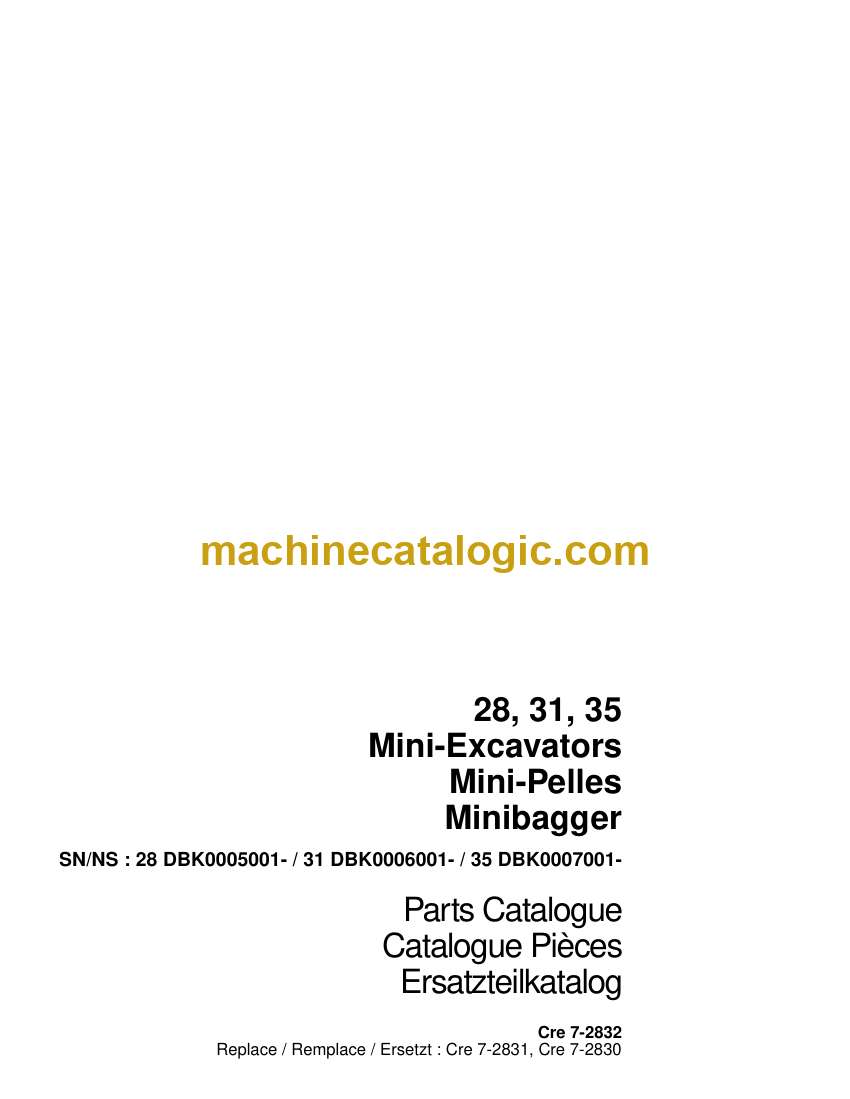

Case 28, 31, 35 Mini Excavators Parts Catalog (7-2832)

These Case 28, 31, 35 mini excavators usually live in tight jobsites—utility trenches, landscaping, foundation work—where they’re always climbing over spoil and working close to structures. This parts catalog is what I’d pull when I need to identify the exact components on the carriage, frame, tank modules, or swivel before ordering anything. Say the swivel joint starts weeping or a track frame roller is damaged: I’d use this book to trace the whole assembly, pick out the right seals, bushings, and hardware, and make sure I’m not guessing at what fits.

Applications & Use Cases

• Match exploded views to the machine in front of you to confirm which version of a frame, axle support, or counterweight you’ve actually got.
• Isolate small items—O-rings, shims, spacers, and special bolts—that are easy to overlook when building a parts list.
• Cross-check related sub-assemblies so brackets, shafts, and guards all line up when the new parts arrive.
• Verify differences between similar variants before ordering, avoiding returns when machines were built in different runs.
• Build accurate pre-job kits so you’re not stuck on site missing one seal or bushing.

FAQ

Q: Can I use this catalog on a tablet in the field?

A: Yes, it works well digitally; you can zoom in on the diagrams and search by part description or number.

Q: Is it still worth printing pages from this catalog?

A: Definitely—most techs print the relevant exploded views and take them to the bench to mark parts and quantities as they strip components.

Safety Note

Always verify part numbers against the machine’s ID plate and follow the service manual’s safety procedures when installing any components.

Case 28, 31, 35 Mini Excavators Index:

CARRIAGE STRUCTURE
FRAME ASSEMBLY
AXLE GROUP
SUPPORT MODULE
WHEEL UNIT
SHAFT SYSTEM
TANK MODULES
SWIVEL ASSEMBLY
COUNTERWEIGHT GROUP
ENGINE BLOCK
FUEL MODULE
COOLING SYSTEM
DRIVE & SWING ASSEMBLY
CLUTCH UNIT
STEERING MODULE
BRAKE GROUP
HYDRAULICS
PUMPS & DRIVES
VALVE MODULE
CYLINDER UNIT
CAB HEATING / A/C
LUBRICATION GROUP
POWER & BATTERY
ELECTRICAL MODULE
SLIPRING ASSEMBLY
CAB STRUCTURE
SAFETY MODULE
PANEL & COVER PARTS
GUARDING EQUIPMENT
COLD PACKAGE
BOOM UNIT
STICK UNIT
ENGINE PARTS
