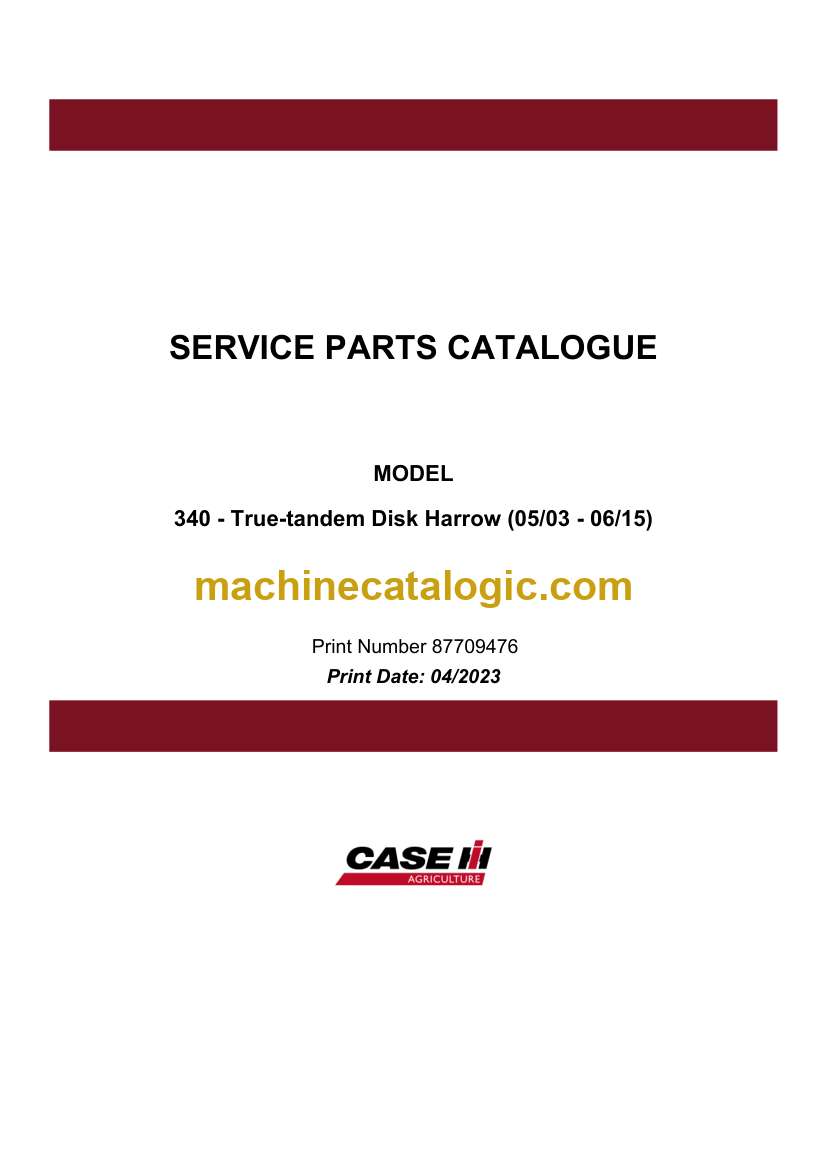

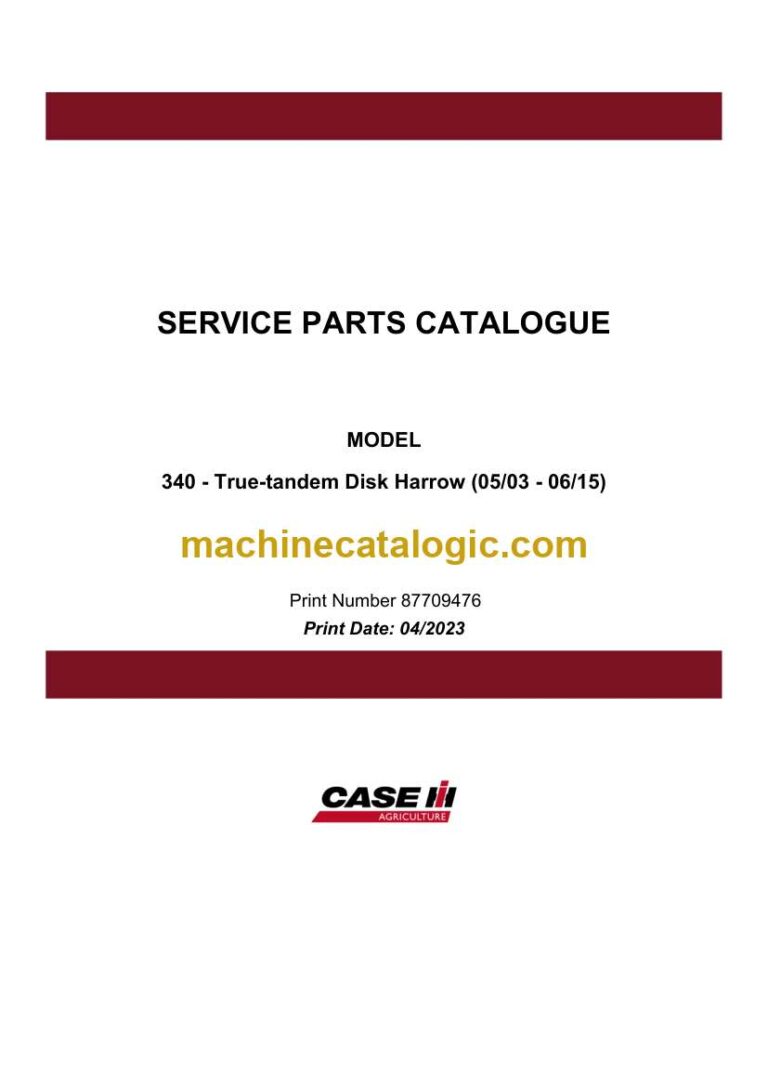

Case 340 True-Tandem Disk Harrow Service Parts Catalogue

Case 340 True-Tandem Disk Harrow Service Parts Catalogue

Out in tilled fields and heavy residue, the Case 340 True-Tandem disk harrow is working hard, so wear parts and hardware get punished fast. This Service Parts Catalogue is what I’d pull when I need to pinpoint the exact blades, bearings, scrapers, and hydraulic pieces that belong on your machine. If, for example, a transport cylinder starts leaking or a gang bearing fails, I use this book to trace the whole assembly, confirm every seal and fastener, and order the right revision the first time.

Applications & Use Cases

• Confirm correct part numbers before ordering when there are multiple width or configuration variants.
• Study exploded views to see how gangs, scrapers, and brackets stack together and which spacers or bushings are easy to miss.
• Cross-check sub-assemblies (like transport hydraulics) so new cylinders, hoses, and fittings all match each other.
• Verify small hardware—locknuts, shims, wear washers—so you don’t reuse questionable pieces during rebuilds.
• Compare old vs. updated parts to see which superseded components will still fit your particular 340 setup.

FAQ

Q: Can I use this catalogue on a tablet in the field?

A: Yes, it’s practical to keep it digital; you can zoom in on diagrams and search part descriptions right at the machine.

Q: Is it worth printing sections of this manual?

A: Many techs print the pages for the assemblies they’re rebuilding, then mark notes and part quantities directly on the sheet.

Safety Note

Always isolate and support the disk harrow safely before inspecting or matching parts from this catalogue.

Case 340 True-tandem Disk Harrow Service Index:

05.100.03
FILTERS & CAPACITIES, 340 TRUE – TANDEM 19-34 FOOT
35.100.01
TRANSPORT HYDRAULICS
35.100.02
19 – 31 FT WING FOLD HYDRAULICS
35.100.03
34 FT WING FOLD HYDRAULICS
35.100.04
LEVELING PULL FRAME HYDRAULICS (OPTIONAL)
35.100.05
3-1/2 IN X 8 IN TRANSPORT CYLINDER 19 – 22 FT TANDEM DISK
35.100.06
3-3/4 IN X 8 IN TRANSPORT CYLINDER 19 – 31 FT TANDEM DISK
35.100.07
4 IN X 8 IN TRANSPORT CYLINDER 25 – 34 FT TANDEM DISK
35.100.08
4-1/4 IN X 8 IN TRANSPORT CYLINDER 34 FT TANDEM DISK
35.100.09
3-1/2 IN X 42 IN WING FOLD CYLINDER 19 – 25 FT TANDEM DISK
35.100.10
4 IN X 42 IN WING FOLD CYLINDER 28 – 34 FT TANDEM DISK
35.100.11
5 IN X 8 IN PULL FRAME LEVELING CYLINDER (OPTIONAL)
35.100.12
REAR HITCH HYDRAULICS – 19 THROUGH 25 FOOT UNITS
35.100.13
REAR HITCH HYDRAULICS 28 THROUGH 34 UNITS
39.100.01
19-31 FT MAIN FRAME PARTS
39.100.02
34 FT MAIN FRAME PARTS
39.100.03
PULL FRAME PARTS
39.100.04
WING FRAME PARTS (QUANTITY PER WING)
39.110.01
REAR HITCH PARTS PRIOR TO 2005 MODELS
39.110.02
REAR HITCH 2006 PRODUCTION 19 – 25 UNITS FOR SERIAL NUMBER JFH0031778 AND
AFTER
39.110.03
REAR HITCH 2006 PRODUCTION 28 – 34 UNITS FOR SERIAL NUMBER JFH0031778 AND
AFTER
39.110.04
REAR JACK PARTS
44.100.01
ROCKSHAFT DUAL 6-BOLT PARTS
44.100.02
ROCKSHAFT TANDEM 6-BOLT PARTS
44.100.03 [01]
ROCKSHAFT TANDEM 8-BOLT PARTS
44.100.03 [02]
ROCK SHAFT TANDEM 8-BOLT UPDATE 2011
44.100.04
WING DUAL 6-BOLT PARTS
44.100.05
WING TANDEM 6-BOLT PARTS
44.100.06
WING TANDEM 8-BOLT PARTS
44.100.07
GAUGE WHEEL PARTS 2008 AND AFTER UNITS
44.100.07 [01]
STABILIZER WHEEL HUB 710
44.100.08
GAUGE WHEEL PARTS 2007 AND PRIOR UNITS
44.100.09
HUB Q871 FOR 47′
44.100.10
HUB AND SPINDLE 6 BOLT
44.100.11
KIT 6 BOLT HUB
44.100.12
KIT 6 BOLT HUB ASSY
44.200.01 [01]
BEARING, KIT
44.200.02 [01]
HUB, KIT
44.200.03
KIT, BEARING AND SEALS
55.404.01
19 – 22 FT LIGHT PARTS
55.404.02
25 – 34 FT LIGHT PARTS
75.200.01
SPRING LEVELING PARTS
75.200.02
SINGLE POINT DEPTH CONTROL PARTS
75.200.03
CENTER SHANK ASSEMBLY PARTS
75.200.04
GANG TUBE PARTS 19 – 31 FT TANDEM DISK
75.200.05
GANG TUBE PARTS 34 FT TANDEM DISK
75.200.06
7-1/2 IN RIGID MAIN GANG PARTS
75.200.07
9 IN RIGID MAIN GANG PARTS
75.200.08
7-1/2 IN CUSHION MAIN GANG PARTS
75.200.09
9 IN CUSHION MAIN GANG PARTS
75.200.10
7-1/2 IN RIGID WING GANG PARTS
75.200.11
9 IN RIGID WING GANG PARTS
75.200.12
7-1/2 IN CUSHION WING GANG PARTS
75.200.13
9 IN CUSHION WING GANG PARTS
75.200.14
7-1/2 IN MAIN GANG SCRAPER PARTS
75.200.15
9 IN MAIN GANG SCRAPER PARTS
75.200.16
7-1/2 IN WING GANG SCRAPER PARTS
75.200.17
9 IN WING GANG SCRAPER PARTS
75.200.18
COIL TINE HARROW MOUNTING PARTS
75.200.19
SPIKE HARROW MOUNTING PARTS
75.200.20
COIL TINE HARROW PARTS
75.200.21
SPIKE HARROW PARTS
75.200.22
CUSHION STANDARD SHIELDS
75.200.23
HOOK ASSY 330, 340, 870 BLADE SHARPENER
75.200.25
HOOK BLADE SHARPENER
90.100.AA [01] HEAVY DUTY EYEBOLT UPGRADE KIT 340 RIGHT
90.100.AA [02] HEAVY DUTY EYEBOLT UPGRADE KIT LEFT 340
90.108.02.01
DECALS
90.108.03.01
DECALS
90.108.03.02
DECALS
