Case Axial-Flow 7250 Combine Service Manual (92195718) (September 2024)

Out in the field this combine’s eating long days—dust, heat, chaff packed into every corner—while you’re trying to keep grain moving and downtime short. This service manual walks you through how to trace faults step by step, verify what’s actually failed, and only then tear into it. Say the rotor won’t stay at speed: instead of guessing at sensors or throwing parts at the drive, you follow the sequence—check power supply, inspect harness routing, test switches, then isolate the mechanical side—so you fix it once and get back to cutting.

Applications & Use Cases

• Trace an electrical fault on a dead function by following the test sequence, so you can isolate a bad relay or connector before ordering parts.
• Check and verify hydraulic issues—slow header, weak auger—by bleeding air, testing pressures with the recommended ports, and ruling out simple linkage problems first.
• Inspect and align belts, chains, and drives using the manual’s procedures so you don’t mis-route something and shred it on startup.
• Route and secure replacement wiring or hoses the way the factory intended, which usually prevents rub-throughs and repeat failures.
• Plan off-season work: you can walk system by system, test, adjust, and know what actually needs money spent on it.

FAQ

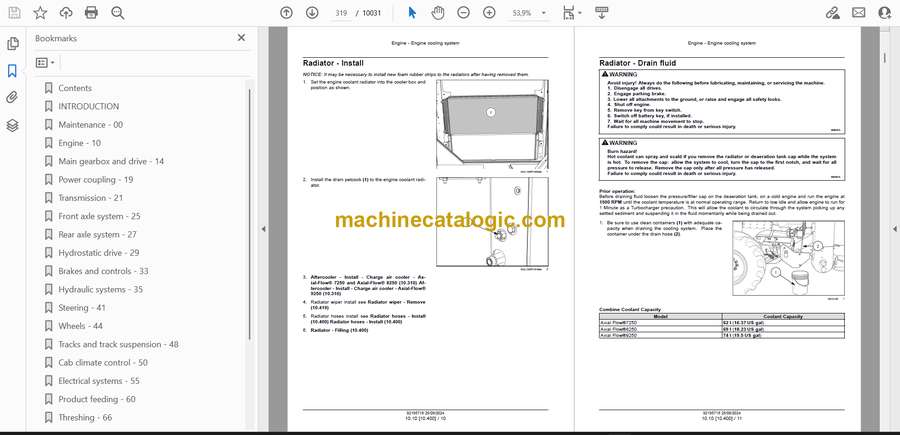

Q: Is this a PDF I can search on my laptop or phone, or just some scanned pictures?

A: It’s typically a searchable PDF, so you can jump to sections, use keywords, and zoom in on diagrams without fighting blurry pages.

Q: Can I print just the sections I need to take out to the field?

A: Yes, you can usually print individual chapters or pages, stick them in a sleeve, get them greasy, and keep your main copy clean.

Safety Note

Always kill power, drop all stored hydraulic energy, and verify everything’s blocked or supported before you crawl under or start loosening anything.

Case Axial-Flow 7250 Combine Index:

• Contents
• INTRODUCTION
• Maintenance – 00
• Engine – 10
• Main gearbox and drive – 14
• Power coupling – 19
• Transmission – 21
• Front axle system – 25
• Rear axle system – 27
• Hydrostatic drive – 29
• Brakes and controls – 33
• Hydraulic systems – 35
• Steering – 41
• Wheels – 44
• Tracks and track suspension – 48
• Cab climate control – 50
• Electrical systems – 55
• Product feeding – 60
• Threshing – 66
• Separation – 72
• Residue handling – 73
• Cleaning – 74
• Crop storage / Unloading – 80
• Platform, cab, bodywork, and decals – 90
• SPECIAL TOOL INDEX
