Case CX130D Crawler Excavator Operators Manual

On a CX130D you’re usually trenching, loading trucks, or doing utility work in tight, rough sites, often all in the same day. This operators manual is what I keep handy to run the machine the way it was designed, so I don’t cook pumps, swing motors, or aftertreatment by bad habits. If, for example, the machine starts fine but the hydraulics feel lazy after warm‑up, I use this to verify correct startup sequence, operating modes, and daily checks before I blame components.

Applications & Use Cases

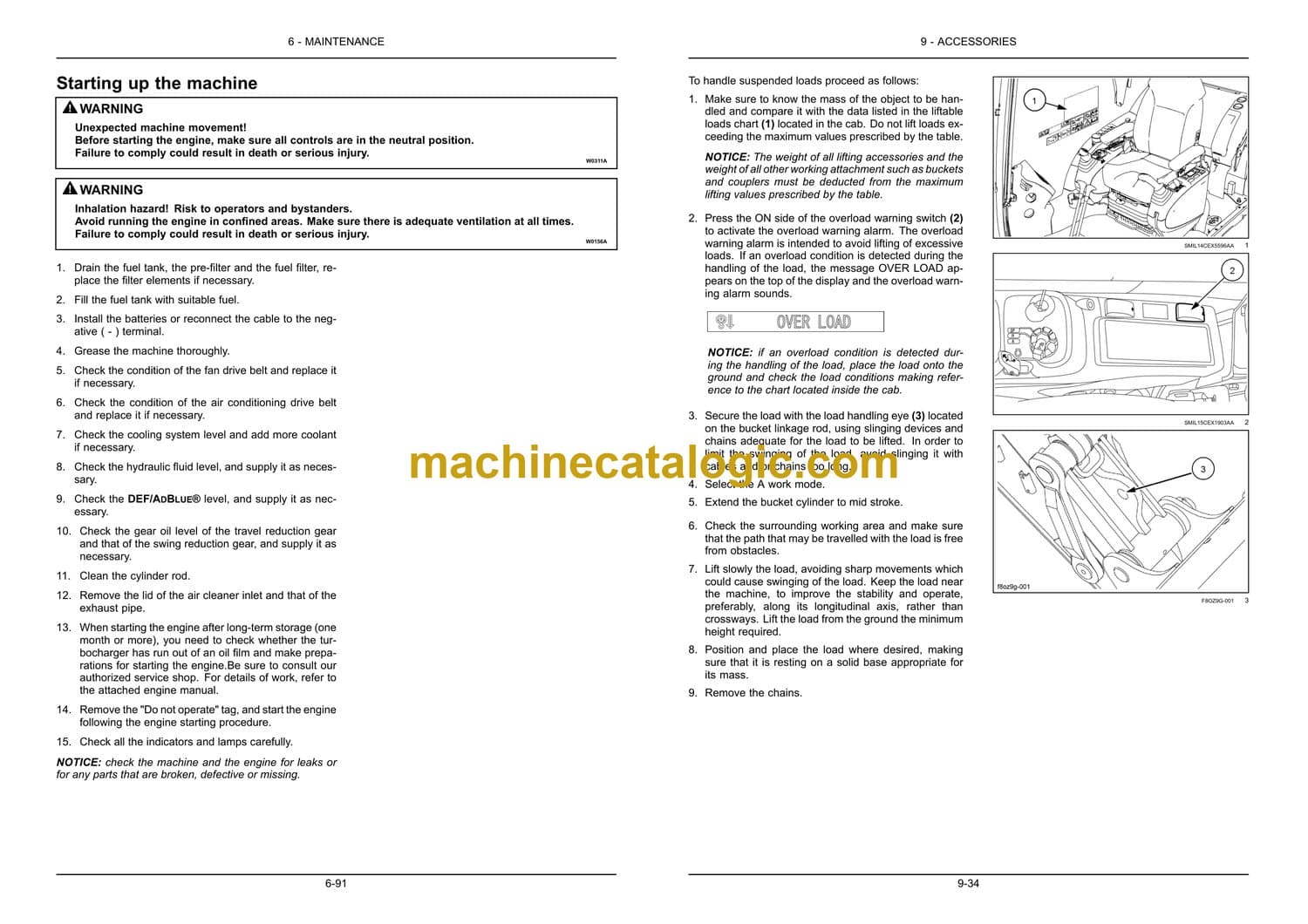

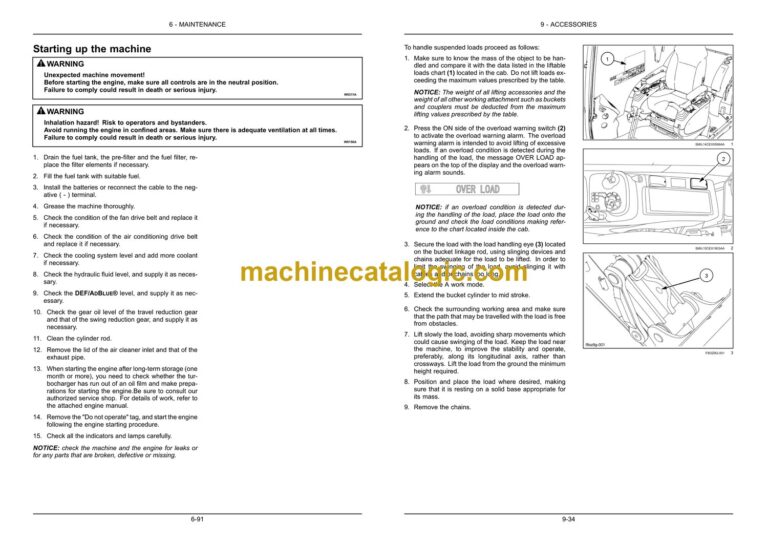

• Confirm proper startup/shutdown logic so you don’t shock the engine or hydraulics and shorten component life.
• Check control functions and displays when an indicator light comes on or a mode doesn’t behave as expected.

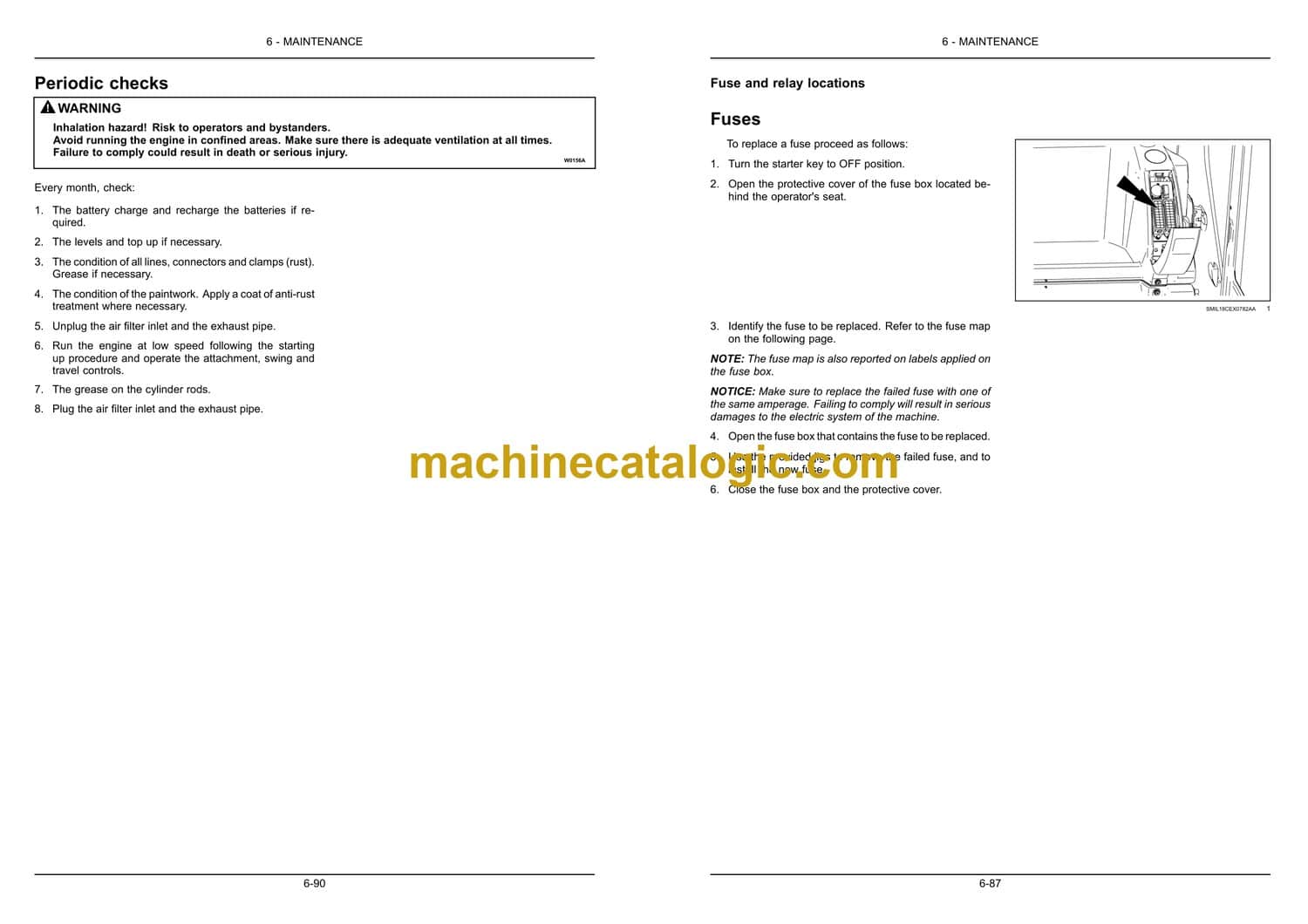

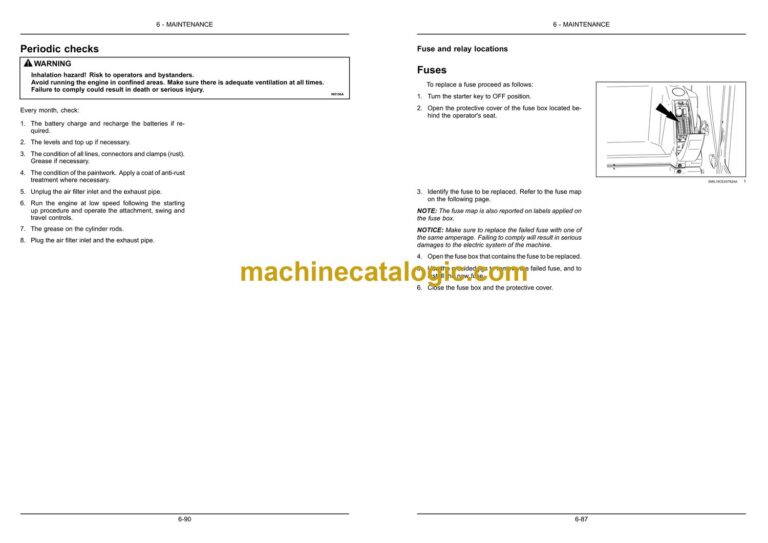

• Follow daily inspection routines to catch leaks, loose hardware, or track issues before they turn into downtime.
• Verify safe operating practices when working near trenches, traffic, or overhead obstructions.
• Train new operators on correct lever use, travel habits, and how to park and secure the machine at shift end.

FAQ

Q: Can I keep this manual on a tablet in the cab?

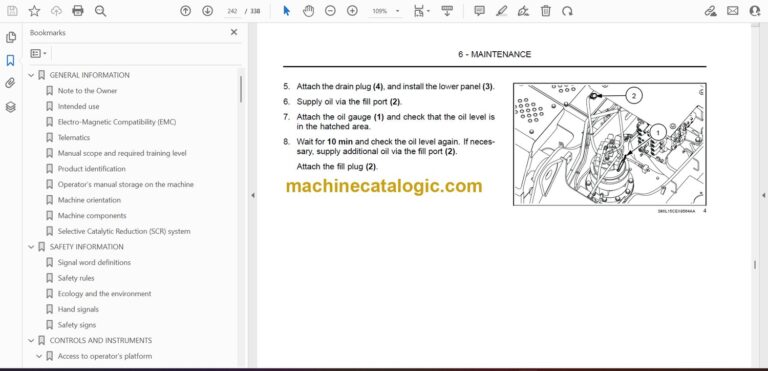

A: Yes, it’s practical to use digitally; you can zoom diagrams and quickly search terms while you’re in the seat.

Q: Is it worth printing parts of this manual?

A: I’d print the startup, shutdown, and daily check pages, laminate them, and keep them in the cab for quick reference.

Safety Note

Always follow the manual’s procedures before starting work, especially around bystanders, slopes, and underground services.
