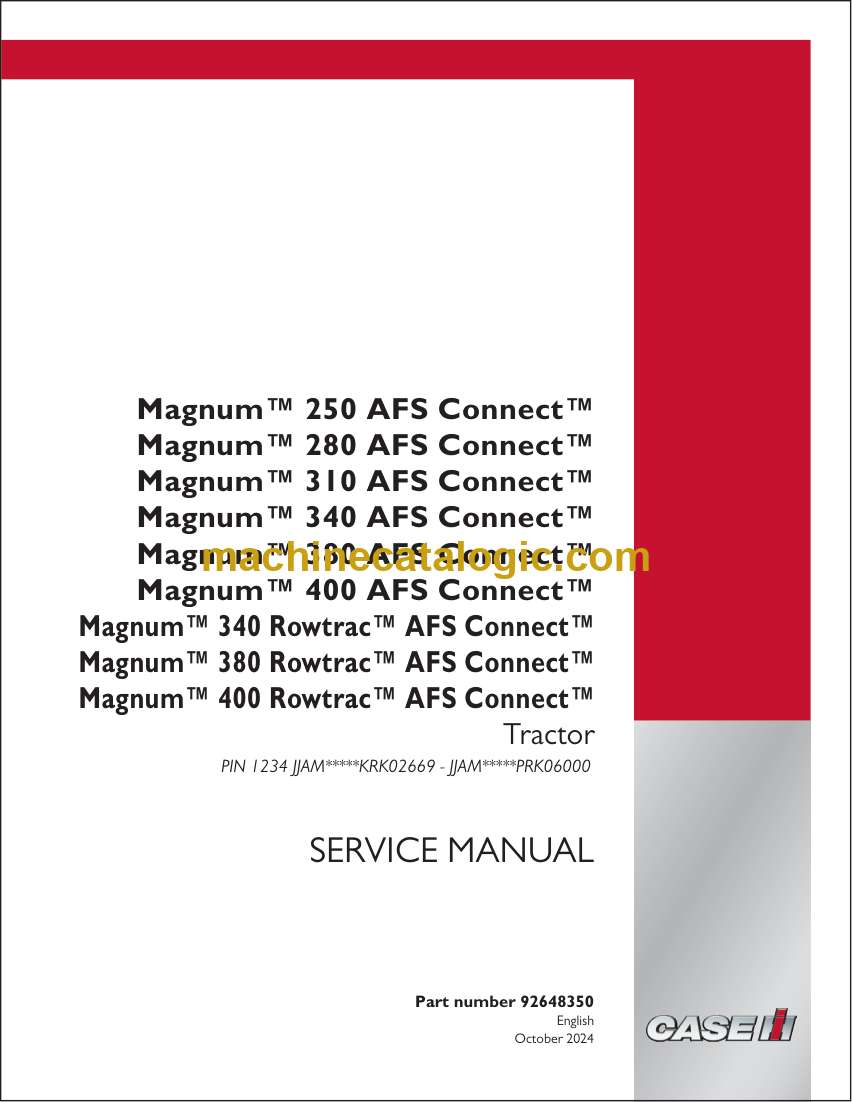

Case Magnum 400 AFS Connect Tractor Service Manual (92648350) (October 2024)

These Magnums usually live in the dirt—heavy tillage, big planters, grain carts—long days, sometimes all night, in dust, mud, and cold starts. This service manual’s about how to trace a problem properly, not just where the bolts are. It walks you through diagnostics step by step so you can verify what’s actually failed before you throw parts at it. Say the tractor drops power under load: you’d follow the book to check codes, test fuel supply, inspect sensors, and isolate whether it’s fuel, air, or transmission load control—before you order anything expensive.

Applications & Use Cases

• Track down electrical faults by tracing circuits, checking connectors, and verifying grounds instead of guessing at a bad module.
• Diagnose hydraulic issues by following the test sequence, bleeding air correctly, and confirming pressures with a gauge where the manual tells you.
• Sort out transmission or 4WD complaints by isolating mechanical vs. control problems, then inspecting clutches, valves, and linkages in a logical order.
• Align and route hoses, harnesses, and linkages the way the factory intended so things don’t rub through or bind later.
• Plan bigger repairs—engine, driveline, axle—so you know what to strip, what to support, and what special tools you’ll probably need.

FAQ

Q: Is this a PDF I can search on my laptop or tablet?

A: Yes, it’s typically a searchable PDF, so you can jump to sections or keywords instead of flipping pages.

Q: Can I print just the sections I need to take to the field?

A: You usually can; most folks print the procedure they’re doing so the laptop can stay clean and the paper can get greasy.

Safety Note

Always support raised components with proper stands and relieve any stored hydraulic pressure before you put your hands in the work area.

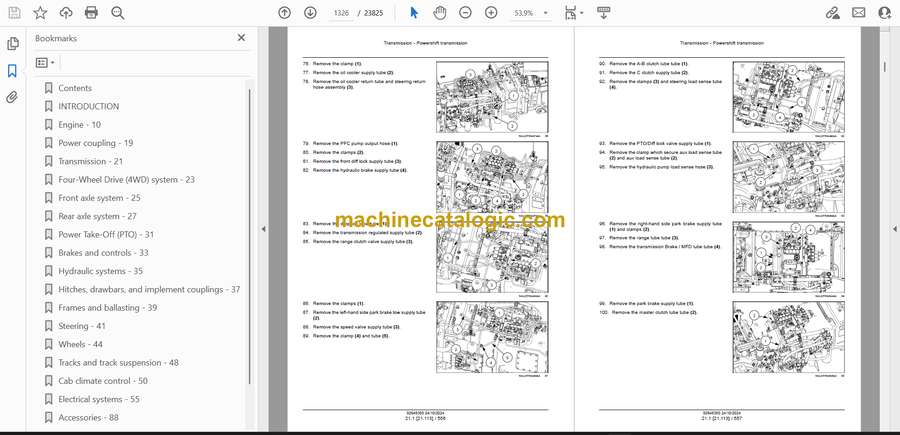

Case Magnum 400 AFS Connect Tractor Index:

• Contents
• INTRODUCTION
• Engine – 10
• Power coupling – 19
• Transmission – 21
• Four-Wheel Drive (4WD) system – 23
• Front axle system – 25
• Rear axle system – 27
• Power Take-Off (PTO) – 31
• Brakes and controls – 33
• Hydraulic systems – 35
• Hitches, drawbars, and implement couplings – 37
• Frames and ballasting – 39
• Steering – 41
• Wheels – 44
• Tracks and track suspension – 48
• Cab climate control – 50
• Electrical systems – 55
• Accessories – 88
• Platform, cab, bodywork, and decals – 90
• SPECIAL TOOL INDEX
