Case Maxxum 125 Multicontroller Tractor Service Manual (92169914)

Case Maxxum 125 Multicontroller Tractor Service Manual (92169914) (December 2023)

Out in the field, this Maxxum 125 is usually pulling tillage gear, running a baler, or on loader duty around the yard, in dust, mud, and cold starts. This service manual is about walking you through how to trace a fault properly, so you don’t just throw parts at a problem. Say your 4WD won’t engage: the book helps you check switches, verify power and pressure, isolate the bad component, and only then crack anything open.

Applications & Use Cases

• Track down hydraulic issues by tracing circuits, checking pressures where the manual says, and verifying valves before you blame the pump.
• Diagnose transmission or shuttle problems by following the step-by-step tests, so you can isolate whether it’s electrical control or mechanical wear.
• Chase down warning lights and sensor faults by using the wiring diagrams to route your checks and inspect connectors in the right order.
• Bleed fuel and hydraulic systems correctly after repairs, so you don’t introduce air and have to redo the job.
• Align linkages, pedals, and Multicontroller functions so they operate smoothly instead of guessing at adjustments.

FAQ

Q: Is this a PDF I can search on my laptop or phone?

A: It’s typically a searchable PDF, so you can jump to sections and run keyword searches while you’re at the tractor.

Q: Can I print just the pages I need for a job?

A: Yes, most folks print the specific procedures or schematics, stick them in a sleeve, and keep the full manual on a device.

Safety Note

Always support raised implements and the tractor securely before you crawl under anything to inspect or test components.

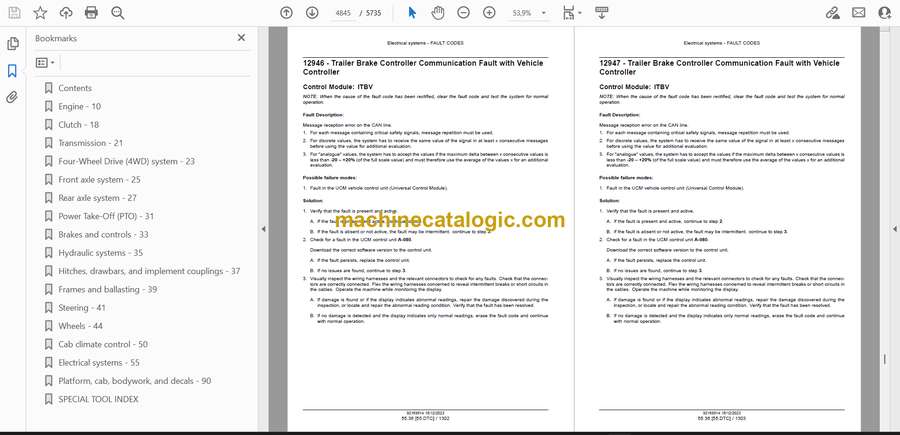

Case Maxxum 125 Multicontroller Tractor Index:

• Contents
• Engine – 10
• Clutch – 18
• Transmission – 21
• Four-Wheel Drive (4WD) system – 23
• Front axle system – 25
• Rear axle system – 27
• Power Take-Off (PTO) – 31
• Brakes and controls – 33
• Hydraulic systems – 35
• Hitches, drawbars, and implement couplings – 37
• Frames and ballasting – 39
• Steering – 41
• Wheels – 44
• Cab climate control – 50
• Electrical systems – 55
• Platform, cab, bodywork, and decals – 90
• SPECIAL TOOL INDEX
