Case Model A for VAC Tractors 1-Row Corn Picker Parts Catalog

Out in the field, this Case Model A 1-row corn picker hangs off a VAC tractor and lives in dust, stalks, and husk trash all season. This parts catalog is what I’d pull when I need to identify exactly which brackets, chains, and wear parts belong on your machine. Say the front elevator starts throwing ears or a divider point gets bent; I use this book to trace every related piece, from the main frame down to the last washer, so we order the right parts the first time.

Applications & Use Cases

• Cross-check the exploded views to see how the picker mounts to the VAC and confirm you’ve got the correct bolster blocks and hardware.
• Isolate a damaged elevator or fan component and match it to the right part number before placing an order.
• Verify all the small items—seals, bushings, shims, and odd fasteners—that are easy to miss when rebuilding.
• Compare similar-looking parts to catch revision or variant differences that could cause fit issues.
• Print specific pages to keep at the bench while you lay out sub-assemblies and confirm everything goes back in the proper order.

FAQ

Q: Can I use this catalog on a tablet in the shop?

A: Yes, it’s practical to zoom in on the diagrams, then screenshot or bookmark the views you use most.

Q: Is this all I need to repair the picker?

A: No, this is for identifying and ordering parts; pair it with a service or operator’s manual for procedures and adjustments.

Safety Note

Always lock out the tractor and support the picker securely before inspecting or matching any parts from this catalog.

Case Model A for VAC Tractors 1-Row Corn Picker Index:

Bolster Block & Mounting
Demounting Parts for Picker

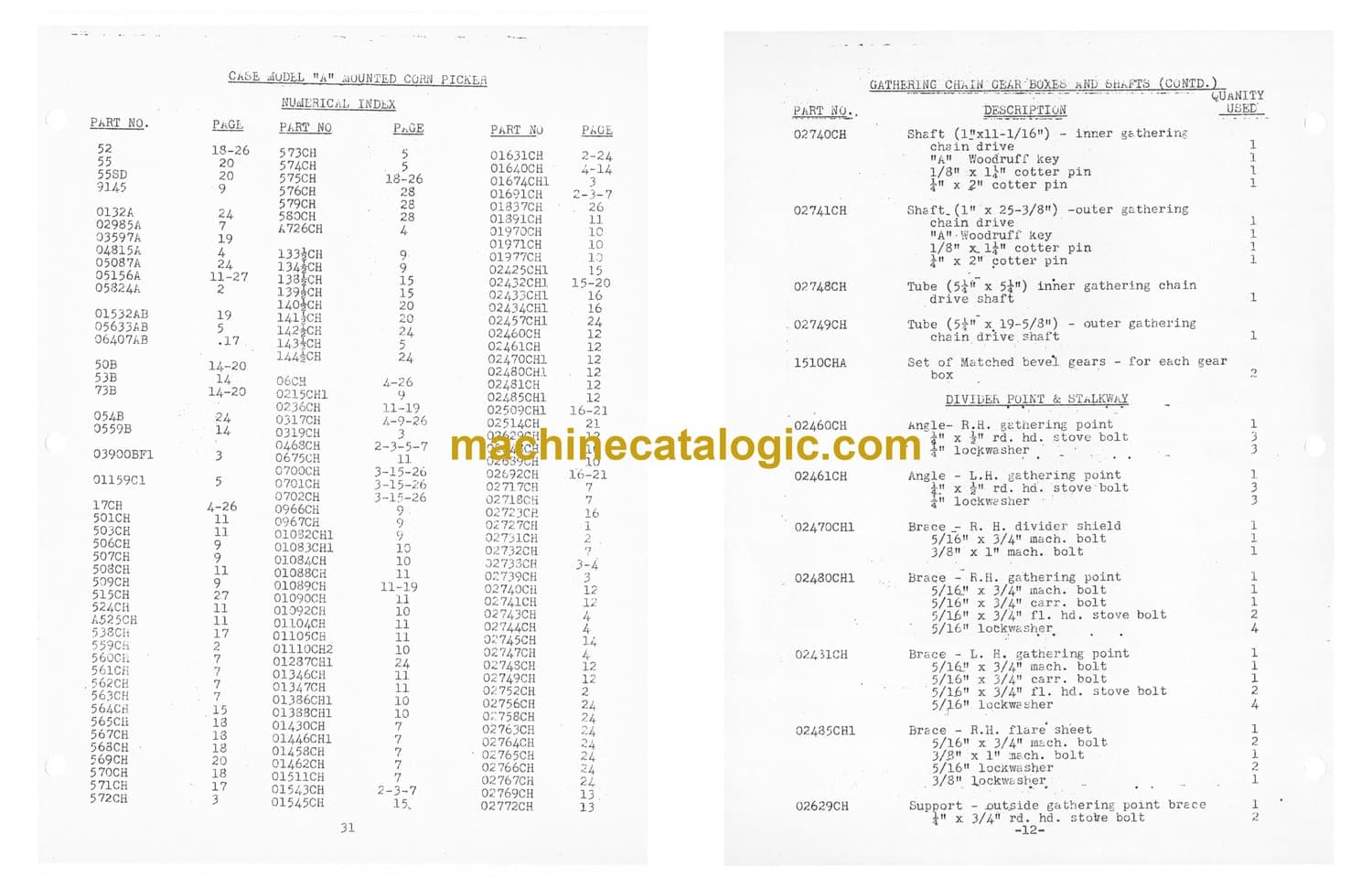

Divider Points & Stalkway
Fan
Front Elevator
Fan Shield
Gathering Chain Gear Boxes & Shafts
Gathering Chain & Sprockets
Hydraulic Lift
Main Drive Belt Tightener

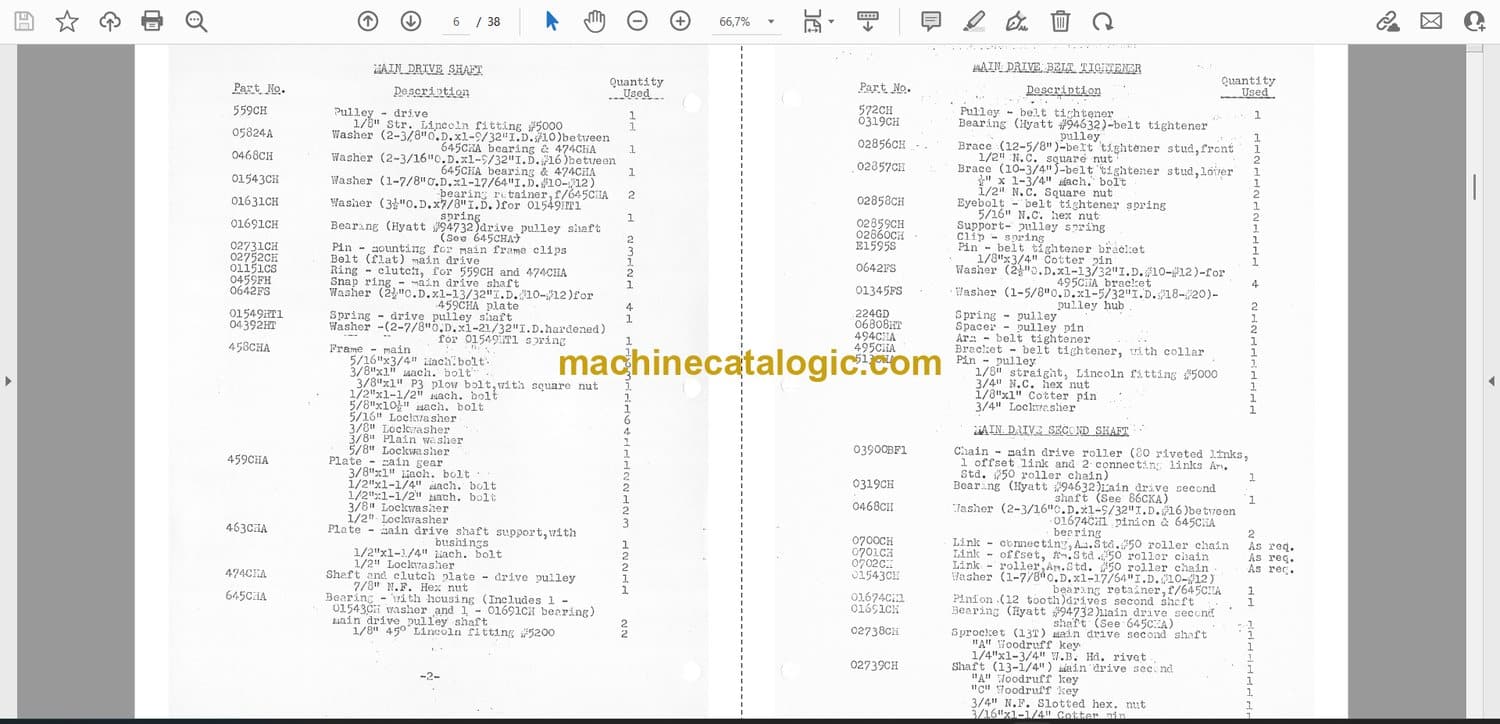

Main Drive Shaft
Main Drive Second Shaft

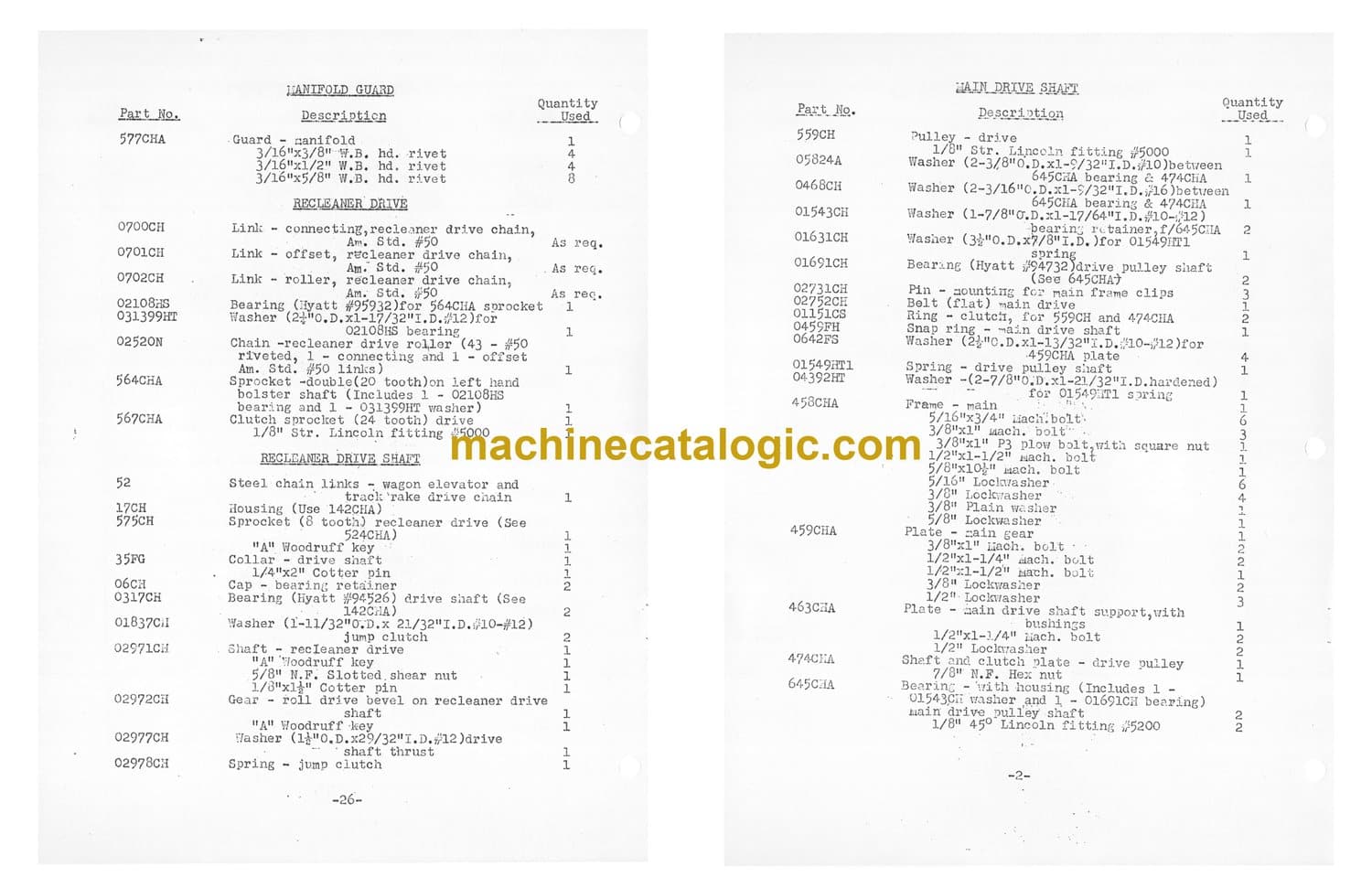

Manifold Guard
Picking Rolls
Radiator Grille
Recleaner Attachment
Tightener for Front Elevator Roller
Chain Drive
Tilting Lever
Wagon Elevator
Wheel Shields
