Case Models W450 Harvester Service Manual (IH-10)

These W450 harvesters usually live in dusty fields, long days, lots of vibration, and not much mercy. This service manual helps you trace problems step by step so you’re not just guessing at belts, clutches, or fuel issues. Say the machine starts losing power under load: with this book, you’d follow a set sequence—check fuel delivery, verify governor action, inspect the air path—before you touch the carb or pump, so you don’t throw money at parts that aren’t bad.

Applications & Use Cases

• Track a no-start or hard-start by isolating ignition, fuel, and air in order, testing each system instead of cranking till the battery dies.
• Chase down overheating by checking fan drive, radiator flow, and water pump condition, then bleeding any trapped air so the fix actually holds.
• Diagnose weak brakes or poor clutch engagement with clear checks for linkage wear, adjustment points, and contamination before you tear anything apart.
• Verify fuel system issues—diesel or gas—by tracing lines, checking filters, and testing components so you don’t rebuild a good pump.
• Align and route belts, linkages, and controls correctly after repairs so everything runs true and doesn’t eat itself in a week.

FAQ

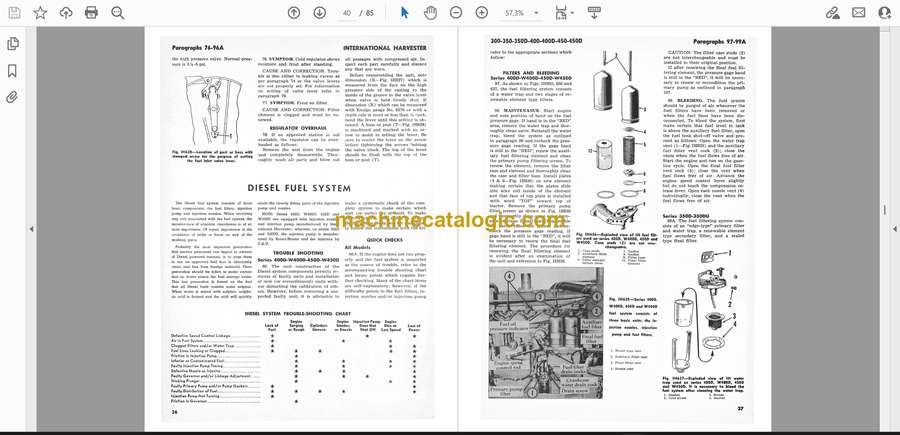

Q: Is this something I can keep on a tablet and search, or is it just a scan?

A: It’s typically a scanned manual, but usually text-searchable; I’d still bookmark key sections and maybe keep a few printed pages in the shop.

Q: Can I print just the sections I need to take to the field?

A: Yes, that’s usually the best way—print the systems you’re working on so you can grease up those pages without wrecking your main copy.

Safety Note

Always kill the engine, block the machine securely, and bleed off any stored pressure before you get your hands near moving or pressurized components.

Case Models W450 Harvester Index:

BELT PULLEY

BRAKES

CARBURETOR (Not LP-Gas)

CARBURETOR (LP-Gas)

CLUTCH, ENGINE

COOLING SYSTEM
Fan
Radiator
Water Pump

DIESEL FUEL SYSTEM
Air Restriction Valve
Energy Cells
Filters and Bleeding
Injection Pump
Nozzles
Precombustion Chambers
Quick Checks
Trouble Shooting

DIFFERENTIAL

ENGINE
Cam Followers
Camshaft
Connecting Rods and Bearings
Crankshaft
Cylinder Head
Engine Removal
Flywheel
Ignition Timing
Injection Timing
Main Bearings
Oil Pump
Pistons and Rings
Piston Pins
Piston Removal
Rear Oil Seal
Rocker Arms
Timing Gear Cover
Timing Gears
Valves and Seats
Valve Guides and Springs
Valve Timing

FINAL DRIVE
Axle Shafts
Bull Gears
Bull Pinions

FRONT SYSTEM
Axle Main Member
Steering Knuckles
Tie Rods and Drag Link
Tricycle Type

GOVERNOR

HYDRAULIC SYSTEM
Control Valves
Lubrication
Pump
Regulator and Safety Valve
Testing
Trouble Shooting

POWER STEERING SYSTEM
Cylinder
Flow Control and Relief Valve
Lubrication and Bleeding
Motor
Pump
Steering Gear
Steering Valves

PTO (Non-Continuous)

PTO (Independent Type)
Drive Shaft
Driven Shaft
Extension Shaft
Overhaul Rear Unit
Reactor Bands

REAR AXLE

STEERING GEAR (Manual)

TORQUE AMPLIFIER
Clutch Adjustment
Clutch Overhaul
Planetary Unit

TRANSMISSION OVERHAUL
