Case NT950 Strip-Till Applicator Service Parts Catalogue

Out in strip‑till work, this NT950 is running in rough, uneven fields, taking a beating from residue, rocks, and fertilizer. This Service Parts Catalogue is what I grab when I need to pinpoint exactly which brackets, blades, hoses, or hardware belong on your machine. If, for example, a wing won’t fold right after a rock impact, I’ll use this book to trace the hydraulic layout, match the cylinder and fittings, and make sure I order the correct revision of each part before we tear anything down.

Applications & Use Cases

• Confirm correct part numbers for wear items like coulters, row units, and closing components before placing an order.
• Cross-check hydraulic components on wing fold and lift circuits to avoid mixing early and late-style valves or cylinders.
• Identify small seals, bushings, and spacers that get lost during teardown so the row unit or linkage goes back together tight.
• Compare variant setups (widths, options, attachments) so replacement assemblies actually match your machine in the field.
• Verify fasteners and brackets so you’re not reusing stretched bolts or guessing on hardware during a late-night repair.

FAQ

Q: Can I use this on a tablet or phone in the shop?

A: Yes, it works well digitally—zooming helps you read part callouts and exploded views right at the machine.

Q: Is it worth printing sections of this catalogue?

A: Many of us print just the pages for the area we’re rebuilding and keep them with the parts on the bench for quick reference.

Safety Note

Always lock out, lower, and support the NT950 securely before inspecting or matching any parts on the machine.

Case NT950 Strip-Till Applicator Index:

00.000.01 PICTORIAL INDEX
35.100.00 HYDRAULIC INDEX
35.100.01 WING FOLD HYDRAULICS
35.100.02 WING LIFT HYDRAULIC
35.100.03 MAIN FRAME LIFT HYDRAULICS
35.100.04 WING FOLD CYLINDER
35.100.05 WING LIFT CYLINDERS
39.100.00 FRAME INDEX
39.100.01 MAIN FRAME
39.100.02 INNER WING
39.100.03 MIDDLE WING
39.100.04 OUTER/SWIVEL WING
39.100.05 LINK LEVEL LIFT
39.100.06 TURNBUCKLE
39.100.07 SPDC
39.110.01 PULL HITCH
39.110.02 REAR HITCH
39.110.03 REAR HITCH FRAME
39.110.04 CAT V HITCH
44.100.00 AXLE/WHEEL INDEX
44.100.01 MAIN FRAME TANDEM
44.100.02 WING TANDEM 6-BOLT
44.100.03 WING TANDEM 6-BOLT HUB ASSEMBLY
55.404.01 TAILLIGHT ASSEMBLY
75.200.00 SOIL PREP INDEX
75.200.01 STRAIGHT COULTER ASSEMBLY
75.200.02 HCS ASSEMBLY

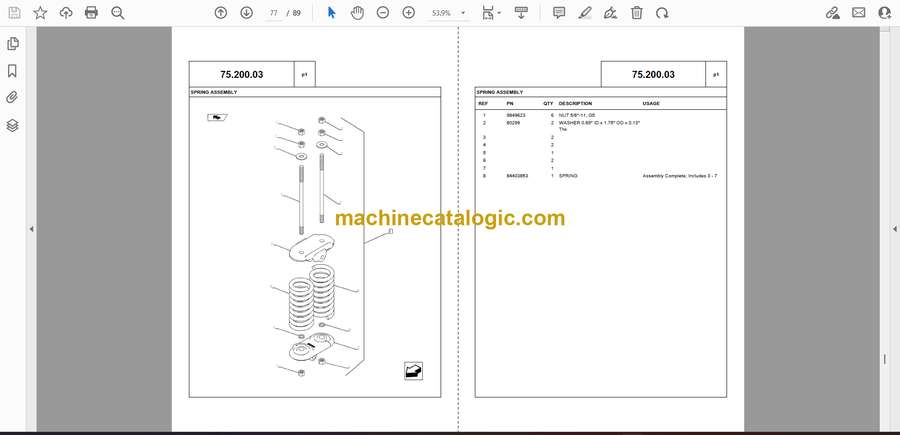

75.200.03 SPRING ASSEMBLY

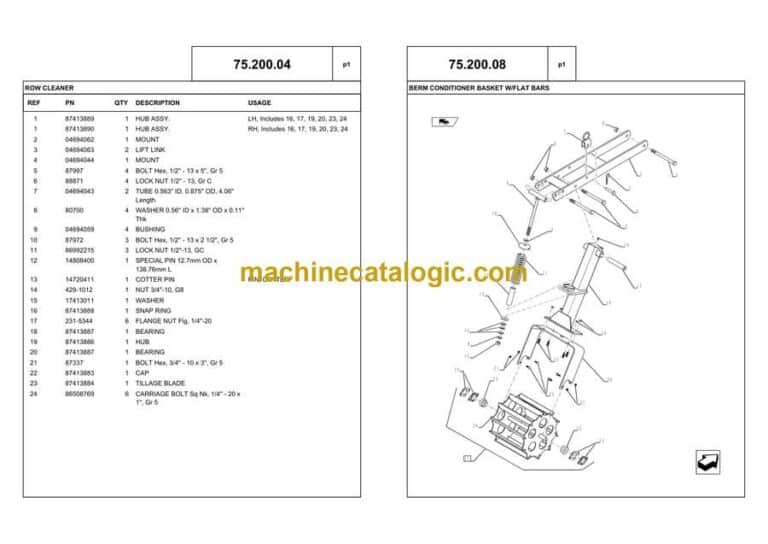

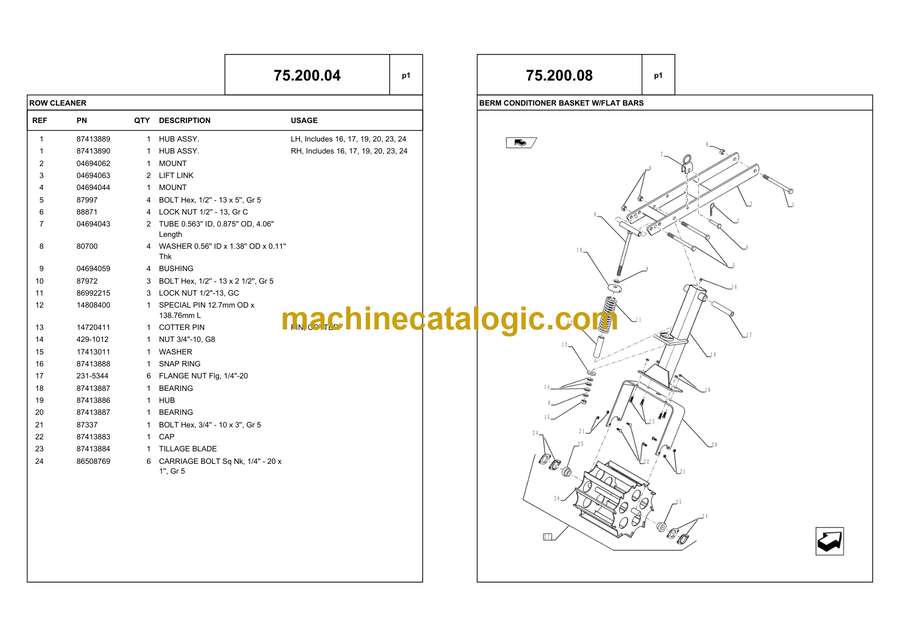

75.200.04 ROW CLEANER
75.200.05 SET BACK ROW CLEANER
75.200.06 BERM BUILDER ASSEMBLY
75.200.07 BERM CONDITIONER W/CONCAVE BARS
75.200.08 BERM CONDITIONER BASKET W/FLAT BARS
