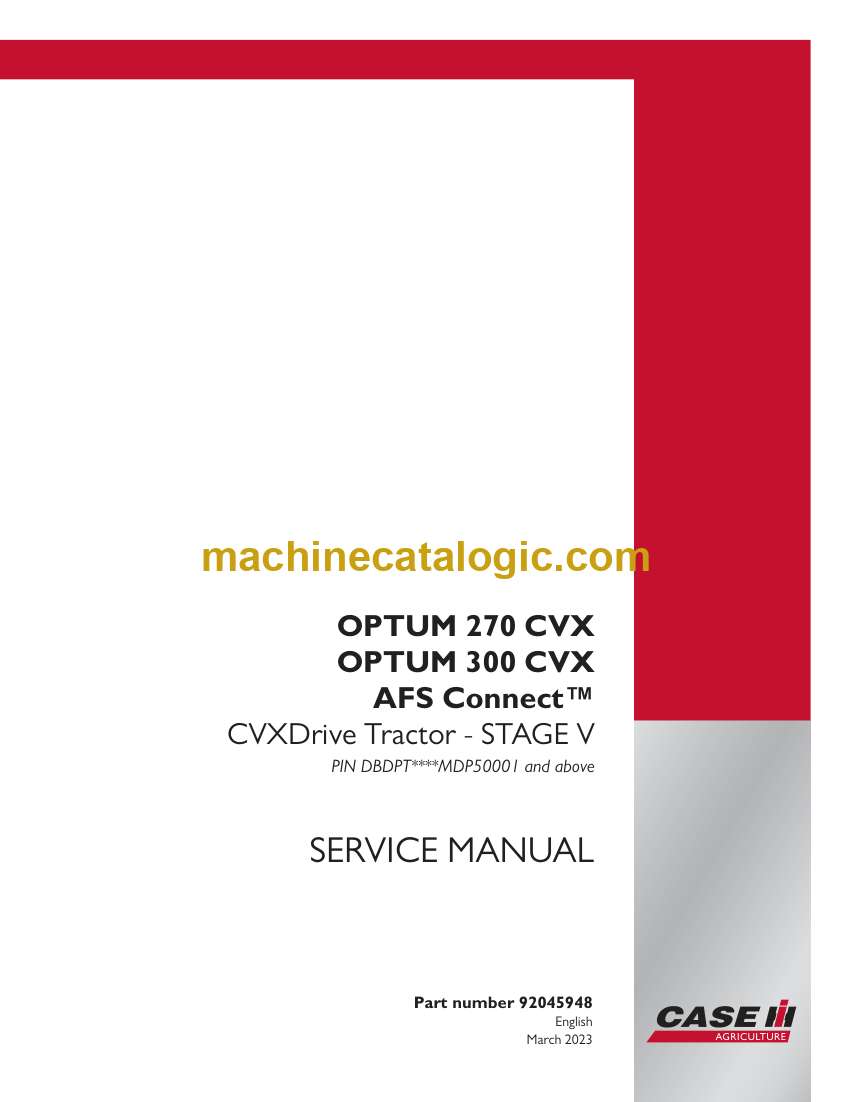

Case Optum 300 CVX AFS Connect CVXDrive Tractor Stage V Service Manual (92045948) (March 2023)

Out in the field this Optum 300 is usually on big tillage, heavy trailers, maybe a drill or planter—long hours, mixed operators, and plenty of dust and mud. This service manual helps you trace faults step by step, so you don’t just throw parts at a warning light. Say the transmission starts hunting between ranges under load: with this, you’d follow the test sequence, check pressures and sensors in order, and verify what’s actually bad before you park it for days.

Applications & Use Cases

• Track down a stubborn AFS Connect or sensor fault by following the wiring traces and test points instead of guessing at which harness to replace.
• Isolate a CVXDrive issue by checking control valves, then command signals, then mechanical wear, so you don’t rebuild a transmission that only needed calibration.
• Route and secure new hoses or looms the way the factory intended, then inspect clearances so they don’t rub through in a season.
• Bleed and align steering or brake systems after a repair, using the sequence that usually prevents spongy pedals and pull.
• Verify engine-related problems with guided checks—air, fuel, aftertreatment—before you touch injectors or major hardware.

FAQ

Q: Is this a PDF I can search on my laptop or tablet?

A: Yes, it’s typically a searchable PDF, so you can jump to sections or keywords instead of scrolling forever.

Q: Can I print just a few sections to take to the tractor?

A: You usually can; most folks print the systems they’re working on so they can mark notes and keep the laptop clean.

Safety Note

Always isolate the machine, depressurize hydraulics, and verify everything’s stable before you crawl under or crack any lines.

Case Optum 300 CVX AFS Connect CVXDrive Tractor Stage V Index:

• Contents
• INTRODUCTION
• Engine – 10
• Clutch – 18
• Transmission – 21
• Four-Wheel Drive (4WD) system – 23
• Front axle system – 25
• Rear axle system – 27
• Power Take-Off (PTO) – 31
• Brakes and controls – 33
• Hydraulic systems – 35
• Hitches, drawbars, and implement couplings – 37
• Frames and ballasting – 39
• Steering – 41
• Wheels – 44
• Cab climate control – 50
• Electrical systems – 55
• Platform, cab, bodywork, and decals – 90
