Case Precision Disk 500T Disk Drill Service Manual (90350607 Replaces 90350607)

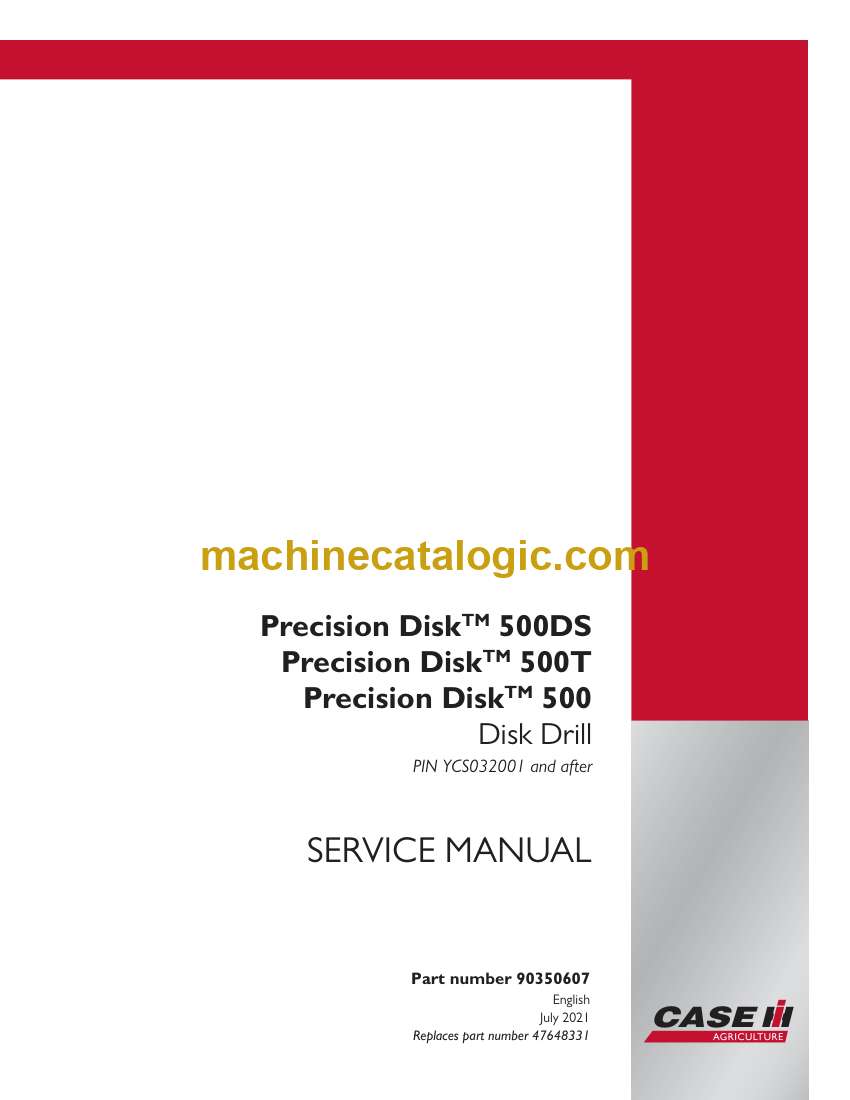

Case Precision Disk 500T Disk Drill Service Manual (90350607 Replaces 90350607) (July 2021)

Out in the field this drill is living in dust, fertilizer, mud, and cold starts, getting folded and unfolded all season. This service manual walks you through how to trace, check, and verify faults on the Precision Disk 500T before you start throwing parts at it. Say one section won’t stay in the ground or lift right—you’ll follow a step‑by‑step hydraulic sequence to isolate whether it’s the cylinder, a hose, a valve, or the tractor, instead of guessing.

Applications & Use Cases

• Track down uneven seeding depth by checking opener alignment, inspecting linkages, and verifying down‑pressure in a set order.
• Chase hydraulic issues like slow fold or sagging wings by tracing oil flow, testing circuits, and bleeding air where the manual tells you.
• Sort out electrical faults by routing through proper connector tests, checking voltage drops, and isolating a bad sensor from a wiring problem.
• Set the machine back up after repairs by aligning openers, setting level front‑to‑back, and verifying everything runs true before you hit the field.
• Plan off‑season maintenance so you inspect wear points, adjust where needed, and don’t miss the little stuff that usually fails first.

FAQ

Q: Is this a downloadable manual I can search on my laptop?

A: Yes, it’s typically a PDF, so you can search terms, jump between sections, and keep it open while you’re testing on the machine.

Q: Can I print just the sections I need to take to the field?

A: You usually can; most folks print the hydraulic and electrical sections so they can spill coffee and grease on those instead of the whole manual.

Safety Note

Always bleed off hydraulic pressure and support any raised sections mechanically before you route hoses, crack fittings, or inspect under the frame.

Case Precision Disk 500T Disk Drill Index:

• Contents
• INTRODUCTION
• Hydraulic systems – 35
• Hitches, drawbars, and implement couplings – 37
• Wheels – 44
• Electrical systems – 55
• Metering system – 61
• Seeding – 77
• Platform, cab, bodywork, and decals – 90
• SPECIAL TOOL INDEX

Develon
