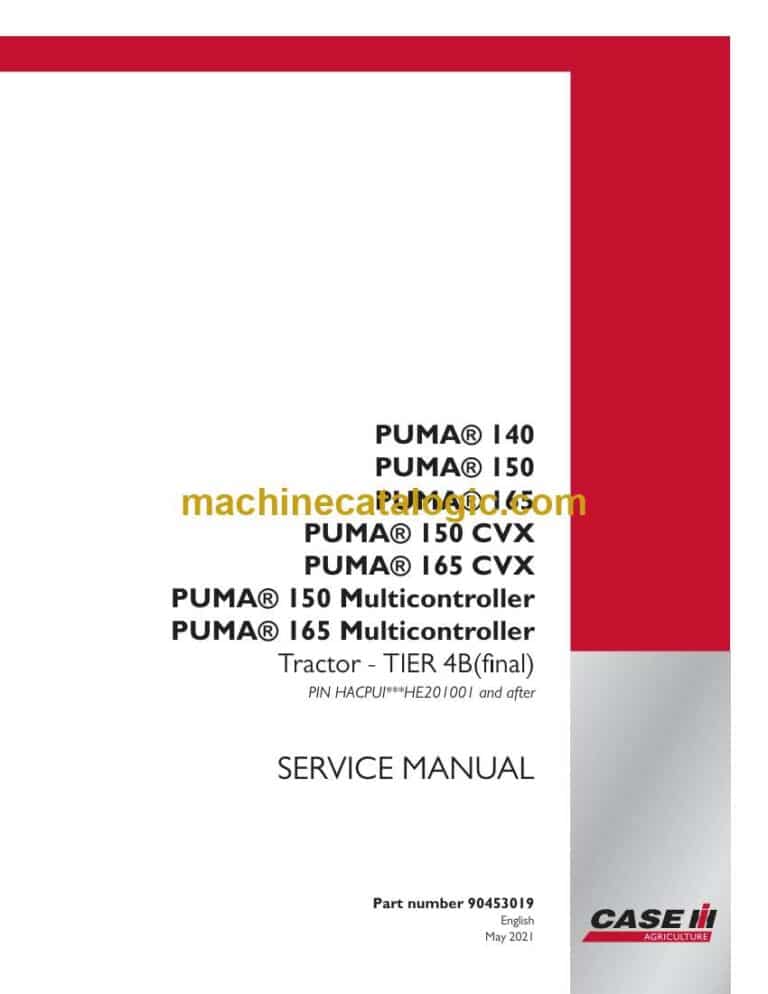

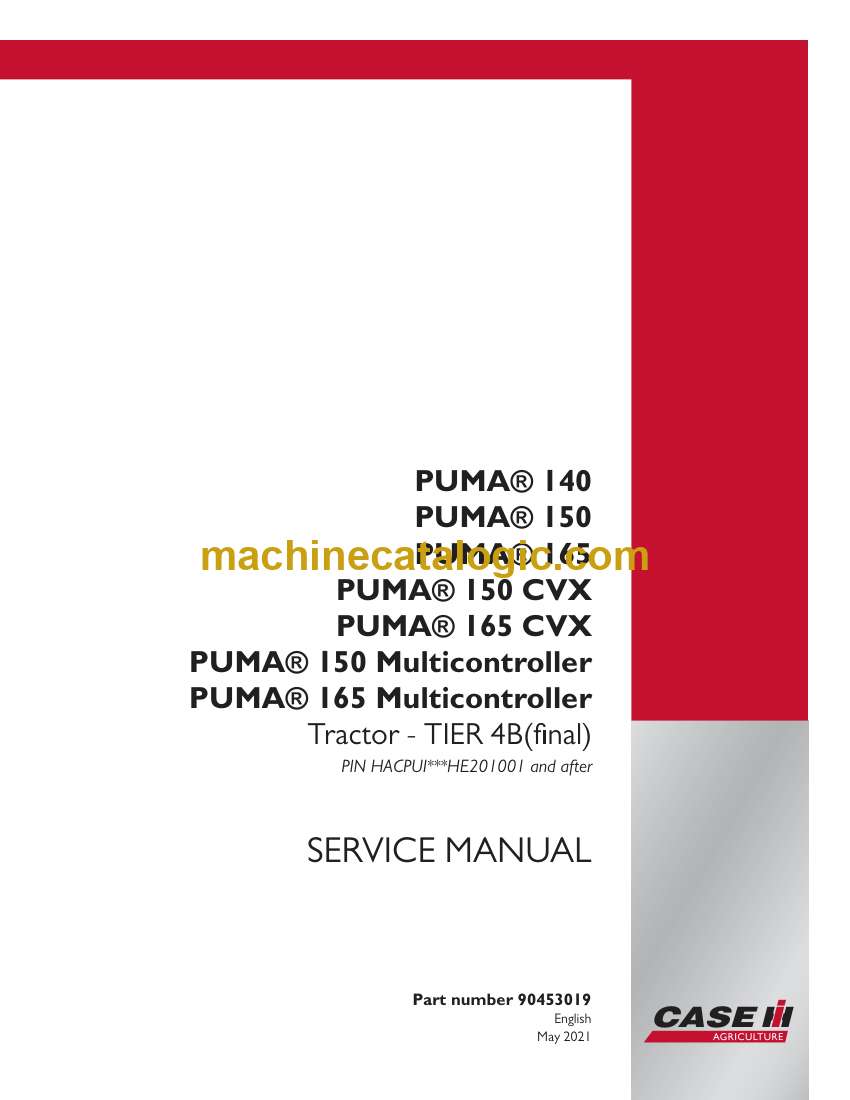

Case Puma 150CVX Tier 4B Final Tractor Service Manual (90453019)

Case Puma 150CVX Tier 4B Final Tractor Service Manual (90453019) (May 2021)

Out in the field this Puma 150CVX is usually hauling, mowing, or running PTO gear in dust, mud, and cold starts, with DEF and electronics thrown in the mix. This service manual helps you trace faults step by step instead of guessing, so you can verify what’s actually failed before you spend money. Say the tractor won’t move, but the engine runs fine—you’ll follow a sequence to check pressure, inspect linkages, test sensors, and isolate whether it’s a transmission control issue or a hydraulic problem, not just throw parts at it.

Applications & Use Cases

• Track down hydraulic lift problems by tracing oil flow, checking valves, and verifying cylinder operation before you rebuild anything.
• Sort out DEF or Tier 4B emissions faults by following the test routine, reading codes, and isolating wiring vs. sensor vs. dosing issues.
• Diagnose odd shifting or no-drive complaints by checking clutch packs, inspecting harness routing, and testing transmission pressures in order.
• Chase electrical gremlins by working through proper ground checks, fuse and relay tests, and connector inspections instead of random probing.
• Prep for bigger jobs—like cab-off or major engine work—by planning the strip-down, aligning timing marks, and knowing what to bleed and in what sequence.

FAQ

Q: Is this a PDF I can search on my laptop or tablet?

A: Yes, it’s typically a searchable PDF, so you can jump to sections and use keyword search while you’re diagnosing.

Q: Can I print just the pages I need for a job?

A: You usually can; most folks print the procedures and schematics they’ll get dirty in the shop and keep the rest digital.

Safety Note

Always support raised implements and the tractor securely before you crawl under to inspect, test, or bleed any system.

Case Puma 150CVX Tier 4B Final Tractor Index:

• Link Product / Engine
• Contents
• INTRODUCTION
• Engine – 10
• Clutch – 18
• Transmission – 21
• Four-Wheel Drive (4WD) system – 23
• Front axle system – 25
• Rear axle system – 27
• Power Take-Off (PTO) – 31
• Brakes and controls – 33
• Hydraulic systems – 35
• Hitches, drawbars, and implement couplings – 37
• Frames and ballasting – 39
• Steering – 41
• Wheels – 44
• Cab climate control – 50
• Electrical systems – 55
• Platform, cab, bodywork, and decals – 90
• SPECIAL TOOL INDEX

Develon
