Case SV216 Vibratory Roller Parts Catalog (7-7321)

On a Case SV216 vibratory roller that spends its life compacting base and asphalt on dusty road jobs and building pads, this parts catalog is what I grab to make sure we’re ordering the right hardware the first time. It lets you see how every component on the roller is broken down, so you can match what’s on the machine to the correct part number. Say you’ve got play in the drum support and need bushings and seals—this book lets you trace that whole assembly, spot the small parts that wear with it, and avoid guessing at superseded pieces.

Applications & Use Cases

• Confirm part numbers when replacing wear items in the drum, axle, and frame areas after an inspection.
• Compare component revisions when the roller’s serial tag doesn’t match what the online listings suggest.
• Cross-check sub-assemblies so you order mating spacers, shims, and fasteners that often get overlooked.
• Identify seals, bearings, and bushings in tight spots where the old parts are damaged or unreadable.
• Plan downtime by grouping related parts from the same assembly before you tear the machine down.

FAQ

Q: Can I use this catalog on a tablet in the field?

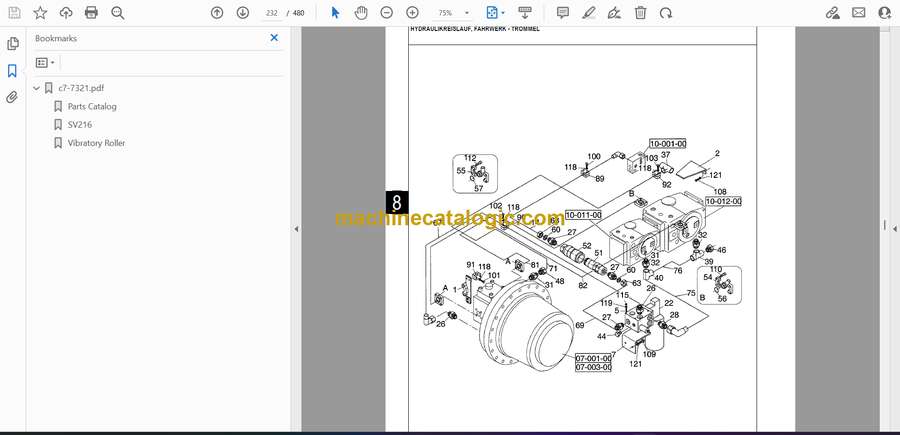

A: Yes, it works well digitally; you can zoom exploded views to match parts on the machine while you’re standing next to it.

Q: Is it worth printing certain pages?

A: Many techs print the assemblies they’re working on, mark the items they remove, and use that to verify everything is reinstalled and re-ordered correctly.

Safety Note

Always lock out the machine and secure raised components before inspecting or comparing parts on the roller.

Case SV216 Vibratory Roller Index:

CARRIAGE ASSEMBLIES
MAIN FRAME STRUCTURE
AXLE SYSTEMS
MOUNTING SUPPORTS
WHEEL EQUIPMENT
PROP SHAFT SYSTEM
FLUID CONTAINERS & TANKS
SWIVEL JOINTS
COUNTERWEIGHT / BALLAST
ENGINE GROUP
REFUELING SYSTEM
ENGINE COOLING SYSTEM
TRAVEL & SWING DRIVES
CLUTCH AND COUPLING UNITS
STEERING SYSTEM
BRAKE SYSTEMS
HYDRAULIC CIRCUITS
PUMP AND MOTOR UNITS
CONTROL & RELIEF VALVES
HYDRAULIC CYLINDERS
HEATING / AIR CONDITIONING
LUBRICATION & DISTRIBUTION
BATTERY & ACCESSORIES
ELECTRICAL NETWORK
SLIPRING ASSEMBLY
OPERATOR’S CAB MODULE
SAFETY & PROTECTION ITEMS
COVERS AND PANELING
CAB GUARDS / GRIDS
COLD WEATHER PACKAGE
BOOM STRUCTURE
STICK / ARM ASSEMBLY
ENGINE COMPONENT GROUP
