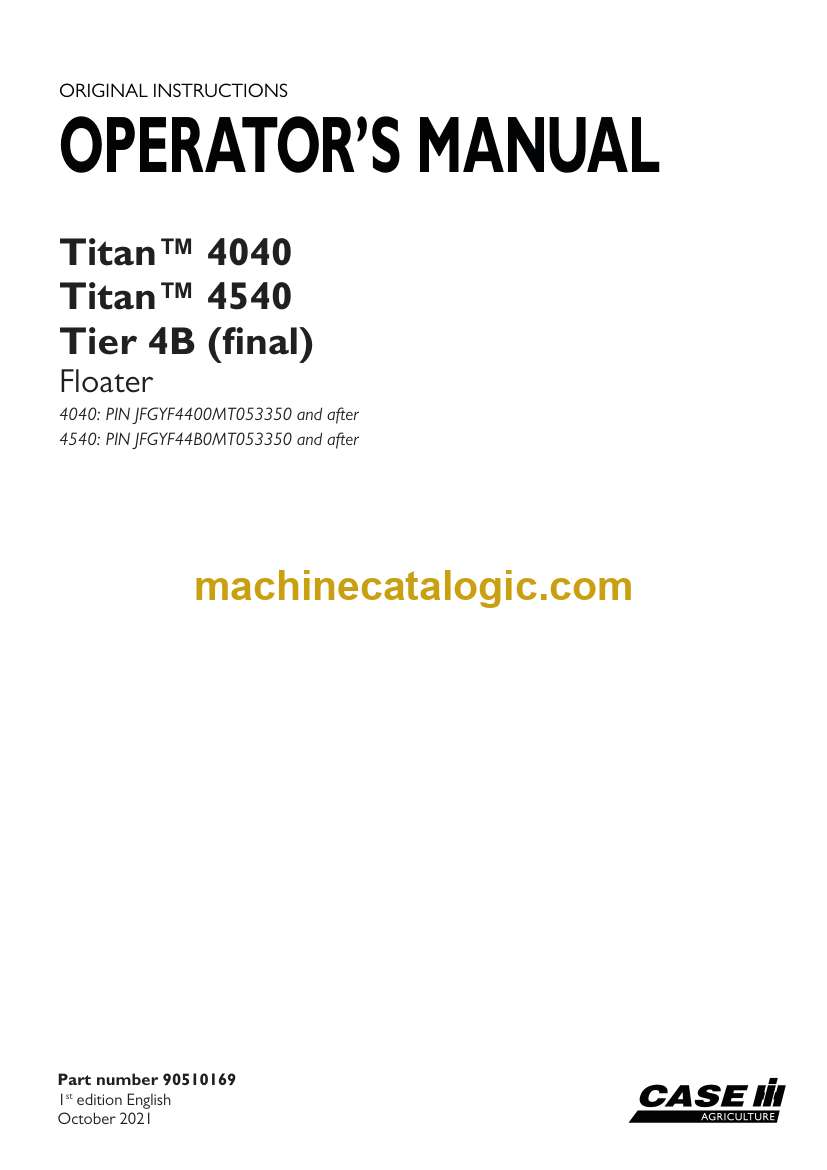

Case Titan 4040 Titan, 4540 Tier 4B Final Floater Operator Manual (90510169)

These Titans spend their lives pulling big floaters across soft fields, spreading product in tight windows and rough conditions. This operator manual is what I keep handy to make sure the machine is started, run, and shut down the way it was designed, so we don’t cook engines, smoke clutches, or ruin hydraulic components. If an operator calls saying the machine won’t move after startup or a warning light pops up when engaging the spreader, this is the book I use to walk them through the control checks and proper restart steps before we send a service truck.

Applications & Use Cases

• Verify correct startup and shutdown sequences so the Tier 4B engine and emissions system aren’t abused.
• Coach new operators on cab controls, drive modes, and spreader engagement to prevent costly mistakes in the field.
• Guide daily walk‑around inspections to catch leaks, loose hardware, and tire or suspension issues before a breakdown.
• Trace basic warning lights and alarms back to operator habits, helping isolate whether it’s misuse or a real fault.
• Confirm safe operating practices on slopes, wet ground, and road travel so the floater and driveline stay intact.

FAQ

Q: Can I keep this manual on a tablet in the cab?

A: Yes, it’s practical to use digitally so you can zoom diagrams and quickly search terms while you’re in the field.

Q: Is it worth printing parts of it?

A: I’d print the startup, shutdown, and daily check pages and keep them in a plastic sleeve right in the cab.

Safety Note

Always follow the manual’s startup, lockout, and shutdown steps before inspecting, adjusting, or working under the machine.
