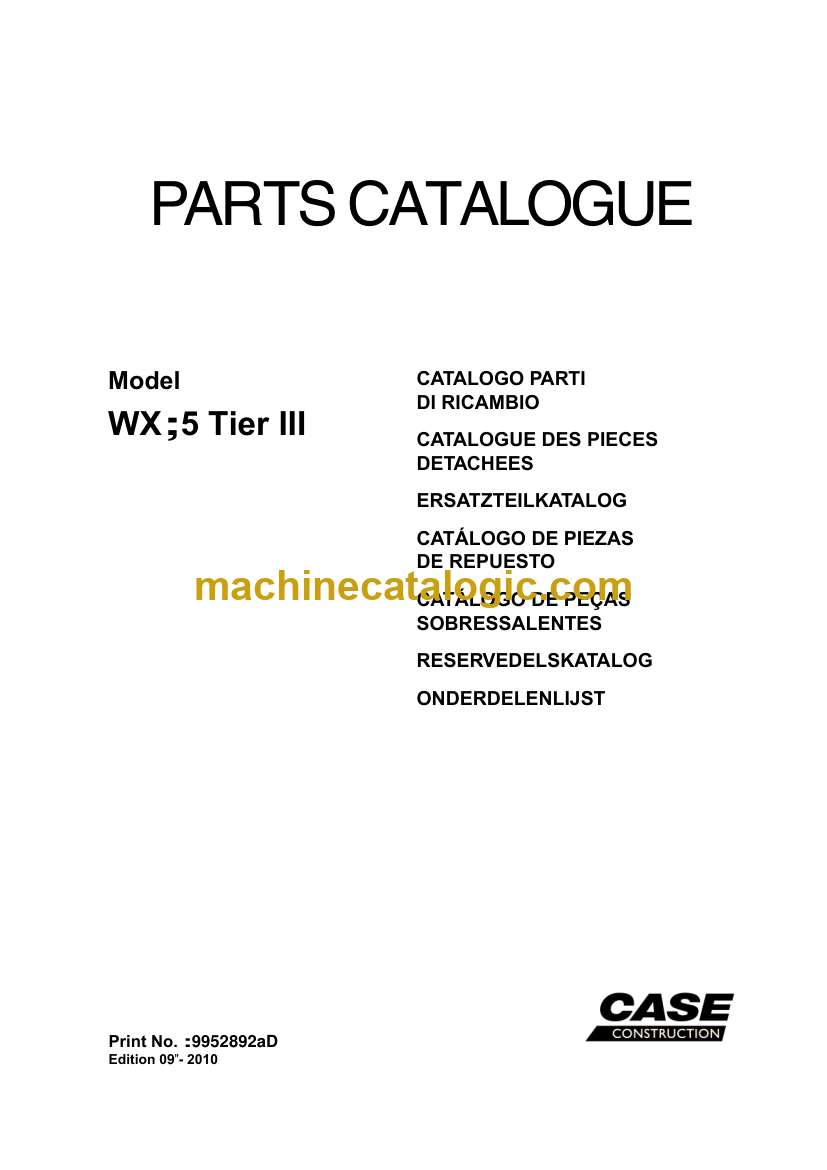

Case WX95 Tier 3 Wheeled Excavator Parts Catalog (87730670B_A4)

On a WX95 wheeled excavator that spends its life loading trucks, trenching in streets, and working around tight urban sites, this parts catalog is what you use to nail down exactly which components belong on your Tier 3 machine. When you bend a steering cylinder rod or crack a structural frame bracket, this book lets you trace every related piece—bushings, seals, spacers, fasteners—so you don’t miss anything when you place the order and tear it down once.

Applications & Use Cases

• Confirm correct part revisions when Case updated items in the undercarriage, axles, or wheel group mid‑production.
• Cross-check sub-assemblies on the structural frame and support parts to be sure brackets, shims, and hardware all match your serial and configuration.
• Identify small wear items like O-rings, dust seals, and sleeves in reservoirs, tanks, and drive shafts that are easy to overlook.
• Verify component relationships so hoses, guards, and mounts are routed and aligned correctly around axles and swing systems.
• Plan shop work by seeing which parts are reused, which must be replaced, and which can be ordered as kits versus individual pieces.

FAQ

Q: Can I use this catalog on a tablet in the field?

A: Yes, it’s well suited to a tablet or laptop so you can zoom in on exploded views right beside the machine.

Q: Is it worth printing sections of this catalog?

A: Many techs print the relevant pages for a job, mark them up with notes, and keep them with the work order to avoid mix-ups.

Safety Note

Always positively support and isolate the machine before inspecting or removing any component you’ve identified from the catalog.

Case WX95 Tier 3 Wheeled Excavator Index:

UNDERCARRIAGE GROUP
STRUCTURAL FRAME
AXLE ASSEMBLY
SUPPORT PARTS
WHEEL GROUP
DRIVE SHAFT
RESERVOIRS & TANKS
SWIVEL CONNECTIONS
COUNTERWEIGHT MODULE
ENGINE UNIT
FUEL SYSTEM MODULE
ENGINE COOLING GROUP
TRAVEL DRIVE / SWING GEAR
CLUTCH ASSEMBLY
STEERING MECHANISM
BRAKE GROUP
HYDRAULIC SYSTEM MODULE
PUMPS & HYDRAULIC MOTORS
VALVE ASSEMBLIES
HYDRAULIC CYLINDERS
CAB HEATER / AIR CONDITION
CENTRAL LUBRICATION
BATTERY & POWER PARTS

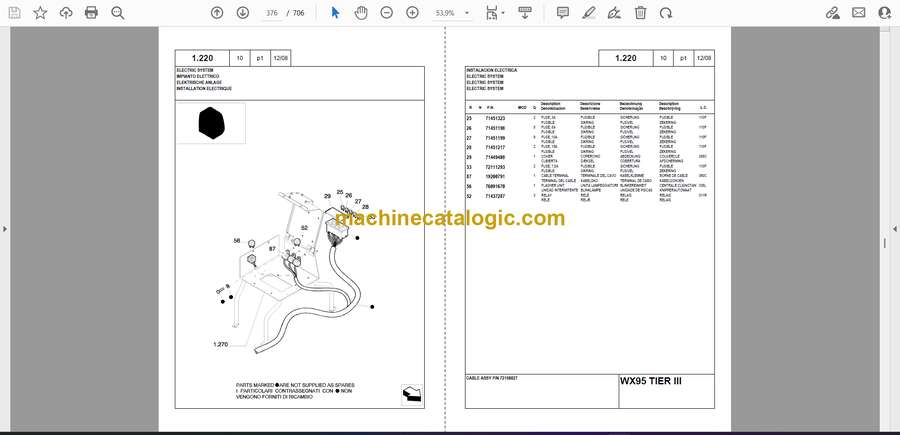

ELECTRICAL SYSTEM GROUP
SLIPRING DEVICE
CABIN MODULE
SAFETY & PROTECTION PARTS
COVER & PANEL GROUP
CAB GUARD GRID
WINTER PACKAGE
BOOM ASSEMBLY
STICK ASSEMBLY
ENGINE COMPONENTS GROUP
