Cat C15 Truck Parts Manual (SN 6NZ1-UP)

Out on the highway, that C15’s living in heat, dust, vibration, and usually getting pushed hard for long hours. This Cat C15 Truck Parts Manual (SN 6NZ1-UP) helps you trace exactly how the engine’s put together on paper so you can order the right bits instead of guessing. Say you’re in the yard with a dropped liner job, you’ve got three different styles of seals on the bench, and you’re trying to verify which one matches your serial range—this is what you grab.

Applications & Use Cases

• Track how a full assembly breaks down so you can isolate the exact snap ring, spacer, or shim instead of buying a whole kit you don’t need.
• Check part-number supersessions when a number’s been changed, so you don’t end up with an old style that won’t align with your current hardware.

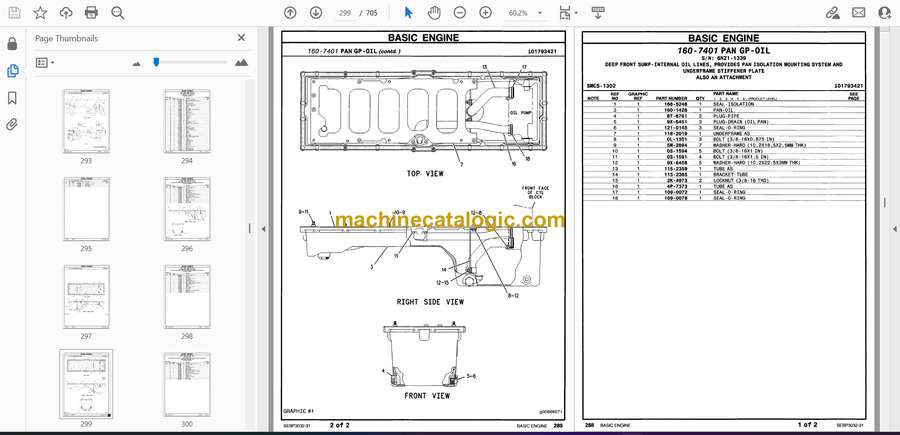

• Route hoses, lines, and harnesses correctly by inspecting the exploded views before you start tearing things apart.
• Verify what’s reusable and what’s a separate sub-component when you’re pricing a head, turbo, or accessory drive job.
• Test your parts order list against the diagrams so you don’t get halfway through a rebuild and realize you missed a seal or dowel.

FAQ

Q: Is this a PDF I can search on my laptop or phone?

A: Typically, yes; you can keyword search by part name or number, which makes it faster than flipping paper.

Q: Can I print just the pages I need for the jobsite?

A: You usually can, and that’s what most techs do—print the relevant groups, toss them in a sleeve, and keep the greasy hands off your device.

Safety Note

Always verify you’ve bled pressure and locked everything out before you start pulling any component the manual helps you identify.

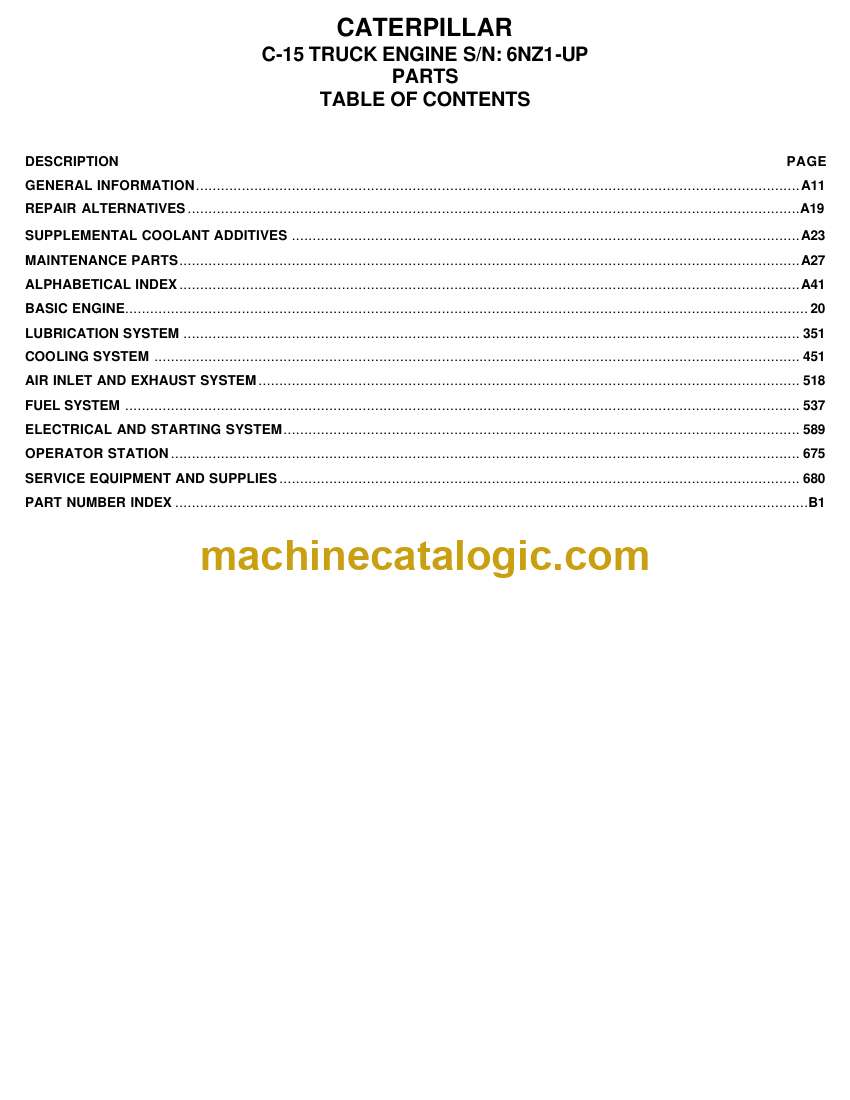

Cat C15 Truck Index:

DESCRIPTION PAGE
GENERAL INFORMATION……………………………………………………………………………………………………………………………….A11
REPAIR ALTERNATIVES…………………………………………………………………………………………………………………………………A19
SUPPLEMENTAL COOLANT ADDITIVES …………………………………………………………………………………………………………..A23
MAINTENANCE PARTS…………………………………………………………………………………………………………………………………..A27
ALPHABETICAL INDEX …………………………………………………………………………………………………………………………………..A41
BASIC ENGINE……………………………………………………………………………………………………………………………………………….. 20
LUBRICATION SYSTEM …………………………………………………………………………………………………………………………………. 351
COOLING SYSTEM ……………………………………………………………………………………………………………………………………….. 451
AIR INLET AND EXHAUST SYSTEM …………………………………………………………………………………………………………………. 518
FUEL SYSTEM ……………………………………………………………………………………………………………………………………………… 537
ELECTRICAL AND STARTING SYSTEM……………………………………………………………………………………………………………. 589
OPERATOR STATION ……………………………………………………………………………………………………………………………………. 675
SERVICE EQUIPMENT AND SUPPLIES …………………………………………………………………………………………………………….. 680
PART NUMBER INDEX ……………………………………………………………………………………………………………………………………..B1

Caterpillar
