Caterpillar EP10CA Forklift Service Manual (99N19-61110)

A Cat EP10CA is an electric counterbalanced forklift for moving palletized loads around warehouses, plants, and loading areas. I'd reach for this manual when a warehouse tech, dealer technician, or independent shop is chasing a fault, setting up a repair, or putting a truck back into service. It's a workshop manual, meant for fixing the truck rather than teaching an operator how to drive it.

What this manual helps you do

• Trace electrical circuits, wiring, switches, and control-system faults.
• Check traction motor and controller systems during diagnosis.

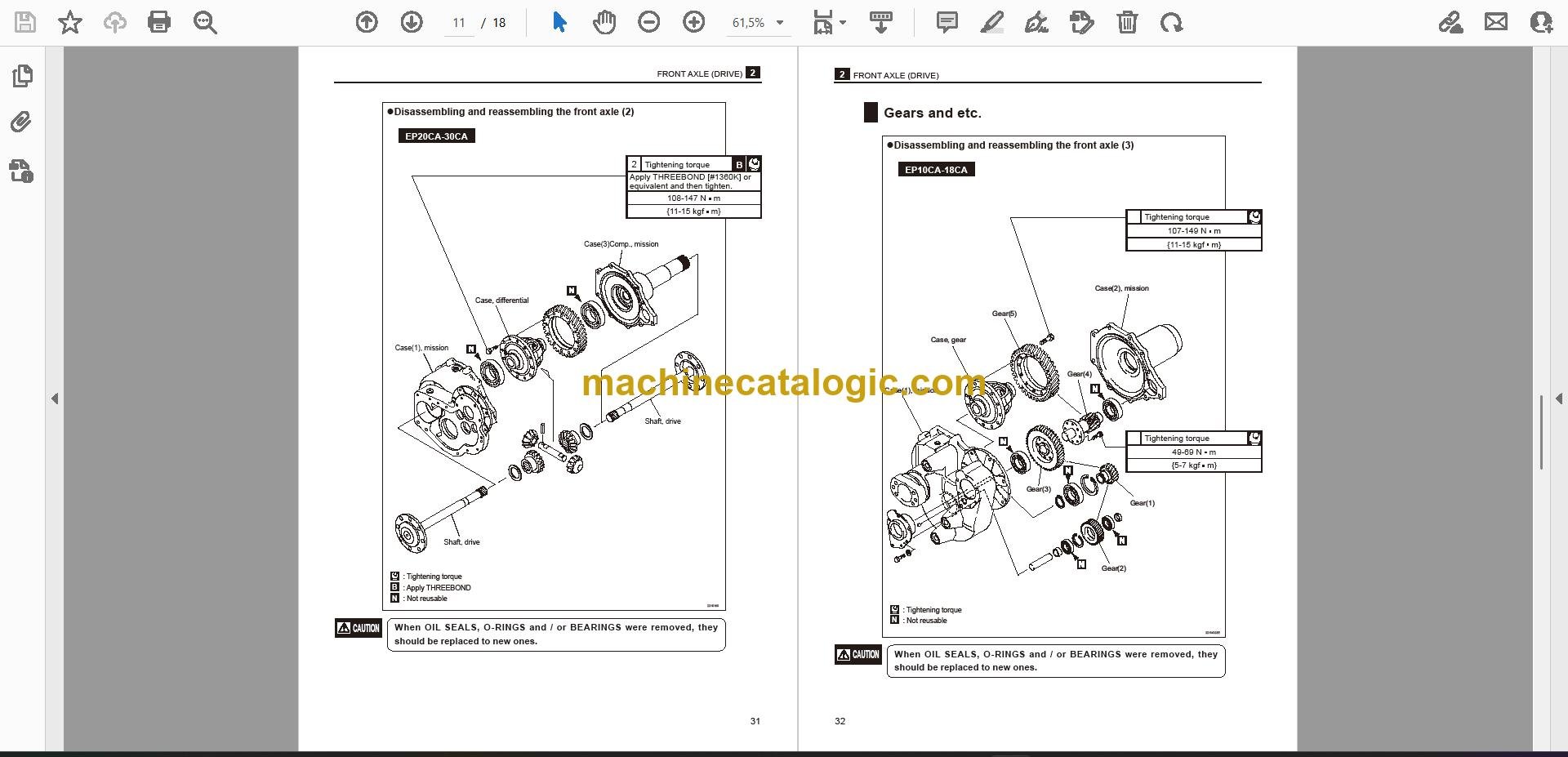

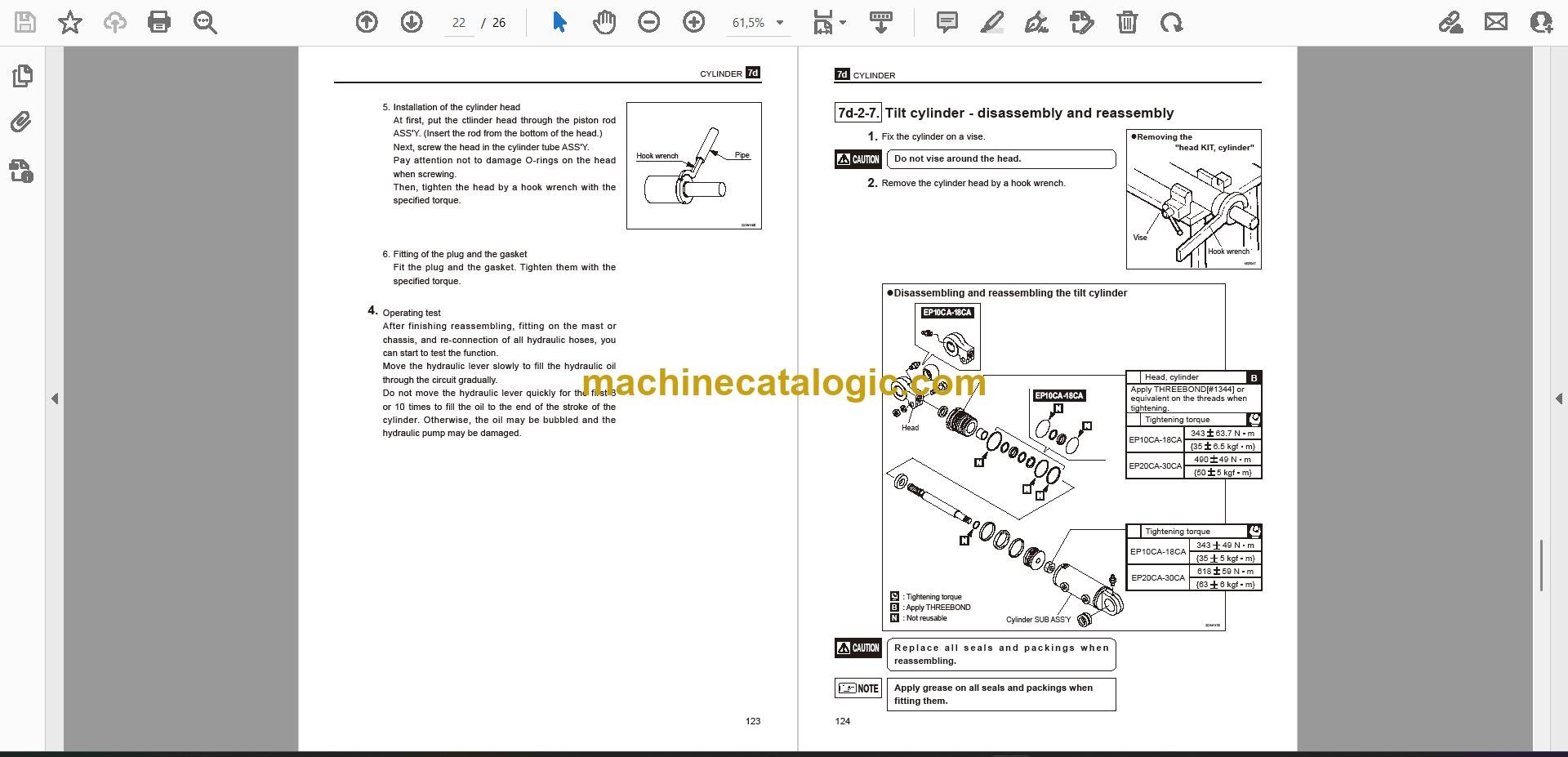

• Follow procedures for hydraulics, mast, forks, steering, and brakes.
• Troubleshoot drive, lifting, and safety-related symptoms.
• Adjust, replace, and verify service items using the manual's specifications and test procedures.

Who this is for

This suits a warehouse maintenance tech, plant maintenance crew, rental fleet mechanic, dealer technician, or independent forklift repair shop. It's the right trade document for an electric counterbalanced truck, with the operator handbook and parts catalog available as companion volumes.

FAQ

Q: What do I receive, and how is it organized?

A: You receive two separate Cat publications packaged as one set, delivered as 30 PDF files split by section, totaling 440 pages. The PDFs carry a real text layer, so you can search and copy text, as well as print or zoom the pages.

Q: Which trucks and serials does it fit?

A: It covers EP10/14/15/18(H)CA, EP20/25(H)CA, EP28CA, EP10CA-25(H)CA, and EP28CA-30CA models, including serial coverage 256E00001-00791, 257C00001-01119, and 251AC0001-up. Match the truck's model and serial before ordering.

Q: How does it fit the repair job?

A: Use it for workshop diagnosis, electrical and traction-system work, hydraulic and mast repairs, brake and steering service, and adjustment procedures. It gives a mechanic the service reference needed to work through repairs instead of guessing.

If your truck matches those model and serial details, yes, this is the Cat service-manual set to put on the shop computer.

Models covered by this manual

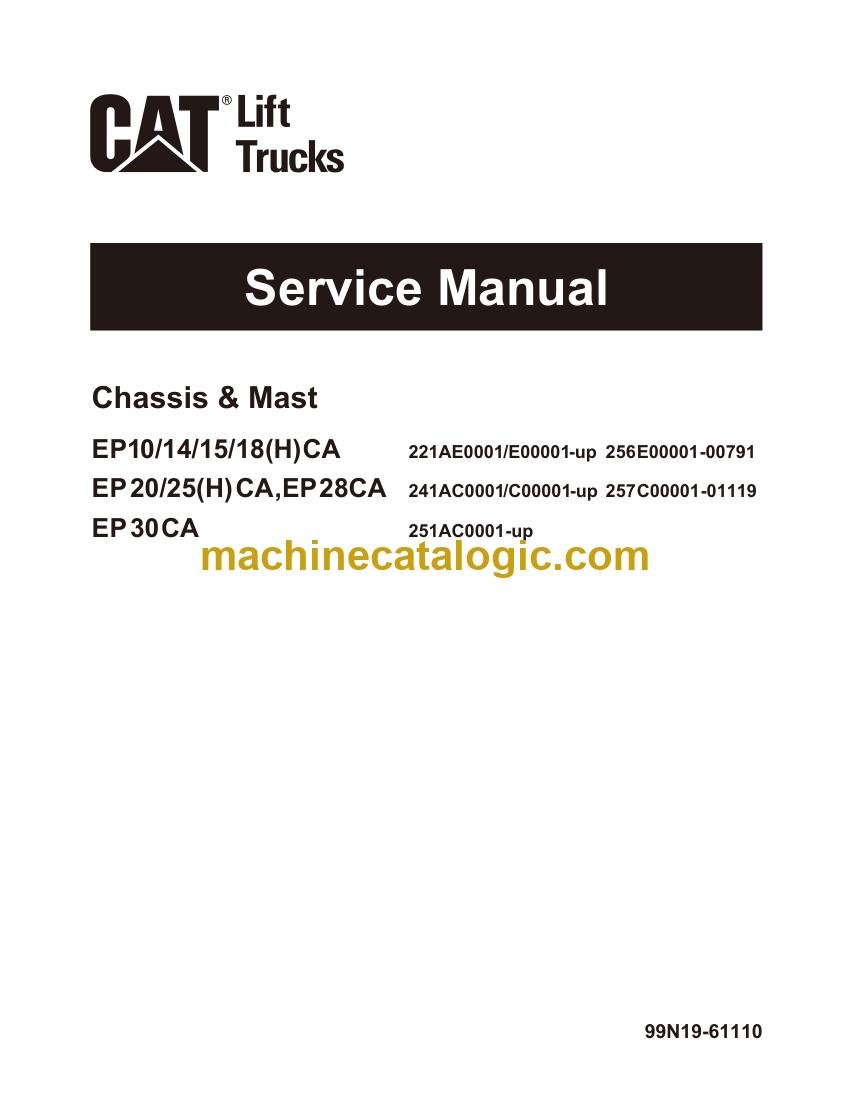

Caterpillar publication 99N19-61110 is the factory service manual for the EP10CA. The same publication covers 7 further forklift models: EP14CA, EP15CA, EP18CA, EP20CA, EP25CA, EP28CA, EP30CA. The cover also lists EP10/14/15/18(H)CA, EP20/25(H)CA,EP28CA, EP10CA-25(H)CA,EP28CA-30CA. Check the model and serial number on your data plate before ordering.

Table of Contents:

• Sit on the seat and turn on the key switch
• Push the lift lever forward to lower the fork on the ground
• Repeat pushing forward and releasing the lift lever a few times between
• Do not make a sudden valve lever operation at a
• Do not run sideways or handle on an incline
• When the red lamp of battery capacity indicator
• Check electrolyte every week and replenish water
• Be sure to use the prescribed fuses
• SERVICE
• ELECTRIC
• MOTOR
• LASER
• X 9-10-16PR
• X 8-9-14PR
• X 7-8-14PR
• MPa(140 kgf/cm2)
• MPa(160 kgf/cm2)
• MPa(175 kgf/cm2)
