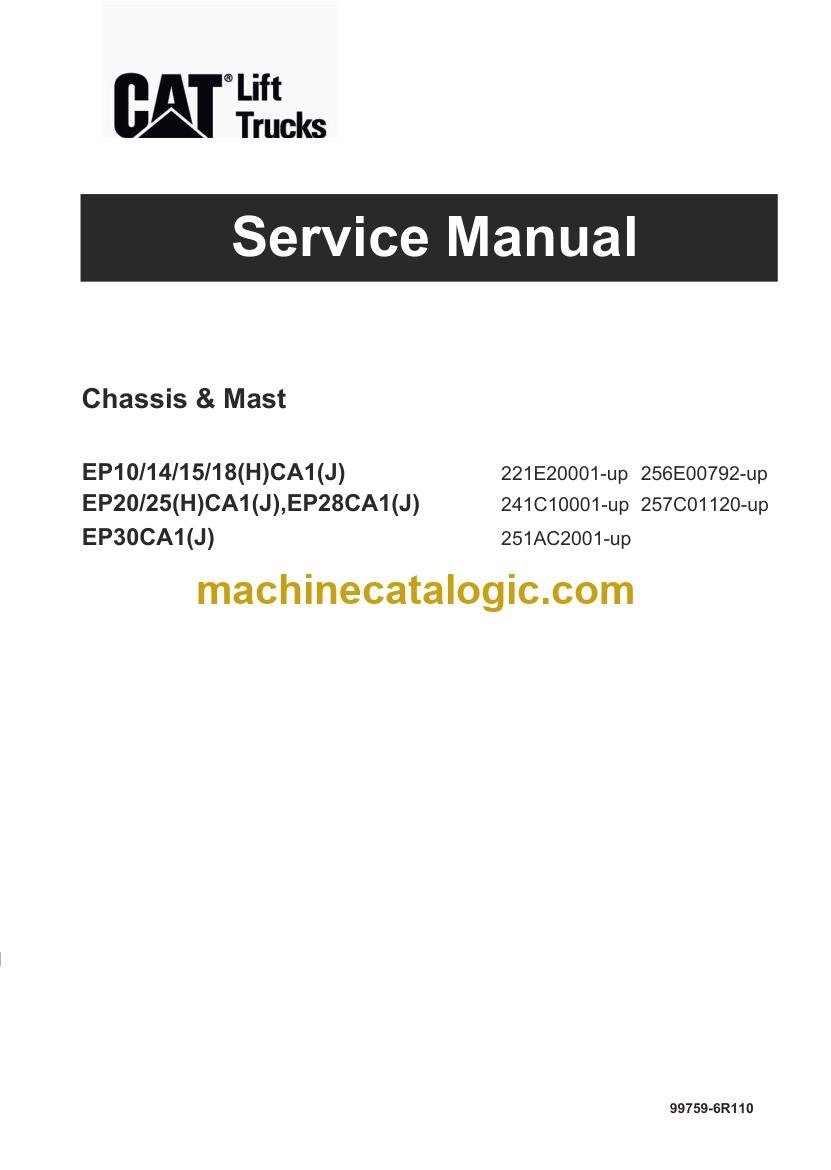

Caterpillar EP18CA1(J) Forklift Service Manual (99759-6R110)

This Cat EP18CA1(J) is an electric counterbalanced forklift for moving pallets and loads around a warehouse, plant, or rental yard. The service manual is for the technician putting the truck back into service, chasing an electrical fault, or completing scheduled maintenance before the next customer gets it. In my experience, it earns its keep when you need the correct test procedure instead of guessing.

What this manual helps you do

• Trace wiring, switches, sensors, and controller circuits during electrical fault diagnosis.
• Check traction motor, drive unit, brake, steering, and hydraulic system operation.

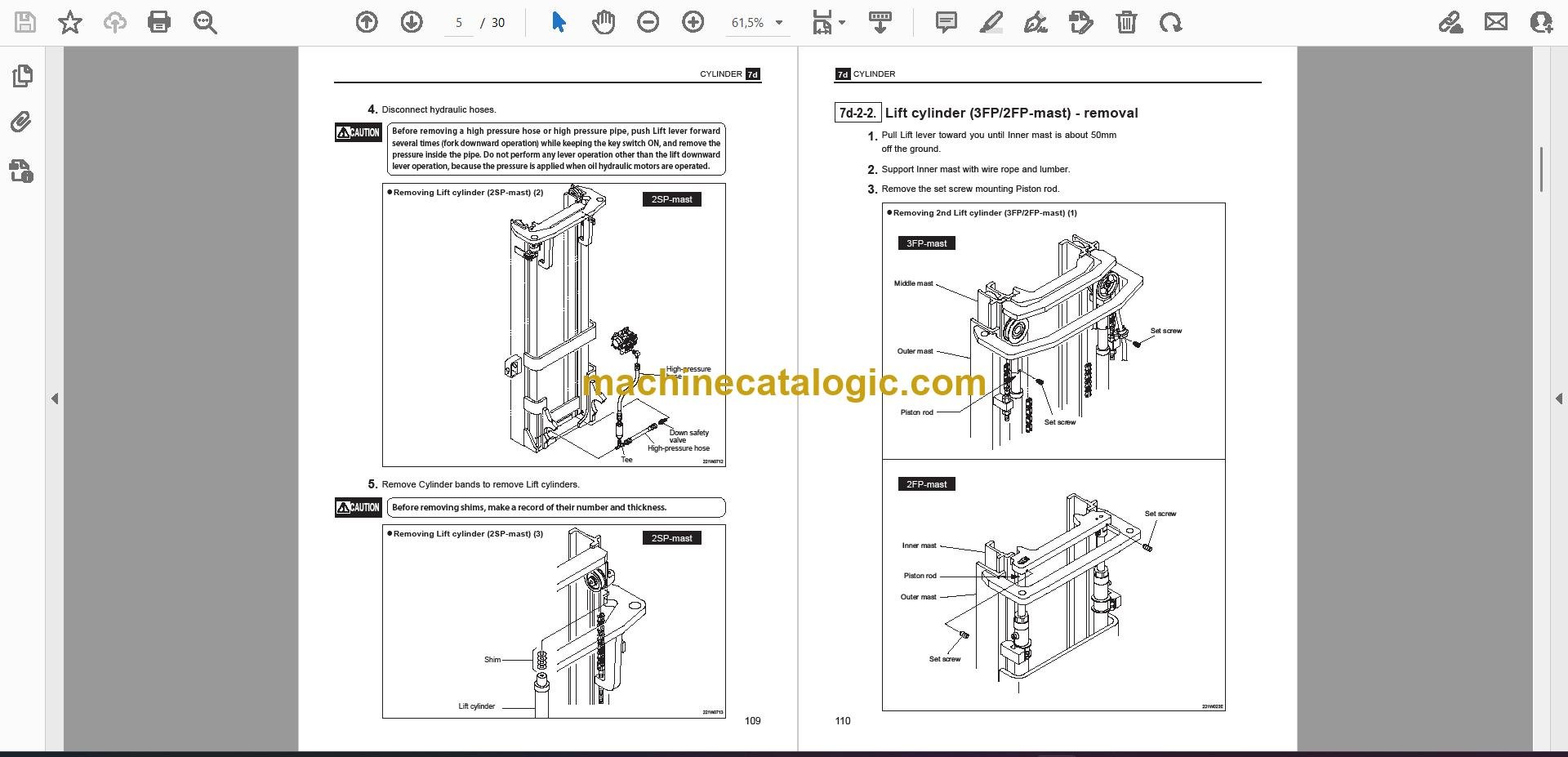

• Follow procedures for mast, forks, lift cylinders, and related adjustments.

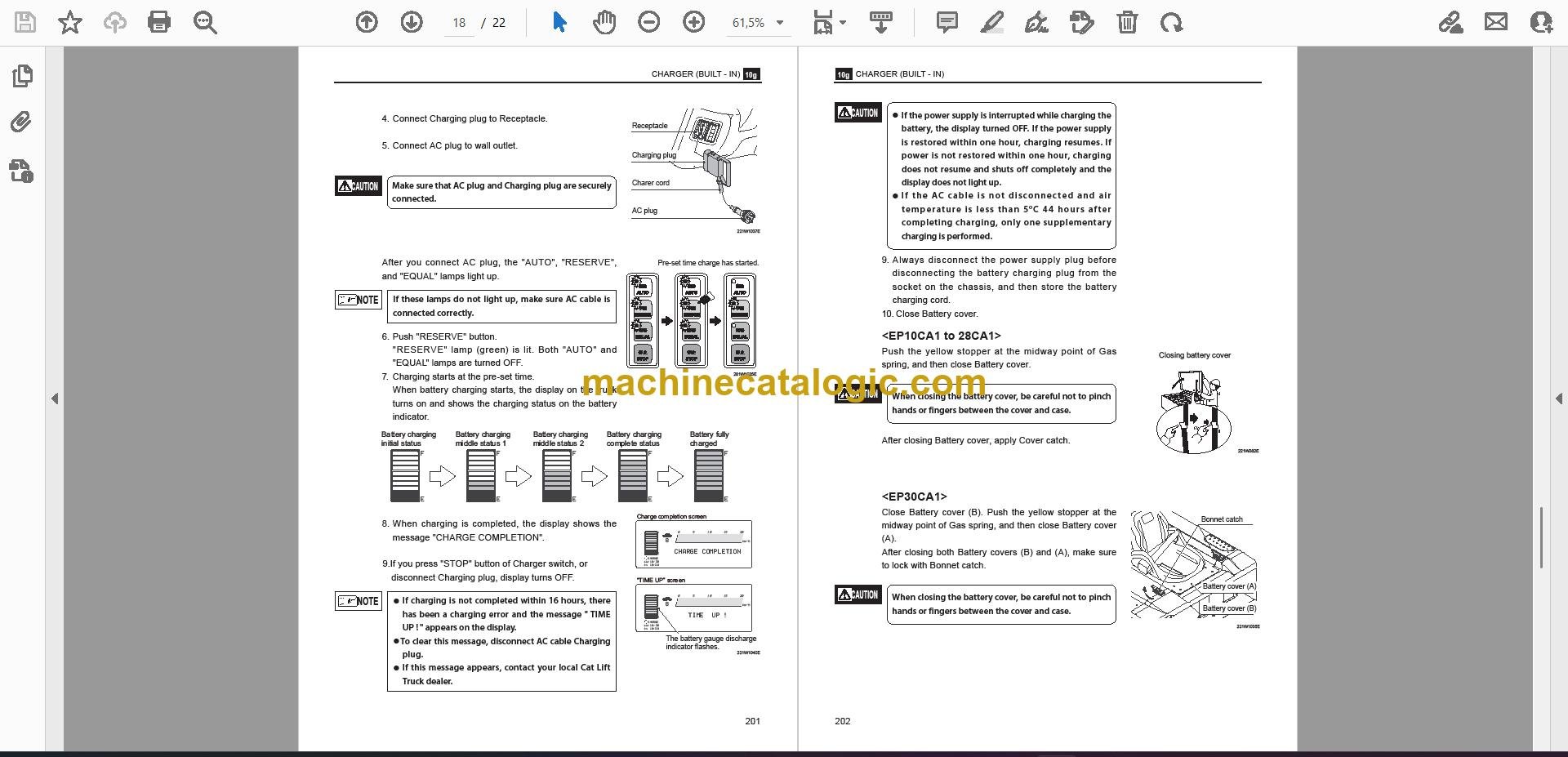

• Troubleshoot charging, control, and truck operating problems.
• Replace and set service components using the workshop procedures and service data.

Who this is for

This suits a warehouse maintenance technician, plant maintenance team, dealer technician, independent forklift shop, or rental fleet mechanic. It is a workshop service manual for the electric counterbalanced lift truck trade. The operator handbook and parts catalog are companion references also available for daily operation and parts identification.

FAQ

Q: What do I receive, and how is it organized?

A: You receive two separate Cat publications as a 30-file PDF set, split by section, with 371 pages total. The files support printing and zooming, and the text layer lets you search and copy text.

Q: Which trucks does it cover?

A: It covers EP10/14/15/18(H)CA1(J), EP20/25(H)CA1(J), EP28CA1(J), and EP30CA1(J), including the listed serial groups 221E20001-up, 256E00792-up, 241C10001-up, 257C01120-up, and 251AC2001-up. That puts the EP18CA1(J) within the stated coverage.

Q: How does it fit the job?

A: Use it for in-house repair, scheduled maintenance, electrical troubleshooting, drive-unit work, hydraulics, steering, brakes, and mast service. It gives a rental or plant shop a working reference for getting the truck ready for its next shift.

With this set, you can diagnose the EP18CA1(J), schedule the repair, and return the truck to service with fewer surprises.

Models covered by this manual

Caterpillar publication 99759-6R110 is the factory service manual for the EP18CA1(J). The same publication covers 7 further forklift models: EP10CA1(J), EP14CA1(J), EP15CA1(J), EP20CA1(J), EP25CA1(J), EP28CA1(J), EP30CA1(J). The cover also lists EP10/14/15/18(H)CA1(J), EP20/25(H)CA1(J),EP28CA1(J). Check the model and serial number on your data plate before ordering.
