Caterpillar NR14N2S Reach Truck Service and Operator Manual (622076-EN-C)

A Cat NR reach truck moves pallets through narrow warehouse aisles, using its reach carriage and pantograph to place loads where a counterbalance truck can't. I reach for this kind of manual when a warehouse tech or repair shop needs to diagnose a fault, set an adjustment, or put a truck back together correctly. It is workshop documentation for the electric truck, not just a driver's quick-reference book.

What this manual helps you do

• Trace wiring, controller circuits, switches, and sensor faults.

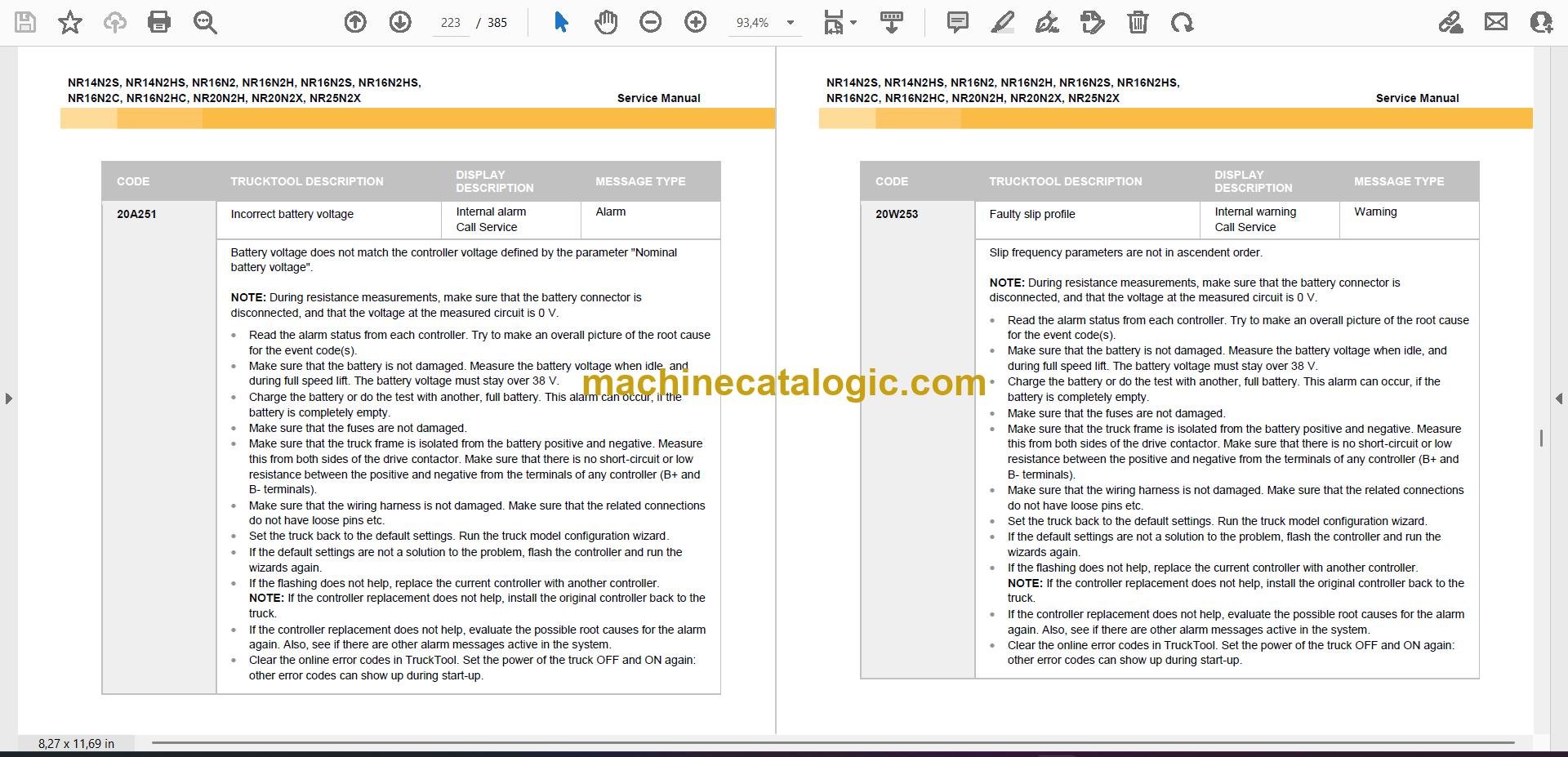

• Diagnose traction, hoist, and reach functions, including Zapi controller alarms.
• Follow procedures for the mast, staging, reach carriage, and pantograph.
• Adjust hydraulic, steering, braking, and lift-related systems.
• Check battery service, electric system maintenance, and truck parameters.

Who this is for

This suits warehouse maintenance technicians, dealer technicians, independent forklift shops, and rental fleet mechanics. In my experience, it earns its keep when you're repairing the truck in-house instead of guessing from generic procedures. The companion chassis or operator material is also available where that applies.

FAQ

Q: What do I receive, and how is it organized?

A: You receive two separate Cat publications as a set, delivered as 37 PDF files split by section, with 1,155 pages total. The files have a real text layer, so you can search and copy text, then print or zoom the pages as needed.

Q: Which truck variants does it fit?

A: The publication covers NR14N2S, NR14N2HS, NR16N2, NR16N2H, NR16N2S, NR16N2HS, NR16N2C, NR16N2HC, NR20N2H, NR20N2X, and NR25N2X reach trucks. Match your truck's model marking to that list before starting work.

Q: Is this suited to the repair job I'm doing?

A: Yes, if the job involves reach-truck electrical systems, controls, hydraulics, mast work, battery service, diagnostics, or adjustments. It gives a shop technician the procedures and service data needed to troubleshoot and repair the truck.

For the listed NR-series trucks, this set gives you a practical repair reference for electrical, hydraulic, mast, and reach-system work.

Models covered by this manual

Caterpillar publication 622076-EN-C is the factory service and operator manual for the NR14N2S. The same publication covers 10 further reach truck models: NR14N2HS, NR16N2, NR16N2C, NR16N2H, NR16N2HC, NR16N2HS, NR16N2S, NR20N2H, NR20N2X, NR25N2X. Check the model and serial number on your data plate before ordering.
