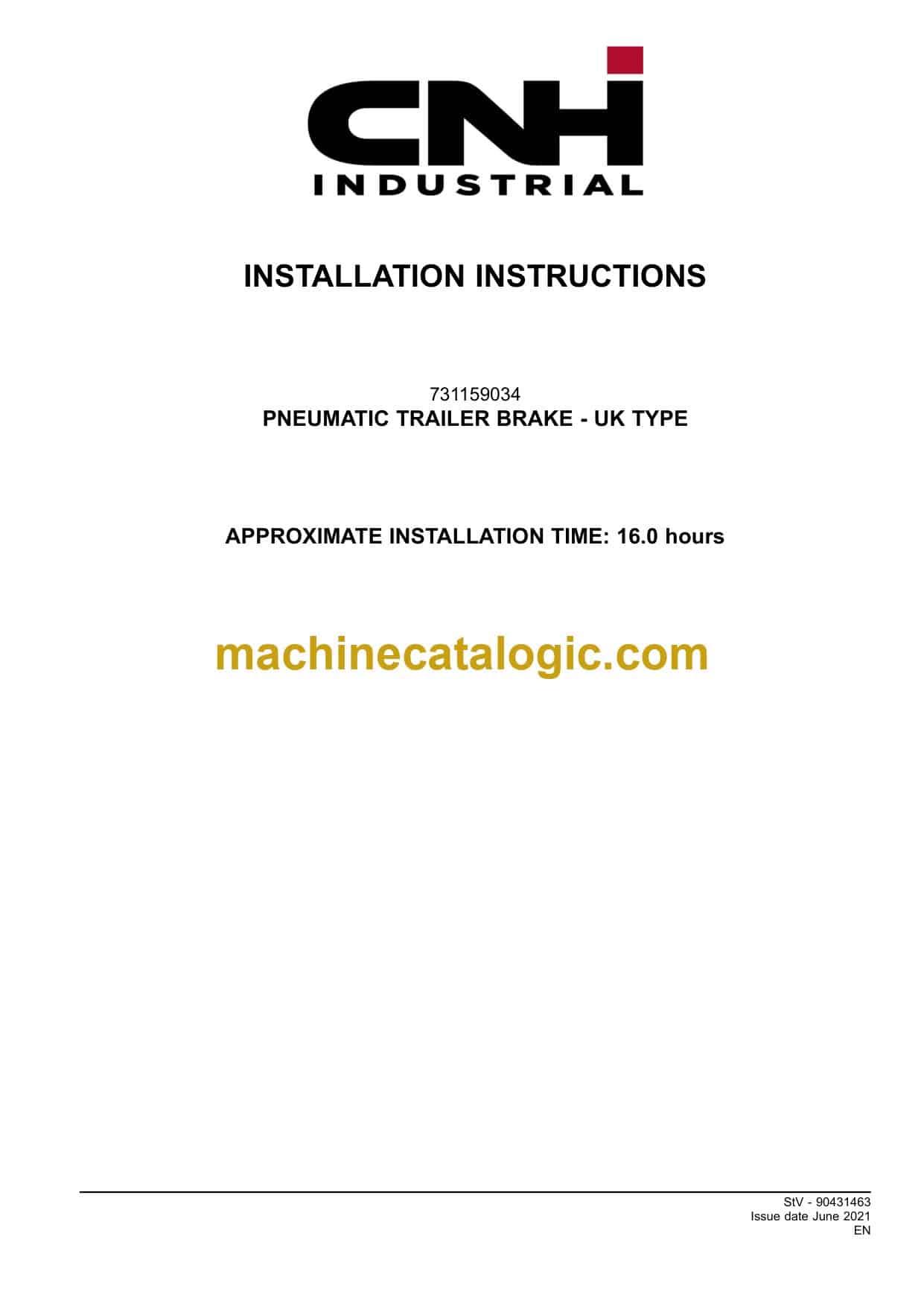

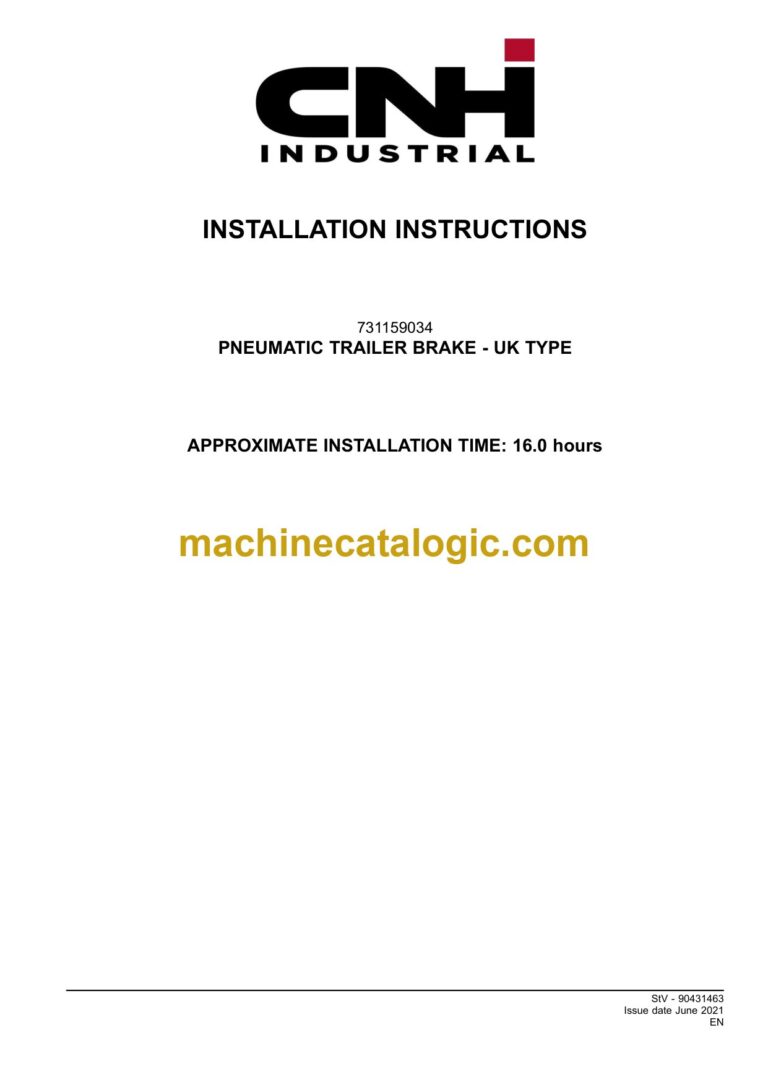

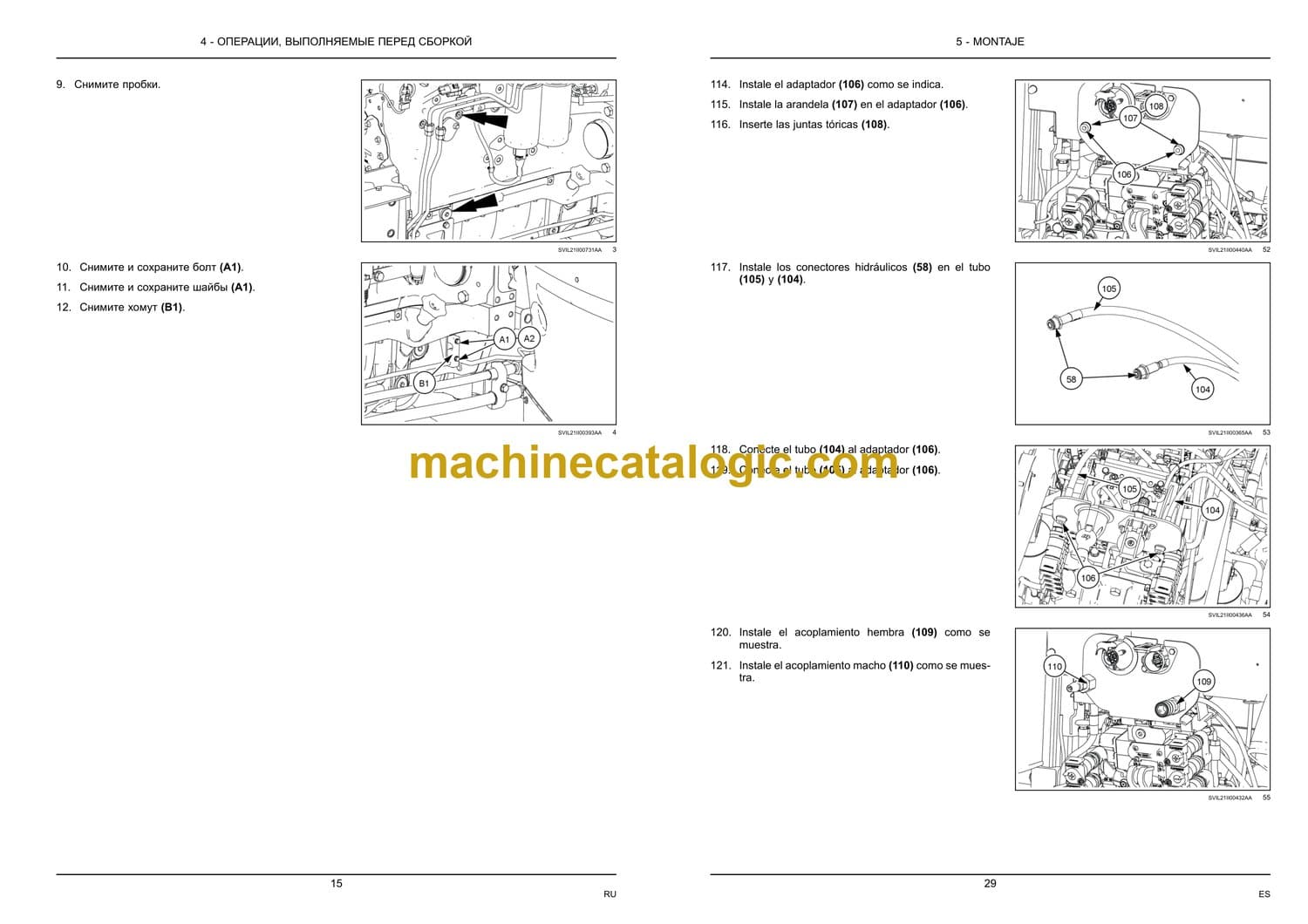

CNH 731159034 Pneumatic Trailer Brake UK Type Installation Instructions

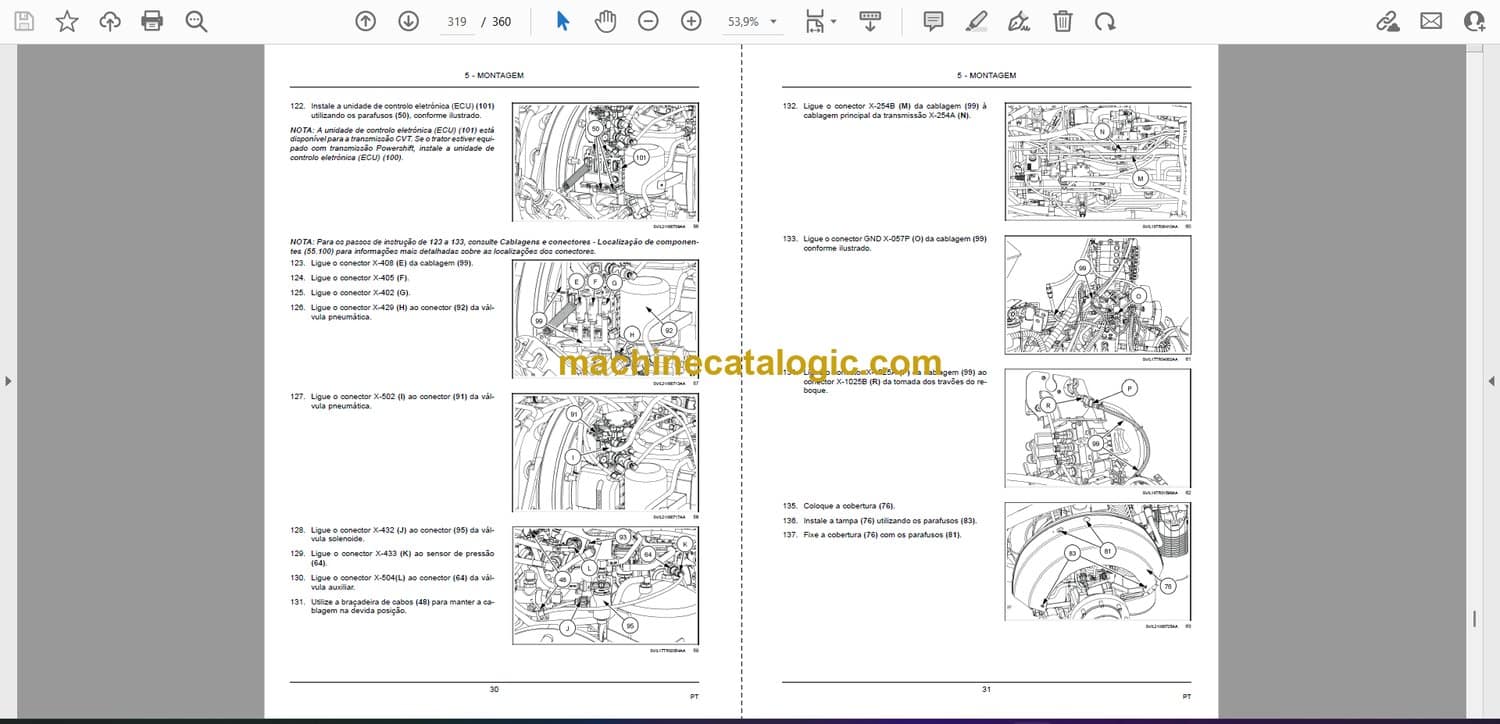

On tractors and ag machines that spend their days hauling loaded trailers on roads and in the yard, the pneumatic trailer brake system has to be installed right the first time. This CNH installation instruction set helps you route the lines, mount the components, and hook into the machine’s existing hydraulic and air circuits correctly for UK‑type trailer brakes. When a trailer isn’t braking evenly or an air line’s been disturbed during other repairs, I’d pull this document to verify the connector locations, washer counts, and pipe routing before I start cracking fittings loose.

Applications & Use Cases

• Install a new trailer brake kit on a compatible CNH tractor, following the correct mounting points and connections.
• Trace and verify air and hydraulic connections when you’ve got a braking imbalance or a trailer that’s slow to respond.
• Confirm the correct routing of air pipes to avoid chafing, tight bends, or interference with other components.
• Identify hardware like washers and connectors so you don’t mix up similar-looking parts during reassembly.
• Check your work after repairs to ensure the pneumatic brake system matches factory layout before road testing.

FAQ

Q: Can I use this on a tablet in the field?

A: Yes, it’s practical to keep a digital copy on a tablet or phone so you can zoom in on diagrams right next to the machine.

Q: Is it worth printing this out?

A: For installation jobs, a printed copy is handy—you can mark it up, tape key pages to the cab, and keep greasy hands off your device.

Safety Note

Always depressurize both air and hydraulic systems and secure the machine and trailer before loosening any brake lines or fittings.

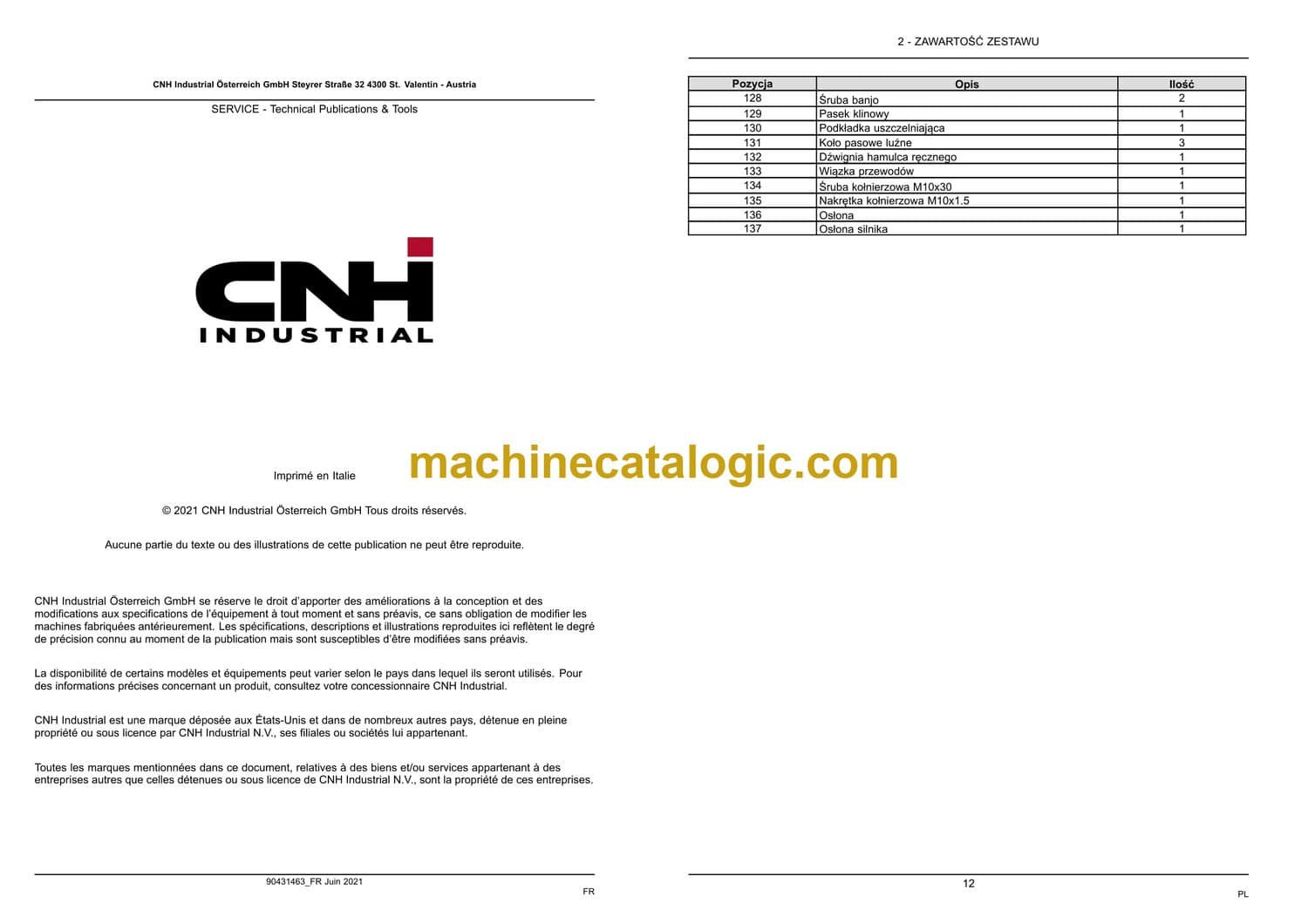

CNH 731159034 Pneumatic Trailer Brake UK Type  Index:

Support 1
2 Hydraulic connector 3
3 Air conditioner pipe 1
4 Air conditioner pipe 1
5 Washer 8.4x17x1.6 3
6 Bolt M8X16 1
7 Brace 1
8 Flange bolt 1
9 Bolt M8x100 1
10 Air compressor 1
11 Seal fuel injector 1
12 Pulley 1
13 Screw 4
14 Idler pulley 1
15 Connector 1
16 Adapter 1
17 Oil drain pipe 1
18 Elbow 90° 2
19 Air intake pipe 1
20 Washer 26.1x32x1.5 4
21 Clamp 1
22 Connector 90° 1
23 Oil supply pipe 1

Load sensing pipe 1
26 Washer 9.36x16x1.6 1
27 Bolt M8x20 3
28 Cable clamp 1
29 Bolt M6x16 1
30 Washer 6.4×11.95×1.6 1
31 Pipe, crossover from cooler 1
32 Bracket 2
33 Bracket 2
34 Washer 6.4X12X1.6 2
35 Bolt M6x12 2
36 Test port elbow 90° 1
37 Right-hand load sensing pipe 1
38 Left-hand load sensing pipe 1
39 Sealing washer M12 12.7x18x1.5 2
40 Banjo bolt

CNH

CASE IH
PUMA® 140 ActiveDrive 6 – TIER 4B
(FINAL) and STAGE IV (Mother Regulation)
[DBDPU1400HE250001 – ]
PUMA® 150 ActiveDrive 6 – TIER 4B
(FINAL) and STAGE IV (Mother Regulation)
[DBDPU1500HE250001 – ]
PUMA® 150 Multicontroller ActiveDrive
6 / PowerDrive – TIER 4B (FINAL)
and STAGE IV (Mother Regulation)
[DBDPU1500HE250001 – ]
PUMA® 165 ActiveDrive 6 – TIER 4B
(FINAL) and STAGE IV (Mother Regulation)
[DBDPU1650HE250001 – ]
PUMA® 165 Multicontroller ActiveDrive
6 / PowerDrive – TIER 4B (FINAL)
and STAGE IV (Mother Regulation)
[DBDPU1650HE250001 – ]
PUMA® 150 CVX CVXDrive – TIER 4B
(FINAL) and STAGE IV (Mother Regulation)
[DBDPU1500HE250001 – ]
PUMA® 165 CVX CVXDrive – TIER 4B
(FINAL) and STAGE IV (Mother Regulation)
[DBDPU1650HE250001 – ]
PUMA® 175 CVX CVXDrive – TIER 4B
(FINAL) and STAGE IV (Mother Regulation)
[DBDPU1750HE250001 – ]
NEW HOLLAND
T7.165S Standard – TIER 4B (FINAL)
and STAGE IV (Mother Regulation)
[HACT71650HE101001 – ]
T7.175 Standard – TIER 4B (FINAL)
and STAGE IV (Mother Regulation)
[HACT71750HE101001 – ]
T7.175 Sidewinder II – TIER 4B (FINAL)
and STAGE IV (Mother Regulation)
[HACT71750HE101001 – ]
T7.190 Standard – TIER 4B (FINAL)
and STAGE IV (Mother Regulation)
[HACT71900HE101001 – ]
T7.190 Sidewinder II – TIER 4B (FINAL)
and STAGE IV (Mother Regulation)
[HACT71900HE101001 – ]
T7.210 Standard – TIER 4B (FINAL)
and STAGE IV (Mother Regulation)
[HACT72100HE101001 – ]
T7.210 Sidewinder II – TIER 4B (FINAL)
and STAGE IV (Mother Regulation)
[HACT72100HE101001 – ]
T7.175 AutoCommand™ Sidewinder II –
TIER 4B (FINAL) and STAGE IV (Mother
Regulation) [HACT71750HE101001 – ]
T7.190 AutoCommand™ Sidewinder II –
TIER 4B (FINAL) and STAGE IV (Mother
Regulation) [HACT71900HE101001 – ]
T7.210 AutoCommand™ Sidewinder II –
TIER 4B (FINAL) and STAGE IV (Mother
Regulation) [HACT72100HE101001 – ]
T7.225 AutoCommand™ Sidewinder II –
TIER 4B (FINAL) and STAGE IV (Mother
Regulation) [HACT72250HE101001 – ]
STEYR
6150 CVT S-CONTROL CVT – STAGE IV
(Mother Regulation) [DBDS61500HE350001
– ]
6165 CVT S-CONTROL CVT – STAGE IV
(Mother Regulation) [DBDS61650HE350001
– ]
