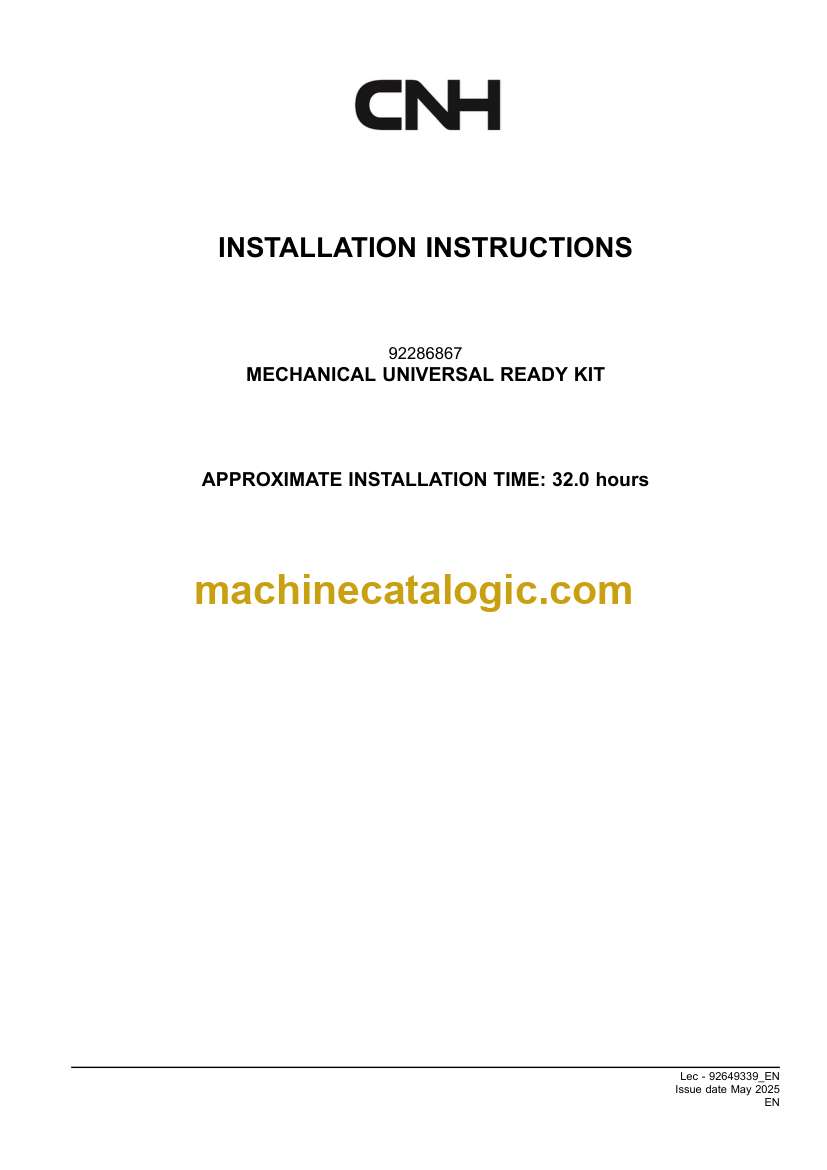

CNH Mechanical Universal Ready Kit Installation Instructions (92649339)

Out in the field or yard, this kit’s going on tractors or construction rigs that live in dust, mud, and bad weather. This installation manual walks you through how to mount, route, and align a CNH mechanical universal ready kit so it actually works and doesn’t fight you later. Say you’re adding guidance equipment or a control system: this tells you where to bracket things, how to trace existing lines and harnesses, and what to inspect so you don’t drill into something expensive.

Applications & Use Cases

• Trace and identify mounting points so you’re not guessing where brackets and linkages are supposed to land.
• Check clearances and route cables and hoses so they won’t chafe, pinch, or snag when the machine’s at full lock or full lift.
• Verify you’ve got the right hardware and adapters before you tear the machine apart, so the job doesn’t stall halfway.
• Isolate issues after install—use the manual’s test steps to see if a problem’s your wiring, your alignment, or the kit itself.
• Inspect and re‑check fasteners and linkages after a few hours of use, following the manual’s guidance so things don’t work loose.

FAQ

Q: Is this a PDF I can keep on my phone or tablet?

A: It’s typically supplied as a PDF, so you can search it, zoom diagrams, and keep it in your jobsite files.

Q: Can I print just the pages I need for the shop?

A: Yes, you can usually print selected sections, which is handy when you’re under the machine and don’t want your whole manual getting oily.

Safety Note

Always de‑energize and secure the machine before you trace lines, drill, or test-fit brackets so nothing moves unexpectedly on you.

CNH Mechanical Universal Ready Kit Index:

1 SAFETY INFORMATION
Basic instructions – Important notice regarding equipment servicing. . . . . . . . . . . . . . . . . . . . . . . 1-1
Safety rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 KIT CONTENT
Kit overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
3 GENERAL INFORMATION
Basic instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

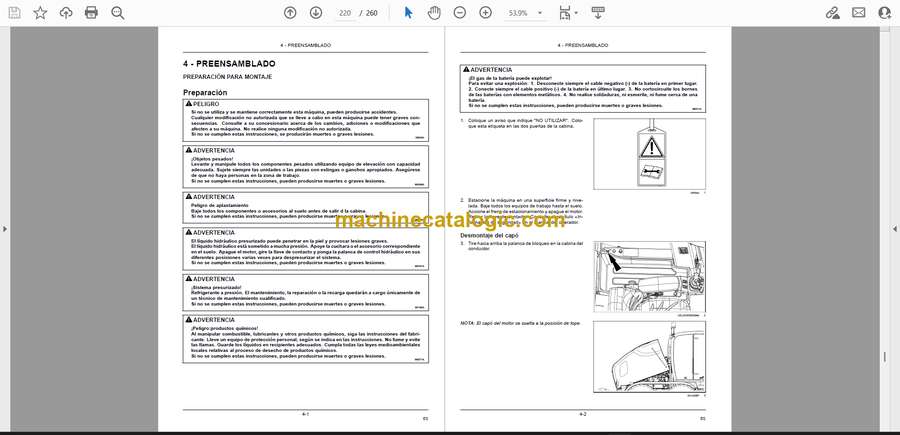

4 PRE-ASSEMBLY
PREPARING FOR ASSEMBLY
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
5 ASSEMBLY
Moldboard control
Moldboard control – Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
