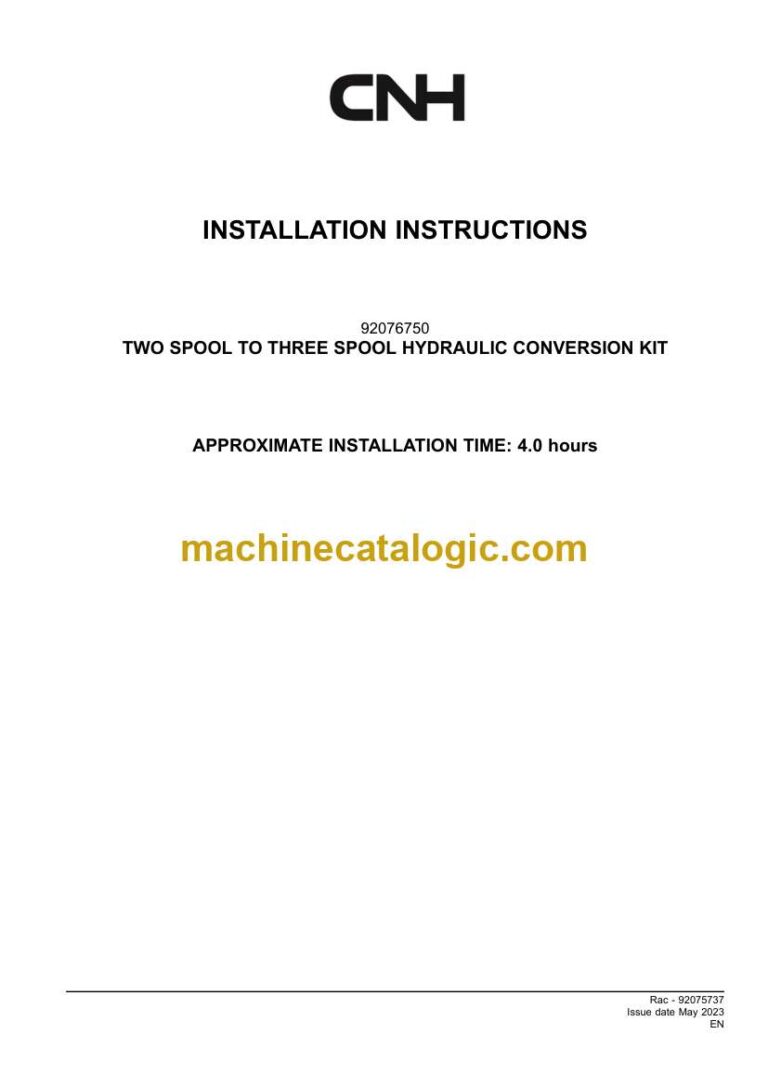

CNH TWO SPOOL TO THREE SPOOL HYDRAULIC CONVERSION KIT Installation Instructions (92075737)

CNH TWO SPOOL TO THREE SPOOL HYDRAULIC CONVERSION KIT Installation Instructions (92075737)

Out in the field or yard, that tractor’s running loaders, mowers, maybe a log splitter—always something hanging off the back or front. This manual walks you through converting from a two-spool to a three-spool hydraulic valve, so you can run another function without guessing or cracking fittings twice. Say you’ve added a grapple to your loader: with this, you can trace the existing lines, install the extra spool, route hoses cleanly, and test it so the grapple works when you pull the lever, not when you hit a bump.

Applications & Use Cases

• Trace and identify existing pressure, return, and work lines, so you don’t tie the new spool into the wrong circuit.
• Check clearances, then mount and align the new valve section so the linkage and levers move smoothly.
• Route and clamp hoses to avoid pinch points, then verify there’s no rubbing on tires or sharp edges.
• Bleed and test the hydraulics after install, watching for leaks and odd noises before you go back to work.
• Inspect the kit parts against the list so you catch missing fittings or brackets before you tear the tractor apart.

FAQ

Q: Is this a PDF I can search on my laptop or phone?

A: It’s typically a standard PDF, so you can keyword search, zoom diagrams, and keep it open while you’re at the machine.

Q: Can I print just the pages I need for the jobsite?

A: Yeah, you can usually print individual sections, toss them in a plastic sleeve, and not worry about oil and dirt.

Safety Note

Always relieve hydraulic pressure and verify everything’s blocked and supported before you crack any lines or remove components.

CNH TWO SPOOL TO THREE SPOOL HYDRAULIC CONVERSION KIT Index:

• SAFETY INFORMATION
  • Safety rules
• KIT CONTENT
  • Kit overview
• GENERAL INFORMATION
  • Foreword – Important notice regarding equipment servicing
  • Basic instructions
  • Torque
• PRE-ASSEMBLY
  • PREPARING FOR ASSEMBLY
    • Preparation
• ASSEMBLY
  • TWO SPOOL TO THREE SPOOL HYDRAULIC CONVERSION KIT INSTALLATION
    • Two spool to three spool hydraulic conversion kit installation
