Cummins QSM11 Engine Operation and Maintenance Manual

The QSM11 is a Cummins diesel engine used as the power unit on cranes and other heavy machines, including Tadano machines. This operation and maintenance manual is what you pick up when a used machine arrives without its maintenance book and you need the service intervals on file before it goes to work.

What this manual helps you do

• Plan service work around the daily, 250 hour or 6 month, 600 hour or 1 year, 1500 hour or 1 year, and 6000 hour or 2 year interval sections.
• Check the maintenance schedule and guidelines so every unit has a routine on record.
• Change engine oil and filters following the maintenance procedures for each interval.
• Inspect the fuel system, cooling system, and air intake and exhaust at the intervals given.

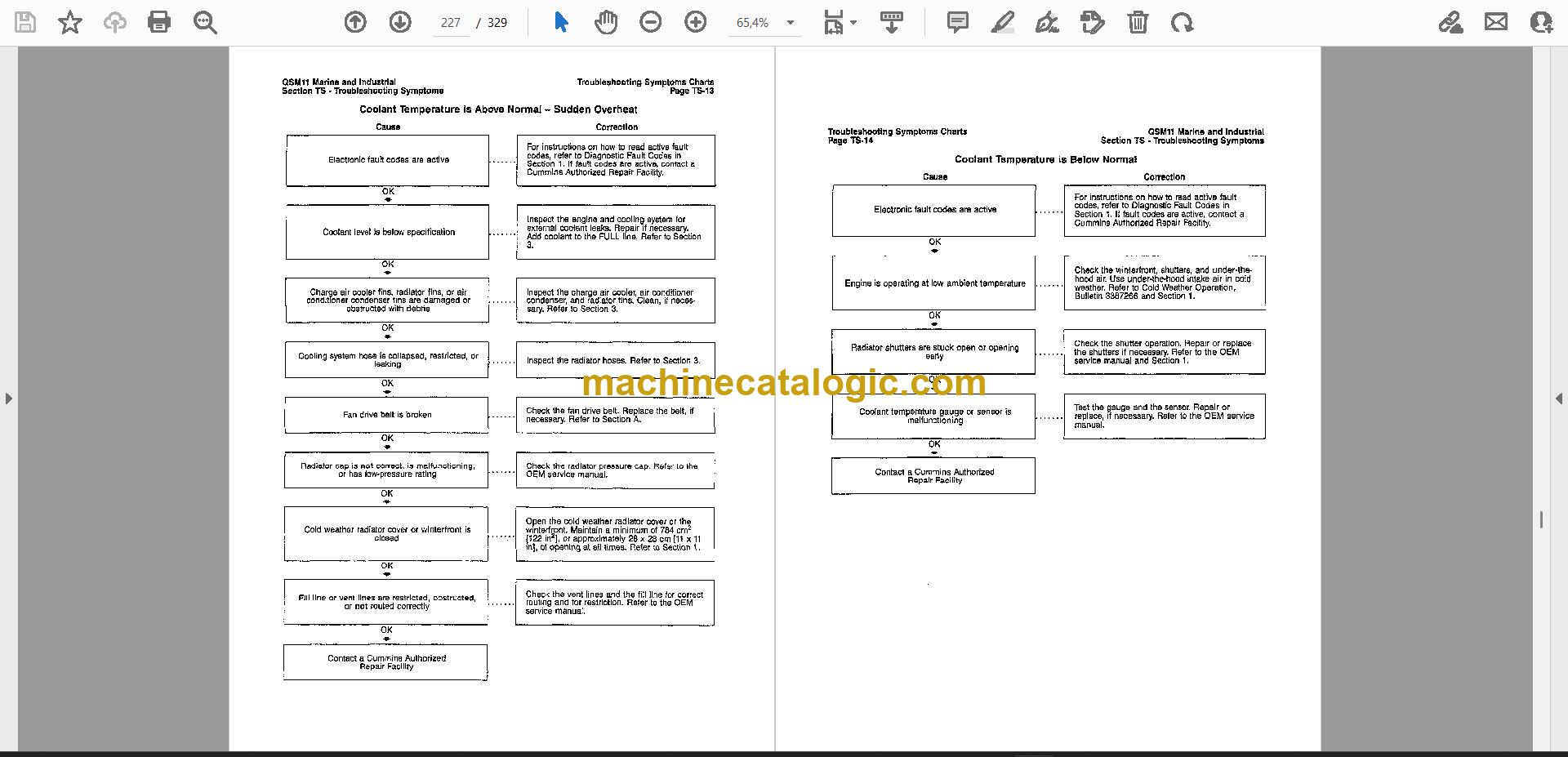

• Verify engine identification details and use the troubleshooting symptoms when a fault shows up.

Who this is for

A fleet maintenance supervisor at a rental company can use it to build a planned maintenance routine for each QSM11 unit and keep the records consistent. A workshop mechanic can use it at the bench for interval tasks, adjustment, repair and replacement procedures, and maintenance specifications.

FAQ

Q: What do I receive and how is it organised?

A: You get 1 PDF file of 329 pages in English, publication number 3668404-01. It runs from the introduction, engine identification and operating instructions through maintenance procedures by interval, system diagrams, service literature and troubleshooting symptoms.

Q: Which engine does it fit?

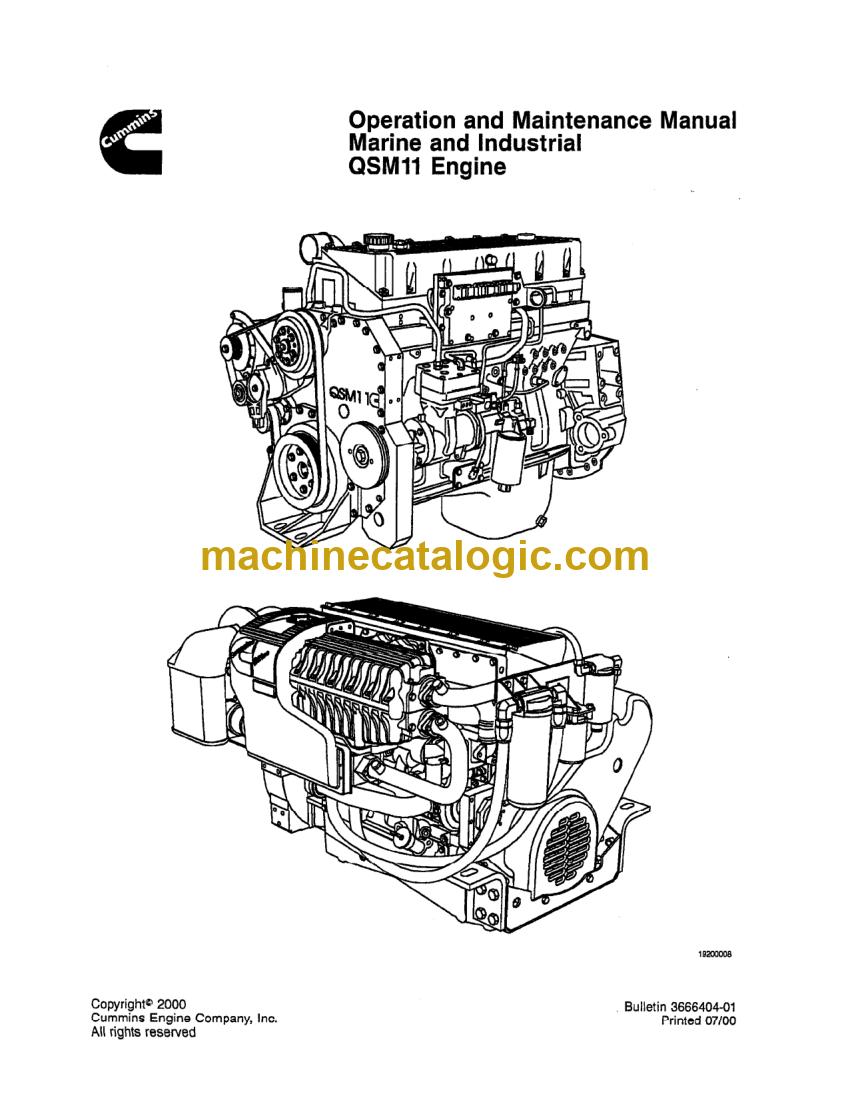

A: It is the Cummins QSM11, titled "QSM11 Marine and Industrial Engine Operation and Maintenance Manual" on the cover. It is the manual from the Tadano machine documentation for this engine.

Q: How does it fit my job?

A: If you're setting up or checking a service routine, the interval sections give you the daily to 6000 hour structure in one file. Print the pages you need for the workshop, or keep the PDF in each unit's record.

If your machine runs a QSM11, this is the manual for setting up its service schedule and keeping the maintenance on file.

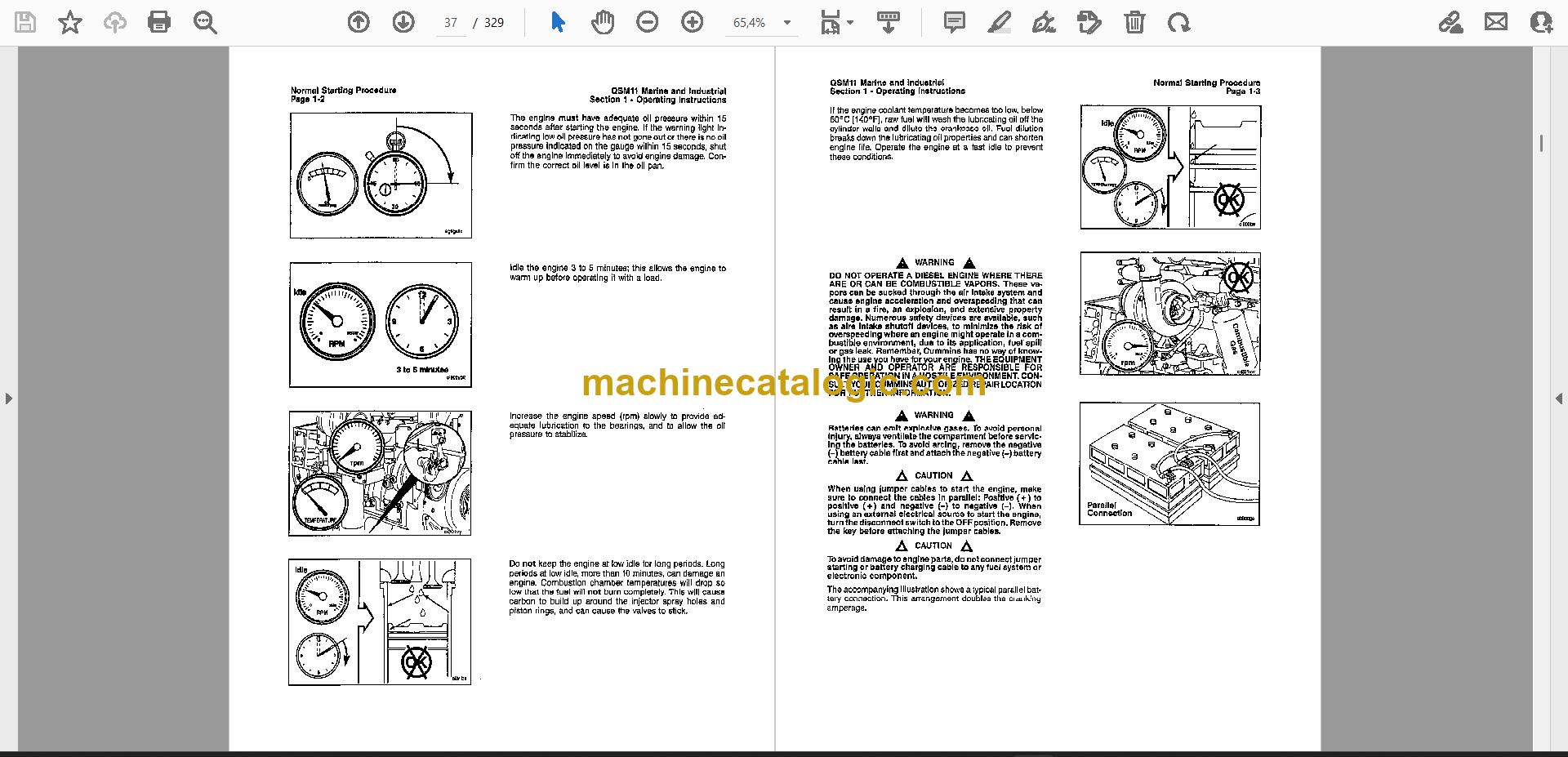

Click here to view the preview (PDF)
