Demag AC 350 All Terrain Crane Maintenance Manual

A Demag AC 350 is an all terrain crane. It drives on public roads between jobs, then sets up on site and works with a telescopic boom. When one comes due for its next scheduled service, the person doing it needs the intervals, lubrication points and fluid details in front of them. That's what this maintenance manual is for.

What this manual helps you do

• Plan scheduled service work using the lubrication and maintenance schedule and its instructions.
• Lubricate the slew ring connection, slew gear, hoists, luffing gear and main boom.
• Check the fuels and lubricants called for before you top up or change anything.
• Inspect the hydraulic system, electrical system, fuel system, and cooling, air intake and exhaust.
• Follow the superstructure maintenance checks and the piston rod corrosion protection steps.

Who this is for

A field service mechanic or workshop mechanic who services the AC 350 on a routine basis. You'd keep it open at the crane to work through the schedule, the lubrication points and the checks, and tick them off as you go.

FAQ

Q: What do I receive and how is it organised?

A: You get the set: 2 separate manuals in English, delivered as 43 PDF files and 464 pages in total. Manual 1 is the main manual at 279 pages, and Manual 2 is 185 pages.

Q: Which machine does it fit?

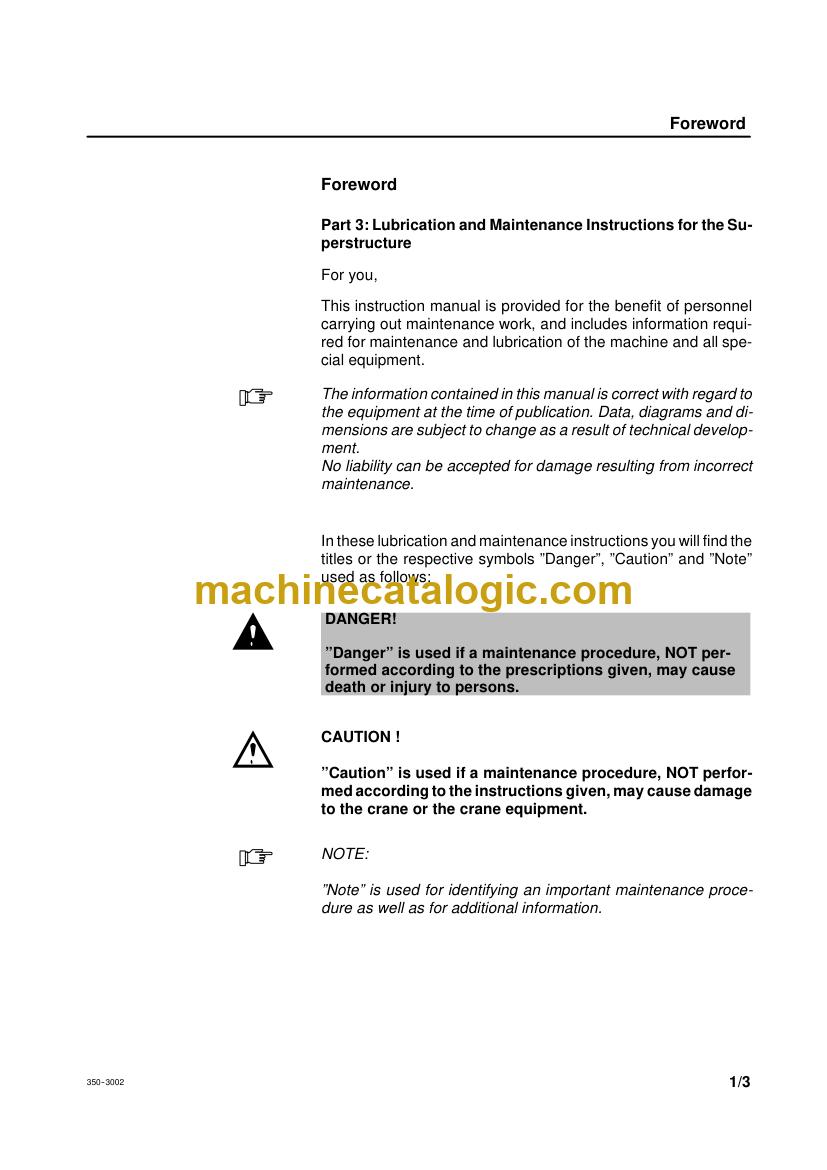

A: It is for the Demag AC 350 all terrain crane. The sections are titled around superstructure lubrication and maintenance, including a foreword, an index and crane lubrication and maintenance safety instructions.

Q: How does it fit the job I'm doing?

A: If you're working out what a service involves, the schedule and its instructions give you the order of work. The sections on the engine, hydraulic system, heating system with fault codes, and crane operator's cab let you go system by system.

Keep the set on file for the AC 350 and you have the schedule, the lubrication details and the checks ready for every service.

Click here to view the preview (PDF)
