Demag CC 2400-1 Crawler Crane Maintenance Manual

The CC 2400-1 is a heavy crawler crane built for long lifting projects, and it runs hard on a job site. Every slewing ring, hoist and track roller on it needs greasing and checking on schedule. If you run a rental fleet, you reach for this manual when a unit is due for its next service and you need the intervals in front of you. It's the Lubrication and Maintenance Manual for the CC 2400-1.

What this manual helps you do

• Plan service work from the lubrication and maintenance schedule.
• Check oil levels and the flexible pressure tubing during routine inspections.
• Lubricate the roller bearing slewing rim, hoists, luffing gears and undercarriage using the oils, lubricants and capacities section.
• Replace the return oil filter and other hydraulic system and filters items at their intervals.
• Inspect the fuel system, heating and air conditioning, piston rods and counterweight dolly with the visual checks.

Who this is for

A fleet maintenance supervisor can use it to put a planned routine on file for each CC 2400-1 and hand mechanics the right checks for each service. A workshop mechanic can keep it open at the crane while working through lubrication points and filter changes.

FAQ

Q: What do I receive and how is it organised?

A: You get the set: 2 PDF files, 956 pages in total, in English. Publication 043-2000-017 is 476 pages, and the main manual is 480 pages.

Q: Which machine does it fit?

A: It is for the Demag CC 2400-1 crawler crane. Check your unit's model plate against that designation.

Q: How does it fit my maintenance job?

A: You'd expect to find the schedule, lubrication information, fluids, filters and examinations of the crane, so you can service the unit and keep a record of each interval.

Keep both files with the crane's maintenance records and work from them at every scheduled service.

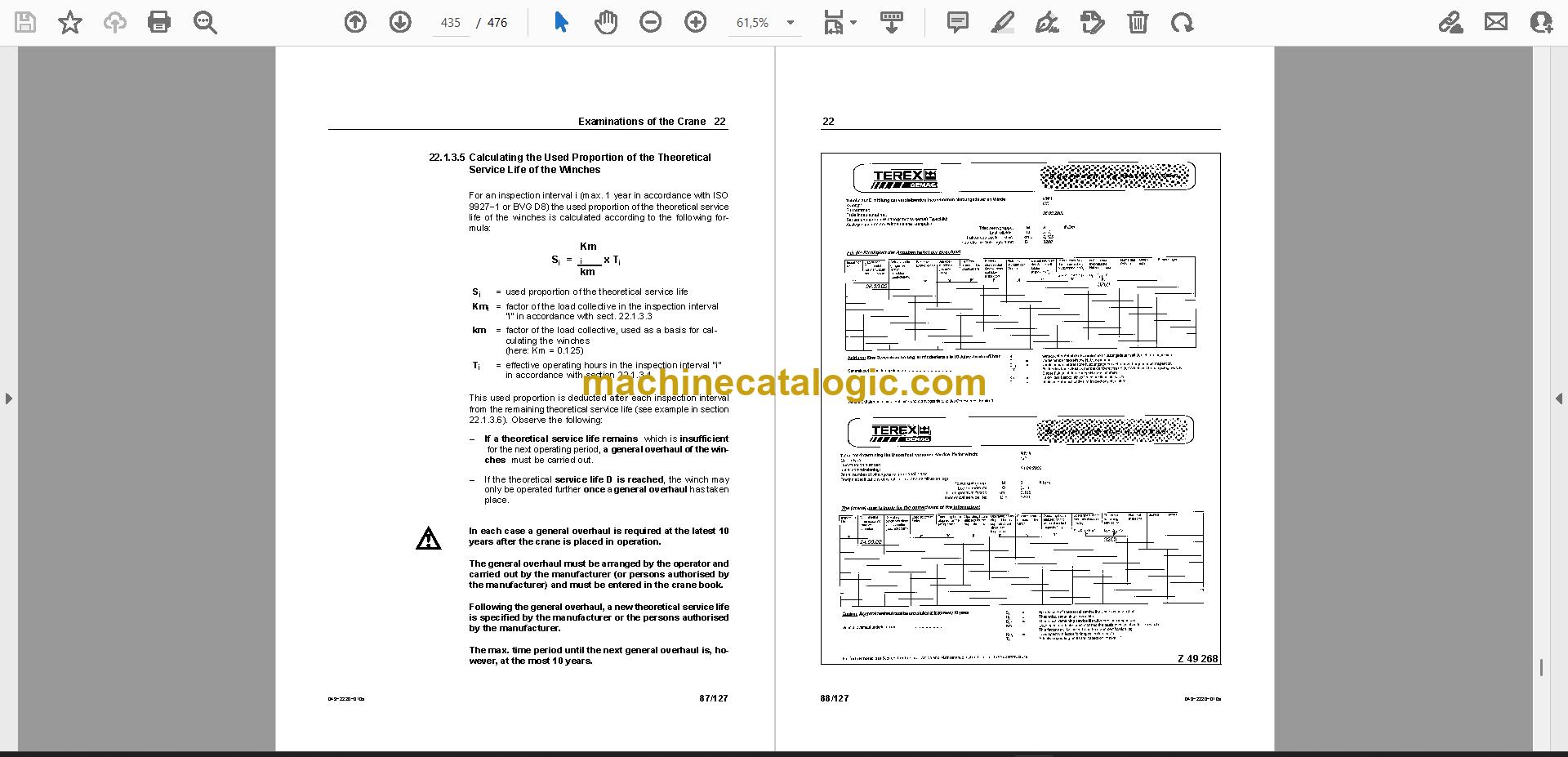

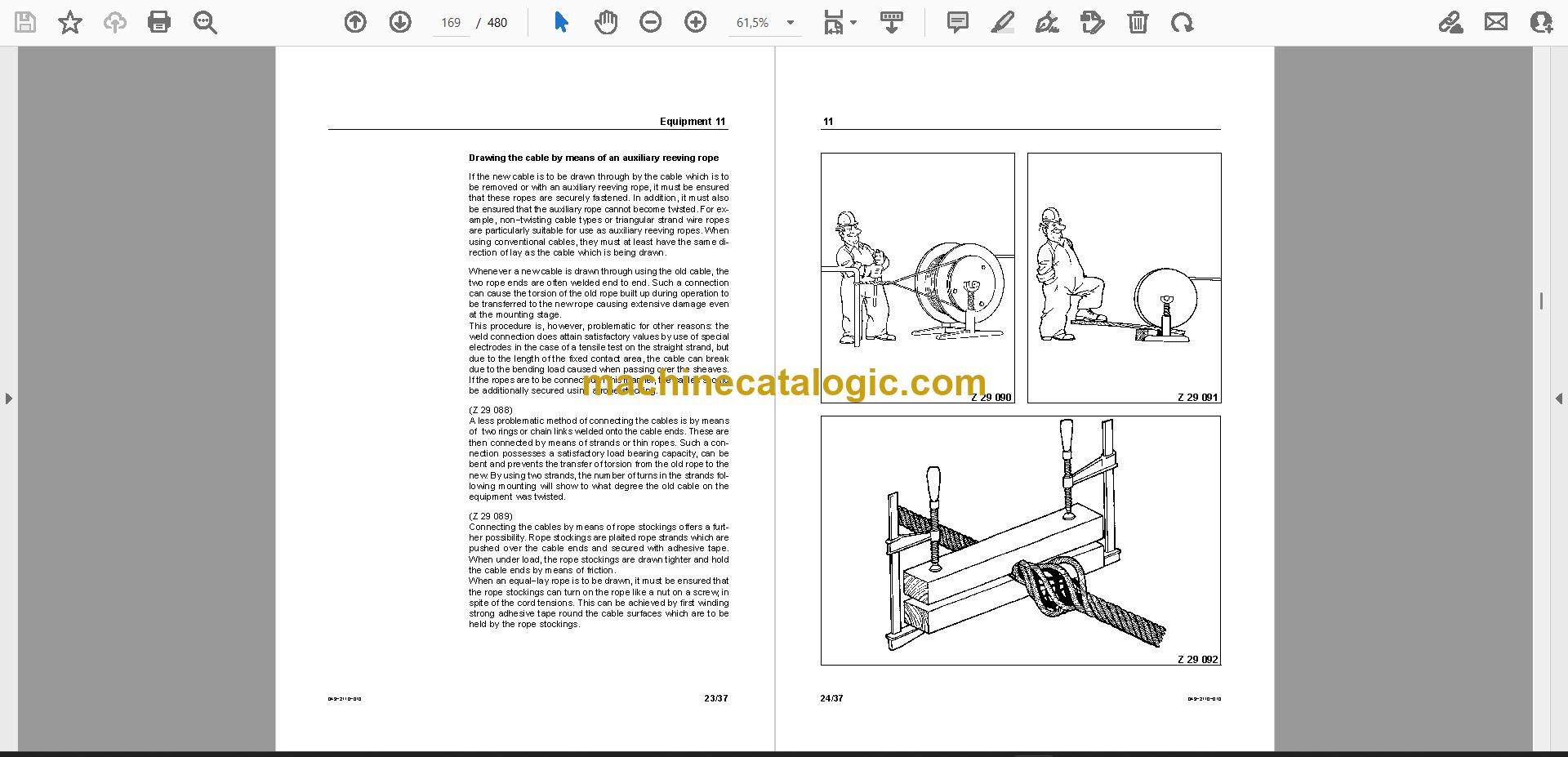

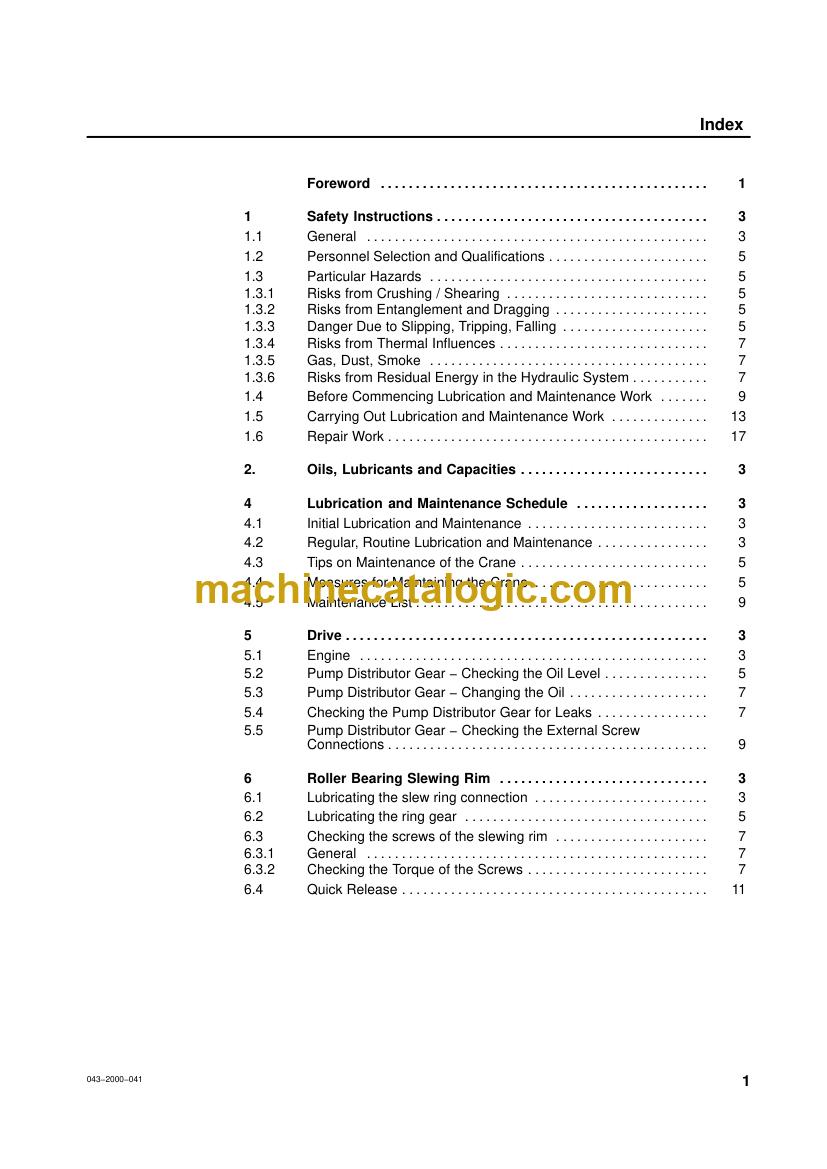

Click here to view the preview (PDF)
