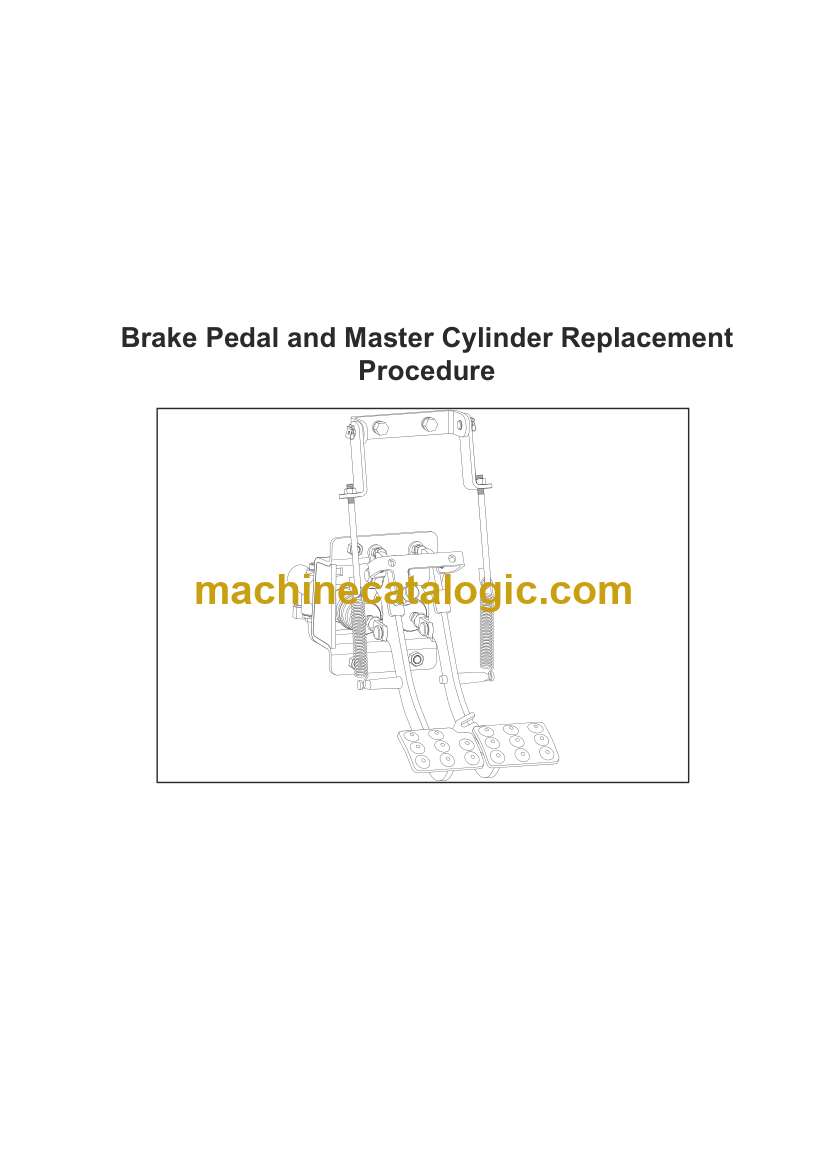

Develon Backhoe Loader Brake Pedal and Master Cylinder Replacement Procedure

Develon Backhoe Loader Brake Pedal and Master Cylinder Replacement Procedure

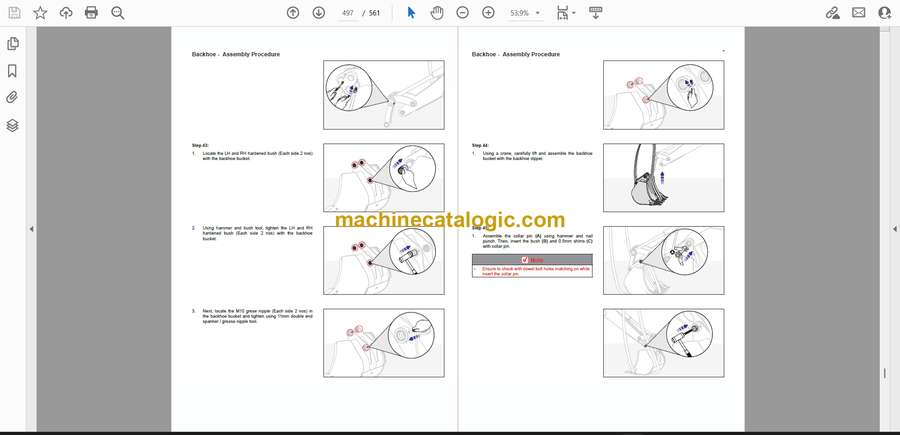

Develon Backhoe Loader Brake Pedal and Master Cylinder Replacement Procedure Index:

S.no Part Number Rev Part Description Qty Remark Sap No
1 BSA0004C0A00 0 PLATE ASSY BRAKE MOUNT 1 7024618
2 BSA0004EA001 0 TWIN SELFBLEED QFMC 1 BSA0004D0001 2008691
3 BSA000000256 0 BOLT M14 BANJO BRAKE 2 PU11N00CC002 2009891
4 BSA000000255 0 HOSE BRAKE BANJO MC 2 2009890
5 PU03Y0AA0002 0 WASHER COPPER M14 4 2009892
6 PU03BAGA0007 0 WASHER SPRING 4 2000353
7 PU01AABAC156 0 BOLT HEX M8X30 4 2000362
8 BSA0004CA000 0 BRAKE PEDAL ASSY LH MC 1 BSA0004DA000 7024623
9 BSA0004CB000 0 BRAKE PEDAL ASSY RH MC 1 BSA0004DB000 7024627
10 PU08ABAA0015 0 BEARING BRAKE LEVER 4 2003046
11 CP03BQ070236 0 PIN 1 CP03BC070169 2009392
12 CP06BG260192 0 PIN 2 2009390
13 PU0403000001 0 CIRCLIP C8 2 2000175
14 BSA0004C0001 0 CLAMP BRAKE SWITCH MC 1 BSA0004D0002 7024619
15 PU6213002200 0 SWITCH LAMP REAR STOP 1 2003023
16 PU01YABAA015 0 SCREW GRUB M6X30 2 2003024
17 PU02AFAF0008 0 NUT HEX M6 2 2000341
18 7T12D0043008 4 BRAKE PEDAL LOCK PLATE 1 7000763
19 PU2404010005 0 DOWEL PIN D6X15 1 2000191
20 BSA1204D0005 0 BRAKE PEDAL SPRING PIVOT PLATE 1 7018679
21 BSA1204D0004 0 BRAKE PEDAL SPRING MOUNT PLATE 2 7018678
22 BSA001600005 0 PIN CLEVIS M8 2 2004078
23 7T00D0310002 0 PIN CLIP CLEVIS 2 2000178
24 BSA000000012 1 STAY ROD 76HP 2 2002148
25 BSA5104D0003 1 SPRING BRAKE PEDAL 2 2006500
26 PU02AFAF0003 0 NUT 2 2012534
27 PU01AABAC160 0 BOLT HEX M10X25 2 7000248
28 PU02CCAF0011 0 NUT NYLOCK M10 2 2000294
29 PU03Y0AA0002 0 WASHER COPPER M14 2 PU0607000115 2009892
30 PU11H01CB024 0 HYDRAULIC TUBE FITTING ADAPTOR 2 PU11H01CB012 2010581
31 PU02AFAF0003 0 NUT 2 2012534
32 PU01AABAC199 0 BOLT HEX M8X25 2 7000286
