Develon DX160LC-7 Crawler Excavator Shop Manual (950106-02527_D_EN)

Develon DX160LC-7 Crawler Excavator Shop Manual (950106-02527_D_EN)

Out on sites, this DX160LC-7 is usually digging foundations, loading trucks, trenching around utilities, working in mud, dust, and cold starts. This shop manual’s what you’d use when you’re past simple filters and grease and you’re ready to tear in deep—major hydraulics, swing gear, final drives, boom and arm pins, that kind of work. Say the swing motor’s growling and you’ve got metal in the oil; this book helps you plan the teardown, trace the fault, inspect the internals, and then reassemble it so you don’t miss a shim or misalign a bearing.

Applications & Use Cases

• Plan a full undercarriage job: route hoses cleanly, check carrier rollers, verify track tension parts, and align everything on reassembly.
• Strip and rebuild a hydraulic cylinder, then test for bypass and leaks before you pin it back on the machine.
• Isolate a travel power loss by tracing the circuit, checking relief valves, and inspecting the final drive before you order big-ticket parts.
• Follow general torque sequences on major joints so you don’t warp housings or crush seals when you button things up.
• Tear down the upper structure, inspect slew ring wear patterns, and verify proper gear mesh when you rebuild.

FAQ

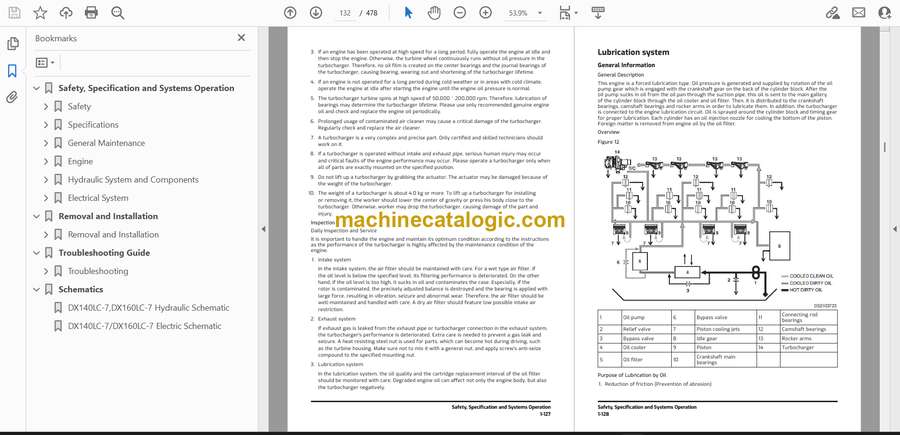

Q: Is this a PDF I can search on my laptop or phone?

A: Yes, it’s typically a searchable PDF, so you can jump to sections by keyword instead of scrolling forever.

Q: Can I print just the pages I need for a job and bring them to the machine?

A: Usually, yes; most techs print the relevant procedures, mark notes, and toss them once the repair’s verified and bled out.

Safety Note

Always support the attachment and upper structure with approved stands before you crawl under or start loosening anything pressurized or heavy.

Develon DX160LC-7 Crawler Excavator Index:

• Safety, Specification and Systems Operation
  • Safety
    • Track Excavator Maintenance Safety
  • Specifications
    • General Specifications
    • Engine Specifications
    • Hydraulic Systems and Structure Specifications
  • General Maintenance
    • General Maintenance Instructions
    • Standard Torques
  • Engine
    • Engine
  • Hydraulic System and Components
    • Components Operation, Description and Inspection
  • Electrical System
    • Systems Operation and Description
• Removal and Installation
  • Removal and Installation
    • Engine
    • Hydraulic Systems and Structure
    • Electric and Electronic
• Troubleshooting Guide
  • Troubleshooting
    • Wiring Harness Layout
    • Error Code
• Schematics
  • DX160LC-7 Hydraulic Schematic
  • DX160LC-7 Electric Schematic
