Develon DX20Z-5 Mini Excavator Shop Manual

On a DX20Z-5 you’re usually working in tight spots—driveways, backyards, inside buildings—swinging around utilities, concrete, and landscaping. This shop manual is what you’d use when you’re past basic maintenance and you’re tearing into pumps, swing gear, final drives, or the upperstructure. It helps you plan the teardown, trace faults, and then put everything back so it tracks straight and doesn’t eat itself later. Say you’ve got weak boom lift and noisy hydraulics: with this, you’d trace the circuit, pull the main pump, inspect the rotating group, then reassemble and test without guessing where the shims and spacers go.

Applications & Use Cases

• Plan your bench and floor space so you can strip the undercarriage or boom safely and keep parts laid out in a sequence you can actually follow later.
• Check and verify wear on pins, bushings, and slew components while they’re apart, so you don’t button it up and find the same slop next week.
• Follow general torque sequences to align housings, carriers, and covers, so you don’t warp anything or pinch seals when you reassemble.
• Isolate hydraulic problems, then route and clamp hoses correctly after a valve block or pump swap, avoiding chafe and cross-connection.
• Bleed, test, and inspect the machine after major work so travel, swing, and blade all respond the way they should.

FAQ

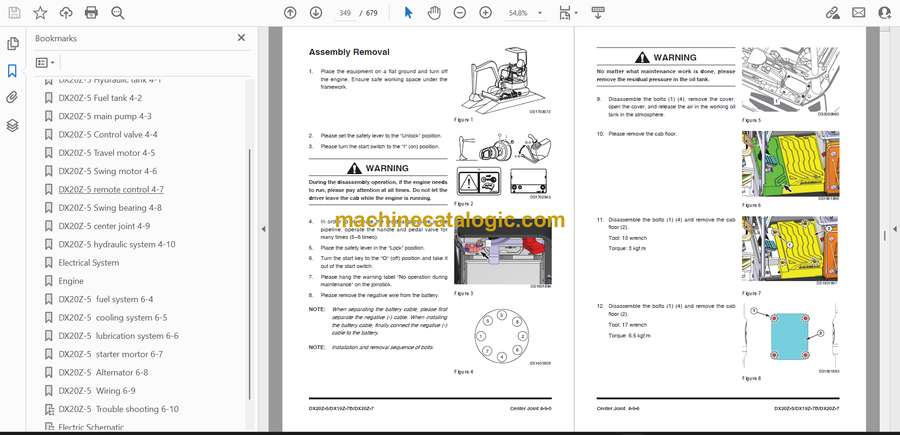

Q: Is this a PDF I can search on my laptop or phone?

A: Yes, it’s typically a searchable PDF, so you can jump to sections by keyword instead of scrolling forever.

Q: Can I print just the pages I need for the jobsite?

A: You usually can; most folks print the relevant procedures, stick them in plastic sleeves, and keep the clean copy on a computer.

Safety Note

Always support the upperstructure and attachments with rated stands and blocks before you crawl under or loosen anything that carries load.

Develon DX20Z-5 Mini Excavator Index:

• 0
• 1 Safety
• 2 Specification
• DX20Z-5 General maintenance 3
• DX20Z-5 Hydraulic tank 4-1
• DX20Z-5 Fuel tank 4-2
• DX20Z-5 main pump 4-3
• DX20Z-5 Control valve 4-4
• DX20Z-5 Travel motor 4-5
• DX20Z-5 Swing motor 4-6
• DX20Z-5 remote control 4-7
• DX20Z-5 Swing bearing 4-8
• DX20Z-5 center joint 4-9
• DX20Z-5 hydraulic system 4-10
• Electrical System
• Engine
• DX20Z-5 fuel system 6-4
• DX20Z-5 cooling system 6-5
• DX20Z-5 lubrication system 6-6
• DX20Z-5 starter mortor 6-7
• DX20Z-5 Alternator 6-8
• DX20Z-5 Wiring 6-9
• DX20Z-5 Trouble shooting 6-10
• Electric Schematic
• Hydraulic Schematic
