Doosan DA30 Articulated Dump Truck Parts Manual (T2 – Serial Number 720503 T4, STAGE 3B – Serial Number 740502)

Doosan DA30 Articulated Dump Truck Index:

Main group description Page/ group no.
Engine G010
Inlet system G030
Cooling system G040
Exhaust system G050
Fuel oil tank G060
Transmission G070

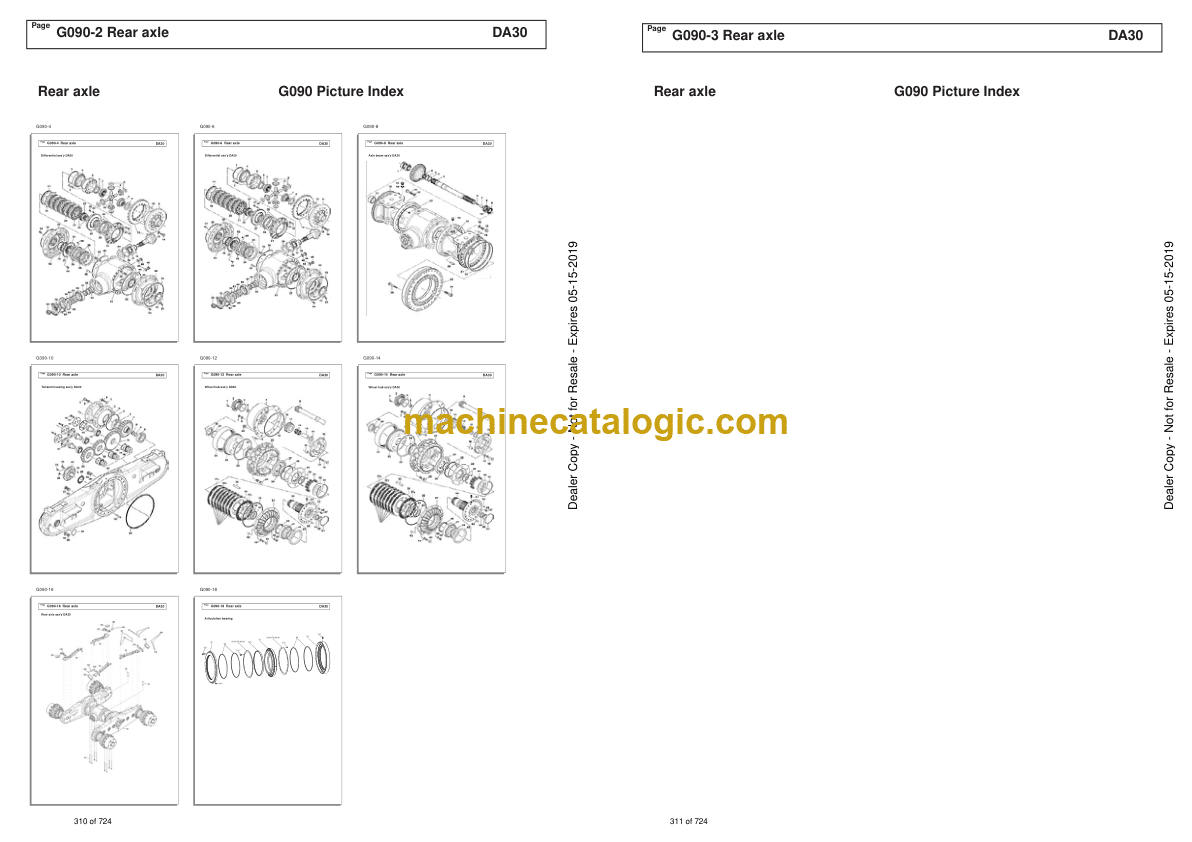

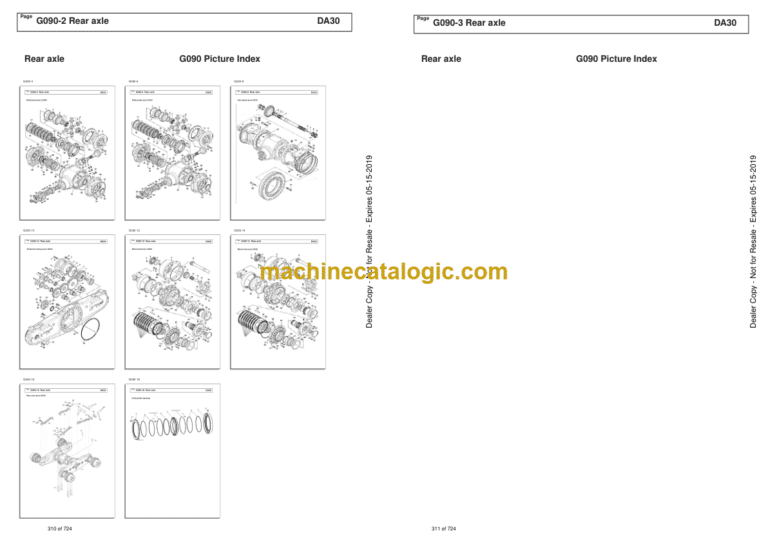

Rear axle G090
Wheel G100
Intermediate shaft rear G110

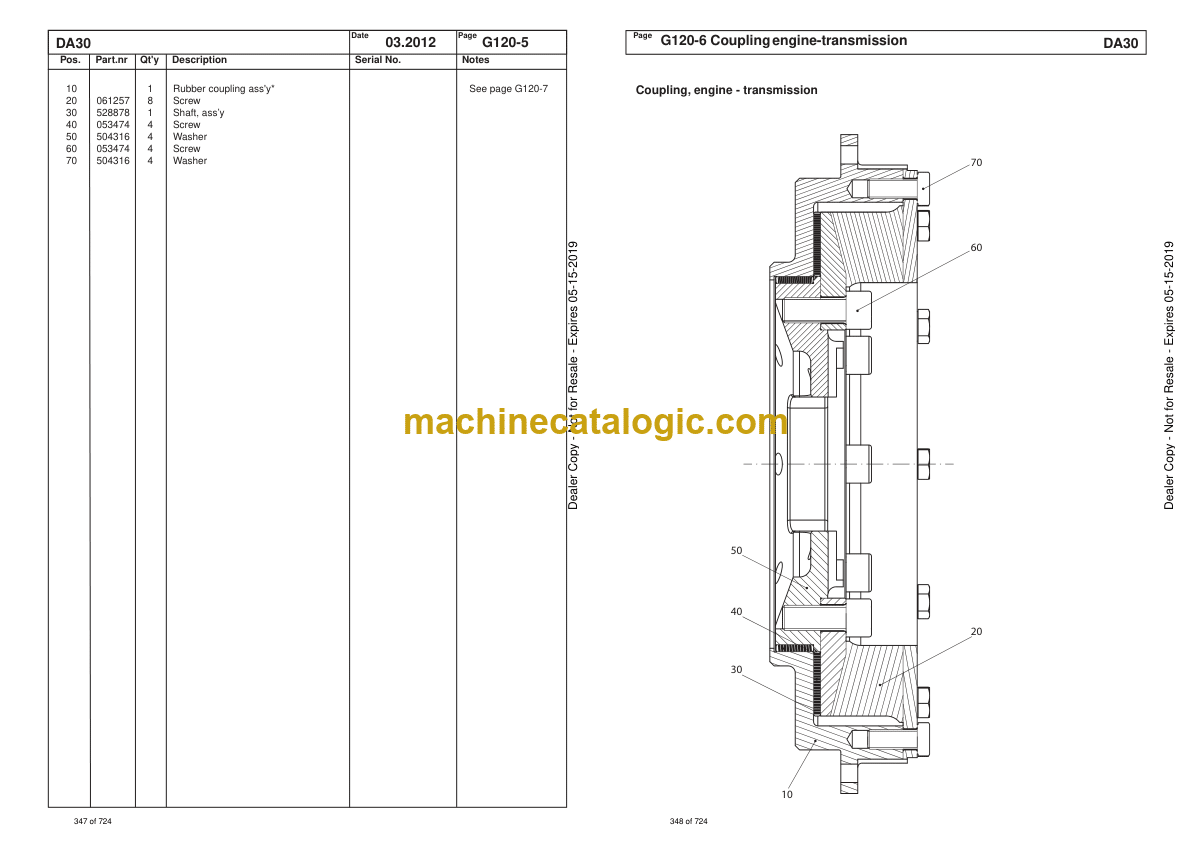

Coupling, engine-transmission G120
Parking brake G130
Hydraulic system G190
Hydraulic tank w/filter G200
El.system front vagon G210
El.system rear vagon G220
El.system,cab G230
Front frame G240
Front axle G250
Articulation bearing G260
Articulation hinge G270
Fender G280
Mudguard G290
Bonnet G300
Cab, equipment outside G310
Cab, equipment inside G320
Windows in cabin G330
Cabin door G340
Panels in cabin G350
Mirrors G360
Air condition G380
Rear frame G390
Steering cyl. mounting G400
Protection steering cyl. G410
Body G420
Tilting bearing mounting G430
Tilting cylinder mounting G440
Equipment G460
Safety equipment G470
Sticker G480
Lubrication system G490

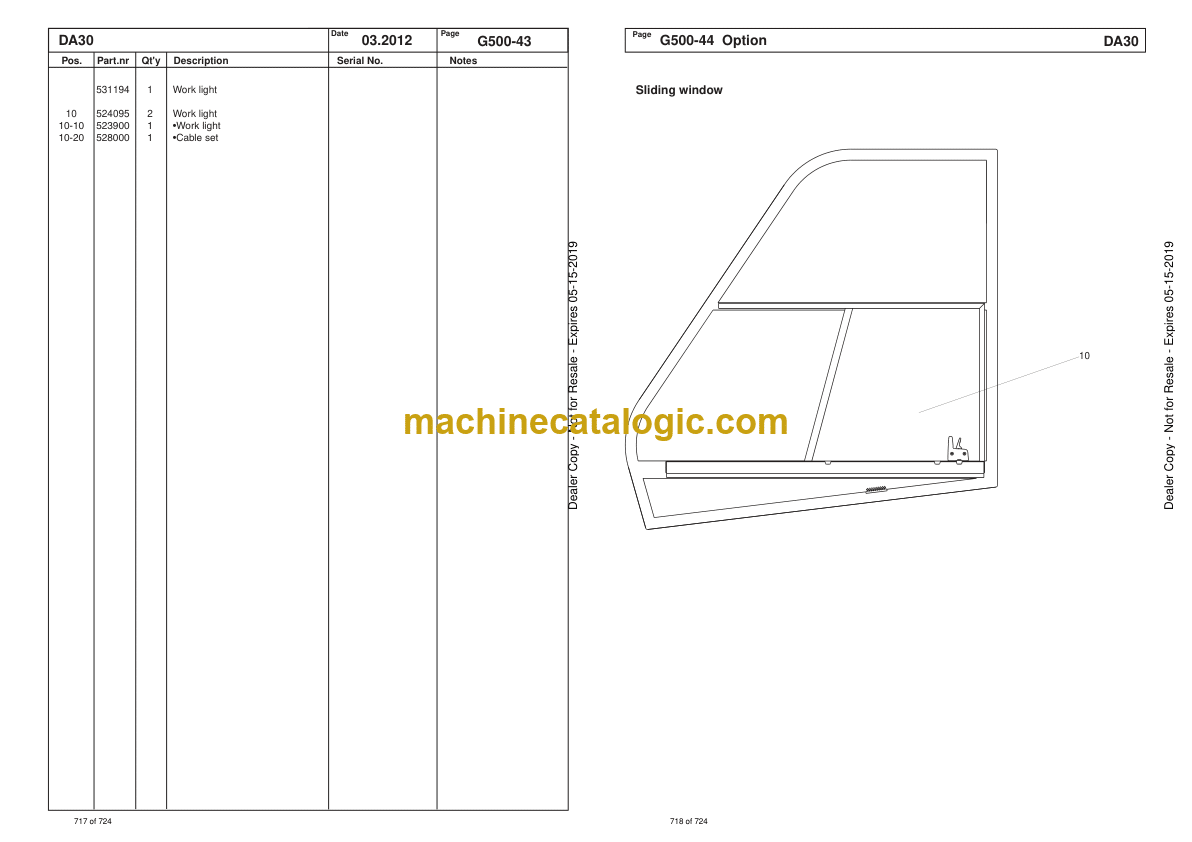

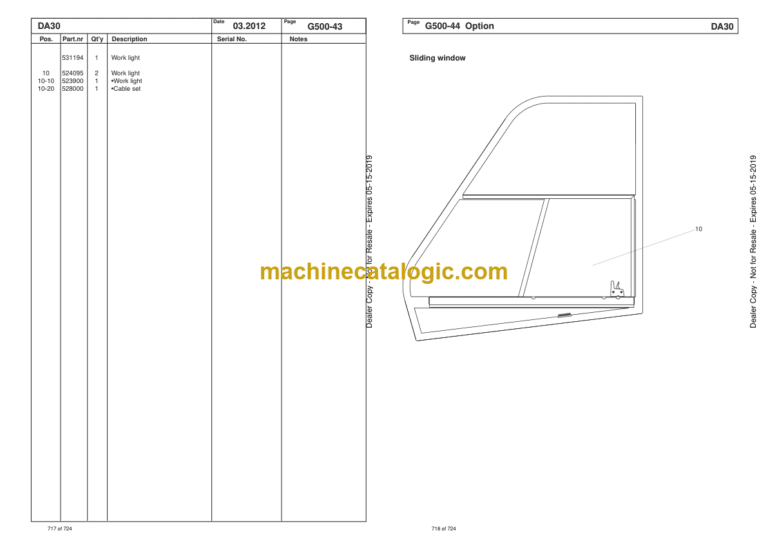

Option G500
