Description

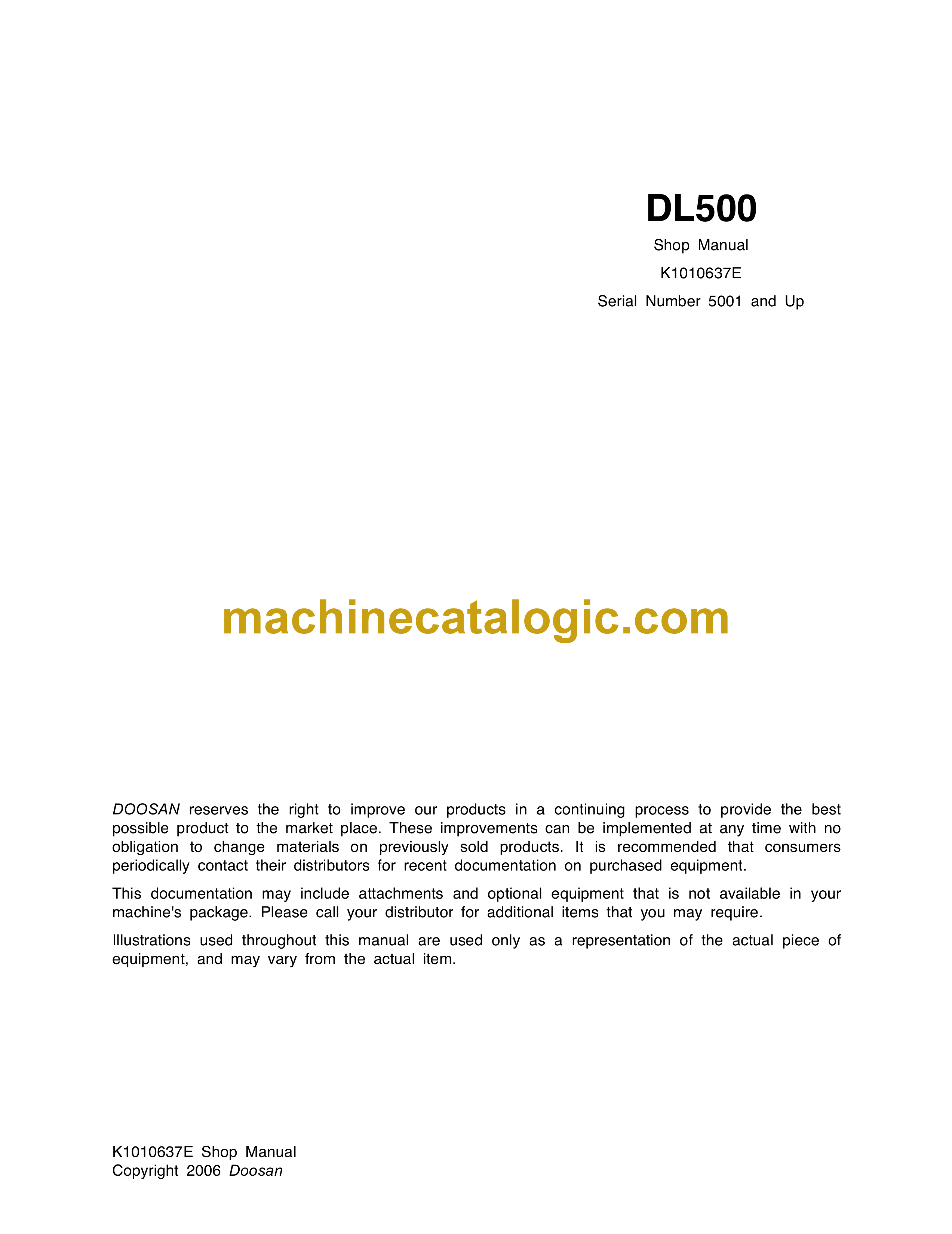

Doosan DL500 Wheel Loader Shop Manual (Serial Number 5001 and Up)
Doosan DL500 Wheel Loader Index:
Safety
Wheel Loader Safety SP000814
Specifications
Specification for DL500 SP000801
General Maintenance
General Maintenance Procedures SP000097
Standard Torques SP000813
Engine

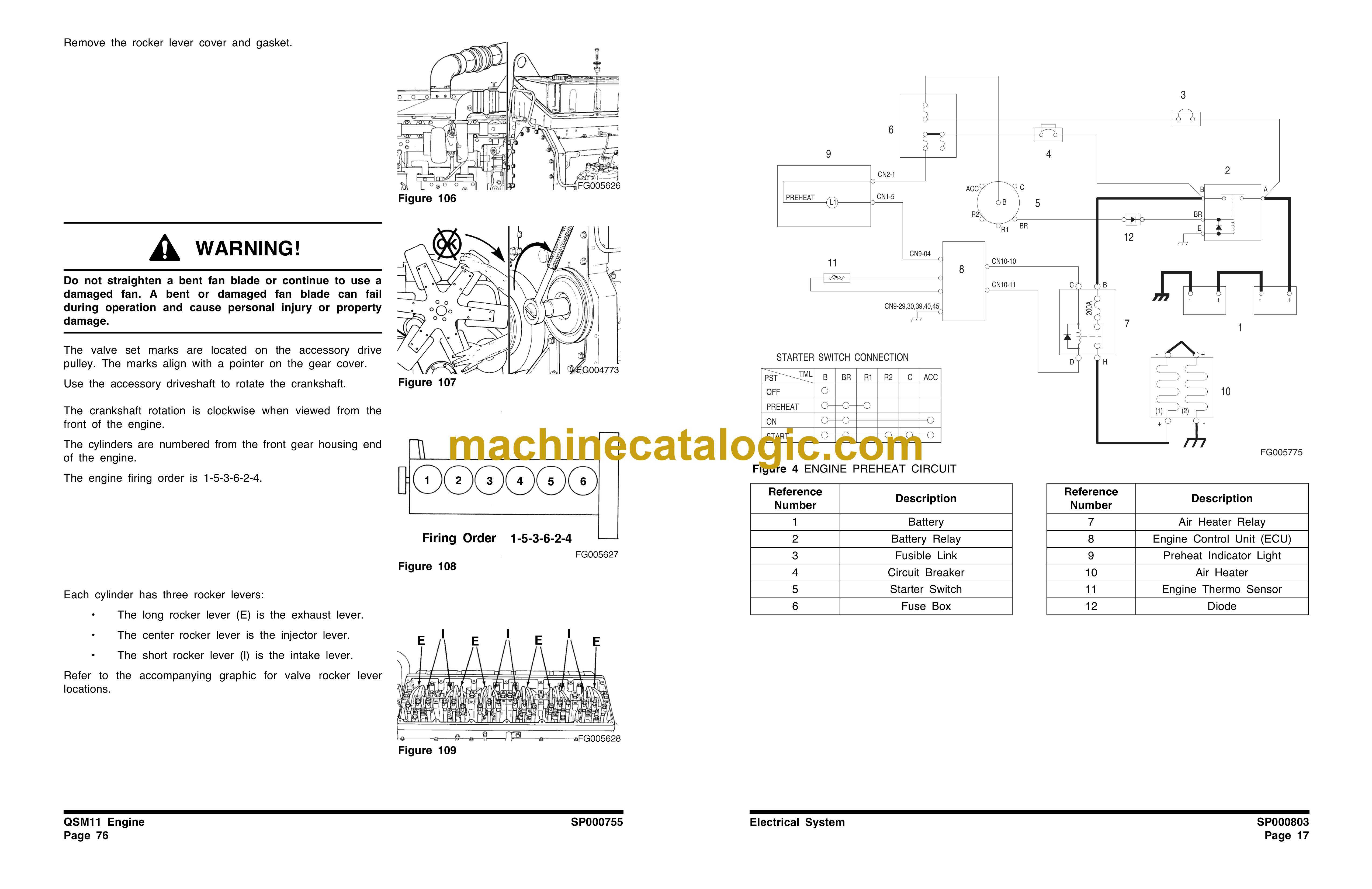

QSM11 Engine SP000755
Drive Train

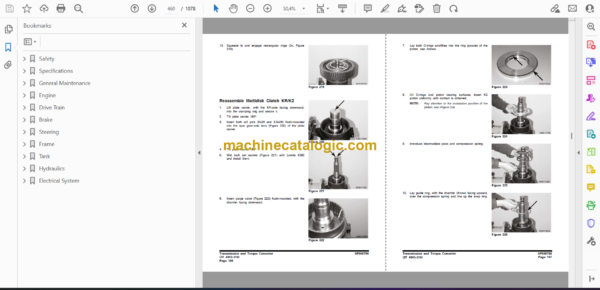

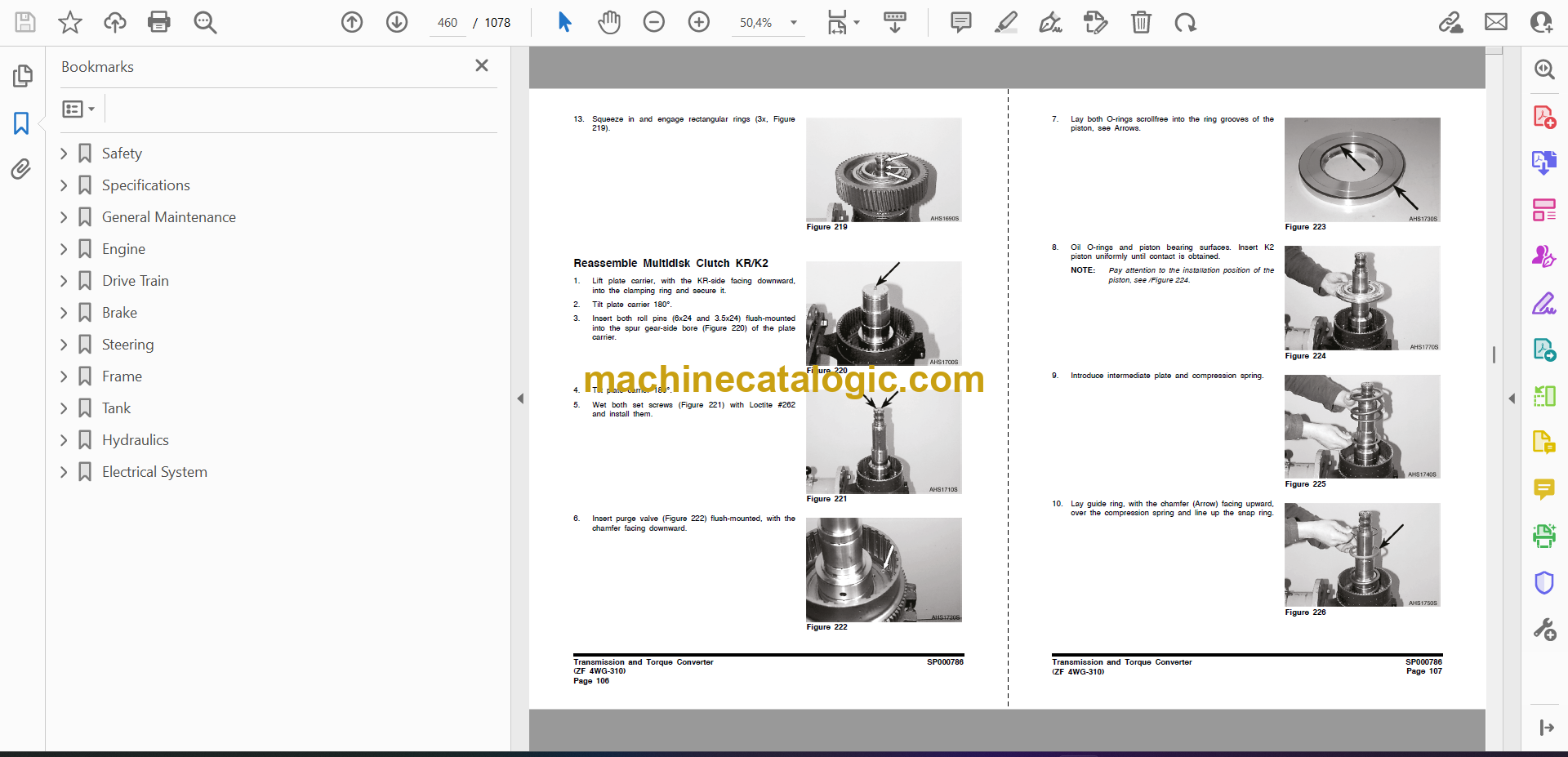

Transmission and Torque Converter (ZF4WG310) SP000786
Transmission Error Codes (ZF) SP000100
AXLE (ZF AP – 420R) SP000788
Drive Shaft SP000789
Brake
Service Brake SP000790
Brake Supply Valve SP000121
Parking Brake SP000122
Brake Pedal Valve SP000796

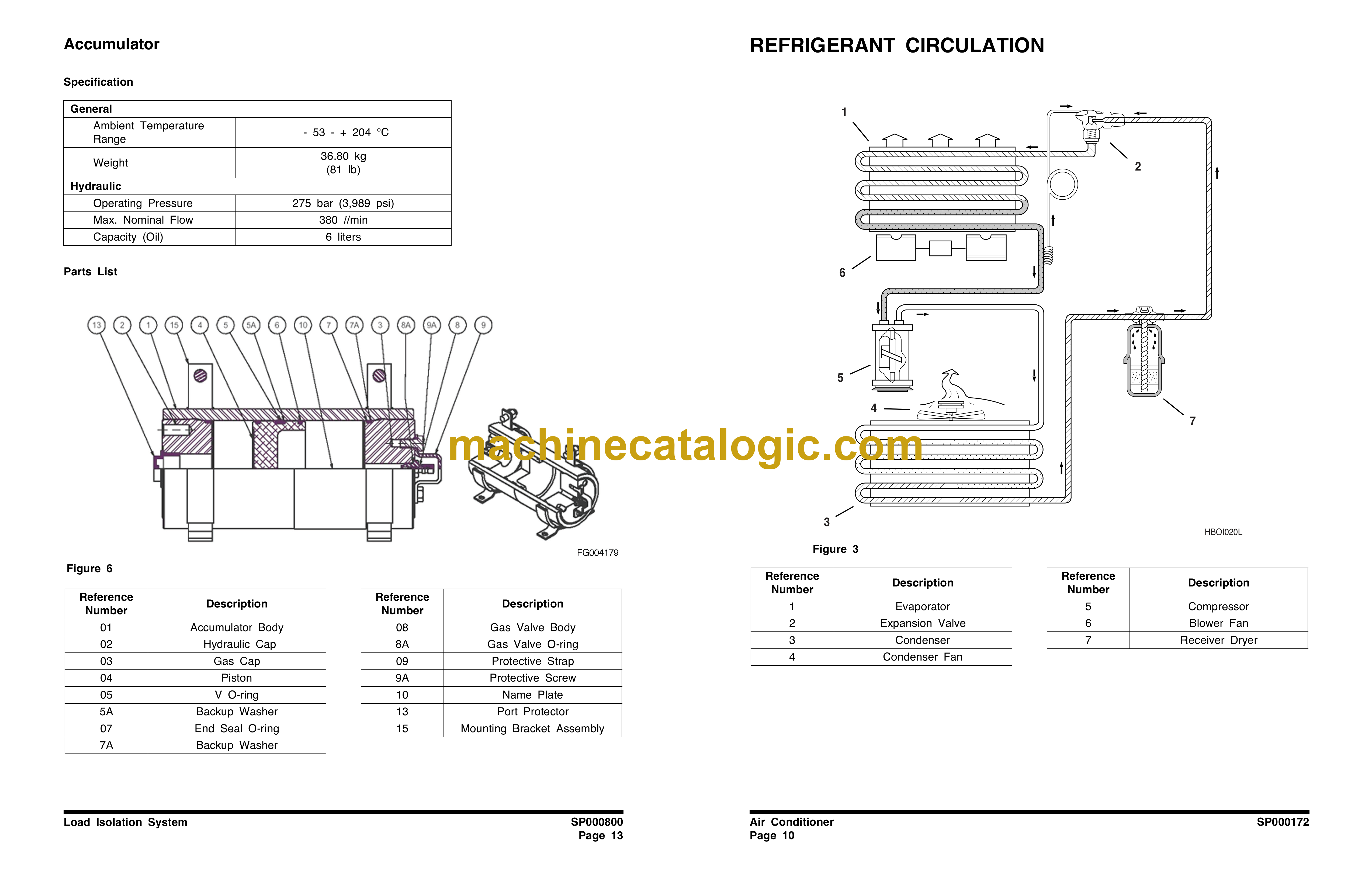

Accumulator SP000791
Steering
Steering Unit SP000792
Flow Amplifier SP000126
Cushion Valve SP000127
Emergency Steering SP000793
Frame
Articulation Center SP000802
Counterweight SP000130
Tank
Oil Tank SP000794
Fuel Tank SP000797
Hydraulics
Main Control Valve SP000809
Load Isolation System SP000800
Cooling System SP000795
Pilot System SP000799
Hydraulic Schematic (DL500) SP000804
Electrical System
Air Conditioner SP000172
Electrical System SP000803
Electrical Schematic (DL500) SP000806
