Description
Doosan Mega 250-V Wheel Loader Shop Manual (SN 1001 thru 2000 Tier I, SN 2001 thru 3000 Tier II)
Doosan Mega 250-V Wheel Loader Index:
Publication Request for Proposed Revision
Safety
Wheel Loader Safety S0103010K
Specifications
Specifications for Mega 250-V S0203110C
General Maintenance
General Maintenance Procedures S0302000
Standard Torques S0309000
Upper Structure
Counterweight S0403030K
Fuel Transfer Pump S0405500
Hydraulic Oil Tank S0406060C
Lower Structure and Chassis
Center Joint (Articulation Joint) S0502050C
Engine and Drive Train
Axle (Volvo) S0602210C
Parking Brake Caliper (Volvo) S0603000
Air Conditioner S0605050K
Transmission and Torque Converter (ZF4WG-190) S0607120C

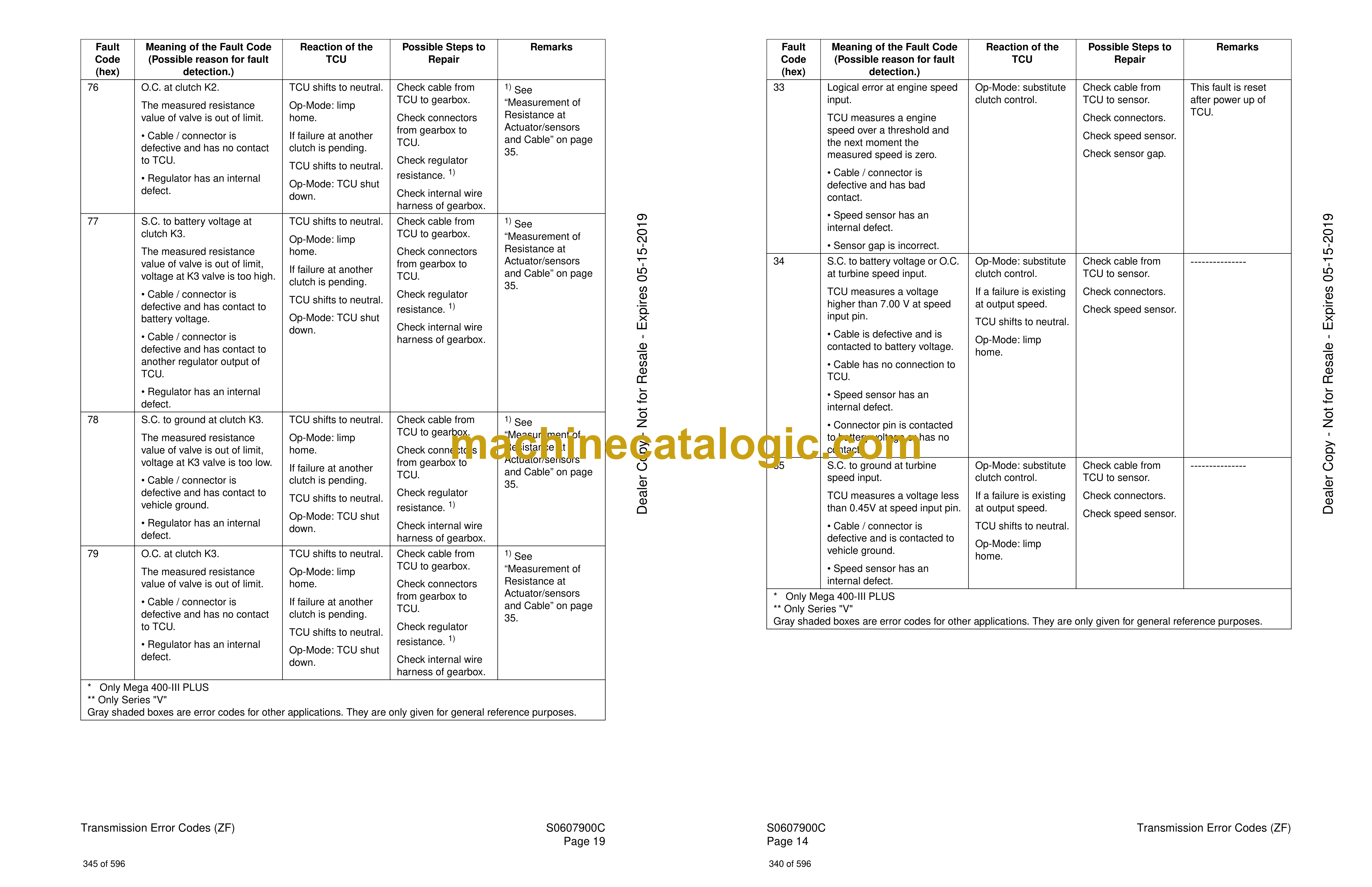

Transmission Error Codes (ZF) S0607900C
Hydraulics

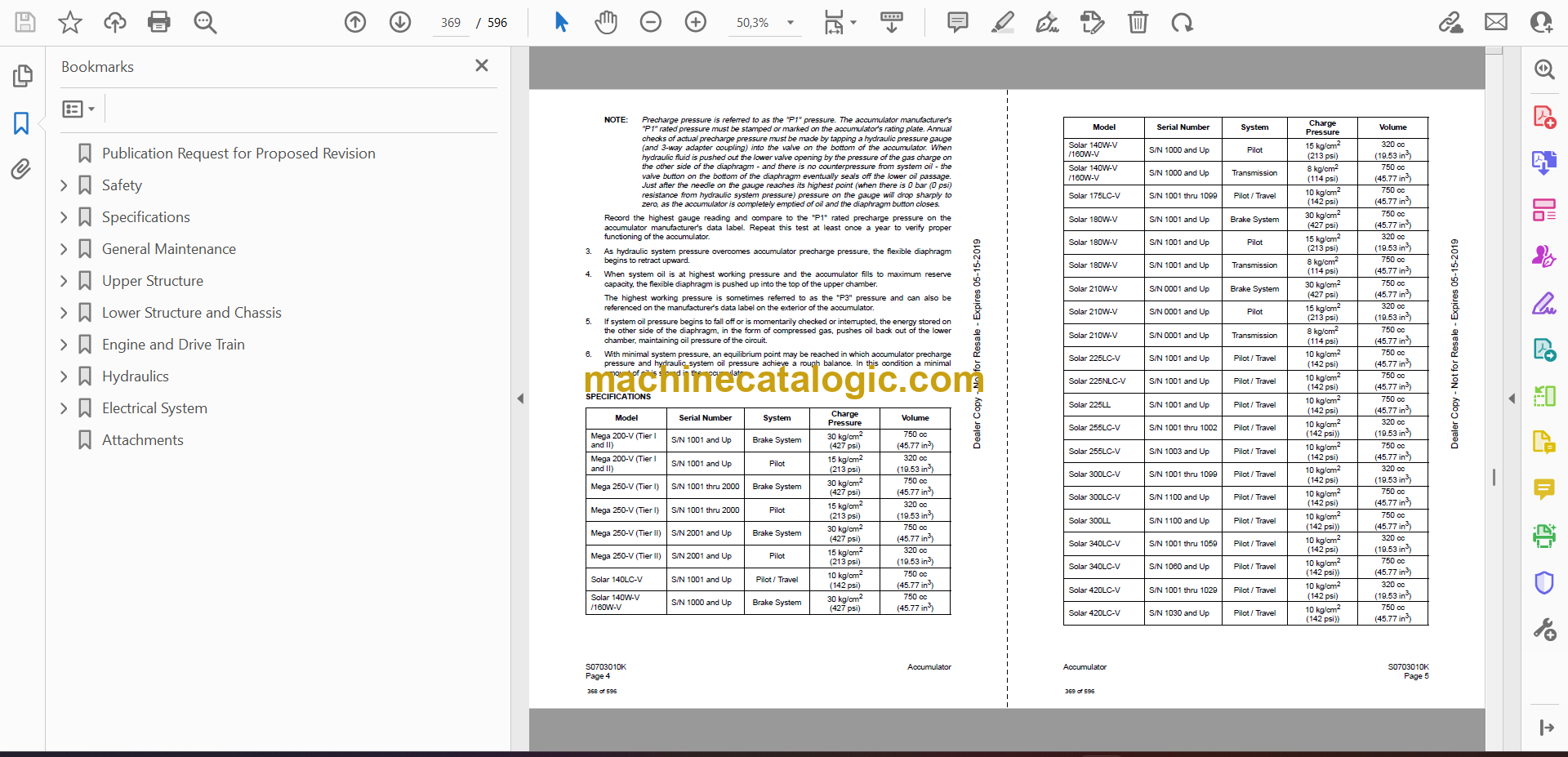

Accumulator S0703010K
Cylinders S0705005K
Fan Drive Hydraulic Motor (Haldex) S0707110C
Main Pump (Denison T67CCA Series) S0708500C
Brake Pedal Valve S0709270C
Main Control Valve (Toshiba) S0709456K
Pilot Control Valve S0709478C
Priority Valve S0709650
Power Steering Unit S0709705C
Unloader Valve S0709860C
Hydraulic Schematic (Mega 250V) S0793005C
Electrical System
Electrical System S0802015C
Electrical Schematic (Mega 250V) S0893005C
Attachments
