Dressta TD-15M Extra Crawler Dozer Electrical Wiring Diagram Manual

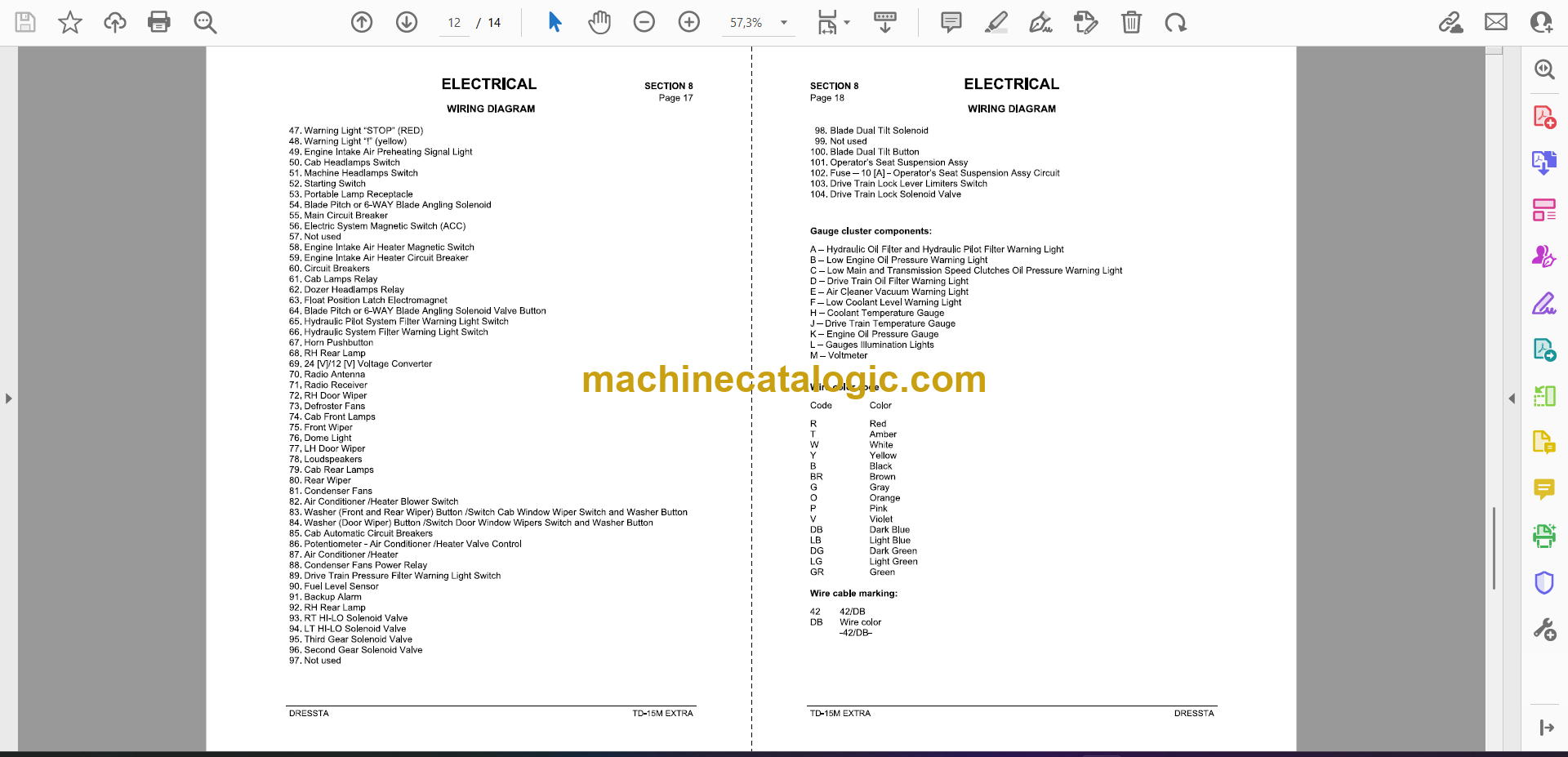

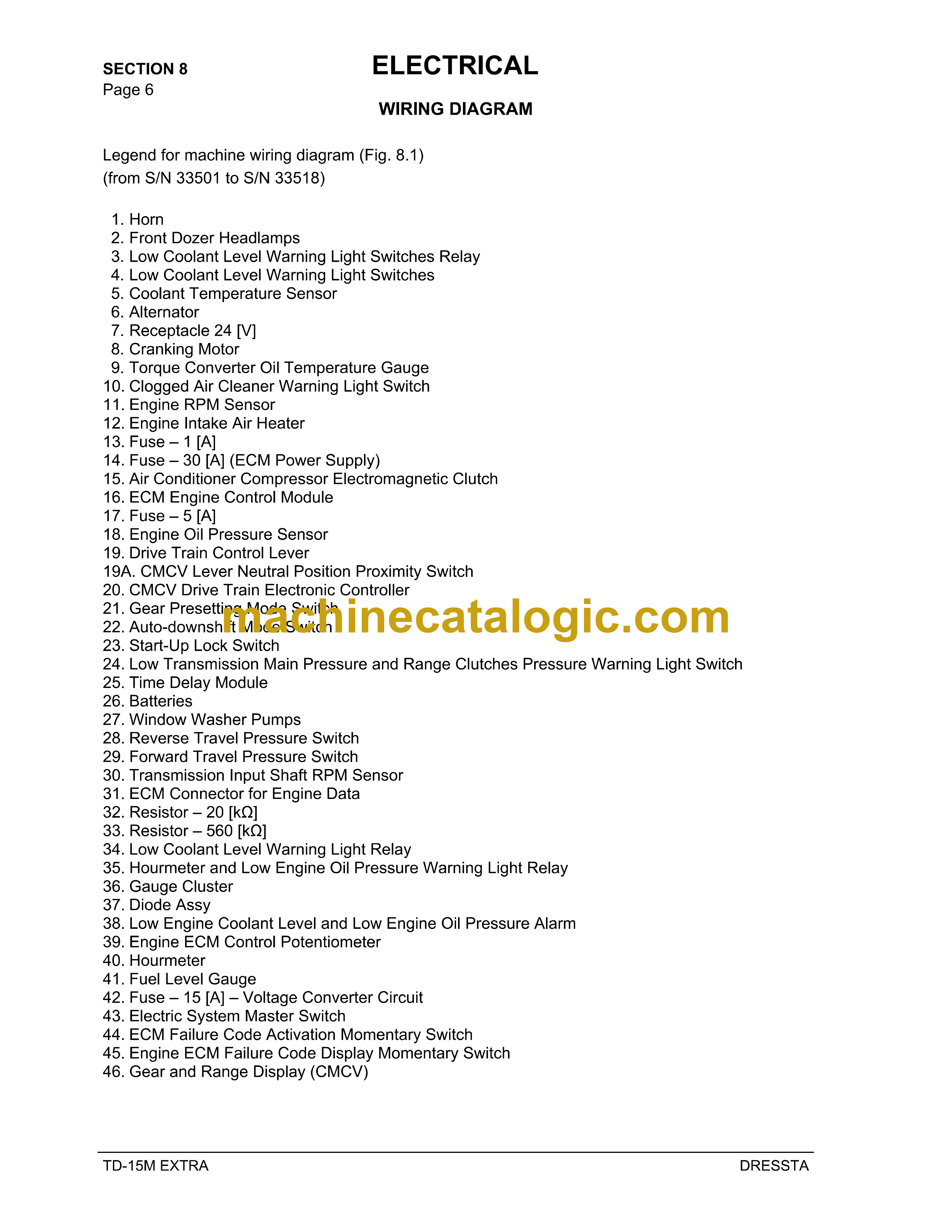

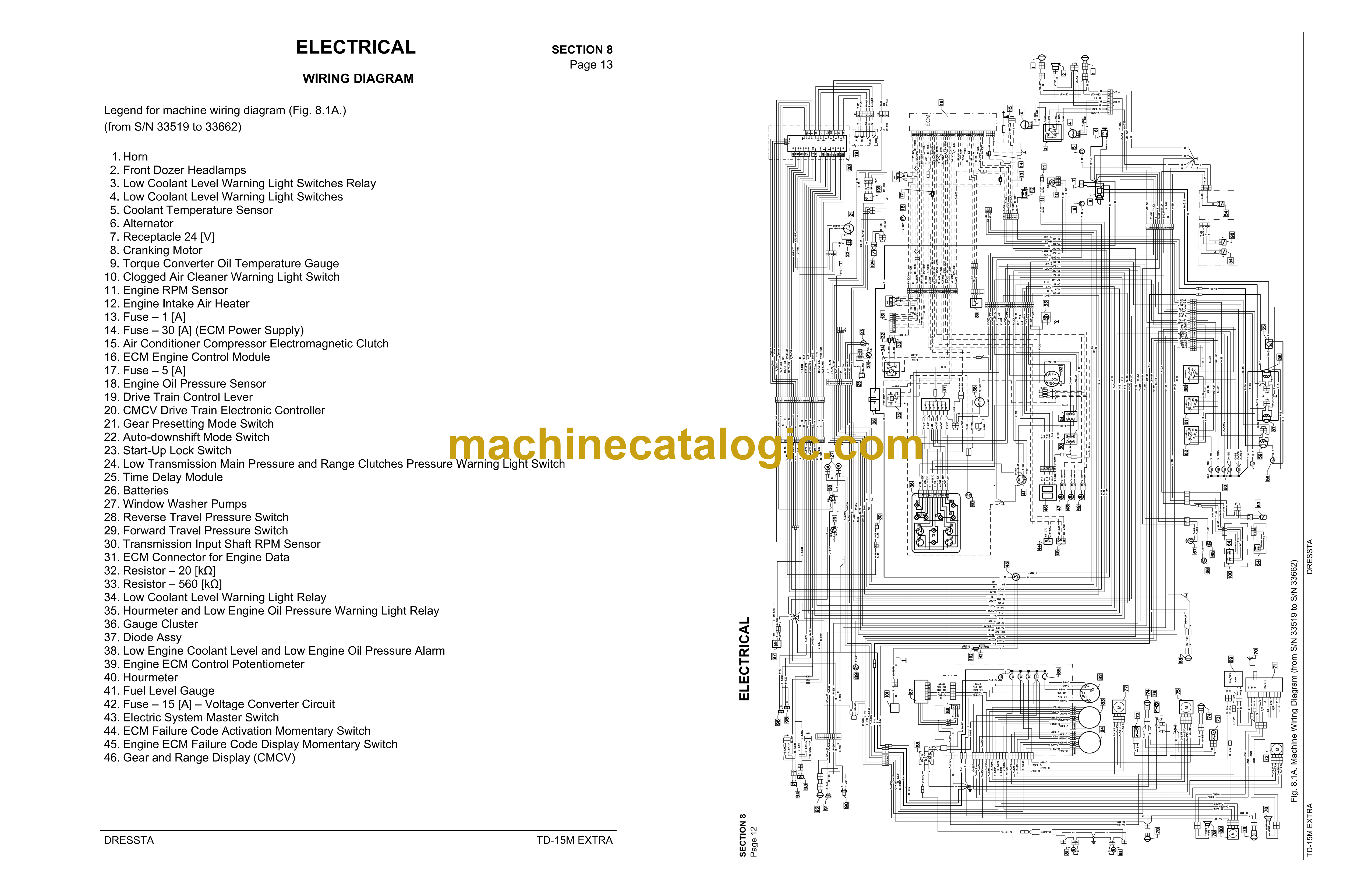

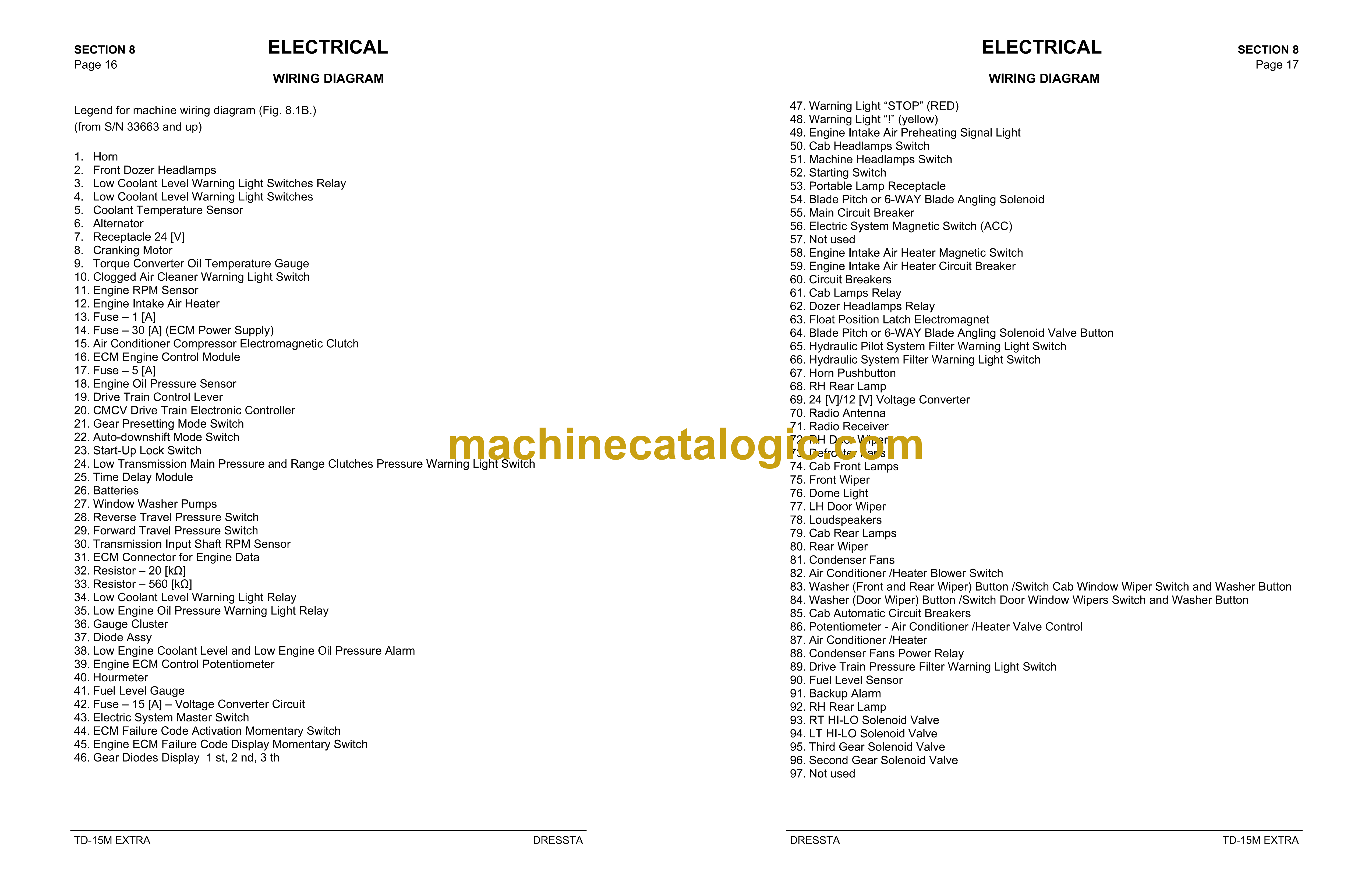

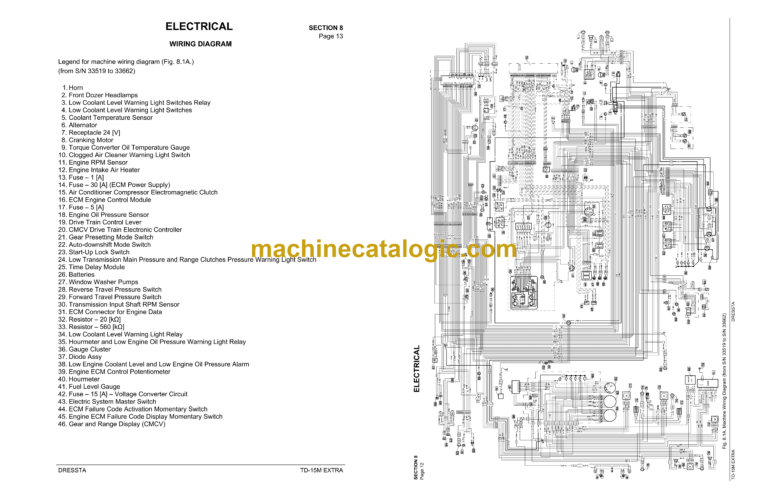

Dressta TD-15M Extra Crawler Dozer Index:
1, Horn
2, Front Dozer Headlamps
3, Low Coolant Level Warning Light Switches Relay
4. Low Coolant Level Warning Light Switches
5
Coolant Temperature Sensor
6. Altemator
7, Receptacle 24 (V]
8, Cranking Motor
9, Torque Converter Oil Temperature Gauge
IC, Clogged Air Cleaner Warning Light Switch
II . Engine RPM Sensor
12. Engine Intake Air Heater
13. Fuse—I [Al
14. Fuse — 30 [Al (ECM Power Supply)
15. Air Conditioner Compressor Electromagnetic Clutch
16. ECM Engine Control Module
17, Fuse -5 [A1
18. Engine Oil Pressure Sensor
19, Drive Train Control Lever
19A, CMCV Lever Neutral Position Proximity Switch
20. CMCV Drive Train Electronic Controller
21. Gear Presetting Mode Switch
22. Auto-downshift Mode Switch
23. Start-Up Lock Switch
24. Low Transmission Main Pressure and Range Clutches Pressure Warning Light Switch
25, Time Delay Module
26. Batteries
27 , Window Washer Pumps
28. Reverse Travel Pressure Switch
29. Forward Travel Pressure Switch
30. Transmission Input Shaft RPM Sensor
31. ECM Connector for Engine Data
32. Resistor — 20 [kOl
33. Resistor — 560 IkQl
34. Low Coolant Level Warning Light Relay
35. Hourmeter and Low Engine Oil Pressure Warning Light Relay
36, Gauge Cluster
37. Diode Assy
38. Low Engine Coolant Level and LOW Engine Oil Pressure Alarm
39. Engine ECM Control Potentiometer
40. Hourmeter
41 . Fuel Level Gauge
42. Fuse — 15 [Al — Voltage Converter Circuit
43. Electric System Master Switch
44. ECM Failure Code Activation Momentary Switch
45, Engine ECM Failure Code Display Momentary Switch
46. cear and Range Display (CMCV)
47, Warning Light ‘STOP” (RED)
48. Warning Light (yellow)
49, Engine Intake Air Preheating Signal Light
50. Cab Headlamps Switch
51 , Machine Headlamps Switch
52, Starting Switch
53, Portable Lamp Receptacle
54, Blade Pitch or 6-WAY Blade Angling Solenoid
55. Main Circuit Breaker
56, Electric System Magnetic Switch (ACC)
57, Engine Starting Magnetic Switch
58, Engine Intake Air Heater Magnetic Switch
59, Engine Intake Air Heater Circuit Breaker
60. Circuit Breakers
61 , Cab Lamps Relay
62, Dozer Headlamps Relay
63, Float Position Latch Electromagnet
64, Blade Pitch or 6-WAY Blade Angling Solenoid Valve Button
65, Hydraulic Pilot System Filter Warning Light Switch
66. Hydraulic System Filter Warning Light Switch
67, Horn Pushbutton
68, RH Rear Lamp
69, 24 (VI/12 [V) Voltage Converter
70, Radio Antenna
71 , Radio Receiver
72, RH Door Wiper
73, Defroster Fans
74, Cab Front Lamps
75, Front Wiper
76, Dome Light
77, LH Door Wiper
78. Loudspeakers
79, Cab Rear Lamps
80, Rear Wiper
81 , Condenser Fans
82. Air Conditioner IHeater Blower Switch
83, Washer (Front and Rear Wiper) Button /Switch Cab Window Wiper Switch and Washer Button
84. Washer (Door Wiper) Button /Switch Door Window Wipers Switch and Washer Button
85. Cab Automatic Circuit Breakers
86. Potentiometer – Air Conditioner IHeater Valve Control
87. Air Conditioner IHeater
88. Condenser Fans Power Relay
89, Drive Train Pressure Filter Warning Light Switch
90, Fuel Level Sensor
91 , Backup Alarm
92. RH Rear Lamp
93, RT H-L Solenoid Valve
94. LT H-L Solenoid Valve
95. Third Gear Solenoid Valve
96. Second Gear Solenoid Valve
97, EPD for CMCV Controller
