Description
Fendt 671 Former Operator’s Manual (FEL1282740401)
Fendt 671 Former Index:
Introduction
Safety
Intended use
Reasonably foreseeable misuse
Warranty and liabllity
user qualifications
Warnings and symbols
Warning notices on the machine

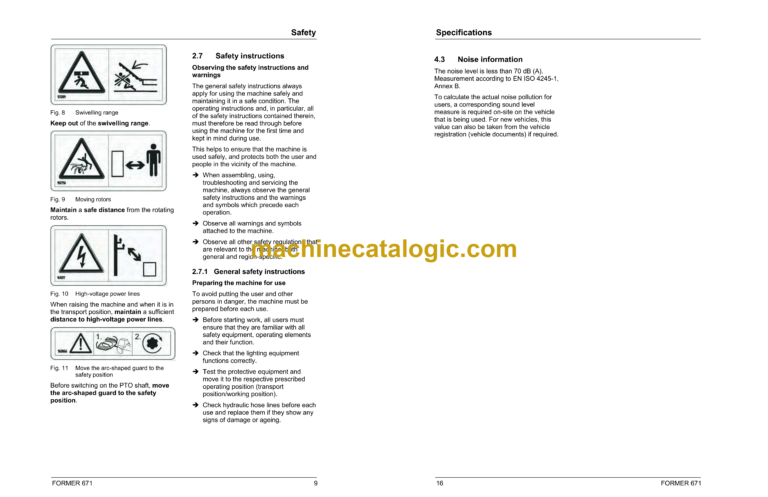

Safety instructions
2, , 1 General safety instructions
2, 7.2 Special safety instructions
3
Machine description
3, 1 Product features
Notices on the machine
33 Special equipment
Machine components
4
Specifications
4, 1 Mach’ne data
42 Tyres
Noise information
Axle loads, gross weight and minimum ballast required
5 Before initial operation

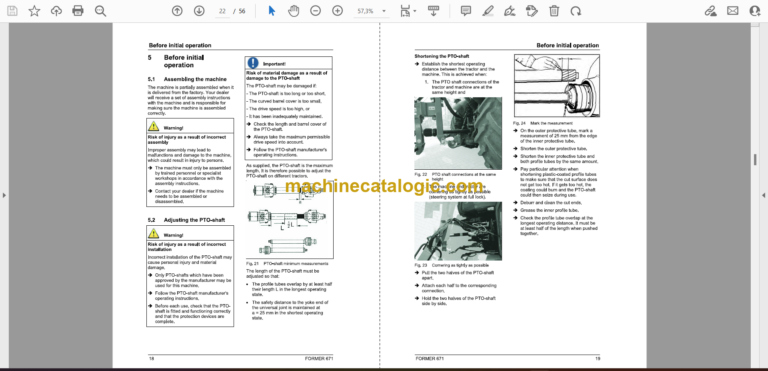

Assembling the machine
52 Adjusting the PTC)-shaft
6 Attachment to the tractor
Initial operation
Coupling W.e machine
Connecting the PTO-shaft to the tractor
Connect hydraulics
Connecting the lighting
Pull ropes
7

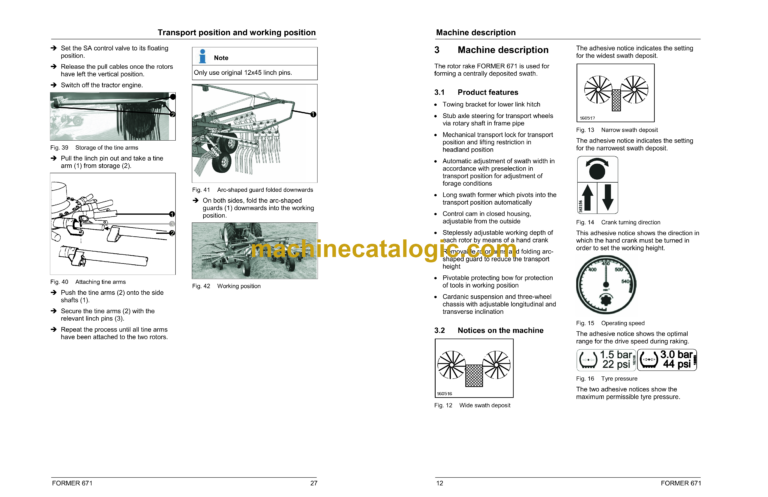

Transport position and working position
7.1 Switching the machine to transport position
7.2 Switching the machine to working position
8 using the machine
9 Settings
Setting the swath width
Adjusting working height
Adjusting the height of the swath former
Setting the swath deposit
Adjusting lowering speed
Adjusting the longitudinal inclination
Adjusting the lateral inclination
IO Optional functions
IO. 1 Simple single lift
10.2 Single lift with 3-4vay cock
10.3 electrohydraulic single lift
11 Machine storage
12 Rectifying faults
13 Servicing
Maintenance intervals
Cleaning
Tightening torques for nuts and bolts
Adhesive notice
Pro-shaft
Hydraulic system
Gearbox
13,8.1 Tyre changes
13,8.2 Tyre pressure
13.9 Lubrication instruction
14 Index
