Description
Fendt 8055 PRO Former Operator’s Manual (FEL1687580401)
Fendt 8055 PRO Former Index:
I
1 , 1 Warranty and liability
I .2 Conventions
Illustrations
1.2,1
1.22 Pictograms used
12,3 Text symbols
12,4 Abbreviations
1 Other applicable documentation
1.4 Storage of documentation
I Applicability of the Operator’s Manual
1.6 Sign plate and serial number
1 , 7 EIJ Declaration Of Conformity
Safety
2.1 Intended use
2, 2 Reasonably foreseeable misuse
2,3 User qualifications
2.4 Warning notices
2.4.1 Warning notices in the Operator’s Manual
2, 4.2 Warning notices on the machine
Safety instructions
Operating and maintenance personnel
Protective work wear
Personal protective equipment
Preparing the machine for use
Coupling/uncoupling the machine to/from the tractor
Machine operation
Driving on public roads and lanes
Maintenance work
Working with hydraulics
Work in the vicinity of high-voltage power lines
Unauthorized modifications or alterations
What to do in an emergency
Fire prevention
3 Machine description
3. I Product features
3.2 Machine positions
3.2. I Transport position
32.2 Working position
3.2.3 Headland position
3.2,4 parking position
Notices on the machine
3.4 Machine components

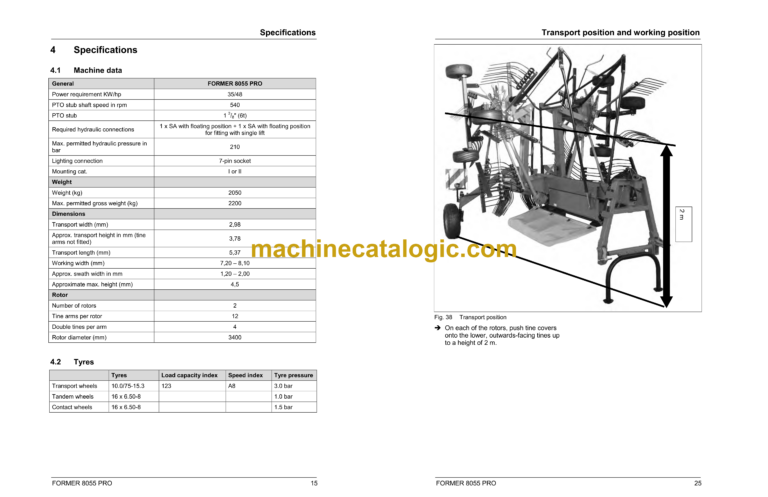

Technical data
Machine data
Tires

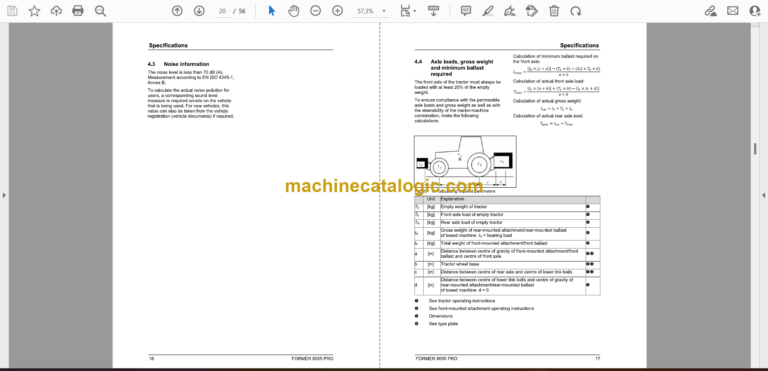

Noise information
Axle loads. gross weight and minimum last required
5
Initial Start—up
5. I Assembling the machine
5.2 Adjusting the transmission shaft
6 Using the machine
6.1 Attachment to the tractor
Start-up
Couple the machine
Fitting the transmission shaft
Connect the hydraulics
Connect the lighting
Lay the pull ropes
6.2 Road travel
6.3 Switching the machine to working position
6.4 using the machine
6.4.1 Tuming at the end of the field
6.5 Switching the machine to transport position
6.6 Machine storage
6.7 Settir,gs
Adjusting the operating mode
Adjusting the swath width
Adjusting working height
Adjusting the height of the swath former
Adjusting the swath formation
Adjusting the lateral inclination
Adjusting the longitudinal inclination
Adjusting the sequential control
Adjusting the lifting and lowering speed
Adjusting the lifting height of the headland position
Special equipment
7
7.1 Additional swath former
7.1.1 Notes on machine use
7, 1.2 Instructions for switching the machine to transport position
7.1.3 Adjusting the height of the swath former
7.2 Chassis with trailing wheel
7.2, 1 Notes on swath formation adjustment
7.2.2 Notes on adjusting the lateral inclination
7.2.3 Notes on lubrication
7.3 Other special equipment
8 Rectifying faults
6.1 After hifting an obstacle
