Format: PDF
Language: EN
Size: 186 MB (Speed Download Link)

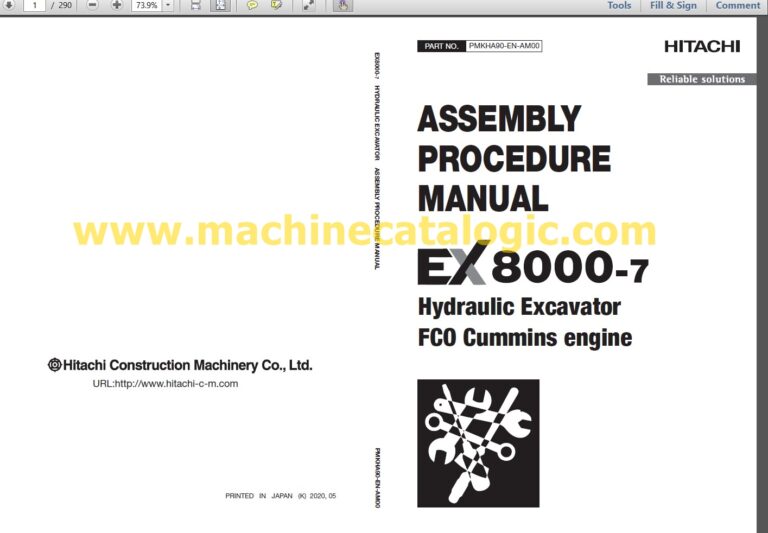

Type of Document: ASSEMBLY PROCEDURE MANUAL
Type of Machine: Hitachi Mining Excavator Hitachi EX8000-7
Pages: 290
$ 50 Original price was: $ 50.$ 45Current price is: $ 45.
Hitachi Mining Excavator EX8000-7 Contents
1. Introduction
1-1. Assembly process chart
1-2. Torque chart.
1-3. Precautions
1-4. Standard tools and lifting point.
1-5. Special tools (ST)
2. Worker’s plan
2-1. Worker’s plan
2-2. Transportation
3. Packing list
4. Assembly Drawing
5. Disassembly Procedure
6. Checking machine performance
6-1. Checks after completing the assembly.
6-2. Checking machine performance
6-3. Assembly check sheet ·
