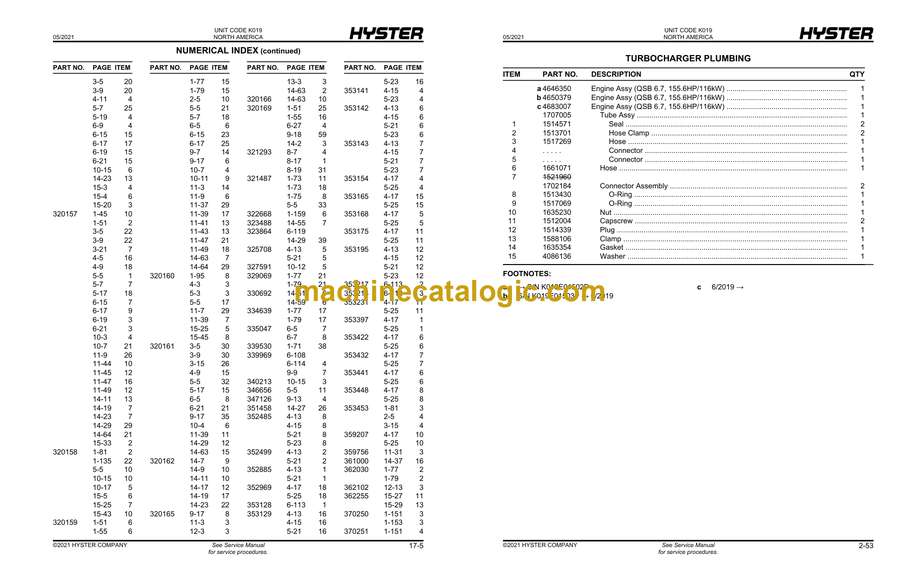

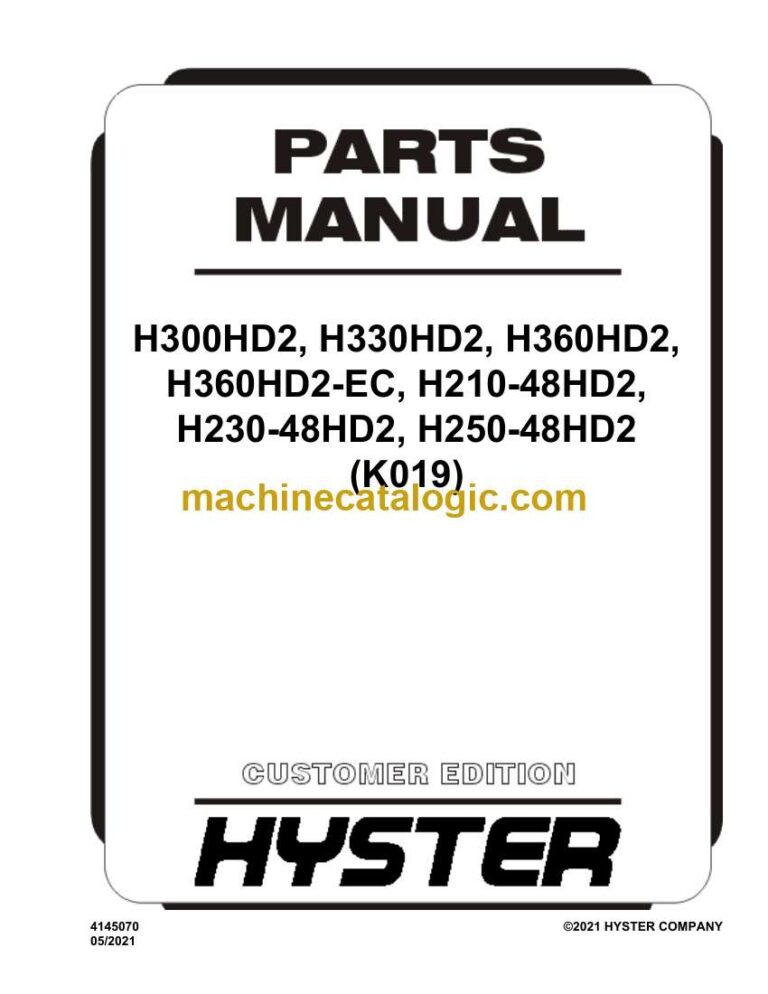

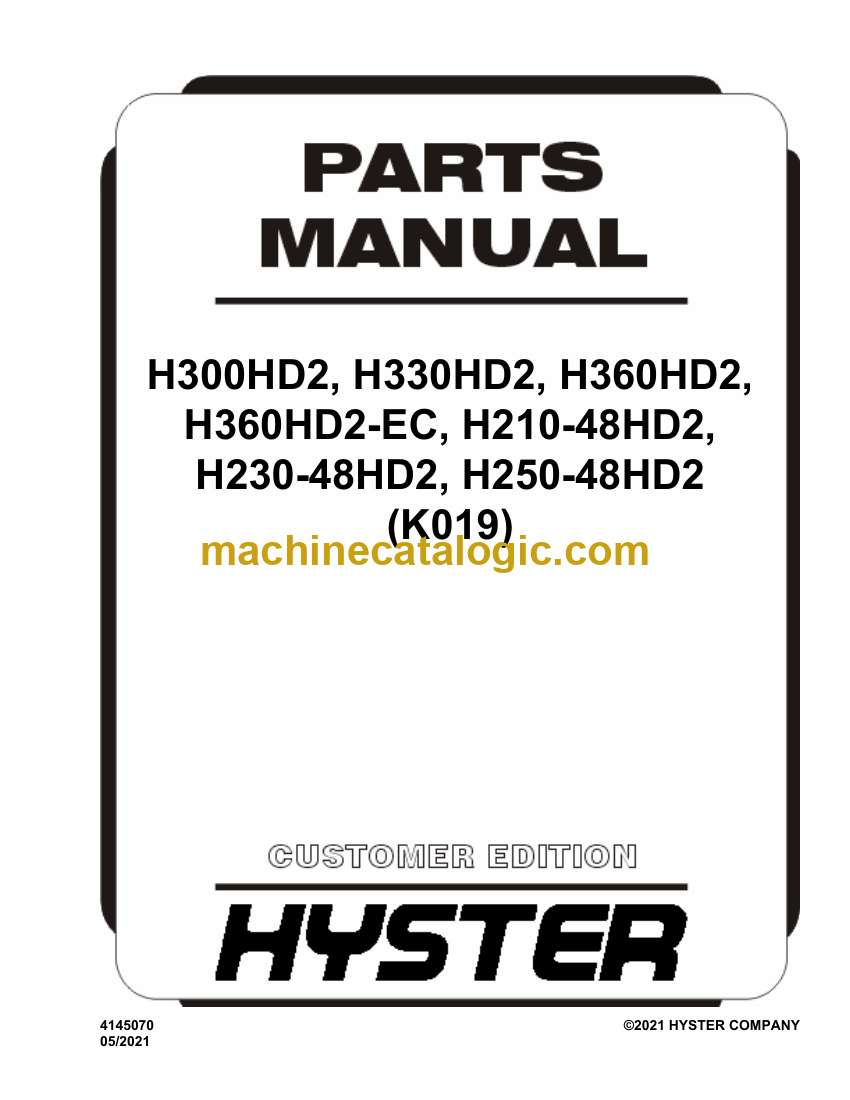

Hyster H300HD2, H330HD2, H360HD2, H360HD2-EC, H210-48HD2, H230-48HD2, H250-48HD2 (K019) Forklift Parts Manual
These big Hyster HD2 trucks live in ports, mills, and heavy yards, lifting oversize loads all day, so when something bends, leaks, or gets damaged, you need to know exactly which part you’re looking at. This parts manual helps you match what’s on the truck to the correct Hyster part number, especially when assemblies look similar across the H300, H330, H360 and the 48-series models. For example, if you crack a lift cylinder line or tweak a carriage component, this book lets you trace the exploded view, confirm the right subcomponent, and order the correct replacement without guesswork.
Applications & Use Cases
- Verify correct part numbers before ordering during a breakdown or scheduled overhaul.
- Match visual components on the mast, carriage, or steer axle to the proper naming convention.
- Isolate small subcomponents—seals, pins, spacers—so you don’t replace a whole assembly unnecessarily.
- Cross-check similar parts between the HD2 and 48HD2 variants to avoid mixing incompatible pieces.
- Print or screenshot specific pages to keep at the truck while you strip and lay out parts on the bench.
FAQ
Q: Can I use this on a tablet in the yard?
A: Yes, it’s practical to keep it on a tablet or laptop so you can zoom in on diagrams right next to the truck.
Q: Is it still worth printing pages?
A: Definitely—most techs print the key diagrams for the area they’re tearing down and mark them up as they go.
Safety Note
Always verify part numbers and configurations with the truck locked out and safely supported before removing any components.

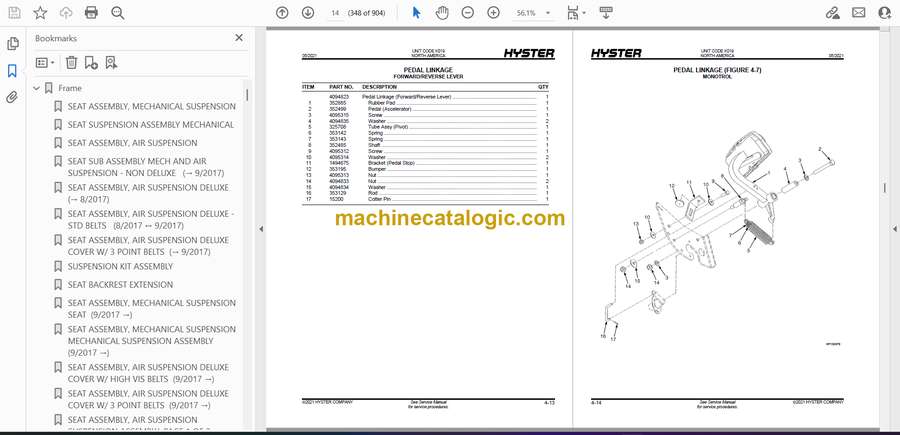

📘 Show Index
Hyster H300HD2, H330HD2, H360HD2, H360HD2-EC, H210-48HD2, H230-48HD2, H250-48HD2 (K019) Forklift Parts Manual Index:
- Frame
- SEAT ASSEMBLY, MECHANICAL SUSPENSION
- SEAT SUSPENSION ASSEMBLY MECHANICAL
- SEAT ASSEMBLY, AIR SUSPENSION
- SEAT SUB ASSEMBLY MECH AND AIR SUSPENSION – NON DELUXE (→ 9/2017)
- SEAT ASSEMBLY, AIR SUSPENSION DELUXE (→ 8/2017)
- SEAT ASSEMBLY, AIR SUSPENSION DELUXE – STD BELTS (8/2017 ↔ 9/2017)
- SEAT ASSEMBLY, AIR SUSPENSION DELUXE COVER W/ 3 POINT BELTS (→ 9/2017)
- SUSPENSION KIT ASSEMBLY
- SEAT BACKREST EXTENSION
- SEAT ASSEMBLY, MECHANICAL SUSPENSION SEAT (9/2017 →)
- SEAT ASSEMBLY, MECHANICAL SUSPENSION MECHANICAL SUSPENSION ASSEMBLY (9/2017 →)
- SEAT ASSEMBLY, AIR SUSPENSION DELUXE COVER W/ HIGH VIS BELTS (9/2017 →)
- SEAT ASSEMBLY, AIR SUSPENSION DELUXE COVER W/ 3 POINT BELTS (9/2017 →)
- SEAT ASSEMBLY, AIR SUSPENSION SUSPENSION ASSEMBLY, PAGE 1 OF 2 (9/2017 →)
- SEAT ASSEMBLY, AIR SUSPENSION SUSPENSION ASSEMBLY, PAGE 2 OF 2 (9/2017 →)
- COUNTERWEIGHT WITH LIFTING EYES
- COUNTERWEIGHT WITHOUT LIFTING EYES
- FLOORPLATES
- LIGHT BAR AND MOUNT TWISTLOCK MODULE (→ S/N K019E02030S)
- LIGHT BAR AND MOUNT TWISTLOCK MODULE (S/N K019E02031S →)
- CAB TILT
- CAB TILT
- CAB TILT PUMP ASSEMBLY
- CAB TILT PUMP ELECTRIC
- HAND PUMP
- CAB TILT CYLINDER
- WINDOW WIPER SYSTEM REAR AND ROOF WIPER KITS AND FRONT WIPER OPTIONS – CLOSED CAB ONLY
- WINDOW WIPER SYSTEM WASHER BOTTLE KIT
- AIR CONDITIONER HOSES, COMPRESSOR, AND ATTACHING PARTS TIER 3 ENGINE
- AIR CONDITIONER HOSES, COMPRESSOR, AND ATTACHING PARTS TIER 4(F) ENGINE
- HEATER HOSES TIER 3 ENGINE
- HEATER HOSES TIER 4(F) ENGINE
- HOODS AND COVERS TIER 3 ENGINE
- HOODS AND COVERS TIER 4(F) ENGINE
- ELECTRIC HORN
- CAB SUNSHADE – TOP CLOSED CAB WITH AIRCO – CLOSED CAB WITH AIRCO OR WITH CLIMATE CONTROL
- CAB SUNSHADE – REAR CLOSED CAB WITH AIRCO – CLOSED CAB WITH AIRCO OR WITH CLIMATE CONTROL
- CAB DOOR RIGHT HAND – CLOSED CAB
- CAB DOOR LEFT HAND – CLOSED CAB
- CAB MAIN DOOR WINDOW RIGHT AND LEFT HAND – CLOSED CAB
- DASH ASSEMBLY CLOSED CAB
- RADIO CONSOLE AND ATTACHING PARTS CLOSED CAB ONLY
- PIVOT ARM ASSEMBLY OPEN AND CLOSED CAB
- ARMREST ASSEMBLY OPEN AND CLOSED CAB
- CLIMATE CONTROL SYSTEM WITH TOP MOUNTED CONDENSER
- CONDENSER CAB WITH AIRCO OR WITH CLIMATE CONTROL
- AIR CONDITIONER SYSTEM CLIMATE CONTROL CAB (→ S/N K019E01908R INC. 01910)
- AIR CONDITIONER AND CONTROL PANEL ASSEMBLY CLIMATE CONTROL CAB (S/N K019E01909R → EXC. 01910)
- AIR CONDITIONER ASSEMBLY 24V – CLIMATE CONTROL
- AIR CONDITIONER CLIMATE CONTROL CAB (→ S/N K019E01908R INC. 01910)
- AIR CONDITIONER SYSTEM ASSEMBLY CLOSED CAB WITH AIRCO
- AIR DUCT ASSEMBLY AIR CONDITIONING – CLOSED CAB WITH AIRCO OR WITH CLIMATE CONTROL
- AIR CONDITIONER ASSEMBLY CLOSED CAB WITH AIRCO (→ S/N K019E01908R INC. 01910)
- AIR CONDITIONER AND CONTROL PANEL ASSEMBLY MANUAL 24V (S/N K019E01909R → EXC. 01910)
- AIR CONDITIONER ASSEMBLY MANUAL 24V
- HEATER AND AIR DUCT CLOSED CAB WITHOUT AIRCO
- AIR DUCT ASSEMBLY HEATER – CLOSED CAB WITHOUT AIRCO
- HEATER SYSTEM CLOSED CAB WITHOUT AIRCO (→ S/N K019E01908R INC. 01910)
- HEATER ASSEMBLY CLOSED CAB WITHOUT AIRCO (→ S/N K019E01908R INC. 01910)
- HEATER AND CONTROL PANEL ASSEMBLY
- HEATER ASSEMBLY 24V
- CAB FLOORMATS OPEN AND CLOSED CAB
- CAB ATTACHING PARTS OPEN CAB – PAGE 1 OF 3
- CAB ATTACHING PARTS OPEN CAB – PAGE 2 OF 3
- CAB ATTACHING PARTS OPEN CAB – PAGE 3 OF 3
- CAB ATTACHING PARTS CLOSED CAB – PAGE 1 OF 3
- CAB ATTACHING PARTS CLOSED CAB – PAGE 2 OF 3
- CAB ATTACHING PARTS CLOSED CAB – PAGE 3 OF 3
- CAB WINDOWS INSTALLATION CLOSED CAB
- LABELS HYDRAULIC CONTROLS – FORK LIFT TRUCK
- LABELS HYDRAULIC CONTROLS – CONTAINER HANDLER
- LABELS PAGE 1 OF 3
- LABELS PAGE 2 OF 3
- LABELS PAGE 3 OF 3
- LABELS ATTACHMENT
- ENGINE ASSEMBLY – TIER 3 ENGINE
- EXHAUST SYSTEM
- EXHAUST SYSTEM
- COOLING SYSTEM
- RADIATOR ASSEMBLY
- ENGINE MOUNTING
- AIR HEATER STARTING AID
- AUXILIARY PUMP MOUNTING
- CAMSHAFT
- CONNECTING RODS AND PISTONS
- CRANKCASE BREATHER
- CRANKSHAFT AND BEARINGS
- CYLINDER BLOCK
- CYLINDER HEAD
- DRIVE BELT TENSIONER
- ENGINE COOLANT VENT
- EXHAUST MANIFOLD
- EXHAUST OUTLET CONNECTION
- FAN DRIVE
- FAN SPACER
- FLYWHEEL AND MOUNTING
- FLYWHEEL HOUSING
- FRONT GEAR COVER
- LIFTING BRACKETS AND MOUNTING
- OIL COOLER
- OIL FILTER, FULL FLOW
- OIL LEVEL GAUGE
- OIL PAN
- OIL PUMP AND MOUNTING
- PLUG, CAB HEATER PLUMBING
- PLUG, COOLANT HEATER STARTING AID
- REAR GEAR HOUSING
- REAR GEAR TRAIN MOUNTING
- ROCKER LEVERS
- STARTER MOTOR
- THERMOSTAT
- TURBOCHARGER
- TURBOCHARGER PLUMBING
- VALVE COVER
- VALVE TAPPETS
- VIBRATION DAMPER
- VIBRATION DAMPER ALTERNATE CONFIGURATION
- WATER INLET CONNECTION
- WATER OUTLET CONNECTION
- WATER PUMP
- ENGINE ASSEMBLY – TIER 4(F) ENGINE
- EXHAUST SYSTEM HIGH MOUNT END PIPE
- EXHAUST SYSTEM LOW MOUNT END PIPE
- MUFFLER/CATALYTIC CONVERTER ASSEMBLY SCR
- MUFFLER/CATALYTIC CONVERTER ASSEMBLY DOC
- EXHAUST PIPE DRT
- COOLING SYSTEM
- RADIATOR ASSEMBLY
- ENGINE ATTACHING PARTS
- ENGINE MOUNTING
- ENGINE MOUNTING
- AUXILIARY PUMP MOUNTING
- CONNECTING RODS AND PISTONS
- COOLANT PLUMBING
- CAMSHAFT
- CRANKCASE BREATHER
- CRANKCASE BREATHER PLUMBING
- CYLINDER BLOCK
- CYLINDER HEAD
- DIPSTICK AND TUBE
- DRIVE BELT TENSIONER
- ENGINE COOLANT VENT
- EXHAUST MANIFOLD
- EXHAUST OUTLET
- EXHAUST RECIRCULATION
- EXHAUST RECIRCULATION AIR PLUMBING
- EXHAUST RECIRCULATION WATER PLUMBING
- FAN DRIVE AND MOUNTING
- FLYWHEEL AND MOUNTING
- FLYWHEEL HOUSING
- FRONT GEAR COVER
- HEAT SHIELD
- LIFTING BRACKETS
- OIL COOLER
- OIL FILTER, FULL FLOW
- OIL PAN
- PLUG, AUXILIARY COOLING PLUMBING
- PLUG, CAB HEATER PLUMBING
- PLUG, COOLANT HEATER STARTING AID
- REAR GEAR TRAIN ACCESSORY MOUNTING
- REAR GEAR HOUSING
- ROCKER LEVERS
- STARTER MOTOR
- THERMOSTAT
- TURBOCHARGER
- TURBOCHARGER PLUMBING
- VALVE COVER
- VIBRATION DAMPER
- WATER INLET CONNECTION
- WATER OUTLET CONNECTION
- WATER PUMP AND DRIVE BELT
- FUEL SYSTEM – TIER 3 ENGINE
- FUEL TANK
- AIR INTAKE AND FILTER
- AIR CLEANER ASSEMBLY
- FUEL LINES
- THROTTLE AND INCHING SENSORS
- PEDAL LINKAGE FORWARD/REVERSE LEVER
- PEDAL LINKAGE MONOTROL
- MONOTROL PEDAL ASSEMBLY
- AIR INTAKE CONNECTION
- AIR INTAKE MANIFOLD
- AIR TRANSFER CONNECTION
- FUEL FILTER
- FUEL FILTER AND WIRE HARNESS
- FUEL FILTER PLUMBING
- FUEL INJECTORS
- FUEL INJECTOR PLUMBING
- FUEL INLET FITTING
- FUEL PLUMBING
- FUEL PUMP
- FUEL SYSTEM – TIER 4(F) ENGINE
- FUEL TANK
- DEF SYSTEM PAGE 1 OF 2
- DEF SYSTEM PAGE 2 OF 2
- DEF TANK ASSEMBLY
- DEF SUPPLY MODULE
- AIR INTAKE AND FILTER LOW MOUNT AIR CLEANER
- AIR INTAKE AND FILTER HIGH MOUNT AIR CLEANER WITHOUT AIRCO
- AIR INTAKE AND FILTER HIGH MOUNT AIR CLEANER WITH AIRCO
- FUEL LINES
- THROTTLE AND INCHING SENSORS
- PEDAL LINKAGE FORWARD/REVERSE LEVER
- PEDAL LINKAGE MONOTROL
- MONOTROL PEDAL ASSEMBLY
- AIR INTAKE CONNECTION
- AIR INTAKE MANIFOLD
- AIR TRANSFER CONNECTION
- DRAIN PLUG, FUEL PUMP
- FUEL DRAIN PLUMBING
- FUEL FILTER
- FUEL FILTER PLUMBING
- FUEL INJECTORS
- FUEL FILTER WITH WATER SEPARATOR
- FUEL INJECTOR PLUMBING
- FUEL PUMP AND ATTACHING PARTS
- FUEL INLET FITTING
- FUEL PLUMBING
- ELECTRICAL SYSTEM
- ELECTRICAL SYSTEM TIER 3 ENGINE
- ELECTRICAL SYSTEM TIER 4(F) ENGINE
- TRANSMISSION CONTROLLER AND CAB HYDRAULIC CONTROLLER
- TERMINAL BLOCK AND ATTACHING PARTS WITHOUT BATTERY DISCONNECT SWITCH
- TERMINAL BLOCK AND ATTACHING PARTS WITHOUT BATTERY DISCONNECT SWITCH – ALTERNATE CONFIGURATION (→ S/N K019E02217S)
- TERMINAL BLOCK AND ATTACHING PARTS WITHOUT BATTERY DISCONNECT SWITCH (S/N K007E02218S →)
- BATTERY DISCONNECT SWITCH
- POWER SUPPLY POWER BOARD TIER 3 ENGINE
- POWER SUPPLY POWER BOARD TIER 4(F) ENGINE
- BATTERIES AND CABLES TIER 3 ENGINE
- BATTERIES AND CABLES TIER 4(F) ENGINE
- INDICATOR DISPLAY AND CONTROLS
- CONTROL PANEL ASSEMBLY HEATER
- CONTROL PANEL ASSEMBLY HEATER AND AIR CONDITIONER (→ S/N K019E01908R INC. 01910)
- CONTROL PANEL ASSEMBLY HEATER AND AIR CONDITIONER (S/N K019E01909R → EXC. 01910)
- CONTROL PANEL ASSEMBLY CLIMATE CONTROL
- WIRE HARNESS ARMREST
- WIRE HARNESS CAB LIGHTS
- WIRE HARNESS CAB REAR LIGHTS
- WIRE HARNESS CAB SIDE CONSOLE – PAGE 1 OF 4
- WIRE HARNESS CAB SIDE CONSOLE – PAGE 2 OF 4
- WIRE HARNESS CAB SIDE CONSOLE – PAGE 3 OF 4
- WIRE HARNESS CAB SIDE CONSOLE – PAGE 4 OF 4
- RELAYS AND FUSES
- WIRE HARNESS CAB TILT
- WIRE HARNESS CAB UNDERFLOOR
- WIRE HARNESS CHASSIS
- WIRE HARNESS CLOSED CAB
- WIRE HARNESS DEF SYSTEM – TIER 4(F) ENGINE
- WIRE HARNESS ECH ADAPTER
- WIRE HARNESS ECM ADAPTER – TIER 3 ENGINE
- WIRE HARNESS ECM/EAS – TIER 4(F) ENGINE (→ 7/2016)
- WIRE HARNESS ECM/EAS – TIER 4(F) ENGINE (7/2016 →)
- WIRE HARNESS ECO/ELO-HIP
- WIRE HARNESS FRONT END
- WIRE HARNESS FRONT LIGHTS
- WIRE HARNESS HOOD SPINE – TIER 3 ENGINE
- WIRE HARNESS HOOD SPINE – TIER 4(F) ENGINE
- WIRE HARNESS MAST LIGHT EXTENSION – 5310 MM LIFT HEIGHT AND HIGHER
- WIRE HARNESS MAST WORK LIGHT
- WIRE HARNESS OPEN CAB
- WIRE HARNESS POWERTRAIN
- WIRE HARNESS REAR WIPER EXTENSION – CLOSED CAB
- WIRE HARNESS SIDE AND INDICATOR LIGHTS
- WIRE HARNESS STEER COLUMN
- WIRE HARNESS STROBE LIGHT
- WIRE HARNESS TAIL LIGHTS (→ S/N K019E01502P)
- WIRE HARNESS TAIL LIGHTS (S/N K019E01503P →)
- WIRE HARNESS TELEMETRY – FM1A – FORK LIFT TRUCK
- WIRE HARNESS TELEMETRY – FM1A – TRUCKS WITH CONTAINER HANDLER
- WIRE HARNESS TELEMETRY – FM1B, PAGE 1 OF 2
- WIRE HARNESS TELEMETRY – FM1B, PAGE 2 OF 2
- WIRE HARNESS TELEMETRY – FM2A
- WIRE HARNESS WASH PUMPS – CLOSED CAB
- WIRE HARNESS AND SWITCH ASSEMBLY MONOTROL PEDAL
- LIGHTS FRONT FENDER
- LIGHTS DIRECTIONAL AND MARKER
- LIGHTS DIRECTIONAL AND MARKER – LED
- LIGHTS REAR WORK
- LIGHTS MAST WORK
- LIGHTS STROBE, WITH CONDENSER
- LIGHTS STROBE, WITHOUT CONDENSER
- LIGHTS TAIL (→ S/N K019E01502P)
- LIGHTS TAIL (S/N K019E01503P →)
- LIGHTS WORK
- ALTERNATOR AND MOUNTING TIER 3 AND 4(F) ENGINES
- ENGINE CONTROL MODULE TIER 3 ENGINE
- ENGINE CONTROL MODULE TIER 4(F) ENGINE
- ENGINE GROUND TIER 4(F) ENGINE
- ETR CONTROL MODULE WIRE HARNESS TIER 3 ENGINE
- ETR CONTROL MODULE WIRE HARNESS TIER 4(F) ENGINE
- LIGHT SWITCHES
- BUZZER ASSEMBLY TELEMETRY
- WIRE HARNESS TWIST MODULE
- TRANSMISSION
- UNIVERSAL SHAFT
- CONVERTER
- DRIVE TRAIN
- PRESSURE OIL PUMP
- POWER TAKE-OFF
- ENGINE CONNECTION
- TRANSMISSION HOUSING PAGE 1 OF 2
- TRANSMISSION HOUSING PAGE 2 OF 2
- PRESSURE FILTER
- TRANSMISSION SENSORS
- OIL DIPSTICK
- FIRST SPEED CLUTCH ASSEMBLY
- SECOND SPEED CLUTCH ASSEMBLY
- THIRD SPEED CLUTCH ASSEMBLY
- FORWARD CLUTCH ASSEMBLY
- REVERSE CLUTCH ASSEMBLY
- OUTPUT FLANGE
- CONTROL VALVE PAGE 1 OF 4
- CONTROL VALVE PAGE 2 OF 4
- CONTROL VALVE PAGE 3 OF 4
- CONTROL VALVE PAGE 4 OF 4
- PRESSURE REGULATOR
- TRANSMISSION HOSES AND ATTACHING PARTS
- Drive Axle
- DRIVE TIRES AND WHEELS MICHELIN XZM
- DRIVE TIRES AND WHEELS TRELLEBORG T-900
- DRIVE TIRES AND WHEELS TRELLEBORG – SOLID TIRE
- DRIVE TIRES AND WHEELS TRELLEBORG TR900
- AXLE HOUSING AND ATTACHING PARTS
- DIFFERENTIAL AND CARRIER
- DIFFERENTIAL AND CARRIER ASSEMBLY
- HUB AND SHAFT ASSEMBLY
- HUB AND SHAFT ASSEMBLY
- PARK BRAKE ASSEMBLY
- PARK BRAKE ASSEMBLY
- BRAKE ASSEMBLY
- STEERING SYSTEM
- STEER TIRES AND WHEELS MICHELIN XZM
- STEER TIRES AND WHEELS TRELLEBORG T-900
- STEER TIRES AND WHEELS TRELLEBORG – SOLID TIRE
- STEER TIRES AND WHEELS TRELLEBORG TR900
- STEER AXLE AND HOSES
- STEER CONTROL UNIT AND ATTACHING PARTS
- STEER CONTROL UNIT AND ATTACHING STEER HOSES
- STEER COLUMN ASSEMBLY
- STEERING COLUMN
- STEER AXLE ASSEMBLY
- STEER CYLINDER
- BRAKE SYSTEM
- BRAKE MANIFOLD AND ATTACHING HOSES
- BRAKE ACCUMULATOR AND ATTACHING PARTS
- HIGH PRESSURE HYDRAULIC FILTER AND GEAR PUMP AND ATTACHING BRAKE HOSES
- BRAKE VALVE AND ATTACHING HOSES
- HYDRAULIC CONTROL VALVE AND ATTACHING BRAKE HOSES
- BRAKE VALVE AND ATTACHING PARTS
- BRAKE PEDAL LINKAGE
- BRAKE PEDAL ASSEMBLY
- HYDRAULIC SYSTEM
- TILT CYLINDER ATTACHING PARTS
- TILT CYLINDER ASSEMBLY
- HYDRAULIC TANK ASSEMBLY
- HYDRAULIC TANK AND ATTACHING HYDRAULIC HOSES
- HYDRAULIC LEVERS TWO-LEVER CONTROL PANEL
- HYDRAULIC LEVERS THREE-LEVER CONTROL PANEL
- HYDRAULIC LEVERS FOUR-LEVER CONTROL PANEL – WITH CLAMPING
- HYDRAULIC LEVERS FOUR-LEVER CONTROL PANEL – WITHOUT CLAMPING
- HYDRAULIC CONTROLS JOYSTICK
- JOYSTICK ASSEMBLY FLT
- JOYSTICK ASSEMBLY ECH
- HYDRAULIC CONTROL VALVE AND ATTACHING PARTS PAGE 1 OF 2
- HYDRAULIC CONTROL VALVE AND ATTACHING PARTS PAGE 2 OF 2
- HYDRAULIC CONTROL VALVE ASSEMBLY
- HYDRAULIC CONTROL VALVE LIFT SECTION, LH
- HYDRAULIC CONTROL VALVE LIFT SECTION, RH
- HYDRAULIC CONTROL VALVE AUXILIARY SECTION
- HYDRAULIC CONTROL VALVE HIC, BRAKE/ACCUMULATOR
- HYDRAULIC CONTROL VALVE TILT SECTION
- HYDRAULIC CONTROL VALVE HIC, MID-INLET
- HYDRAULIC PUMPS AND ATTACHING PARTS
- LIFT ACCUMULATOR AND ATTACHING PARTS
- HYDRAULIC SUPPLY AND RETURN FOUR FUNCTION
- HYDRAULIC SUPPLY AND RETURN FOUR FUNCTION – WITH ACCUMULATOR OPTION
- HYDRAULIC SUPPLY AND RETURN FOUR, FIVE, AND SIX FUNCTION – TWO STAGE
- HYDRAULIC SUPPLY AND RETURN THREE FUNCTION – DUAL FUNCTION SIDE-SHIFT FORK POSITIONER, TWO STAGE
- HYDRAULIC SUPPLY AND RETURN FOUR, FIVE, AND SIX FUNCTION – THREE STAGE
- HYDRAULIC SUPPLY AND RETURN THREE FUNCTION – DUAL FUNCTION SIDE-SHIFT FORK POSITIONER, THREE STAGE
- HYDRAULIC SUPPLY AND RETURN CONTAINER HANDLER
- Mast-Two Stage Limited Free-Lift
- MAST INSTALLATION
- OUTER MAST
- INNER MAST
- LIFT
- LIFT CYLINDER EMPTY CONTAINER HANDLER
- LIFT CYLINDER NON-EMPTY CONTAINER HANDLER
- Mast-Three Stage Full Free-Lift
- MAST INSTALLATION
- MAST ASSEMBLY PAGE 1 OF 3
- MAST ASSEMBLY PAGE 2 OF 3
- MAST ASSEMBLY PAGE 3 OF 3
- MAIN LIFT CYLINDER
- FREE-LIFT CYLINDER
- Attachments
- LOAD BACKREST
- CARRIAGE TWO STAGE-STANDARD – WITHOUT FORK POSITIONER, 3-FUNCTION
- CARRIAGE TWO STAGE-STANDARD – WITHOUT FORK POSITIONER, 4, 5, 6-FUNCTION
- CARRIAGE TWO STAGE-STANDARD – WITH INDIVIDUAL FORK POSITIONER, 4, 5, 6-FUNCTION
- CARRIAGE TWO STAGE-STANDARD – WITH SIMULTANEOUS FORK POSITIONER, 4, 5, 6-FUNCTION
- CARRIAGE ASSEMBLY TWO STAGE-STANDARD
- CARRIAGE TWO STAGE- ISS – WITHOUT FORK POSITIONER, 3-FUNCTION
- CARRIAGE TWO STAGE- ISS – WITHOUT FORK POSITIONER, 4, 5, 6-FUNCTION
- CARRIAGE TWO STAGE- ISS – WITH INDIVIDUAL FORK POSITIONER, 4, 5, 6-FUNCTION
- CARRIAGE TWO STAGE- ISS – WITH SIMULTANEOUS FORK POSITIONER, 4, 5, 6-FUNCTION
- CARRIAGE ASSEMBLY TWO STAGE- ISS
- CARRIAGE TWO STAGE- DUAL FUNCTION – WITH FORK POSITIONER
- DIRECTIONAL CONTROL VALVE ASSEMBLY TWO-SECTION
- DIRECTIONAL CONTROL VALVE ASSEMBLY THREE-SECTION
- DIRECTIONAL CONTROL VALVE ASSEMBLY FOUR-SECTION
- FORK POSITIONING CYLINDER
- SIDE-SHIFT CYLINDER DUAL FUNCTION WITH FORK POSITIONER
- CARRIAGE THREE STAGE-ISS – WITHOUT FORK POSITIONER
- CARRIAGE THREE STAGE-ISS – WITH INDIVIDUAL FORK POSITIONER
- CARRIAGE THREE STAGE-ISS – WITH SIMULTANEOUS FORK POSITIONER
- SIDE-SHIFT CYLINDER THREE STAGE FULL FREE-LIFT
- CARRIAGE THREE STAGE-STANDARD
- DIRECTIONAL CONTROL VALVE ASSEMBLY
- FLOW DIVIDER MANIFOLD
- SIDE-SHIFT CYLINDER TWO STAGE LIMITED FREE-LIFT
- FORKS
- HEADER HOSE TWO STAGE – LIMITED FREE-LIFT
- HEADER HOSE THREE STAGE FULL FREE-LIFT
- OPTIONS
- MAP READING LIGHT CLOSED CAB
- TRAINING SEAT CLOSED CAB
- RAIN TOP OPEN CAB
- REAR LOCKING CONSOLE CLOSED CAB
- CAB RECIRCULATING FAN CLOSED CAB
- DC-DC CONVERTER AND ATTACHING PARTS
- SECOND 12V SOCKET OPTION
- LIFTING EYES
- EXTERIOR MIRRORS
- WIRE MESH ROOF PROTECTION
- AIR DUCT CLOSED CAB WITH AIRCO OR CLIMATE CONTROL
- HEATED TOP WINDOW CLOSED CAB
- CONTROLLER SEAT BELT SEQUENCER
- EMPTY SEAT ENGINE SHUTDOWN
- MUD FLAPS FRONT
- MUD FLAPS REAR
- AIR DEFLECTOR PLATE TIER 3 ENGINE
- ENGINE BLOCK HEATER QSB 6.7 – 120V
- ENGINE BLOCK HEATER QSB 6.7 – 240V
- ENGINE BLOCK HEATER ASSEMBLY 120V
- ENGINE BLOCK HEATER ASSEMBLY 240V
- BACK-UP ALARM
- BACK-UP ALARM ALTERNATE CONFIGURATION
- ACCESSORY MOUNTING POST
- TELEMETRY MONITORING
- TELEMETRY INTERLOCK
- TELEMETRY HYSTER CHECKLIST
- TELEMETRY CARD READER
- DIAGNOSTICS INTERFACE CABLE
- CAB SOUND AND THERMAL INSULATION
- RADIO CONSOLE AND ATTACHING PARTS
- FIELD SERVICE KITS
- CONVERSION KITS
- ADD-ON OPTION KITS
- TELEMETRY KITS
- NUMERICAL INDEX
Hyster
